YANGHOPES 6Eye Moving Head LED Light

Introduction

Thank you for choosing the YANGHOPES 6Eye Moving Head LED Light. This professional stage lighting fixture is designed to deliver dynamic and vibrant lighting effects for various events, including parties, weddings, discos, and nightclubs. Featuring RGBW 4-in-1 LEDs, beam, wash, and zoom effects, along with DMX512 and sound-activated control, this light offers versatile performance and easy operation. Please read this manual thoroughly before operation to ensure proper use and maintenance.

Safety Information

To ensure safe operation and prolong the lifespan of your device, please observe the following safety precautions:

• Always connect the device to a grounded power outlet.
• Do not expose the device to rain or moisture.
• Ensure proper ventilation around the unit to prevent overheating.
• Avoid direct eye exposure to the light source.
• Disconnect power before cleaning or servicing the unit.
• Only qualified personnel should perform repairs.
• Keep the device away from flammable materials.

What's in the Box

Upon unpacking, please verify that all components listed below are present and in good condition:

• 1 X Party DJ Disco LIGHT
• 1 X Power Cord
• 1 X Stage Light Connection Protocol Instruction Manual (this document)
• 1 X Sizes of Mounting Brackets

Image: The product package contents, showing the main light unit, power cable, instruction manual, and mounting hardware.

Product Features

The YANGHOPES 6Eye Moving Head LED Light is equipped with advanced features for dynamic stage illumination:

• Light Color & Effects: RGBW 4-in-1 LEDs (Red, Green, Blue, White) with mixed color effects. Features Beam, Wash, and Zoom functions for versatile stage effects.
• Strobe: Electronic strobe with a rate of 1-20 times per second. Color changing and dimming capabilities are integrated.
• Control Interface: 4-digit numeric keypad and liquid crystal display for easy navigation and settings adjustment.
• Movement: Large-angle pan (540°) and tilt (180°) movement for dynamic beam direction changes.
• Control Modes: Supports DMX512, Auto, Sound Control, Stand Alone, and Master/Slave modes.
• Heat Dissipation: Intelligent heat dissipation design ensures effective cooling and prolongs the light's service life.
• Construction: Made from aviation aluminum alloy and engineering plastic, ensuring durability and high-temperature resistance.

Image: A detailed front view of the 6Eye Moving Head LED Light, showcasing its compact design and LED beam aperture.

Image: Close-up views highlighting the high-quality LED lamp beads, excellent painting process, sturdy metal sealed interface, adjustable angle, and the light's small size and light weight.

Specifications

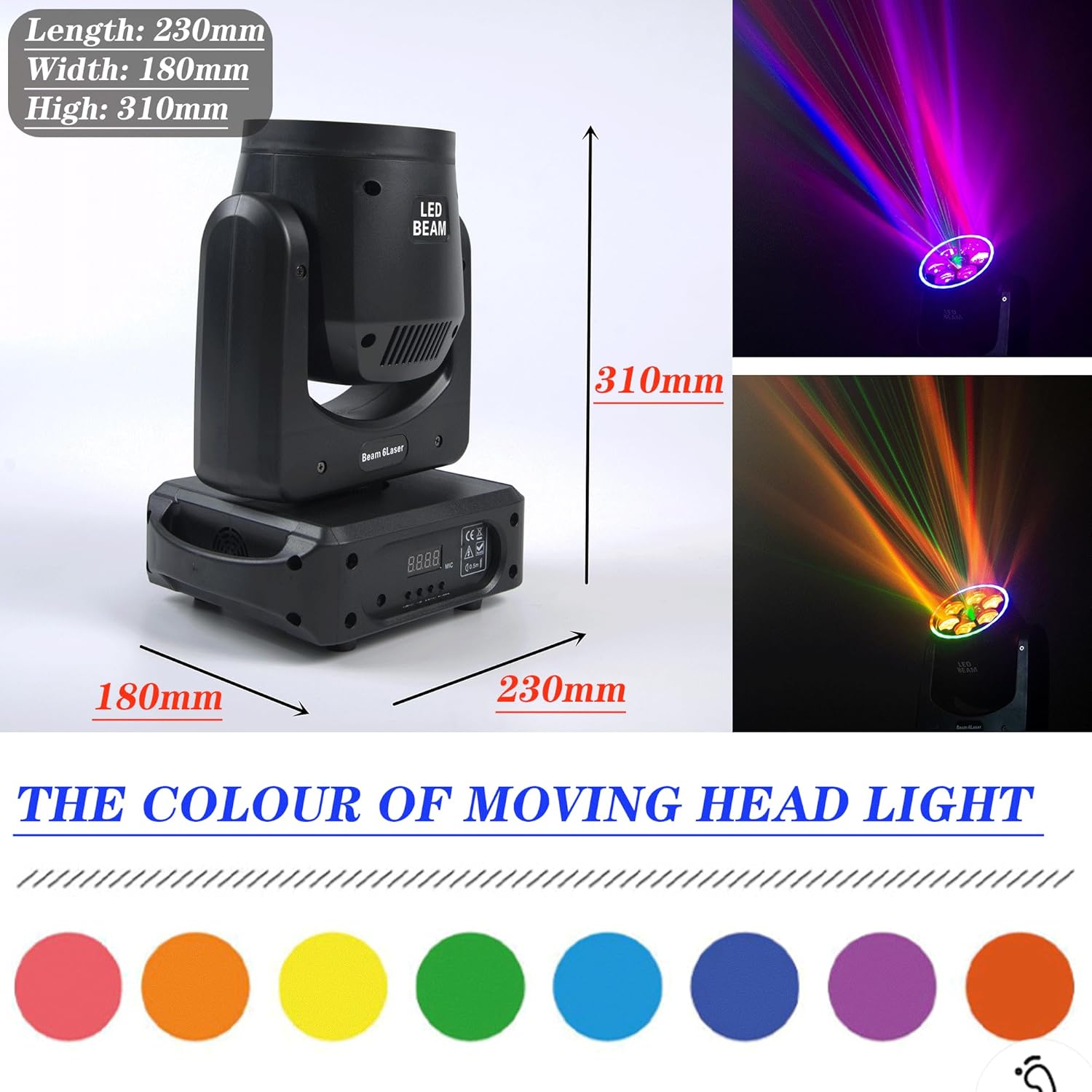

Image: Product dimensions (Length: 230mm, Width: 180mm, Height: 310mm) and a visual representation of the various colors the light can produce.

Setup

Mounting

The 6Eye Moving Head LED Light comes with mounting brackets for flexible installation. It can be installed on ceilings, walls, floors, or desks. Ensure the mounting surface is stable and capable of supporting the light's weight. Use appropriate hardware for secure installation.

Power Connection

Connect the provided power cord to the power input on the rear of the unit and then to a standard 120V AC grounded power outlet.

DMX Connection (Optional)

For DMX control, connect a DMX cable from your DMX controller's output to the DMX IN port on the light. For multiple units, daisy-chain them by connecting the DMX OUT of the first unit to the DMX IN of the next.

Image: Detailed views of the light's rear panel, showing the DMX IN/OUT ports, power input, fuse, and power switch, along with the base and mounting points.

Operating Modes

The 6Eye Moving Head LED Light offers several operating modes to suit various applications:

• DMX512 Control: Connect to a DMX controller to precisely manage all light functions, including color, movement, strobe, and dimming. Refer to the DMX channel chart (usually provided in a separate protocol manual or on the product display) for specific channel assignments.
• Auto Mode: The light will cycle through pre-programmed patterns and effects automatically. This mode is ideal for quick setup without external control.
• Sound Control Mode: The light's effects will react to ambient sound or music, creating dynamic visual displays synchronized with audio. The built-in microphone detects sound levels.
• Stand Alone Mode: The light operates independently using its internal programs.
• Master/Slave Mode: Link multiple units together. One unit acts as the "Master" controlling the others ("Slave" units), ensuring synchronized lighting effects across all connected fixtures.

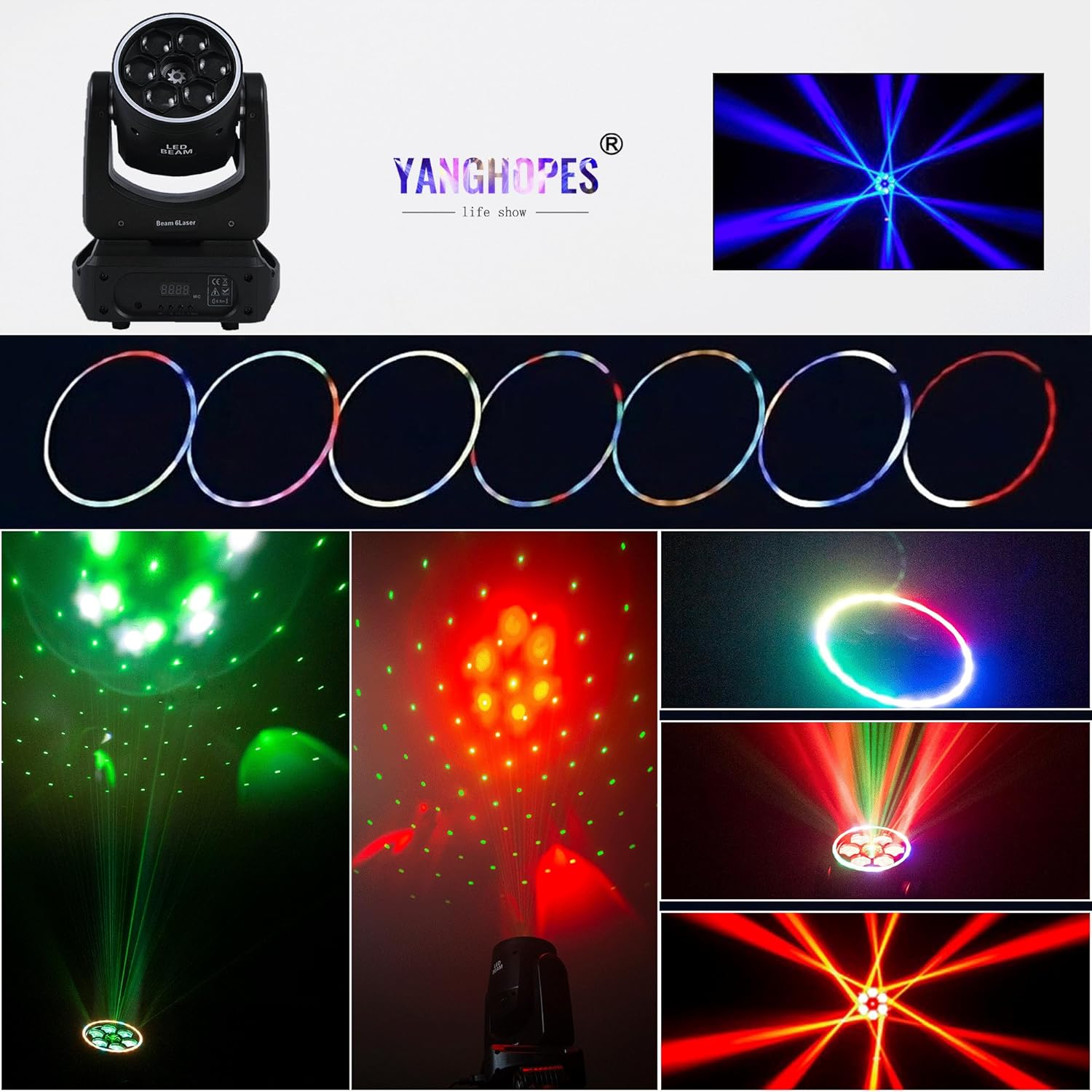

Image: A collage demonstrating various lighting effects, including multi-color beams, wash effects, and unique aperture patterns, showcasing the light's versatility.

Image: The light producing vibrant green beam effects, highlighting its ability to create sharp and defined light patterns.

Maintenance

Regular maintenance ensures optimal performance and longevity of your light.

• Cleaning: Periodically clean the lens and exterior casing with a soft, lint-free cloth. Do not use abrasive cleaners or solvents.
• Ventilation: Ensure ventilation openings are clear of dust and debris.
• Inspection: Regularly check power cables and DMX connections for any signs of damage.
• Storage: When not in use, store the light in a dry, dust-free environment.

Troubleshooting

If you encounter issues with your 6Eye Moving Head LED Light, refer to the following common problems and solutions:

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact YANGHOPES customer support.

Warranty and Support

YANGHOPES is committed to providing high-quality products and excellent customer service. For any questions, technical assistance, or warranty inquiries, please contact us through the official YANGHOPES store or customer service channels. We are dedicated to providing the most suitable solution and ensuring customer satisfaction.
