1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your HOSTACK Full Upholstered LED Bed Frame with Storage Drawers. Please read this manual thoroughly before assembly and use to ensure proper function and safety. Keep this manual for future reference.
Image 1.1: Fully assembled HOSTACK Full Upholstered LED Bed Frame with Storage Drawers, featuring a pink velvet finish, lotus-shaped headboard with LED lighting, and two pull-out storage drawers.
2. Safety Information
Please observe the following safety guidelines to prevent injury or damage to the product:
- Do not exceed the maximum weight capacity of 800 lbs. Exceeding this limit can cause the bed frame to collapse, leading to potential injury.
- Ensure all bolts and screws are securely tightened during assembly and periodically check for tightness during use.
- Keep small parts away from children during assembly to prevent choking hazards.
- Assemble the bed frame on a soft, clean surface to avoid scratching the product or flooring.
- Do not stand or jump on the bed frame.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. The package should include:
- Adjustable Headboard (Lotus Shape Design)
- Bed Frame Rails
- Wooden Slats
- Storage Drawers (2 units)
- Hardware Pack (screws, bolts, Allen wrench, etc.)
- LED Light Strip and Remote Control
- Instruction Manual
If any parts are missing or damaged, please contact customer support immediately.
4. Setup and Assembly
Assembly is required for this bed frame. It is recommended that two adults assemble the product. Estimated assembly time is approximately 40 minutes.
4.1 Tools Required
- Included Allen Wrench
- Phillips Head Screwdriver (not included, optional)
4.2 Assembly Steps
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a soft, clean surface. Identify each part using the provided parts list in your separate assembly guide.
- Assemble Headboard: Attach the headboard components as per the detailed instructions in your assembly guide. Ensure the adjustable headboard mechanism is correctly installed. The headboard can be set to two heights: 45 inches or 47 inches, to accommodate mattresses between 10-12 inches thick.
- Attach Side Rails: Connect the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure.
- Install Wooden Slats: Place the wooden slats across the bed frame. The slats are designed for easy installation and include mute bars to reduce noise from metal contact, ensuring a quiet sleep environment.
- Insert Storage Drawers: The two large slide-out drawers are equipped with bottom wheels for easy movement. Insert them into the designated spaces under the footboard. The drawers feature Velcro for fastening to prevent them from sliding out unintentionally.
- Install LED Lighting: Carefully attach the LED light strips around the headboard as indicated in the assembly guide. Connect the power supply and remote control receiver.
Image 4.1: Visual representation of easy slat assembly and noise-free mute bar feature, designed for stability and a peaceful sleep environment.
5. Operating Instructions
5.1 LED Light Operation
The integrated LED light strips around the headboard can be controlled via the included remote control or a compatible mobile application.
- Power On/Off: Use the power button on the remote control to turn the LED lights on or off.
- Color Adjustment: Select from multiple colors using the color palette on the remote or app.
- Brightness Control: Adjust the light intensity to your preference.
- Mode Selection: Choose from various lighting modes, including timing functions, music synchronization, and microphone mode (if supported by the app).

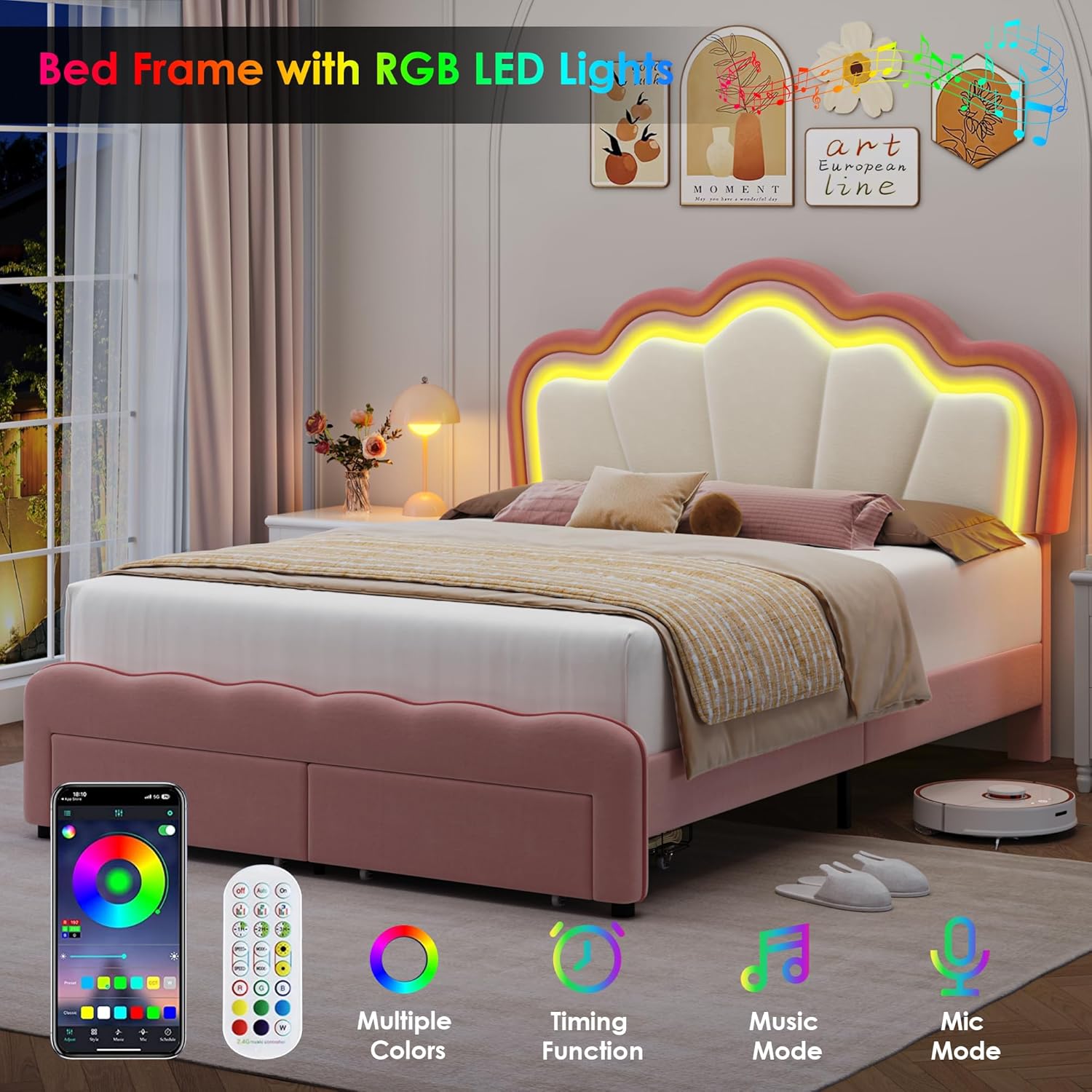

Image 5.1: The bed frame featuring RGB LED lights around the headboard, controllable via a remote or smartphone app, offering multiple colors, timing functions, music mode, and mic mode.
Image 5.2: A smartphone screen displaying the control interface for the LED lights, showing options for multiple colors, timing functions, music mode, and microphone mode.
5.2 Storage Drawers
The two large slide-out drawers provide ample under-bed storage. To use them:
- Gently pull the drawers outward to access storage space.
- Push the drawers inward until they are flush with the footboard. The Velcro fastening helps keep them in place.
Image 5.3: Two large slide-out storage drawers, shown partially open and filled with folded bedding, demonstrating the ample storage capacity and the elegant wave design of the footboard.
6. Maintenance
6.1 Cleaning Instructions
- For the velvet upholstery, wipe with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the fabric.
- For the LED lights, gently wipe with a dry, soft cloth to remove dust.
- Regularly vacuum the bed frame to remove dust and debris from the upholstery and under-bed area.
6.2 General Care
- Periodically check all connections and hardware to ensure they remain tight. Tighten if necessary.
- Avoid prolonged exposure to direct sunlight to prevent fading of the upholstery.
- Keep the bed frame away from excessive moisture or humidity.
7. Troubleshooting
If you encounter any issues with your HOSTACK bed frame, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose connections or uneven assembly. | Check and tighten all bolts and screws. Ensure the bed frame is on a level surface. |
| LED lights are not working. | Power connection issue, remote battery dead, or light strip damage. | Verify the power adapter is securely plugged in. Check the remote control battery. Inspect the LED strip for visible damage. |
| Drawers are difficult to slide. | Obstruction, wheels not aligned, or excessive weight. | Remove any items obstructing the drawer path. Check if the wheels are properly seated. Reduce the weight inside the drawers. |
| Squeaking noises from the bed frame. | Loose connections or friction between components. | Tighten all hardware. Ensure the mattress is properly seated. The wooden slats include mute bars to minimize noise. |
If the problem persists after attempting these solutions, please contact HOSTACK customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | HOSTACK |
| Model | B0D3QLJNR5 |
| Size | Full |
| Color | Pink |
| Product Dimensions (L x W x H) | 83.4" x 56.3" x 47.2" |
| Adjustable Headboard Height | 45.2" - 47.2" |
| Drawer Size (L x W x H) | 22" x 19.7" x 5.1" |
| Material | Velvet, Metal, Wood |
| Weight Limit | 800 Pounds |
| Special Features | Lotus Headboard & Footboard Design, Integrated RGB LED Lights, 2 Storage Drawers, Wooden Slats Support |
| Assembly Required | Yes |
| Product Care Instructions | Wipe with Damp Cloth |

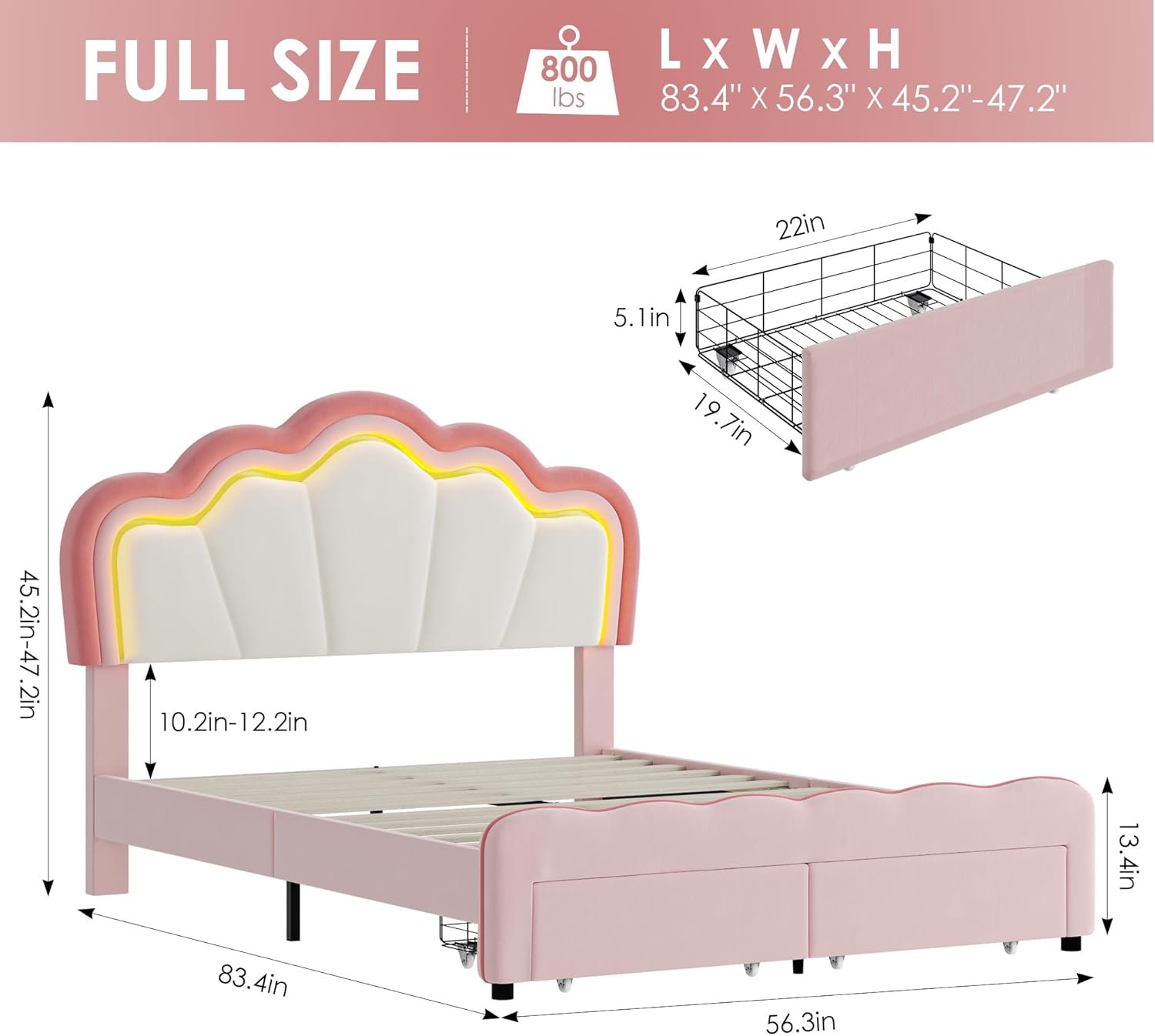

Image 8.1: Detailed dimensions of the HOSTACK Full Upholstered LED Bed Frame, including overall length, width, height, and individual drawer measurements.
9. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact the retailer. HOSTACK is committed to providing quality products and customer satisfaction.
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact HOSTACK customer support through the seller contact option on the platform where you made your purchase. Our support team is available to assist you.
