SOFTSEA Twin Size Loft Bed with Ladder and Slide

1. Introduction

Thank you for purchasing the SOFTSEA Twin Size Loft Bed with Ladder and Slide. This manual provides essential instructions for the safe assembly, operation, and maintenance of your new bed. Please read this manual thoroughly before beginning assembly and retain it for future reference.

Image 1.1: Fully assembled SOFTSEA Twin Size Loft Bed with Ladder and Slide, featuring a blackboard and light strips.

2. Safety Information

Adherence to these safety guidelines is crucial for preventing injury and ensuring the longevity of the product.

• Adult Assembly Required: This product must be assembled by adults.
• Weight Capacity: Do not exceed the maximum weight capacity of 220 LBS.
• Mattress Thickness: Use a mattress with a maximum thickness of 6 inches.
• Age Recommendation: Recommended for users aged 6 years and older.
• Secure Placement: Ensure the bed is placed on a flat, stable surface.
• Regular Inspection: Periodically check all bolts, screws, and connections to ensure they are tight and secure. Retighten as necessary.
• Ladder Safety: Always use the ladder for accessing the loft bed. Do not jump onto or off the bed.
• Slide Safety: Ensure the area around the slide is clear before use. Only one person should use the slide at a time.
• No Horseplay: Prohibit horseplay on or under the bed.
• Ventilation: Ensure adequate ventilation around the bed, especially if using the light strip for extended periods.

3. Parts List

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Bed Frame Components (Plywood, MDF, Pinewood)
• Headboard
• Slats (14 pieces)
• Ladder
• Slide
• Blackboard Panel
• Light Strip
• Assembly Hardware (screws, bolts, nuts, etc.)
• Assembly Tools (included)

4. Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to have two adults for assembly.

1. Unpack and Identify: Carefully unpack all components and hardware. Refer to the included parts diagram to identify each piece.
2. Assemble Main Frame: Begin by connecting the main bed frame components using the provided hardware. Ensure all connections are snug but do not overtighten until the frame is fully aligned.
3. Install Slats: Place the 14 bed slats across the frame, securing them according to the instructions. These provide support for the mattress.
4. Attach Ladder: Securely attach the ladder to the designated side of the bed frame. Verify it is stable and can support weight.
5. Attach Slide: Securely attach the slide to the opposite side of the bed frame. Ensure all connections are firm and the slide is stable.
6. Install Blackboard: Insert the blackboard panel into its designated slot on the bed frame.
7. Install Light Strip: Carefully attach the light strip to the roof structure of the bed frame as indicated in the detailed assembly guide.
8. Final Tightening: Once all components are in place and aligned, fully tighten all bolts and screws. Do not overtighten.
9. Final Check: Before use, perform a thorough check to ensure all parts are correctly assembled and secure.

Image 4.1: View of the loft bed structure, highlighting the integrated slide and ladder.

5. Operating Instructions

This section details the proper use of your loft bed's features.

5.1 Using the Loft Bed

• Place a twin-size mattress (maximum 6 inches thick) on the bed slats.
• Always use the ladder to access the loft bed.
• Ensure the area beneath the bed is clear for safe movement.

5.2 Using the Ladder

• Ascend and descend the ladder facing the rungs.
• Maintain a firm grip on the ladder rails.
• Only one person should use the ladder at a time.

5.3 Using the Slide

• Ensure the landing area at the bottom of the slide is clear of obstructions.
• Slide down feet first, in a seated position.
• Only one person should use the slide at a time.

5.4 Using the Blackboard

• Use standard chalk for writing and drawing on the blackboard.
• Clean with a damp cloth or blackboard eraser.

Image 5.1: Detail of the integrated blackboard and the ladder for bed access.

5.5 Using the Light Strip

• Connect the light strip to a suitable power source as per the specific light strip instructions (if provided separately).
• Operate the lights using the integrated switch or remote control (if applicable).

Image 5.2: Detail of the decorative light strip along the roof structure of the bed.

6. Maintenance

Proper maintenance ensures the longevity and safety of your loft bed.

• Cleaning: Wipe the wood surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. For the blackboard, use a damp cloth or eraser.
• Hardware Check: Periodically (e.g., monthly) inspect all bolts, screws, and connections. Tighten any loose hardware to maintain structural integrity.
• Light Strip Care: Ensure the light strip wiring is not pinched or damaged. If any lights fail, refer to the light strip's specific instructions for replacement or troubleshooting.
• Environmental Conditions: Avoid placing the bed in direct sunlight or near heat sources, which can cause wood to warp or fade. Maintain a stable room temperature and humidity.

7. Troubleshooting

This section addresses common issues you might encounter.

• Squeaking Noises: If the bed squeaks, check all assembly hardware and tighten any loose bolts or screws. Ensure the bed is on a level surface.
• Wobbly Frame: A wobbly frame usually indicates loose connections. Re-check and tighten all bolts and screws. Ensure the bed is assembled correctly according to the instructions.
• Light Strip Not Working: Check the power connection and ensure the light strip is properly plugged in. Verify the power outlet is functional. If the light strip has a separate switch or remote, ensure it is turned on and batteries are working.
• Difficulty with Slide/Ladder: Ensure the slide and ladder are securely attached and free from obstructions. Verify all mounting hardware is tight.

If you encounter issues not listed here or require further assistance, please contact customer support.

8. Specifications

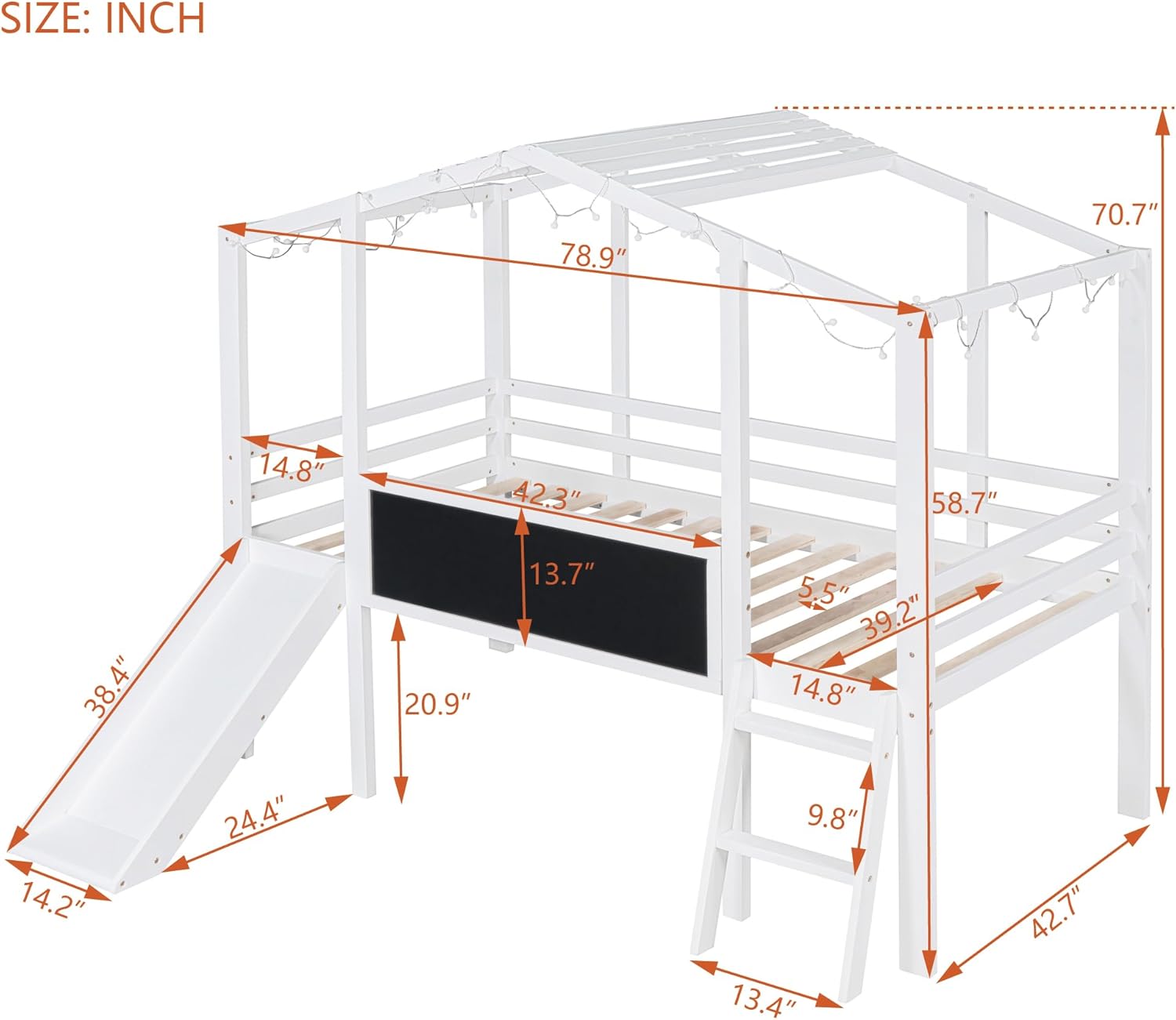

Image 8.1: Dimensional drawing of the loft bed, showing length, width, and height measurements.

9. Warranty and Support

For warranty information, missing parts, or technical support, please contact the manufacturer or your retailer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: SOFTSEA

Contact Information: Please refer to your purchase documentation or the retailer's website for the most current customer service contact details.
