Modern Forms Zenith LED Flush Mount User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Modern Forms Zenith 15-inch LED Round Flush Mount fixture. This diffused, low-profile fixture integrates advanced LED technology, offering flexible color temperature selection and an emergency battery backup option for enhanced functionality.

Please read this manual thoroughly before installation and retain it for future reference.

A front view of the Modern Forms Zenith 15-inch LED Round Flush Mount, showcasing its sleek, low-profile design and diffused light cover.

Safety Information

To reduce the risk of death, personal injury, or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards, please read all warnings and instructions included with and on the fixture box and all fixture labels.

• Always turn off power at the circuit breaker or fuse box before wiring the fixture.
• Consult a qualified electrician if you are not familiar with electrical wiring.
• Ensure all electrical connections are made in accordance with local codes, ordinances, and the National Electric Code (NEC).
• Do not install damaged product. Inspect the fixture for damage during shipping.
• Wear safety glasses and gloves during installation.
• This fixture is rated for Damp Locations. Do not install in areas with direct water exposure.

What's Included

Your Modern Forms Zenith fixture package includes the following components:

• Complete Light Fixture
• Integrated LED Light Source
• Mounting Hardware
• Installation Instructions (this manual)

Setup and Installation

Pre-Installation

1. Turn off power at the circuit breaker or fuse box.
2. Ensure the mounting surface is clean, dry, and structurally sound.
3. Gather necessary tools: screwdriver, wire strippers, electrical tape, safety glasses.

Mounting Instructions

The Zenith fixture can be mounted on a wall or ceiling and is designed to fit on a standard pancake junction box.

1. Attach the mounting bracket to the junction box using the provided screws. Ensure it is securely fastened.
2. Carefully pull the electrical wires from the junction box through the center hole of the mounting bracket.

Wiring

This fixture features a Universal Input Voltage Driver (120V-240V-277V).

1. Connect the fixture's black wire to the hot (black) wire from the junction box.
2. Connect the fixture's white wire to the neutral (white) wire from the junction box.
3. Connect the fixture's ground wire to the house ground wire (green or bare copper).
4. Secure all connections with wire nuts and electrical tape. Carefully tuck all wires into the junction box.

Color Temperature (CCT) Selection

The Zenith fixture includes a CCT selection switch located inside the canopy, accessible during installation. This allows you to choose from five color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K.

1. Before securing the fixture to the mounting bracket, locate the CCT selection switch on the back of the fixture.
2. Slide the switch to your desired color temperature setting.
3. Once the CCT is set, align the fixture with the mounting bracket and secure it in place using the provided hardware.

An illustrative diagram demonstrating the five selectable color temperature options (2700K, 3000K, 3500K, 4000K, 5000K) available on the Modern Forms Zenith fixture, adjustable via an internal switch.

Operation

Powering On

After installation is complete, restore power at the circuit breaker. The fixture will illuminate according to the selected CCT setting.

Dimming

The Modern Forms Zenith fixture is designed for smooth and continuous dimming. It is compatible with electronic low voltage (ELV) or TRIAC dimmers. Ensure your dimmer switch is compatible with LED lighting for optimal performance.

Emergency Battery Backup (EM Versions Only)

For models with the -EM designation, an integrated emergency battery backup provides up to 90 minutes of illumination during a power outage. The battery charges automatically when the fixture is connected to power. No user intervention is required for its operation during an outage.

A graphic highlighting the emergency battery backup feature of the Modern Forms Zenith fixture, indicating its ability to provide power during outages.

Maintenance

The Modern Forms Zenith fixture is designed for long-lasting, maintenance-free operation. However, periodic cleaning and inspection are recommended.

• Cleaning: Turn off power to the fixture before cleaning. Use a soft, dry, or slightly damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners, solvents, or cleaners containing alcohol, as these can damage the finish or optical components.
• Inspection: Periodically check for any loose wiring or mounting hardware. Ensure the fixture is securely attached.
• The integrated LED light source is designed for a long lifespan and is not user-replaceable.

Troubleshooting

If you experience issues with your Modern Forms Zenith fixture, refer to the table below for common problems and solutions.

Specifications

A technical drawing of the Modern Forms Zenith FM-5415 flush mount fixture, showing its 15-inch diameter and 3-inch height, with a note indicating the emergency module is only in EM versions.

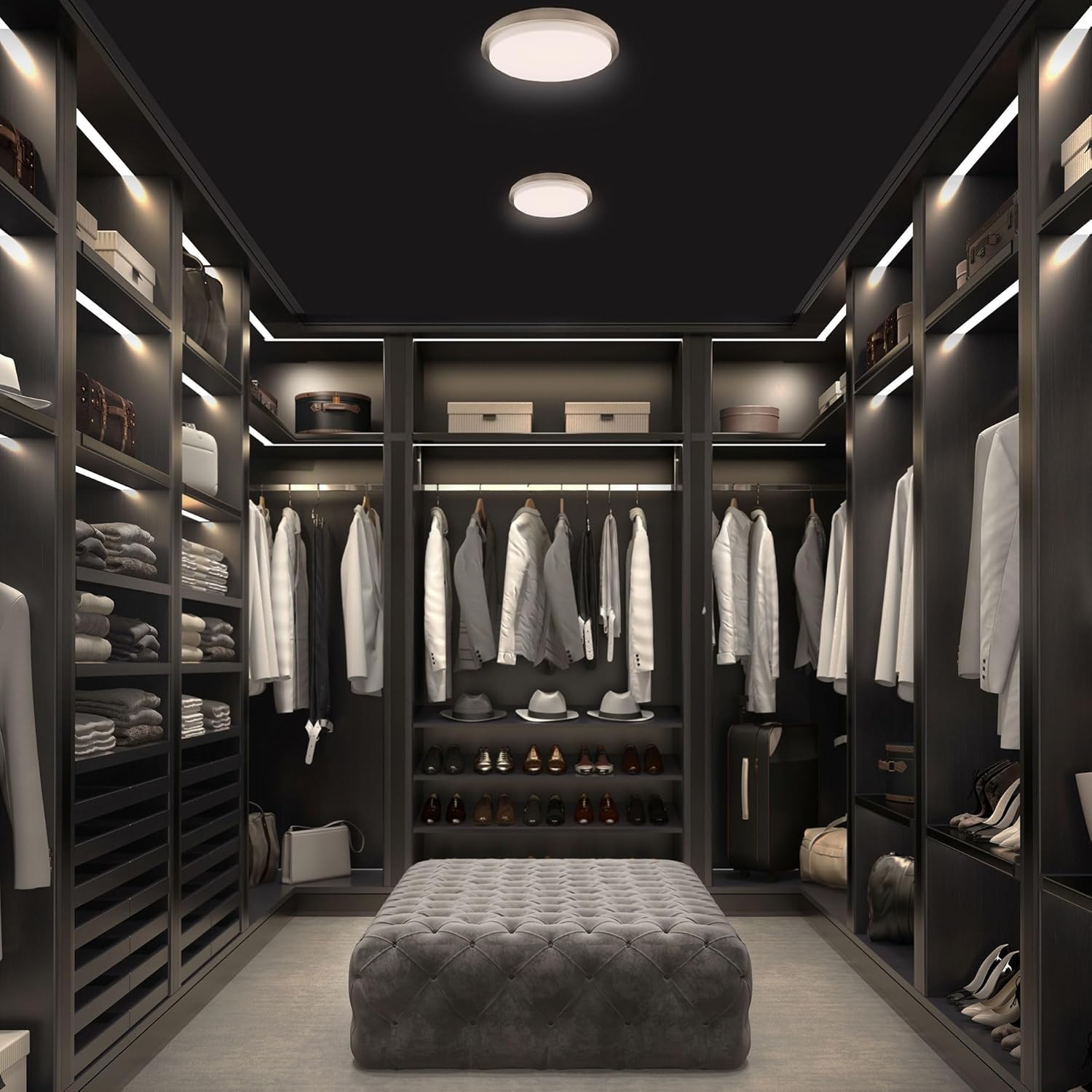

Two Modern Forms Zenith flush mount lights illuminating a spacious walk-in closet, demonstrating their effective and even light distribution in a practical setting.

Warranty and Support

Modern Forms products are manufactured to the highest quality standards and are backed by a manufacturer's warranty. For specific warranty details pertaining to your Zenith fixture, please refer to the warranty information provided at the time of purchase or visit the official Modern Forms website.

For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Modern Forms customer support directly. Have your model number (FM-5415-27-TT-EM) and date of purchase ready when contacting support.
