Dreamflame 84-inch Electric Fireplace Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Dreamflame 84-inch Electric Fireplace. Please read all instructions carefully before installation and use, and retain this manual for future reference.

The Dreamflame electric fireplace offers both aesthetic flame effects and supplemental heating, designed for recessed or wall-mounted installation.

Important Safety Information

• Read all instructions before using this fireplace.
• Always disconnect power before cleaning or performing maintenance.
• Do not operate any fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
• Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 0.9 meters (3 feet) from the front of the fireplace and away from the sides and rear.
• This fireplace is equipped with an overheating protection system. If the heater overheats, it will automatically shut off.
• Ensure the fireplace is installed on a stable, level surface or securely mounted to a wall.
• Do not insert or allow foreign objects into any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the fireplace.

Image: Safety features and certifications, including overheating protection, 1-9 hour timer, and cool-to-touch surface.

Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• Dreamflame 84-inch Electric Fireplace Unit
• Remote Control (AAA batteries required, not included)
• Instruction Manual
• Mounting Hardware (screws, brackets)
• Log Set
• Crushed Charcoal Embers
• Crystal Embers
• Hardwire Connection Components

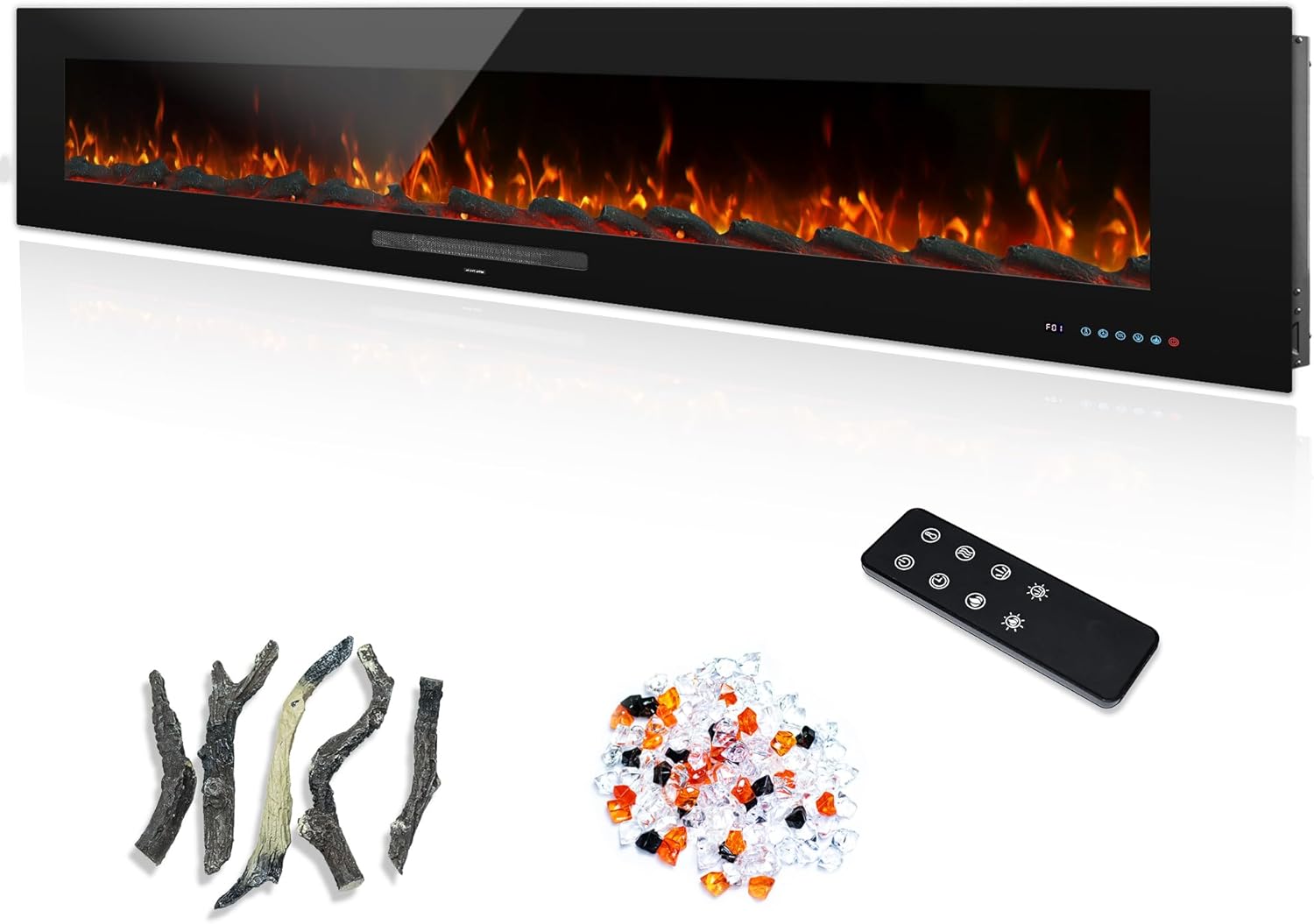

Image: The 84-inch electric fireplace unit, remote control, and included ember materials (logs, crushed charcoal, and crystals).

Image: Visual representation of the included items: manual, remote control, mounting hardware, log set, additional logs, crystals, and hardwire connection components.

Setup and Installation

The Dreamflame 84-inch Electric Fireplace can be installed as a recessed unit or wall-mounted.

Dimensions and Clearance

• Overall Size: 84"W x 18.35"H x 5"D
• Recessed Opening Size: 79.75"W x 17.12"H x 5"D (minimum depth)
• Maintain a minimum clearance of 0.9 meters (3 feet) from the front, sides, and rear of the heater to any combustible materials.

Image: Technical drawing showing the overall dimensions and the required recessed opening dimensions for the fireplace.

Installation Methods

Choose between recessed or wall-mounted installation based on your preference and wall structure.

Image: A visual guide demonstrating how to install the fireplace either recessed into a wall or mounted directly onto a wall surface.

Image: A side-by-side comparison of the recessed installation method, where the fireplace is built into the wall, and the wall-mounted method, where it hangs on the surface.

Electrical Connection

The fireplace can be connected via its 6-foot power cable to a standard electrical outlet or hardwired directly into your home's electrical system. Consult a qualified electrician for hardwiring.

Operating Instructions

Your Dreamflame electric fireplace can be controlled using the integrated touchscreen panel or the included remote control.

Controls Overview

Image: Detailed view of the fireplace's touchscreen interface and the functions available on the remote control, including power, timer, heat settings, and flame adjustments.

Image: An annotated diagram explaining each button and display element on both the fireplace's touchscreen and the remote control for convenient operation.

Image: This image highlights the dual control options: a remote control (batteries not included) and a touchscreen panel that illuminates when active and fades to a mirror-like finish when idle.

Heating Functions

• Heat Settings: Two adjustable heat options: LO (750W) for warm air and HI (1500W) for hot air.
• Heating Area: Capable of heating areas up to 400 sq ft.
• Temperature Control: Adjustable temperature range from 62°F to 99°F.
• The heating function can be operated independently of the flame effects.

Image: An illustration detailing the two heat output options (750W and 1500W) and the adjustable temperature range, along with a visual representation of heat distribution within a room.

Image: A collection of icons highlighting the fireplace's functional attributes, including its heating capabilities, coverage area, air outlet design, temperature control, BTU output, low noise operation, timer, and safety features.

Image: An illustration demonstrating how the bottom air outlet design enhances heating efficiency by distributing warm air downwards, which then rises to heat the room.

Flame and Fuel Bed Effects

• Flame Colors: 13 distinct flame color options.
• Fuel Bed Colors: 13 distinct fuel bed color options.
• Combinations: Total of 169 flame and fuel bed color combinations.
• Brightness: 5 adjustable levels for both flame and fuel bed brightness.
• Ember Materials: Customize the fuel bed appearance with whole charcoal wood, crushed charcoal, or crystal embers.

Image: A graphic illustrating the wide array of customization options for the fireplace's visual effects, including 13 flame colors, 13 fuel bed colors, and 5 brightness levels for each, resulting in 169 unique combinations.

Image: This image details the extensive customization for the flame and fuel bed, showcasing 13 flame colors, 5 brightness levels, and 13 fuel bed colors to create a personalized ambiance.

Image: Three distinct visual combinations of flame and fuel bed effects, demonstrating the use of different ember media (logs, crushed charcoal, and crystals) to achieve varied aesthetic styles.

Timer Function

Set the operational timer for 1 to 9 hours, allowing the fireplace to automatically shut off after the selected duration.

Maintenance

• Cleaning: Ensure the fireplace is turned off and unplugged before cleaning. Use a soft, damp cloth to clean the exterior surfaces. Do not use abrasive cleaners or sprays.
• Ventilation: Keep the air intake and exhaust vents clear of dust and debris to ensure proper airflow and prevent overheating.
• Light Bulbs: The flame effect uses LED technology, which typically does not require replacement.

Troubleshooting

If you encounter any issues with your Dreamflame electric fireplace, please refer to the following common solutions:

• No Power: Check if the power cord is securely plugged into a working outlet. Ensure the circuit breaker is not tripped.
• No Heat: Verify that the heat function is activated and the temperature setting is above the ambient room temperature. Check for any obstructions in the air vents.
• Remote Control Not Working: Replace the AAA batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace's sensor.
• Automatic Shutdown: If the unit shuts off unexpectedly, it may be due to the overheating protection system. Unplug the unit, wait 10-15 minutes for it to cool down, and ensure all vents are clear before plugging it back in.

For issues not resolved by the above steps, please contact Dreamflame customer support.

Specifications

Warranty and Support

The Dreamflame 84-inch Electric Fireplace comes with a 5-Year Warranty and Lifetime Technical Support provided by Dreamflame.

For technical assistance, warranty claims, or any questions regarding your product, please contact Dreamflame customer service. Refer to the contact information provided on the product packaging or the official Dreamflame website.
