Ledvion Outdoor LED Wall Light with Motion Sensor

Introduction

Thank you for choosing the Ledvion Outdoor LED Wall Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read this manual thoroughly before installation and keep it for future reference.

This wall light is designed to illuminate your outdoor space intelligently and energy-efficiently. Its contemporary design, combined with a practical motion detector, offers enhanced security and an elegant appearance for your entrance or garden.

Safety Information

WARNING: To avoid electric shock, fire, or injury, always turn off the power at the main circuit breaker or fuse box before installation, servicing, or changing the bulb.

• This product must be installed by a qualified electrician in accordance with all applicable local and national electrical codes.
• Ensure the supply voltage is compatible with the fixture (230 Volts).
• Do not connect this fixture to an ungrounded electrical system.
• Do not attempt to modify the fixture. Any modifications may void the warranty and create a safety hazard.
• Keep flammable materials away from the light fixture.
• The fixture is rated IP44, meaning it is protected against solid objects larger than 1mm and splashing water from any direction. It is suitable for outdoor use but should not be submerged in water.

Package Contents

Verify that all components are present and undamaged before installation.

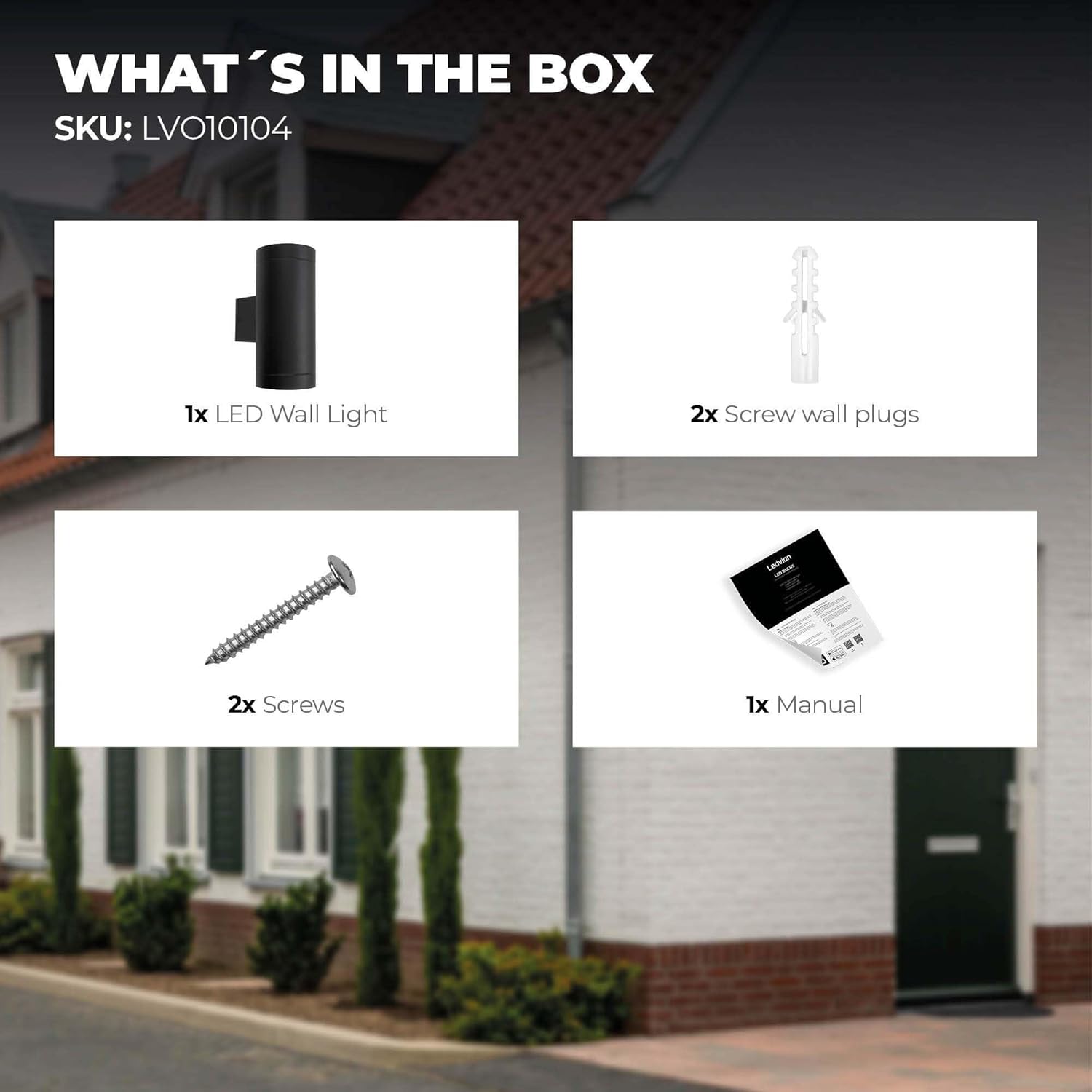

Image showing the Ledvion LED Wall Light, two screw wall plugs, two screws, and the instruction manual, as typically found in the product packaging.

• 1x Ledvion Outdoor LED Wall Light (Model: LVO10104)
• 2x Screw Wall Plugs
• 2x Screws
• 1x Instruction Manual

Setup and Installation

Tools Required: Screwdriver, drill, wire strippers, voltage tester, pencil, measuring tape.

1. Prepare for Installation:
   • Turn off power at the main circuit breaker or fuse box.
   • Ensure the mounting surface is clean, dry, and structurally sound.
2. Mounting the Fixture:
   • Mark the desired mounting location on the wall.
   • Drill two holes for the wall plugs at the marked positions.
   • Insert the wall plugs into the drilled holes.
   • Align the fixture's mounting plate with the holes and secure it using the provided screws.
3. Electrical Connection:
   • Connect the live (brown/red) wire from the fixture to the live wire from the mains supply.
   • Connect the neutral (blue/black) wire from the fixture to the neutral wire from the mains supply.
   • Connect the earth (green/yellow) wire from the fixture to the earth wire from the mains supply.
   • Ensure all connections are secure and insulated with electrical tape or wire connectors.
4. Install GU10 Bulb (Not Included):
   • This fixture is compatible with any GU10 spot bulb (max 35 Watt).
   • Carefully insert the GU10 bulb into the socket by aligning the pins and twisting clockwise until secure.


   Image illustrating the compatibility with GU10 bulbs, showing a GU10 bulb and indicating "2 x GU10 Fitting" and "Max. 35 Watt".
5. Final Steps:
   • Replace any covers or protective elements.
   • Turn on power at the main circuit breaker.

Operating Instructions

This Ledvion wall light features an integrated twilight sensor for automatic operation.

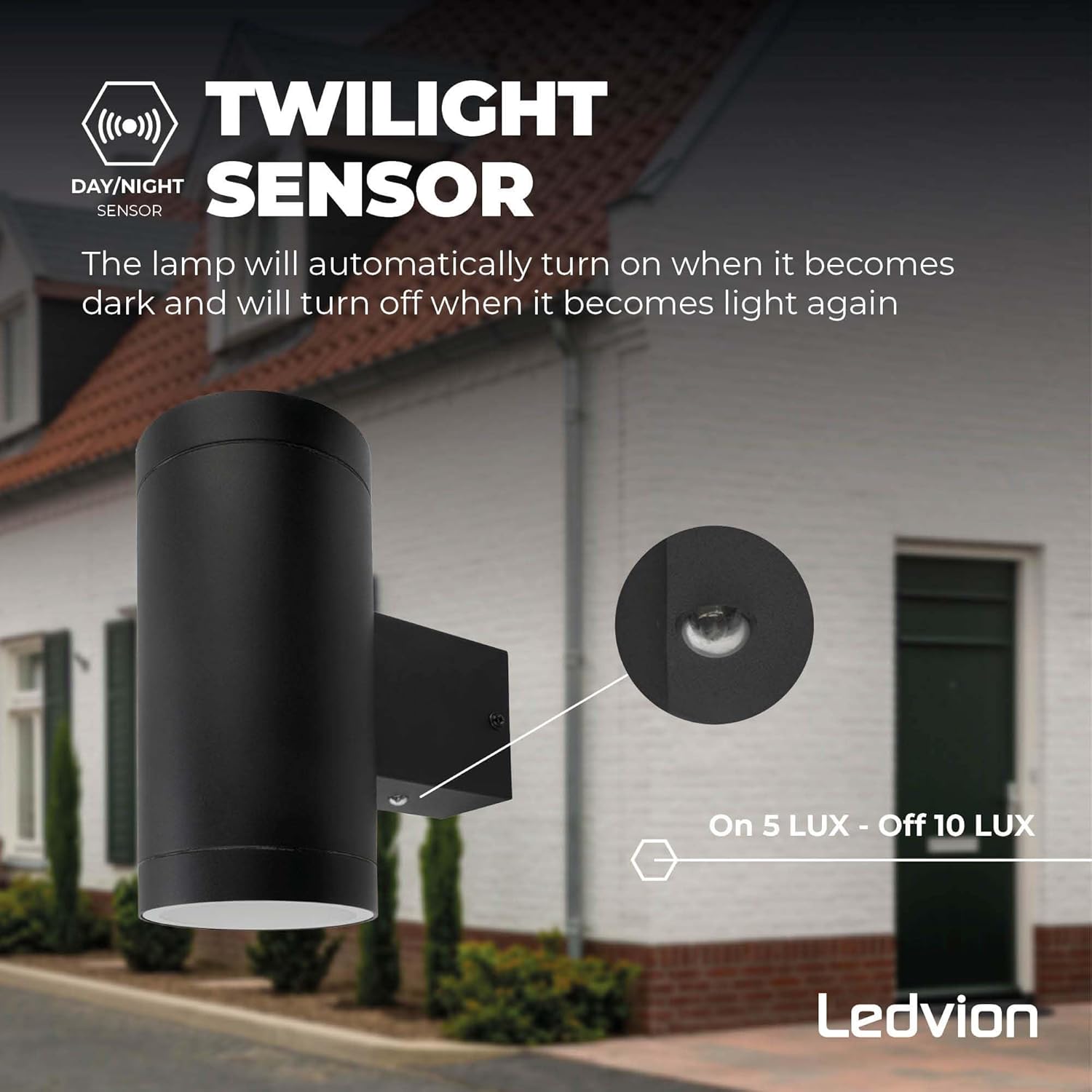

Image depicting the "Twilight Sensor" feature, explaining that the lamp automatically turns on when it becomes dark (On 5 LUX) and turns off when it becomes light again (Off 10 LUX).

• Automatic Operation: The built-in twilight sensor detects ambient light levels.
• The lamp will automatically turn on when the ambient light level drops below approximately 5 LUX (dusk).
• The lamp will automatically turn off when the ambient light level rises above approximately 10 LUX (dawn).
• Ensure the sensor is not obstructed by objects or direct light sources (e.g., other lamps) as this may affect its performance.

Maintenance

Regular maintenance ensures optimal performance and longevity of your Ledvion wall light.

• Cleaning: Clean the fixture regularly with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
• Bulb Replacement: Ensure power is off before replacing the GU10 bulb. Allow the bulb to cool down before handling.
• Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, consult a qualified electrician.
• The fixture is IP44 rated, providing protection against splashing water and dust. Its aluminum and stainless steel housing is designed for durability and resistance to rust and moisture.


Image highlighting the IP44 rating, indicating protection against dust and splash-proof, along with "Anti-Rust & Anti-Moisture" properties.

Troubleshooting

Specifications

Image displaying the dimensions of the wall light: 90mm diameter, 200mm height, and 160mm depth from the wall.

Warranty and Support

This Ledvion product comes with a 2-year warranty from the date of purchase, covering defects in materials and workmanship.

Image indicating a "2 Year Warranty" and stating that "The strong aluminium and stainless steel housing ensures for a long lasting usage."

For warranty claims, technical support, or any questions regarding your Ledvion product, please contact your retailer or visit the official Ledvion website for contact information.

Manufacturer: Ledvion

Country of Origin: China
