Bliss Portable Deep Tissue Massage Gun - Model 142347484 User Manual

Introduction

Thank you for choosing the Bliss Portable Deep Tissue Massage Gun. This device is designed to provide targeted percussion massage for muscle relaxation, recovery, and improved flexibility. Please read this manual thoroughly before use to ensure safe and effective operation. Keep this manual for future reference.

Image: The Bliss Portable Deep Tissue Massage Gun in pink, shown in use on a person's neck.

Important Safety Information

To reduce the risk of electric shock, fire, and injury, please observe the following safety precautions:

• Keep out of reach of children. This device is not a toy.
• Do not use near water or in wet environments. Avoid contact with liquids.
• Always unplug the device from the power source when not in use, before cleaning, or before attaching/detaching accessories.
• Consult a physician before using this device if you have any medical conditions, are pregnant, have a pacemaker, or are recovering from surgery.
• Do not use on open wounds, swollen areas, or areas with skin damage.
• Avoid using the massager directly on bones, joints, or the head/face.
• Do not operate continuously for more than 15 minutes on a single muscle group. Allow the device to cool down between uses.
• If you experience pain or discomfort, discontinue use immediately.
• Use only the provided charging cable and accessories.
• Do not attempt to disassemble or repair the device yourself. Contact customer support for assistance.

Package Contents

Please check the package to ensure all items are present:

• Bliss Portable Deep Tissue Massage Gun (Pink)
• 4 Interchangeable Massage Heads:
  • Small Flat Head
  • Small Round Head
  • U Head
  • Ball Head
• Travel Case
• USB Charging Cable
• User Manual

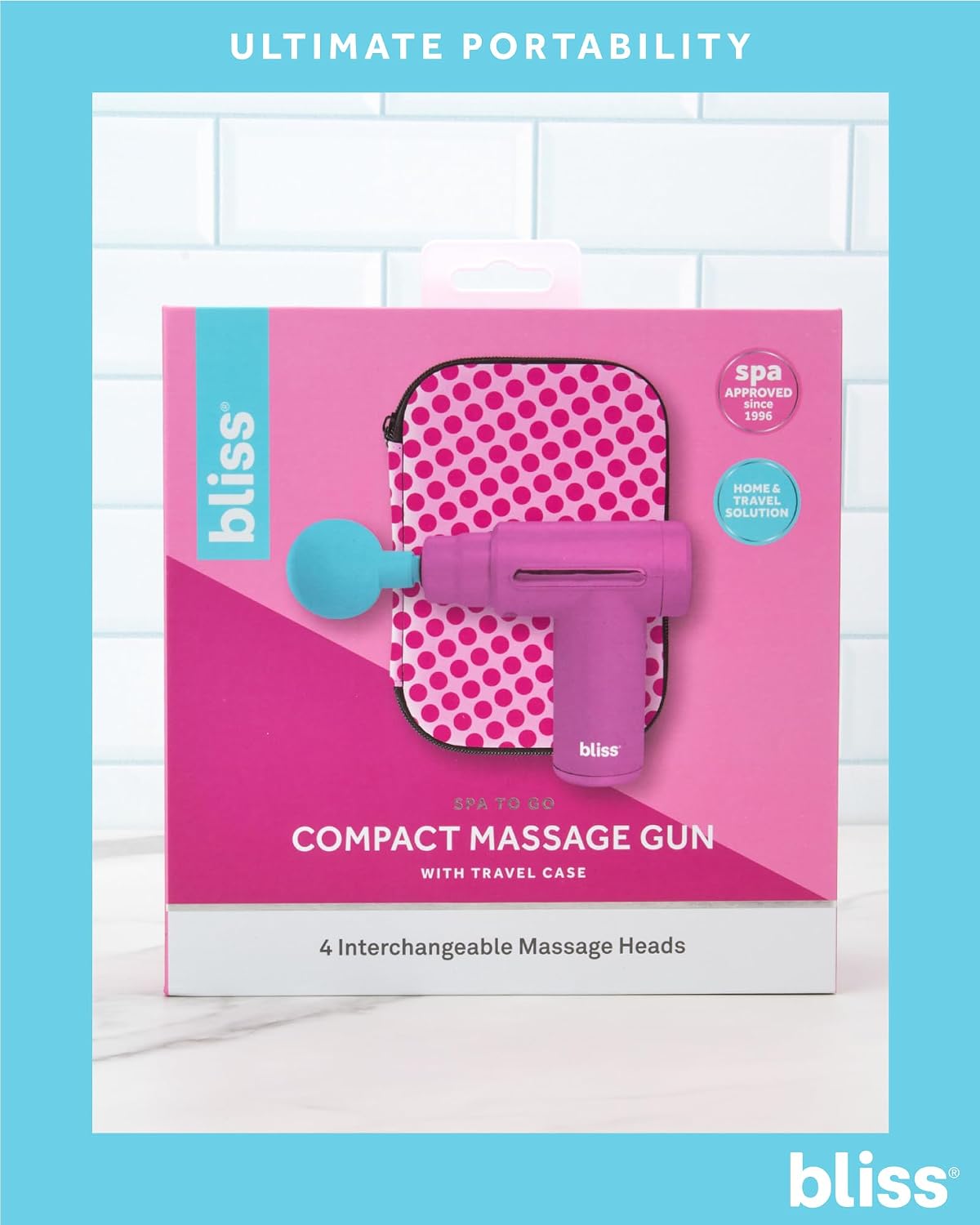

Image: The Bliss Massage Gun and its accessories, including the four interchangeable heads and travel case, displayed in its retail packaging.

Product Features

The Bliss Portable Deep Tissue Massage Gun offers the following key features:

• Deep Tissue Percussion: Designed to target deep muscle tissue for effective relief.
• Enhanced Range of Motion: Helps improve flexibility and mobility.
• Powerful 6-Speed Motor: Features a high torque motor with 6 adjustable speed settings.
• 4 Interchangeable Massage Heads: Customize your massage experience for different muscle groups.
• Portable Design: Compact and lightweight for easy transport.
• Travel Case Included: Convenient storage and portability.
• USB Powered: Easy and versatile charging via USB.

Image: The Bliss Massage Gun in pink, accompanied by its four blue interchangeable heads, with text indicating its deep tissue targeting capability, 6-speed high torque motor, ability to improve range of motion, and portable design.

Setup

1. Charging the Device

1. Before first use, fully charge the massage gun.
2. Connect the USB charging cable to the charging port on the massage gun.
3. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a USB port on a computer.
4. The indicator light will show charging status (e.g., blinking while charging, solid when fully charged).
5. A full charge typically takes approximately 2-3 hours.

2. Attaching Massage Heads

1. Ensure the massage gun is turned off before attaching or detaching any massage heads.
2. Select the desired massage head.
3. Align the base of the massage head with the opening on the front of the massage gun.
4. Gently push the head firmly into the opening until it is securely in place. Do not twist.
5. To remove, gently pull the head straight out from the device.

Operating Instructions

1. Power On/Off and Speed Adjustment

1. To power on, press and hold the power button for a few seconds until the device starts.
2. The device will start at the lowest speed setting (Level 1).
3. Press the power button repeatedly to cycle through the 6 speed levels. Each press increases the intensity.
4. The speed levels are:
   • Level 1: 2100 rpm
   • Level 2: 2400 rpm
   • Level 3: 2700 rpm
   • Level 4: 3000 rpm
   • Level 5: 3300 rpm
   • Level 6: 3600 rpm
5. To power off, press and hold the power button for a few seconds until the device stops.

Image: The Bliss Massage Gun and its accessories neatly arranged within its durable carrying case. An overlay indicates the 6 adjustable speed levels, ranging from 2100 rpm to 3600 rpm.

2. Using the Massage Heads

Select the appropriate head for the targeted muscle group:

• Small Flat Head: Ideal for deep tissue massage on all parts of the body.
• Small Round Head: Suitable for high impact massage, particularly around joints.
• U Head: Designed for dual point release, often used for spinal massage (avoid direct contact with spine).
• Ball Head: Best for large muscle groups such as glutes, hamstrings, and quads.

Image: A visual guide to the four interchangeable massage heads: Small Flat Head for deep tissue, Small Round Head for joints, U Head for spinal massage, and Ball Head for large muscle groups.

3. Application

1. Gently press the massage gun onto the desired muscle area.
2. Move the device slowly over the muscle, applying light to moderate pressure.
3. Do not apply excessive pressure or hold the device stationary on one spot for too long.
4. Recommended usage is 1-2 minutes per muscle group, with a maximum of 15 minutes total per session.

Maintenance

1. Cleaning

• Ensure the device is turned off and unplugged before cleaning.
• Wipe the surface of the massage gun with a slightly damp cloth. Do not use harsh chemicals or abrasive cleaners.
• For massage heads, they can be wiped with a damp cloth and mild soap, then rinsed and air-dried completely before reattaching.
• Do not immerse the device or any part of it in water.

2. Storage

• Store the massage gun and its accessories in the provided travel case when not in use.
• Store in a cool, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter issues not listed here or if problems persist, please contact customer support.

Specifications

• Model Number: 142347484
• Product Dimensions: 6.8 x 2 x 5.5 inches
• Item Weight: 1 Pound (approximately 16 ounces)
• Power Source: Battery Powered (1 Lithium Ion battery included)
• Charging: USB Powered
• Speed Levels: 6 (2100 rpm - 3600 rpm)
• Massage Technique: Percussion
• Cordless: Yes
• Water Resistance Level: Not Water Resistant
• Material Type: Rubber

Warranty and Support

For information regarding warranty coverage, please refer to the warranty card included with your product or contact the manufacturer directly. If you require technical support or have questions about your Bliss Portable Deep Tissue Massage Gun, please visit the official Bliss website or contact their customer service department.
