1. Product Overview
The GE WR87X10224 Refrigerator Compressor Kit is a genuine Original Equipment Manufacturer (OEM) part designed for various GE, Hotpoint, Kenmore, and Americana refrigerator models. This kit includes a positive displacement pump that compresses refrigerant within the refrigerator's sealed system, facilitating the cooling process.
This part is a functional equivalent to several prior parts, including WR87X0475, WR87X0480, WR87X0498, WR87X10008, WR87X10034, WR87X10043, WR87X10046, WR87X10085, WR87X10090, WR87X10095, WR87X10096, WR87X10101, WR87X10131, WR87X10141, WR87X10147, WR87X10153, WR87X10188, WR87X10210, WR87X10239, WR87X10240, WR87X27951, WR87X28008, WR87X31410, WR87X31587, WR87X32004, WR87X35145, WR87X37645, WR87X475, WR87X480, WR87X498, WR90M0102, and WR90M102.

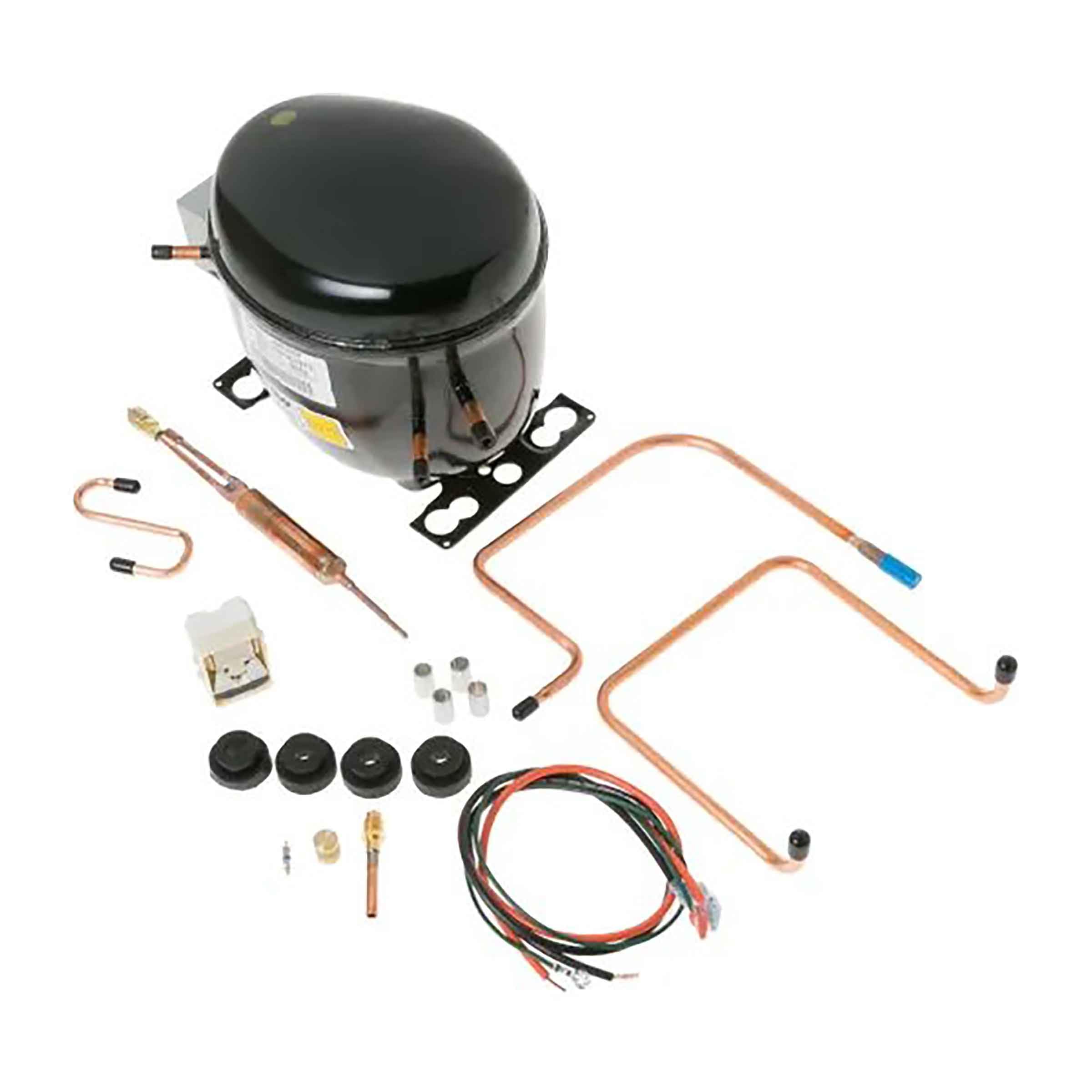

Image 1: The GE WR87X10224 Refrigerator Compressor Kit, showing the main compressor unit and associated components.
2. Important Safety Information
WARNING: This part needs to be replaced by a trained and licensed appliance repair technician. Attempting to install this part without proper training and tools can result in serious injury, property damage, or death due to electrical shock, refrigerant exposure, or other hazards.
It is strongly recommended to refer to your appliance service manual, contact your appliance manufacturer, or consult a service professional to validate the correct part number and ensure safe installation for your specific appliance prior to purchasing and attempting any repair.
3. What's in the Box
The GE WR87X10224 Refrigerator Compressor Kit includes the following components:
- Single GE WR87X10224 Refrigerator Compressor Kit (includes compressor unit and associated installation components).
Image 2: Detailed view of the various components included in the compressor kit, such as copper tubing, wiring, and mounting hardware.
4. Installation and Setup
Professional Installation Required: Due to the complexity of refrigerator sealed systems and the handling of refrigerants, installation of the WR87X10224 Compressor Kit must be performed by a qualified and licensed appliance repair technician.
The installation process typically involves:
- Safety Precautions: Disconnecting power to the refrigerator and ensuring the work area is safe.
- Refrigerant Recovery: Safely recovering existing refrigerant from the sealed system.
- Component Removal: Removing the old compressor and associated components.
- New Compressor Installation: Mounting the new WR87X10224 compressor and connecting the necessary tubing and wiring.
- Brazing and Leak Testing: Brazing new connections and performing leak tests to ensure system integrity.
- Evacuation and Charging: Evacuating the system to remove moisture and non-condensable gases, then charging with the correct type and amount of refrigerant.
- Testing: Verifying proper operation of the refrigerator after installation.
Refer to the specific service manual for your refrigerator model for detailed, step-by-step instructions, as procedures may vary.
Image 3: Side view of the GE WR87X10224 compressor, showing mounting brackets and connection points.
5. Operating Principles
The compressor is the heart of a refrigerator's sealed cooling system. Its primary function is to compress low-pressure, low-temperature refrigerant vapor into high-pressure, high-temperature vapor. This high-pressure vapor then flows to the condenser coils, where it releases heat to the surroundings and condenses into a liquid. The liquid refrigerant then passes through an expansion device, reducing its pressure and temperature, before entering the evaporator coils inside the refrigerator. Here, it absorbs heat from the refrigerator's interior, evaporating back into a low-pressure vapor, and the cycle repeats. The WR87X10224 compressor ensures this continuous circulation and compression of refrigerant for effective cooling.
6. Maintenance
The GE WR87X10224 compressor is a sealed unit and does not require routine user maintenance. Any issues related to the compressor or the sealed system should only be addressed by a trained and licensed appliance repair technician. Regular professional inspection of your refrigerator's cooling system can help identify potential issues before they lead to compressor failure.
7. Troubleshooting
If your refrigerator is not cooling properly, making unusual noises, or not running at all, the compressor may be a contributing factor. However, diagnosing compressor issues requires specialized tools and expertise. Do not attempt to troubleshoot or repair the compressor yourself.
Common symptoms that may indicate a compressor issue (requiring professional diagnosis):
- Refrigerator not cooling or freezing.
- Compressor running continuously or not at all.
- Loud buzzing, rattling, or clicking noises coming from the compressor area.
- Excessive heat from the compressor area.
If you experience any of these symptoms, contact a qualified appliance repair technician immediately for diagnosis and repair.
8. Specifications
| Attribute | Value |
|---|---|
| Brand Name | GE |
| Model Number | WR87X10224 |
| Item Weight | 24.2 pounds |
| Product Dimensions | 1 x 1 x 1 inches (Note: These dimensions may refer to packaging or a general placeholder, actual compressor dimensions may vary.) |
| Included Components | Single GE WR87X10224 Refrigerator Compressor Kit |
| Batteries Required? | No |
| Part Type | Original Equipment Manufacturer (OEM) |
Image 4: Rear view of the GE WR87X10224 compressor, highlighting its compact design and mounting points.
9. Warranty and Support
This is an authorized, brand new, genuine GE part. For specific warranty information regarding the GE WR87X10224 Refrigerator Compressor Kit, please refer to the documentation provided with your original refrigerator appliance or contact GE customer support directly. Any claims or issues related to the part should be directed to GE or the authorized seller from whom the part was purchased.
For technical support or professional assistance with installation and repair, always consult a trained and licensed appliance repair technician.
