1. Introduction
Thank you for choosing the Globber Primo Foldable Scooter. This manual provides essential information for the safe assembly, operation, and maintenance of your scooter. Please read it thoroughly before first use and retain it for future reference.
2. Safety Information
WARNING: Failure to follow these instructions may result in serious injury.
- Always wear a helmet and protective gear (knee pads, elbow pads, wrist guards) when riding.
- Ensure all locking mechanisms are securely fastened before each ride.
- Do not ride in traffic, on public roads, or in areas with heavy pedestrian traffic.
- Supervise young children at all times.
- The maximum weight limit for this scooter is 50 kg (110 lbs).
- Recommended age for use is 3 years and older.
- Ride on smooth, dry, paved surfaces away from motor vehicles. Avoid loose debris, steep inclines, and wet surfaces.
- Check brakes, wheels, and steering for proper function before each use.
3. Setup and Assembly
The Globber Primo Foldable Scooter comes largely pre-assembled. Follow these steps to prepare it for use:
- Unfold the Scooter: Locate the folding mechanism at the base of the T-bar. Release the lock and unfold the T-bar until it clicks securely into the upright position. Ensure the folding mechanism is fully engaged and locked.
- Adjust Handlebar Height: Press the spring-loaded button on the T-bar stem and slide the handlebar to the desired height. Ensure the button snaps into one of the adjustment holes, securing the T-bar at the chosen height.
- Check Connections: Verify that all screws and quick-release clamps are tight and secure.
Figure 3.1: Overview of the Globber Primo Foldable Scooter highlighting key features like adjustable handlebar and steering lock.
4. Operating Instructions
4.1 Riding the Scooter
- Place one foot firmly on the foot deck.
- Push off with the other foot to gain momentum.
- Once moving, place both feet on the deck, one behind the other.
Figure 4.1: A child demonstrating proper riding posture on the scooter.
4.2 Steering
The Globber Primo Foldable Scooter uses lean-to-steer technology. To turn, lean your body in the desired direction. The wheels will follow your lean.
4.3 Steering Lock Button
The patented steering lock button is designed to assist young children in learning to ride by keeping the front wheels in a fixed forward position. This provides stability and helps them master balance before engaging the lean-to-steer function.
- To Lock Steering: Press the button located on the front of the deck, just above the front wheels. The button will click into place, locking the wheels straight.
- To Unlock Steering: Press the button again to release the lock, allowing the wheels to pivot for steering.

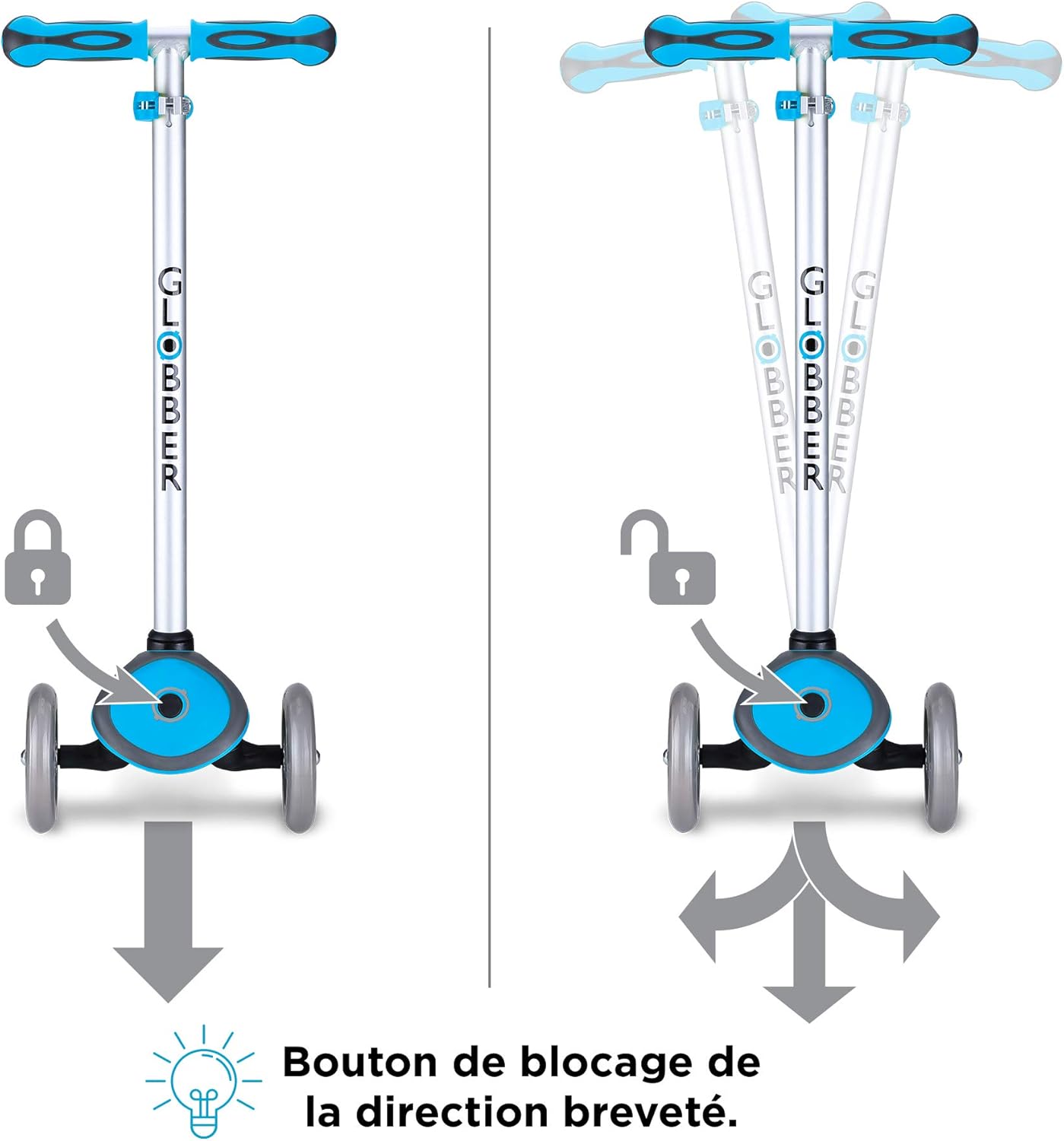

Figure 4.2: Illustration of the steering lock button and its function.
4.4 Braking
To slow down or stop, press down firmly on the rear fender brake with your foot. Apply gradual pressure to avoid sudden stops.
5. Folding Mechanism
The Globber Primo Foldable Scooter features an assisted 1-second folding mechanism for easy transport and storage.
- Ensure the scooter is stationary and on a flat surface.
- Locate the folding button/lever at the base of the T-bar.
- Press the button/lever and gently push the T-bar forward and down until it folds securely against the deck. You should hear a click indicating it is locked in the folded position.
Figure 5.1: The scooter demonstrating its folding capability and adjustable T-bar height.
6. Maintenance
- Cleaning: Wipe the scooter with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Lubrication: Periodically apply a light lubricant to moving parts like wheel bearings and folding mechanisms to ensure smooth operation.
- Inspections: Regularly check all bolts, nuts, and quick-release mechanisms for tightness. Ensure wheels spin freely and the brake functions correctly. Replace worn parts immediately.
- Storage: Store the scooter in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not steer smoothly | Steering lock engaged; dirty bearings | Disengage steering lock; clean and lubricate bearings |
| Brake is ineffective | Worn brake pad; loose brake mechanism | Inspect and replace brake pad; tighten brake mechanism |
| T-bar is wobbly | Handlebar not securely locked; loose clamp | Ensure height adjustment button is engaged; tighten quick-release clamp |
| Folding mechanism is stiff | Lack of lubrication; debris | Clean and lubricate the folding mechanism |
8. Specifications
- Brand: Globber
- Model Name: 440-101-2
- Age Range: Toddler (3+ years)
- Weight Limit: 50 Kilograms (110 lbs)
- Number of Wheels: 3
- Wheel Material: Polyurethane
- Frame Material: Alloy Steel
- Item Weight: 2.33 Kilograms (5.14 lbs)
- Special Feature: Adjustable T-bar, Foldable, Patented Steering Lock Button
9. Warranty and Support
Globber products are manufactured to high standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Globber website. For technical support or replacement parts, please contact Globber customer service through their official channels.
Keep your proof of purchase for any warranty claims.
