1. Introduction
This manual provides instructions for the installation, operation, maintenance, and troubleshooting of the SOS Accessoire Washing Machine Drain Pump. This pump is a compatible replacement part for various washing machine brands, including WHIRLPOOL, BAUKNECHT, IGNIS, LADEN, MAYTAG, and ARISTON HOTPOINT. Please read this manual carefully before proceeding with installation or maintenance to ensure safe and correct usage.
Figure 1: Overview of the SOS Accessoire Washing Machine Drain Pump.
2. Safety Information
- Disconnect Power: Always disconnect the washing machine from the main power supply before attempting any installation, maintenance, or repair.
- Professional Installation: Installation should ideally be performed by a qualified technician. If you are unsure, consult a professional.
- Water Drainage: Ensure all water is drained from the washing machine before removing the old pump to prevent spills and electrical hazards.
- Component Handling: Handle the pump and associated components carefully to avoid damage.
- Compatibility: Verify that this drain pump is compatible with your specific washing machine model before installation. Refer to the compatibility list in Section 3.
3. Product Specifications and Compatibility
| Feature | Detail |
|---|---|
| Brand | SOS ACCESSOIRE |
| Manufacturer Part Numbers | 481010584942, 481236018559 |
| Compatible References | 481236018559, 4801111014, 480111100786, 481010584942, 482000003603, 480111100205, 481010476931, 481010491207 |
| Compatible Brands | WHIRLPOOL, BAUKNECHT, IGNIS, LADEN, MAYTAG, ARISTON HOTPOINT |
This drain pump is designed as a direct replacement for the specified part numbers and is compatible with washing machines from the listed brands. Always cross-reference the part number on your existing pump with the compatible references provided.

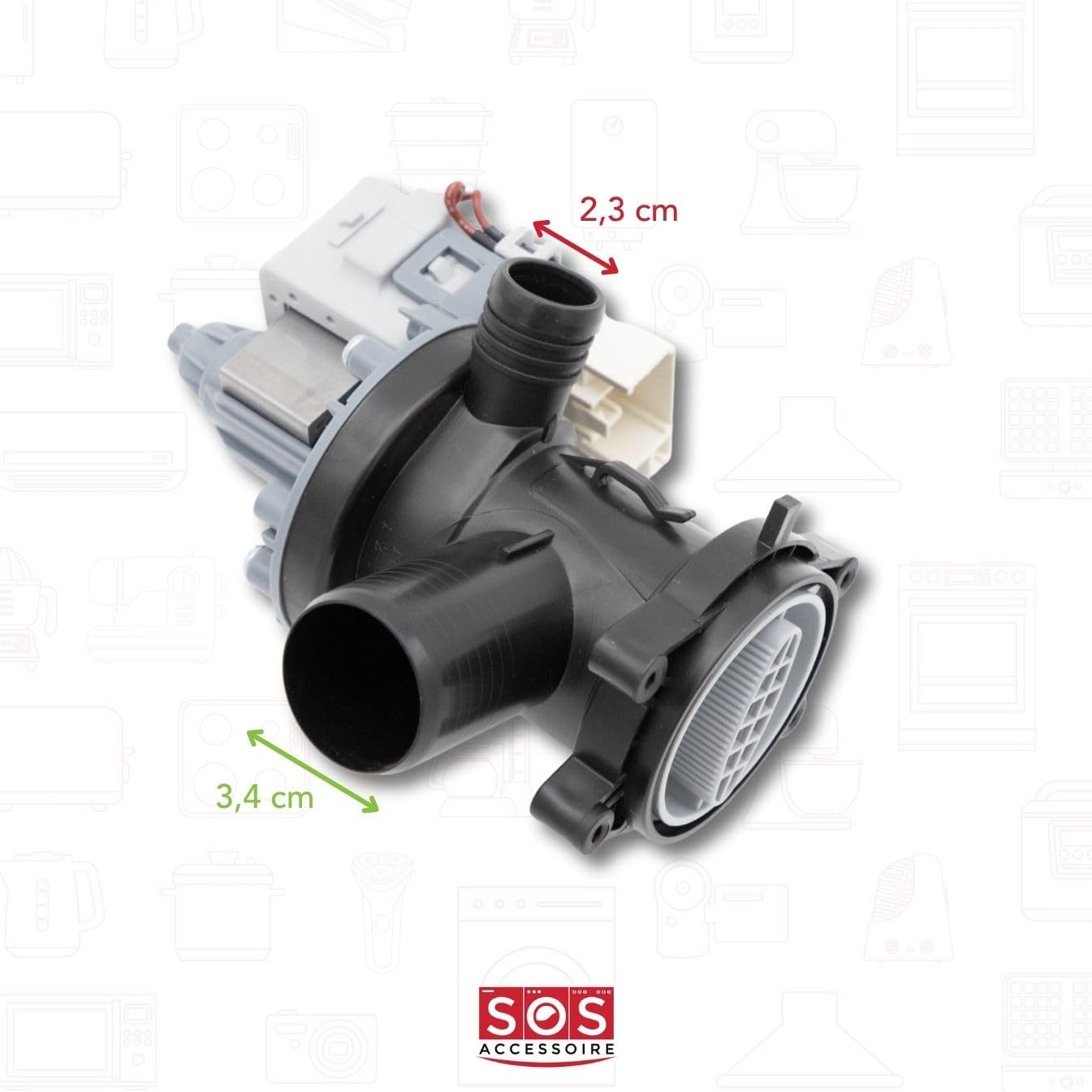

Figure 2: Drain pump showing key dimensions for verification. Inlet diameter approximately 3.4 cm, outlet diameter approximately 2.3 cm.
4. Installation Instructions
- Preparation:
- Disconnect the washing machine from the electrical outlet.
- Turn off the water supply to the washing machine.
- Drain any remaining water from the machine using the drain hose or by tilting the machine carefully over a shallow pan.
- Move the washing machine to an area where you have sufficient space to work, typically by tilting it or laying it on its side (consult your washing machine's manual for safe positioning).
- Locate the Old Pump: The drain pump is usually located at the bottom front or rear of the washing machine, often behind a removable access panel.
- Disconnect Hoses and Wiring:
- Carefully disconnect the drain hoses attached to the pump. Be prepared for residual water.
- Disconnect the electrical wiring harness from the pump motor. Note the orientation of the wires if not clearly marked.
- Remove Old Pump: Unscrew or unclip the old drain pump from its mounting bracket.
- Install New Pump:
- Position the new SOS Accessoire drain pump in the mounting bracket.
- Secure it with screws or clips, ensuring it is firmly in place.
- Reconnect the electrical wiring harness to the new pump. Ensure connections are secure.
- Reconnect the drain hoses to the new pump. Use hose clamps if necessary to prevent leaks.
- Final Checks:
- Double-check all connections for tightness and proper seating.
- Ensure no tools or debris are left inside the machine.
- Replace any access panels removed during installation.
- Test: Reconnect the washing machine to the water supply and electrical outlet. Run a short drain cycle to check for leaks and proper pump operation.
Figure 3: Illustrative image showing the drain pump in the context of a washing machine, indicating its typical installation location.
5. Operation
The drain pump operates automatically as part of the washing machine's cycle. Once installed correctly, it will activate during the drain phase to remove water from the wash tub. No manual operation of the pump itself is required.
- Ensure the washing machine's main power is on.
- Select the desired wash cycle on your washing machine.
- The pump will engage automatically during the drain and spin cycles to expel water.
6. Maintenance
Regular maintenance of the drain pump can extend its lifespan and prevent common issues. The primary maintenance task involves cleaning the pump filter.
- Accessing the Filter:
- Always disconnect the washing machine from the power supply before attempting to clean the filter.
- Locate the pump filter, typically found behind a small access panel at the bottom front of the washing machine.
- Place a shallow pan or towels beneath the filter access to catch any residual water.
- Cleaning the Filter:
- Carefully unscrew or unclip the filter cover.
- Remove any lint, debris, coins, or other foreign objects that may have accumulated in the filter.
- Rinse the filter under running water to remove any remaining residue.
- Reassembly:
- Ensure the filter is clean and properly seated before screwing or clipping the cover back into place.
- Ensure the cover is tightly sealed to prevent leaks.
- Close the access panel.
It is recommended to clean the pump filter every 3-6 months, or more frequently if you notice drainage issues or excessive lint in your laundry.
Figure 4: Close-up view of the drain pump, highlighting the filter area which requires periodic cleaning.
7. Troubleshooting
If your washing machine is experiencing drainage problems after installing the new pump, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Washing machine not draining | Clogged pump filter | Clean the pump filter (refer to Section 6). |
| Kinked or blocked drain hose | Check the drain hose for kinks or obstructions. Ensure it is properly installed and not too high. | |
| Improper electrical connection to pump | Disconnect power and re-check the electrical wiring to the pump (refer to Section 4). | |
| Water leaking from pump area | Loose hose connections | Disconnect power and tighten hose clamps on the drain hoses. |
| Improperly sealed pump filter cover | Ensure the pump filter cover is securely tightened (refer to Section 6). | |
| Unusual noise during drain cycle | Debris in pump impeller | Clean the pump filter and inspect the impeller for foreign objects (refer to Section 6). |
If these steps do not resolve the issue, it is recommended to contact a qualified appliance technician.
8. Warranty Information
SOS Accessoire products are designed for reliability and performance. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official SOS Accessoire website. Keep your proof of purchase for warranty claims.
9. Customer Support
For further assistance, technical support, or inquiries regarding this product, please contact SOS Accessoire customer service. Contact details can typically be found on the product packaging or the official SOS Accessoire website.
Online Resources: You may find additional support and product information by visiting the SOS Accessoire Store on Amazon.
