VGR V-109 6-in-1 Professional Trimmer User Manual

Introduction

The VGR V-109 is a versatile 6-in-1 grooming kit designed for comprehensive hair and beard trimming, body grooming, nose and ear hair trimming, stubble trimming, and facial shaving. This professional-grade trimmer features IPX6 waterproofing for easy cleaning and use in wet conditions, self-sharpening stainless steel blades for precise cuts, and a powerful lithium-ion battery providing up to 90 minutes of cordless operation. Its ergonomic design ensures comfortable handling for all your grooming needs.

Image: The VGR V-109 trimmer along with its various attachments, including different trimmer heads, guide combs, charging cable, and cleaning brush.

Safety Information

It is crucial to adhere to the following safety guidelines to ensure safe operation and prevent injury or damage to the device:

• Always unplug the trimmer before use or cleaning.
• Do not use on infants or young children without adult supervision.
• Keep the trimmer away from water sources while charging.
• Always follow the recommended cleaning and maintenance procedures to prevent skin irritation or injury from dull blades.
• Always keep the trimmer out of reach of children when not in use.

Product Components

The VGR V-109 grooming kit includes the following components:

• Main Trimmer Unit
• Hair Trimmer Head
• Precision Trimmer Head
• Shaver Head
• Nose Trimmer Head
• Body Trimmer Head
• Design Trimmer Head
• Multiple Guide Combs (for hair clipper and trimmer)
• Charging Cable (USB)
• Cleaning Brush
• Storage Pouch
• Charging Stand

Image: A detailed view of all included accessories and attachments for the VGR V-109 trimmer.

Setup

Charging the Trimmer

Before first use, fully charge the trimmer. Connect the USB charging cable to the trimmer and a suitable USB power adapter (not included). The LED display on the trimmer will show the battery power percentage, indicating charging progress. A full charge provides up to 90 minutes of cordless use.

Attaching/Detaching Heads and Guide Combs

To attach a trimmer head, align it with the main unit and press firmly until it clicks into place. To detach, gently pull the head away from the main unit. For guide combs, slide them onto the desired trimmer head until they are securely fastened. Ensure the comb is properly seated to prevent uneven cuts.

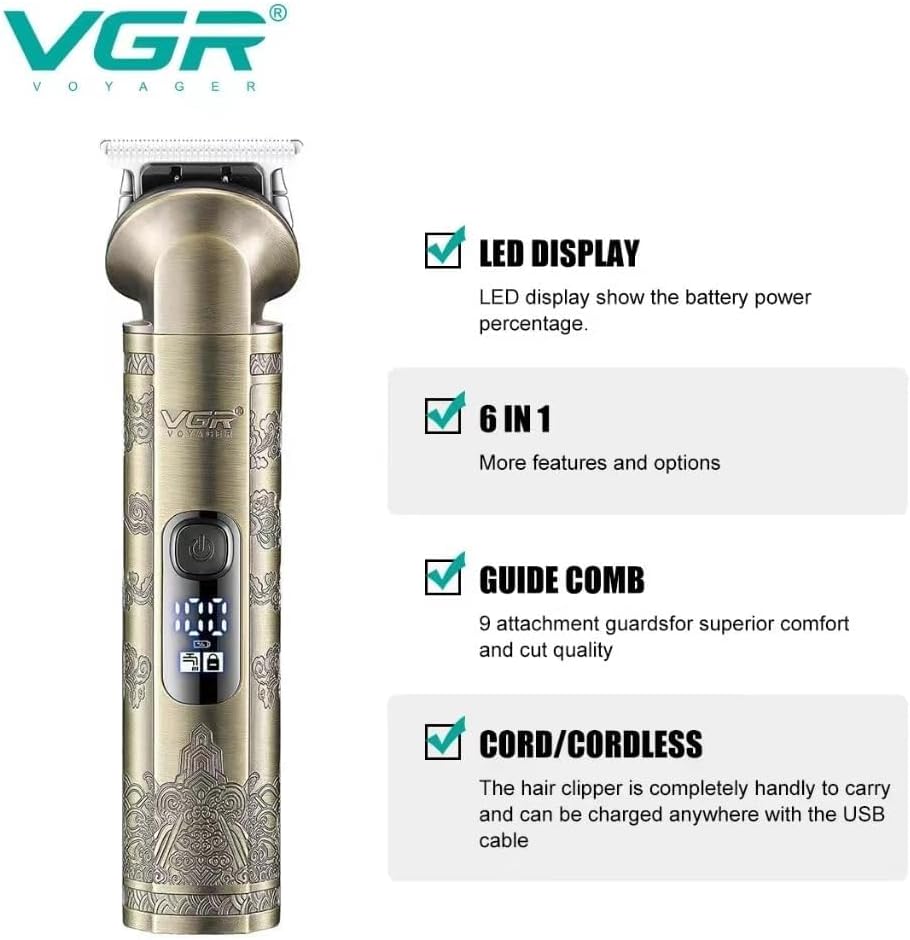

Image: The trimmer's LED display indicating battery level and highlighting key features such as its 6-in-1 versatility and cord/cordless capability.

Operating Instructions

Follow these steps for effective grooming:

1. Choose the desired attachment: Select the appropriate head for your grooming task (e.g., hair trimming, beard trimming, body grooming, nose and ear hair trimming, stubble trimming, or facial shaving).
2. Adjust the size setting: Use the guide combs to achieve your desired hair length. The trimmer offers 40 size settings from 0.5mm to 21mm. For hair clipping, combs range from 3mm to 15mm. For general trimming, combs range from 1mm to 7mm.
3. Turn on the trimmer: Press the power button to activate the trimmer. Ensure it is sufficiently charged for cordless use, or connect it to power for corded operation.
4. Begin trimming: Use the trimmer on the desired area, moving slowly and carefully against the direction of hair growth to achieve the desired result. For best results, ensure skin is clean and dry.
5. Post-use: After use, turn off the trimmer and proceed with cleaning as described in the Maintenance section.

Image: Visual guide demonstrating the various applications of the VGR V-109, including hair, body, precision, design, shaver, and nose trimming.

Image: A visual representation of the available guide comb lengths for both hair clipping and general trimming, aiding in precise length selection.

Maintenance

Cleaning

Due to its IPX6 waterproof rating, the VGR V-109 trimmer can be easily cleaned by rinsing it under running water. Ensure the trimmer is turned off and unplugged before cleaning. Remove the trimmer head and rinse both the head and the main unit under water to remove hair clippings. Use the provided cleaning brush for stubborn hairs.

Blade Care

The stainless steel blades are self-sharpening, requiring minimal maintenance. For optimal performance and longevity, occasionally apply a small drop of lubricating oil (not included) to the blades after cleaning and drying, especially if the trimmer is used frequently or feels less smooth during operation.

Storage

Store the trimmer and its attachments in a safe, dry place, away from direct sunlight and extreme temperatures. Use the provided storage pouch or charging stand to keep all components organized and protected.

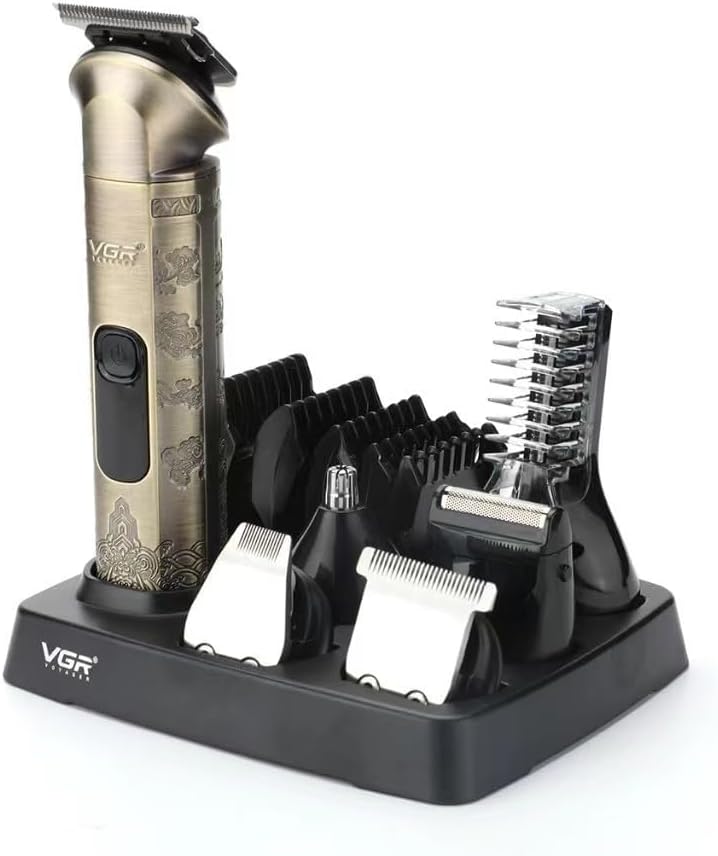

Image: The VGR V-109 trimmer and its accessories neatly arranged on the charging stand, illustrating proper storage.

Troubleshooting

If you encounter any issues with your VGR V-109 trimmer, please refer to the following common troubleshooting tips:

• Trimmer not turning on: Ensure the battery is fully charged. If using corded, check the power connection.
• Poor cutting performance: Clean the blades thoroughly to remove any trapped hair. Ensure the correct attachment and guide comb are securely fitted. Consider applying a small amount of lubricating oil to the blades.
• Unusual noise or vibration: Check if the trimmer head is properly attached. Clean any debris from around the blade area.
• Battery not holding charge: Ensure the charging cable and adapter are functioning correctly. If the issue persists, the battery may require professional servicing.

For issues not covered here, please contact VGR customer support.

Specifications

Warranty and Support

Specific warranty information for the VGR V-109 trimmer is not provided in this manual. For details regarding warranty coverage, technical support, or replacement parts, please refer to the product packaging or visit the official VGR website. Keep your purchase receipt as proof of purchase for any warranty claims.

Official Product Videos

There are no official product videos from the seller available for embedding in this manual.
