mangao SH420 Single-Phase Two-Stage Power Filter User Manual

1. Product Overview

The mangao SH420 Single-Phase Two-Stage Power Filter is an electromagnetic interference (EMI) suppression device designed to reduce unwanted electrical noise in power lines. This filter series is available in various current ratings, including 6A, 10A, 20A, 30A, and 50A, making it suitable for a range of servo and standard applications. Its two-stage design provides effective attenuation of both common-mode and differential-mode interference, ensuring cleaner power delivery to sensitive electronic equipment.

What's in the Box

• One (1) mangao SH420 Single-Phase Two-Stage Power Filter unit (specific current rating as purchased).
• Basic mounting hardware (may vary).

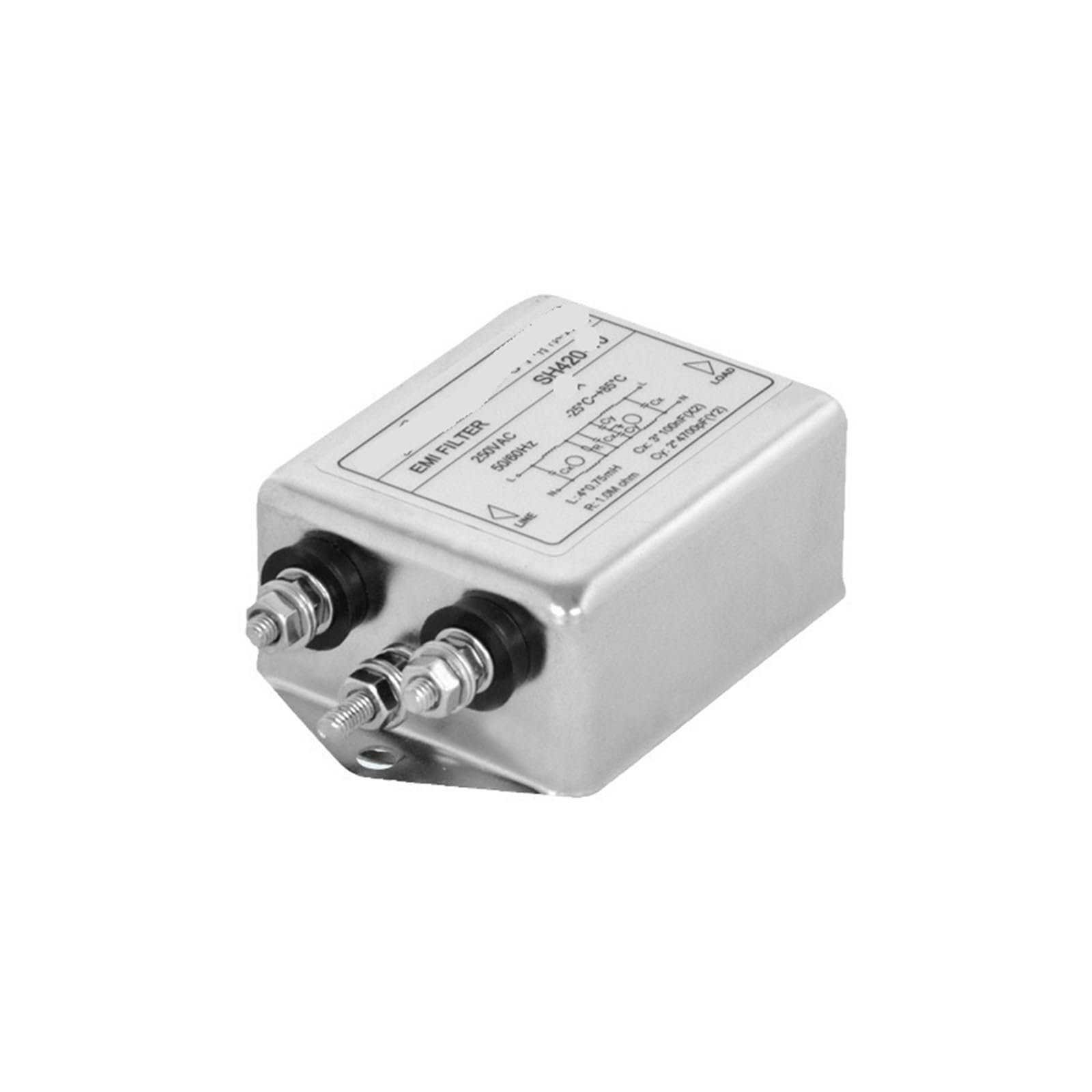

This image displays the mangao SH420 Single-Phase Two-Stage Power Filter. The compact unit features input and output terminals for wiring into a power line, designed to reduce electromagnetic interference.

2. Safety Information

Read all safety instructions before installation and operation. Failure to follow these instructions may result in electric shock, fire, or damage to the product or connected equipment.

• Electrical Hazard: Installation and wiring must be performed by qualified personnel in accordance with all local and national electrical codes.
• Power Disconnection: Always disconnect power to the circuit before installing, servicing, or removing the power filter.
• Proper Grounding: Ensure the power filter is properly grounded to prevent electric shock.
• Voltage and Current Ratings: Do not exceed the specified voltage and current ratings of the filter. Overloading can cause damage and fire hazards.
• Environmental Conditions: Do not expose the filter to moisture, extreme temperatures, or corrosive environments.
• Secure Mounting: Mount the filter securely to prevent accidental dislodgement.

3. Setup and Installation

The SH420 power filter is designed for inline installation within a single-phase AC power circuit. Follow these general steps for installation:

1. Power Disconnection: Turn off and lock out the power supply to the circuit where the filter will be installed. Verify that power is off using a voltage tester.
2. Mounting: Select a suitable location for mounting the filter, ensuring adequate ventilation and clearance from other components. Securely mount the filter using appropriate screws or fasteners through the designated mounting holes.
3. Wiring Connections:
   • Input (Line): Connect the incoming AC power line (L) and neutral (N) wires to the corresponding input terminals of the filter.
   • Output (Load): Connect the load's power line (L) and neutral (N) wires to the corresponding output terminals of the filter.
   • Ground: Connect the ground wire from the power source and the load to the ground terminal of the filter. Ensure a solid, low-impedance ground connection.
4. Verify Connections: Double-check all wiring connections for tightness and correct polarity. Ensure no bare wires are exposed.
5. Restore Power: Once all connections are secure and verified, restore power to the circuit.

Refer to the wiring diagram provided on the product label or in specific product documentation for precise terminal identification.

4. Operating Instructions

The mangao SH420 Single-Phase Two-Stage Power Filter operates passively once correctly installed and powered. It does not require any user interaction or configuration. Its function is to continuously filter electromagnetic interference from the power line, providing a cleaner power supply to connected equipment.

• Ensure the filter is installed in a circuit within its specified voltage and current ratings.
• The filter begins functioning immediately upon power application to the circuit.
• No indicators or controls are present on the unit for user operation.

5. Maintenance

The SH420 power filter is designed for minimal maintenance. However, periodic inspection is recommended to ensure optimal performance and safety.

• Visual Inspection: Periodically inspect the filter for any signs of physical damage, discoloration, or loose connections.
• Cleaning: If necessary, gently clean the exterior of the filter with a dry, soft cloth. Do not use liquid cleaners or solvents. Ensure power is disconnected before cleaning.
• Connection Check: With power disconnected, periodically check the tightness of all wiring terminals.
• Environmental Check: Ensure the operating environment remains within the specified conditions (temperature, humidity).

If any damage is observed or if the filter is not functioning as expected, disconnect power immediately and consult the troubleshooting section or contact support.

6. Troubleshooting

If you experience issues with your SH420 power filter, consider the following troubleshooting steps:

• No Power to Load:
  • Check if the main power supply to the circuit is active.
  • Verify all wiring connections to the filter are secure and correct.
  • Ensure the filter's current rating is not exceeded by the connected load.
• Continued EMI/Noise:
  • Confirm the filter is correctly grounded. A poor ground connection can reduce filtering effectiveness.
  • Ensure the filter is installed as close as possible to the noise source or the sensitive equipment.
  • Verify that the noise is indeed coming through the power line and not through other paths (e.g., signal cables, radiated interference).
  • Consider if a higher-rated filter or additional filtering stages are required for severe noise environments.
• Overheating:
  • Disconnect power immediately.
  • Check if the filter's current rating is being exceeded.
  • Ensure adequate ventilation around the filter.

If the problem persists after performing these checks, contact customer support.

7. Specifications

8. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.

For further assistance, you may also visit the manufacturer's official website or contact their customer service department.
