Instruction Manual

1. Product Overview

This magnetic replacement charger is specifically designed for use with MEGWR Dog Training Collars and MEGWR Dog Bark Collars. It provides a convenient and secure charging solution for your device.

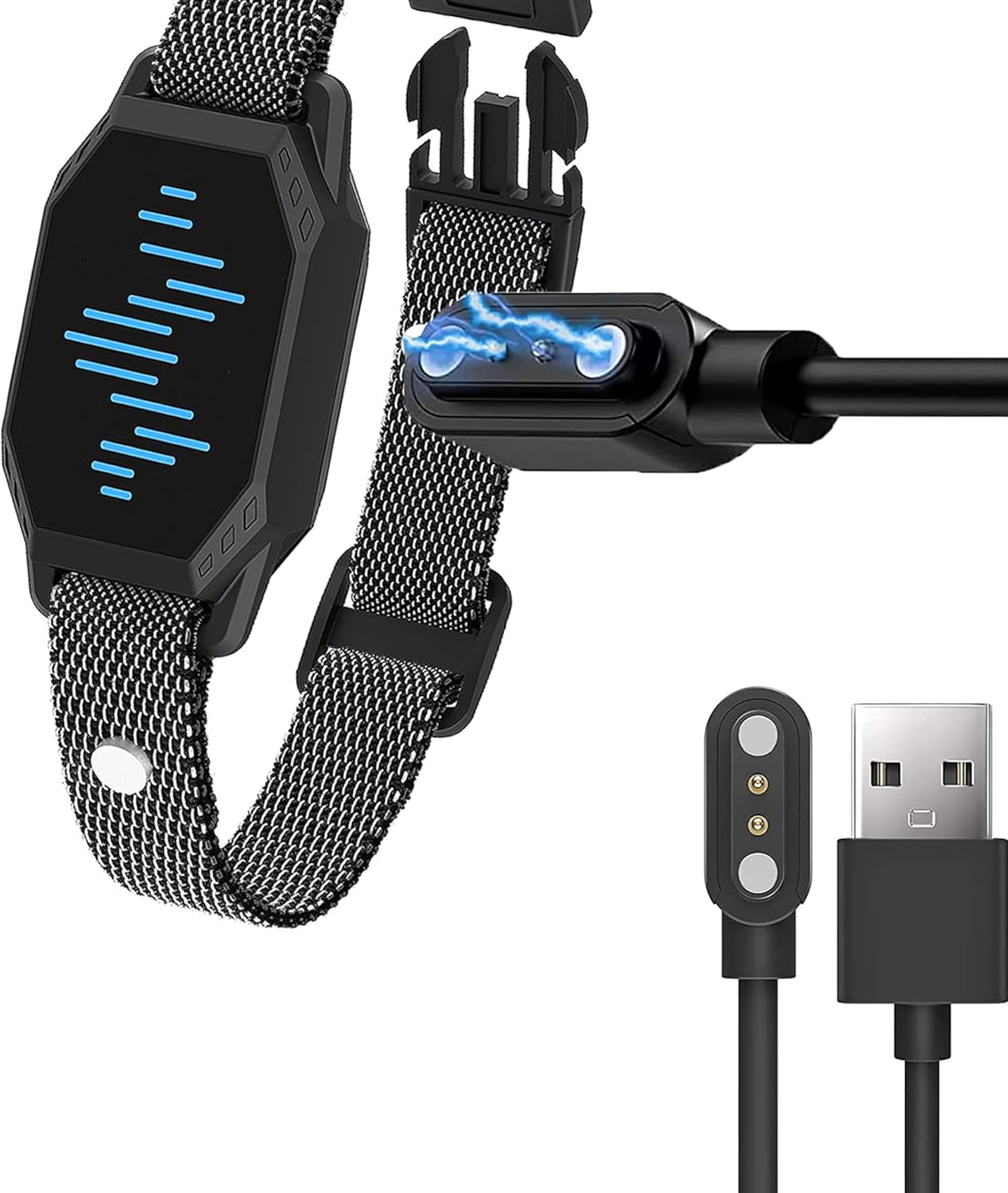

Figure 1: The magnetic charging cable connected to a compatible MEGWR dog training collar, illustrating the charging interface and the USB-A end of the cable.

Key Features:

• Compatibility: Specifically designed for MEGWR Dog Training Collar and MEGWR Dog Bark Collar models.
• Magnetic Connection: Ensures a strong and stable connection for efficient charging.
• Portability: Compact and easy to carry, suitable for travel or use in various locations.
• Safety Features: Built-in smart IC with multi-protection systems including over-charge, short-circuit, and temperature protection.
• Durable Construction: Features pure copper probes for rapid and stable conduction, and a flexible PVC cable for durability and easy storage.

Figure 2: Built-in safety features of the charger, including protection against over-charging, short-circuits, and excessive temperatures.

What's Included:

• 1 x Magnetic Charger Dock

2. Setup

Before using the charger, ensure your dog collar is a compatible MEGWR model. This charger is designed specifically for the MEGWR Dog Training Collar and MEGWR Dog Bark Collar.

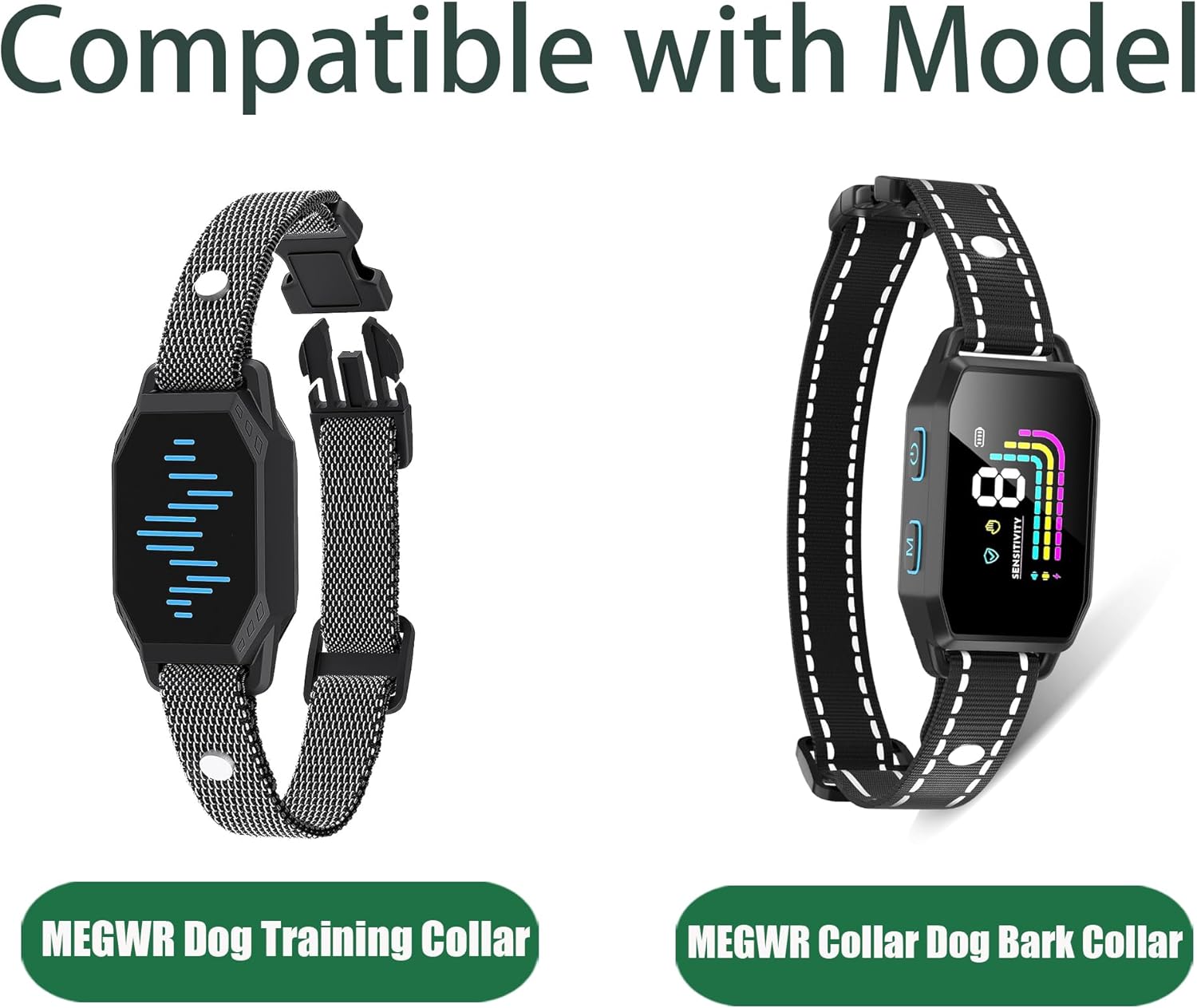

Figure 3: Compatible MEGWR dog collars: the MEGWR Dog Training Collar and the MEGWR Collar Dog Bark Collar.

1. Identify Charging Port: Locate the magnetic charging port on your MEGWR dog collar.
2. Connect Charger: Align the magnetic charging head of the cable with the charging port on the collar. The magnetic connection will automatically snap into place.
3. Connect to Power: Insert the USB-A end of the charging cable into a standard USB power adapter (not included), a computer USB port, or a power bank.

Figure 4: Detailed view of the magnetic charging connector securely attached to the charging port of the dog collar.

3. Operating Instructions

Once connected, the collar should begin charging. Refer to your MEGWR dog collar's specific manual for indicators of charging status (e.g., LED lights).

Charging Process:

• Ensure the magnetic connection is firm and stable. The strong magnetic force ensures the charger stays in place during charging.
• Charging time may vary depending on the collar's battery level and the power source used.
• Disconnect the charger once the collar is fully charged to prolong battery life.

Figure 5: Diagram showing the internal components of the magnetic charging head, emphasizing the strong magnetic connection and efficient power transfer.

4. Maintenance

Proper care of your charging cable will ensure its longevity and optimal performance.

• Storage: Store the cable in a dry place, away from direct sunlight and extreme temperatures. The flexible PVC cable is designed for easy rolling and convenient storage.
• Cleaning: Gently wipe the cable and magnetic contacts with a dry, soft cloth to remove any dust or debris. Do not use liquid cleaners or abrasive materials.
• Handling: Avoid bending the cable sharply or pulling it by the cord when disconnecting. Always grasp the plug or magnetic head.

Figure 6: Illustration detailing the construction of the charging cable, highlighting the pure copper probes and flexible PVC cable material.

Figure 7: Diagram illustrating the reinforced internal structure of the charging cable, featuring multi-layer shielding for enhanced durability.

5. Troubleshooting

If you encounter issues with your charger, please refer to the following common solutions:

6. Specifications

7. Warranty and Support

For warranty information or technical support regarding your Lamshaw Magnetic Replacement Charger, please contact the manufacturer directly or refer to the product listing on the retailer's website.

Please retain your proof of purchase for any warranty claims.
