OUMIFAND BNC Female Jack To UHF PL259 Male Plug RF Adapter User Manual

1. Introduction and Overview

This manual provides essential information for the proper use, installation, and maintenance of your OUMIFAND BNC Female Jack To UHF PL259 Male Plug RF Adapter. This adapter is designed to facilitate the connection between devices with BNC female ports and those with UHF PL259 male ports, commonly used in radio and antenna systems.

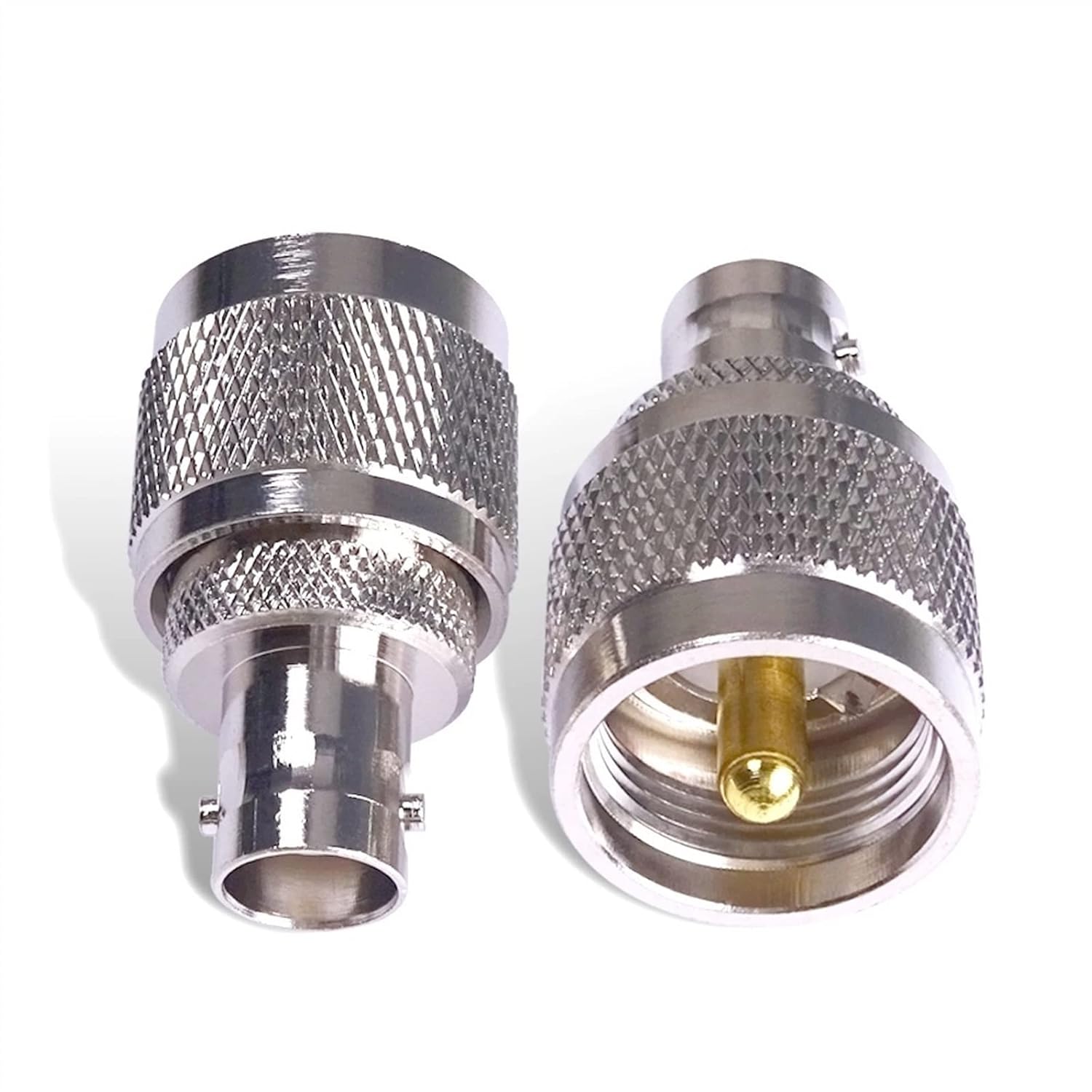

Image 1: The BNC Female Jack to UHF PL259 Male Plug RF Adapter, showing both ends of the connector.

The adapter is constructed from nickel-plated pure copper with gold-plated pins, ensuring reliable signal transmission and durability.

2. Setup and Installation

Follow these steps to correctly connect the RF adapter:

1. Identify Connectors: Locate the BNC female port on your first device (e.g., radio, oscilloscope) and the UHF PL259 male port on your second device (e.g., antenna cable, amplifier).
2. Connect BNC End: Align the BNC male end of the adapter with the BNC female port. Push the adapter in and twist the outer ring clockwise until it locks securely into place.
3. Connect UHF End: Align the UHF PL259 female end of the adapter with the UHF PL259 male port. Screw the adapter onto the male port clockwise until it is finger-tight. Do not overtighten.

Image 2: A detailed view of the UHF PL259 male plug end of the adapter, showing the threaded connection.

Image 3: A detailed view of the BNC female jack end of the adapter, illustrating the bayonet coupling mechanism.

Ensure all connections are firm to prevent signal loss or intermittent connectivity.

3. Operating Instructions

Once the adapter is securely connected between your devices, it functions as a passive signal conduit. No specific operational steps are required beyond ensuring a proper physical connection. The adapter will seamlessly convert the BNC interface to a UHF interface, allowing for signal transmission between compatible radio and antenna equipment.

4. Maintenance

To ensure the longevity and optimal performance of your RF adapter, consider the following maintenance tips:

• Cleaning: Keep the connector pins and housing clean and free from dust, dirt, and moisture. Use a soft, dry cloth to wipe the exterior. For internal contacts, use a specialized electronic contact cleaner if necessary, ensuring it is non-residue.
• Storage: When not in use, store the adapter in a dry, cool environment, away from direct sunlight and extreme temperatures. Using a protective cap for the ends can prevent dust ingress and physical damage.
• Handling: Avoid applying excessive force when connecting or disconnecting the adapter. This can damage the internal pins or the housing, leading to poor contact or signal degradation.

5. Troubleshooting

If you encounter issues with your RF adapter, consider the following troubleshooting steps:

• No Signal or Intermittent Signal:
  • Ensure both the BNC and UHF connections are fully seated and tightened.
  • Check the cables connected to the adapter for any damage or breaks.
  • Inspect the adapter's pins and sockets for any visible damage, bending, or corrosion.
• Poor Signal Quality:
  • Verify that the impedance of all connected components (50 Ohm for this adapter) matches.
  • Ensure the adapter is clean and free of debris that might interfere with contact.

If problems persist after performing these checks, the adapter may be faulty and require replacement.

6. Specifications

7. Warranty and Support

Warranty information for this specific product is not explicitly detailed in the provided product information. For details regarding warranty coverage, returns, or defects, please refer to the seller's policy on the platform where the product was purchased.

For technical assistance or further inquiries, please contact the seller directly through the messaging system provided by the e-commerce platform. Ensure you have your order details readily available for faster support.
