Introduction and Overview
The ROMECH 350W Heat Gun is a versatile tool designed for various crafting and DIY projects. It features fast heating technology and dual temperature settings to accommodate different tasks. This manual provides essential information for safe and effective use of your heat gun.

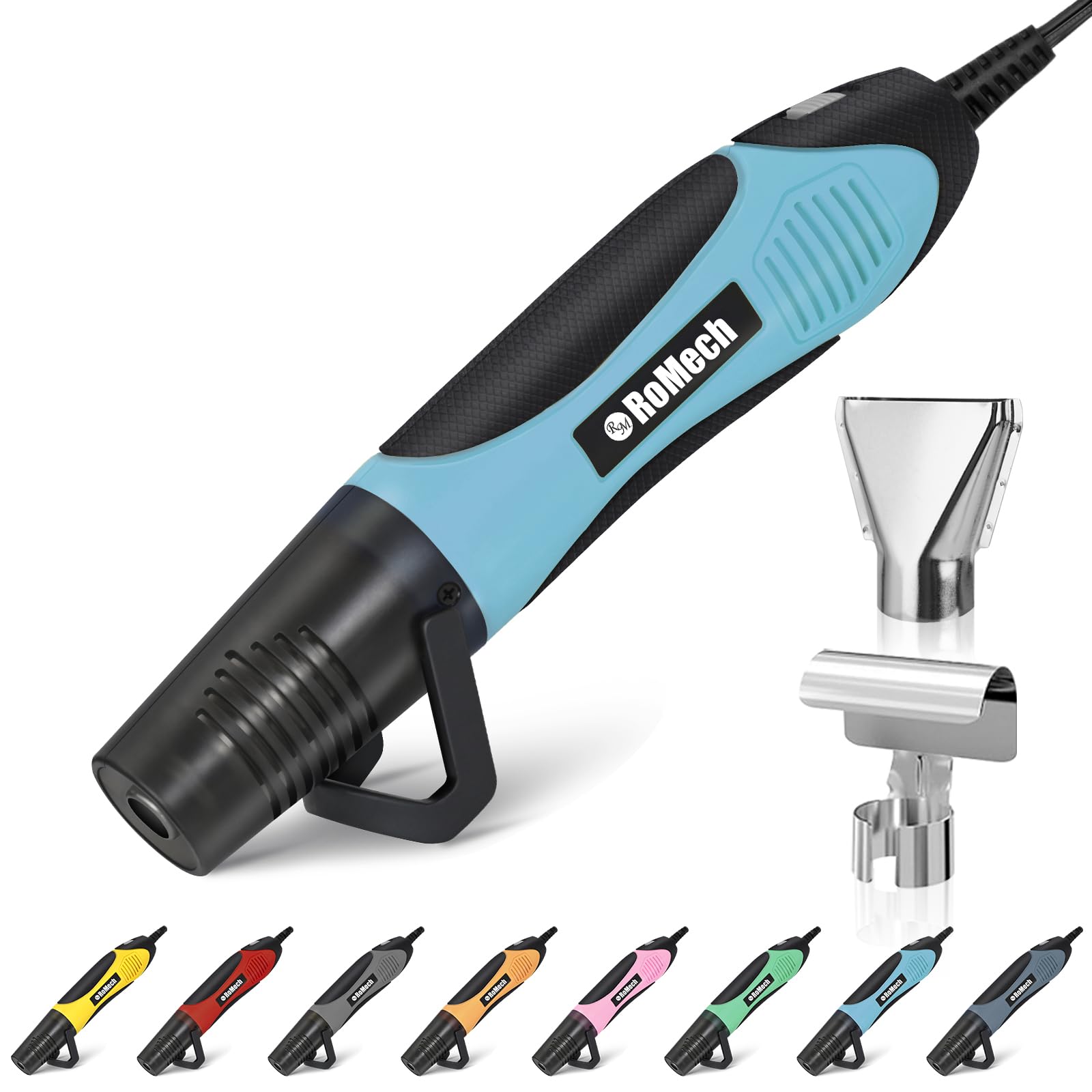

Figure 1: ROMECH 350W Heat Gun (Cyan model shown).
Safety Information
Always prioritize safety when operating the heat gun. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Overheating Protection: This heat gun includes built-in overheating protection that automatically cuts off power if the temperature exceeds a safe level.
- Power Cord: The power cord is UL/ETL certified for added safety. Inspect the cord for damage before each use.
- Protective Nozzle Guard: The heat gun is equipped with a protective nozzle guard. Do not remove it during operation.
- Material: The body is made of impact-resistant PA6+GF30 material.
- Ventilation: Use the heat gun in a well-ventilated area to prevent the accumulation of fumes.
- Flammable Materials: Keep the heat gun away from flammable materials. Do not point the hot air directly at people or animals.
- Cool Down: Allow the heat gun to cool down completely before storing. Use the integrated stand to safely rest the hot tool.
- Children and Pets: Keep the heat gun out of reach of children and pets.
What's in the Box
Your ROMECH 350W Heat Gun package includes the following items:
- ROMECH 350W Heat Gun (Model ROMECH-175)
- Flat Nozzle attachment
- Reflector Nozzle attachment
- Instruction Manual
Figure 2: Package contents of the ROMECH 350W Heat Gun.
Setup
Before operating your heat gun, ensure it is properly set up for your task.
- Select Nozzle: Choose the appropriate nozzle for your application. The Flat Nozzle is ideal for directing heat over a wider area, while the Reflector Nozzle is designed for heat shrink tubing applications, providing even heat distribution around wires.
- Attach Nozzle: Gently push the selected nozzle onto the heat gun's outlet until it clicks securely into place. Ensure it is firmly attached before use.
- Positioning: Utilize the integrated flip-out stand to position the heat gun securely on a flat, stable surface when hands-free operation is required or during cool-down.
Figure 3: The two accessory nozzles included with the heat gun.
Operating Instructions
The ROMECH 350W Heat Gun offers two temperature settings for diverse applications.
- Power On: Plug the heat gun into a standard 120V AC power outlet.
- Select Temperature: Use the switch located on the handle to select your desired temperature setting:
- Level I: 400°F (5.3 CFM / 150L/MIN airflow) for delicate work.
- Level II: 660°F (7 CFM / 200L/MIN airflow) for larger-scale projects.
- Fast Heating: The heat gun reaches its working temperature within seconds.
- Application: Direct the hot air towards the workpiece. Maintain a safe distance to avoid scorching or damaging the material.
- Power Off: After use, switch the heat gun to the "Off" position and allow it to cool down on its integrated stand before unplugging and storing.
Figure 4: Dual temperature settings and airflow details.
Versatile Applications
The ROMECH 350W Heat Gun is suitable for a wide range of tasks:
- Shrink tubing and shrink wrapping
- Vinyl wrapping
- Craft embossing
- Candle making (melting wax)
- Soldering and connecting wires
- Drying watercolors
- Repairing electronic devices
- Paint drying or scraping
Figure 5: Examples of versatile applications for the heat gun.
Demonstration Videos
Video 1: An overview of the ROMECH Mini Heat Gun, demonstrating its compact size and basic operation.
Video 2: Demonstration of using the ROMECH Mini Heat Gun to shrink connectors, highlighting its precision for electrical work.
Video 3: Quick demonstration of using the heat gun to remove stickers or price tags, useful for resellers.
Video 4: A user demonstrating the heat gun's effectiveness for 3D puff embroidery on a hat.
Maintenance
Proper maintenance ensures the longevity and safe operation of your ROMECH Heat Gun.
- Cleaning: After each use, ensure the heat gun is unplugged and completely cool. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Air Vents: Keep the air intake and exhaust vents clear of dust and debris to prevent overheating. Use a soft brush or compressed air if necessary.
- Storage: Store the heat gun in a dry, safe place, out of reach of children. Ensure the power cord is not kinked or damaged during storage.
- Inspection: Regularly inspect the power cord, plug, and housing for any signs of damage. If damage is found, discontinue use and contact customer support.
Troubleshooting
If you encounter issues with your ROMECH Heat Gun, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heat gun does not turn on. | No power supply; faulty outlet; damaged cord. | Check if the plug is securely inserted. Try a different outlet. Inspect the power cord for damage. |
| Heat gun stops during operation. | Overheating protection activated. | Turn off the heat gun, unplug it, and allow it to cool down for at least 15-20 minutes. Ensure air vents are clear. |
| Insufficient heat output. | Incorrect temperature setting; blocked air vents. | Ensure the correct temperature level (Level II for higher heat) is selected. Clear any obstructions from the air vents. |
If the problem persists after trying these steps, please contact ROMECH customer support.
Specifications
- Model: ROMECH-175
- Maximum Power: 350 Watts
- Temperature Settings:
- Level I: 400°F (5.3 CFM / 150L/MIN)
- Level II: 660°F (7 CFM / 200L/MIN)
- Material: PA6+GF30 (body), Copper (heating element)
- Item Weight: 1.04 pounds
- Package Dimensions: 10.67 x 3.46 x 2.52 inches
- Special Features: Adjustable temperature, Overload Protection, Integrated Stand
- Certifications: UL/ETL Certified Power Cord
Warranty and Support
ROMECH stands behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us. For warranty claims, technical assistance, or any questions regarding your ROMECH 350W Heat Gun, please refer to the contact information provided with your purchase or visit the official ROMECH website.
Note: Specific warranty details may vary. Please retain your proof of purchase.
