1. Introduction
This manual provides essential information for the assembly, use, and maintenance of your IVAR side unit. The IVAR side unit is a component of the IVAR storage system, designed to offer versatile and durable storage solutions. Made from untreated solid wood, it is a natural material that can be customized and maintained for long-lasting use.
Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation.
2. Safety Information
Always prioritize safety during assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Wall Anchoring: For safety, this unit must be securely fastened to the wall with the included wall attachment device. Different wall materials require different types of fastening devices. Use fastening devices suitable for the walls in your home (not included).
- Assembly: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all screws and fittings are tightened securely before use. Periodically check and re-tighten fittings as necessary.
- Weight Distribution: Distribute weight evenly on shelves. Do not overload the unit.
- Children: Do not allow children to climb or hang on the unit.
- Ventilation: Ensure adequate ventilation if storing items that require air circulation.
3. Assembly and Setup
The IVAR side unit is designed for straightforward assembly. It typically forms the vertical support for the IVAR shelving system. You will need basic tools such as a screwdriver and possibly a drill for wall mounting.
3.1 Components Overview
Figure 3.1: The IVAR side unit, showing its untreated solid wood construction and pre-drilled holes for shelf placement. This unit serves as a vertical support for the IVAR shelving system.
The IVAR side unit consists of two vertical posts connected by horizontal crossbars, forming a sturdy frame. It features pre-drilled holes along its length, allowing for flexible placement of shelves and other IVAR system components.
3.2 Assembly Steps
- Unpack: Carefully unpack all components and check against the parts list (refer to your product's specific assembly instructions for a detailed list, usually included in the packaging).
- Connect Crossbars: If the side unit requires assembly of its crossbars to the vertical posts, follow the specific instructions provided with your product.
- Attach Shelves/Cabinets: Once the side units are assembled and positioned, attach IVAR shelves, cabinets, or other accessories using the appropriate fittings and the pre-drilled holes. Ensure all components are level and securely fastened.
- Wall Mounting: This is a critical safety step. Position the assembled unit against the wall where it will be located. Mark the drilling points for the wall attachment device. Drill holes suitable for your wall material and insert appropriate wall plugs (if required). Securely fasten the unit to the wall using the provided wall attachment device and screws.
- Final Check: Verify that all connections are tight and the unit is stable and securely anchored to the wall.
4. Operating the Unit
The IVAR side unit functions as a foundational element for a customizable storage system. Its primary operation involves holding shelves and other storage components securely.

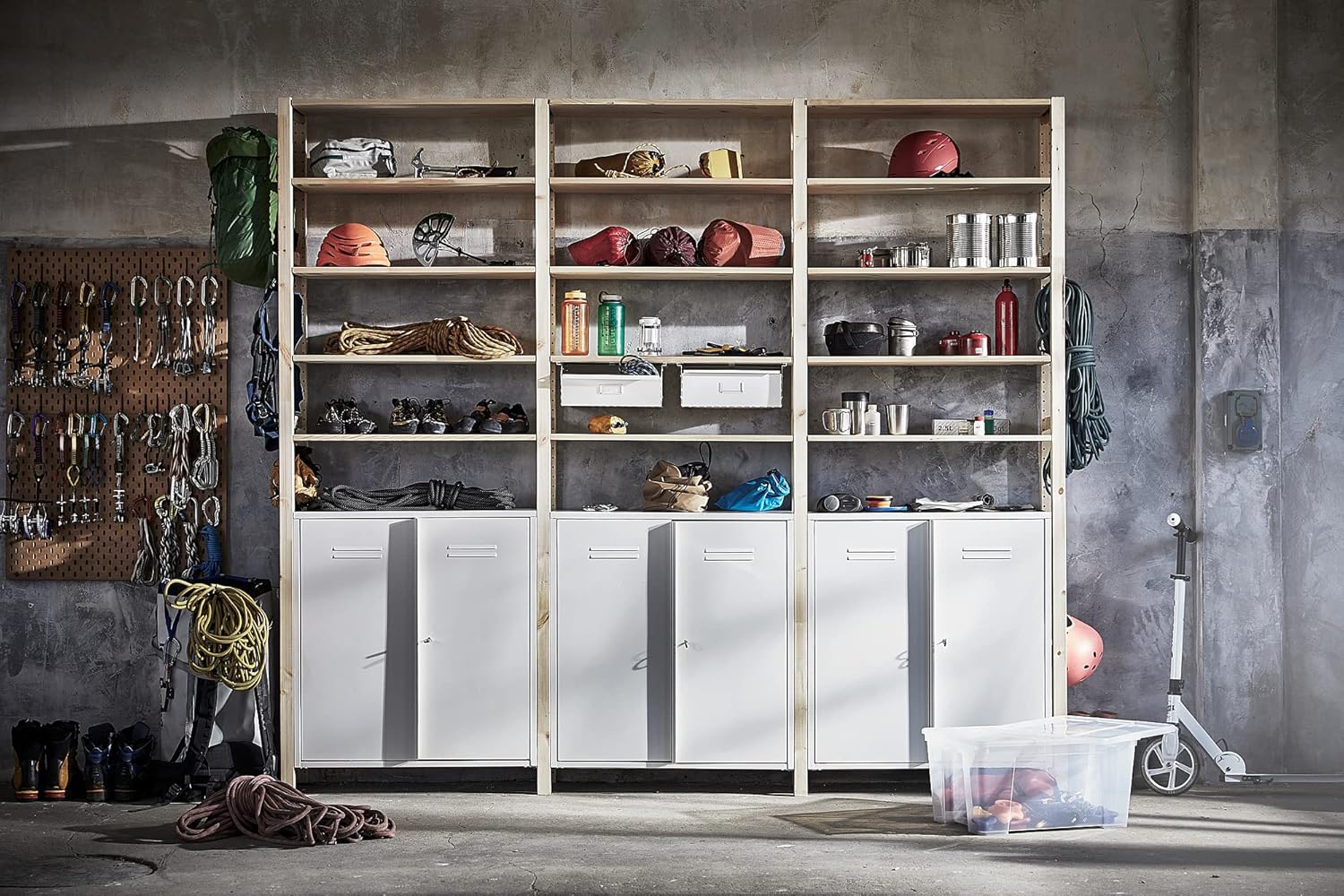

Figure 4.1: An example of the IVAR shelving system, demonstrating how multiple side units can be combined with shelves and cabinets to create a comprehensive storage solution for various items.
- Storage: Use the unit to support shelves for storing books, tools, household items, or decorative objects.
- Customization: The IVAR system allows for easy rearrangement of shelves and addition of new components as your storage needs evolve.
- Load Capacity: Be mindful of the weight capacity of individual shelves and the overall unit. Refer to the specific shelf instructions for their maximum load.
5. Maintenance
The untreated solid wood of your IVAR side unit is a durable natural material. To ensure its longevity and appearance, proper care is essential.
- Cleaning: Wipe clean with a damp cloth. For stubborn dirt, use a mild soap solution. Dry thoroughly with a clean cloth.
- Protection: To make the surface more hard-wearing and easy to look after, it is recommended to oil or wax the wood. This will also enhance its natural grain and provide protection against moisture and stains. Follow the instructions of your chosen wood treatment product.
- Avoid Moisture: Do not expose the unit to excessive moisture or direct sunlight for prolonged periods, as this can cause warping or cracking.
- Regular Checks: Periodically check all fittings and re-tighten if necessary to maintain stability.
6. Troubleshooting
If you encounter issues with your IVAR side unit, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit wobbles or is unstable. | Fittings are loose; unit not properly wall-mounted; uneven floor. | Tighten all screws and fittings. Ensure the unit is securely anchored to the wall. Use shims under the feet if the floor is uneven. |
| Wood appears dry or discolored. | Lack of treatment; exposure to sunlight or moisture. | Apply wood oil or wax as per maintenance instructions. Avoid direct prolonged sunlight exposure. |
| Difficulty attaching shelves. | Incorrect alignment; wrong fittings. | Ensure shelves are aligned correctly with the pre-drilled holes. Use the correct fittings provided with your shelves. |
7. Specifications
- Product Name: IVAR Side Unit
- Brand: Generic
- Model Number: IK.574.895.09
- ASIN: B0D1CQZLT3
- Material: Untreated Solid Wood
- Dimensions:
- Width: 30 cm
- Height: 226 cm
- Date First Available: 19 Dec. 2023
8. Warranty and Support
For specific warranty information, please refer to the documentation included with your purchase or contact the retailer. General support for assembly and product care can often be found on the manufacturer's website or by contacting their customer service department.
For further assistance, please contact your point of purchase or the brand's official support channels.
