Bellemave Full Size Loft Bed with Desk and LED Light

Introduction

This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your Bellemave Full Size Loft Bed. This loft bed features an integrated desk, storage shelves, drawers, and an LED light. Please read this manual thoroughly before assembly and use to ensure safe and correct operation.

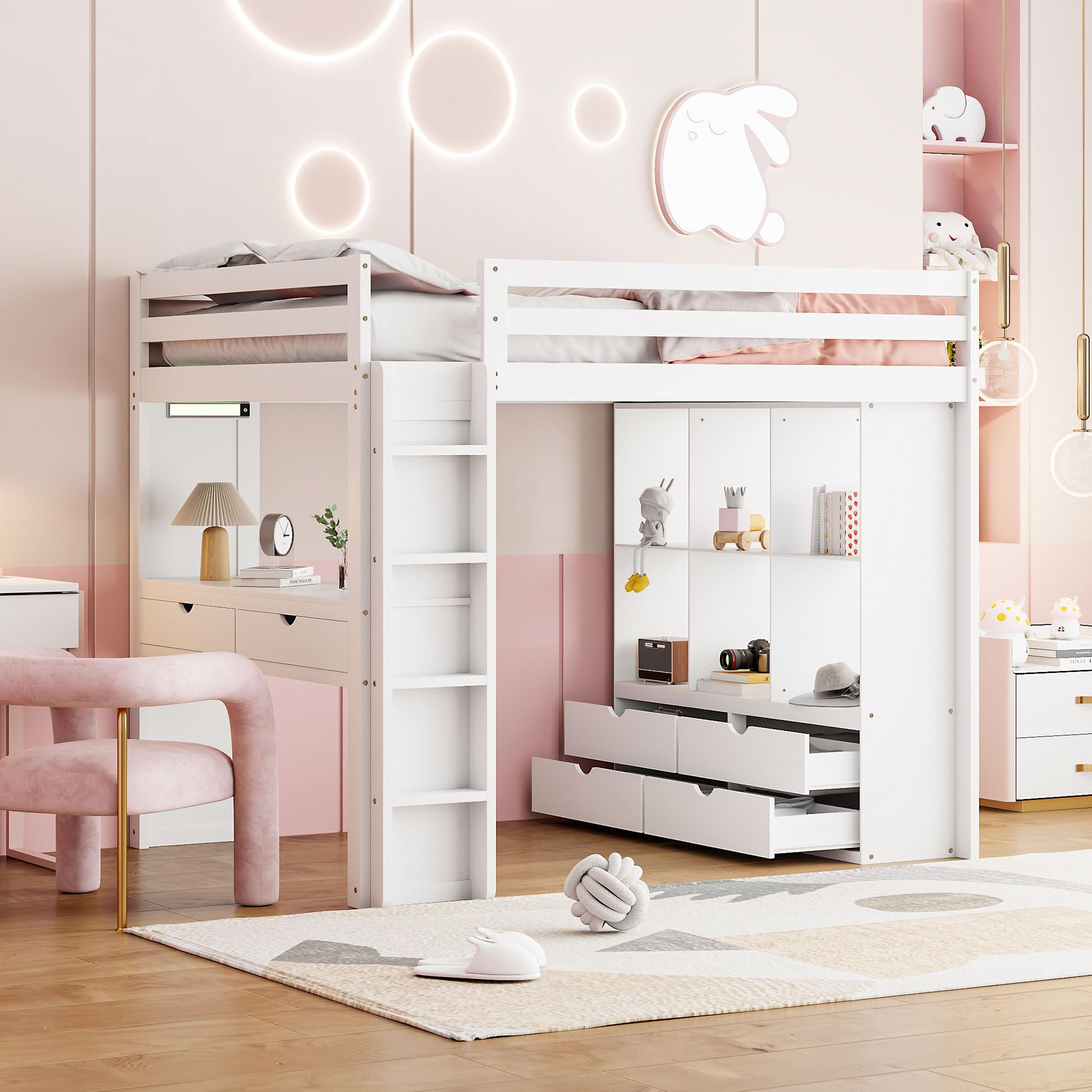

Image: Overview of the Bellemave Full Size Loft Bed, showcasing its white finish, elevated bed frame, integrated desk, and storage units.

Safety Information

Failure to follow these safety warnings could result in serious injury.

• Always use the recommended mattress size and thickness to ensure proper guardrail height. The recommended mattress thickness is 6 inches.
• Ensure all connections are tight before use and periodically check and tighten hardware as needed.
• Do not allow children under 6 years of age on the upper bunk.
• Prohibit more than one person on the upper bunk.
• Always use the ladder for entering and exiting the upper bunk.
• Do not attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, and jump ropes.
• Keep these instructions for future reference.

Package Contents

Your Bellemave Full Size Loft Bed is shipped in two separate packages. Please ensure you have received both packages and all components are present before beginning assembly.

• Bed Frame Components (Plywood + MDF)
• Slats (14 pieces)
• Integrated Desk
• Storage Shelves
• Drawers
• LED Light Bar
• Hardware Pack (screws, bolts, connectors)
• Assembly Tools (basic wrench/hex key)
• Illustrated Installation Manual

If any parts are missing or damaged, please contact customer support immediately.

Assembly Instructions

Assembly of this loft bed requires two adults. Please refer to the separate illustrated installation manual included in your package for detailed, step-by-step instructions. Ensure you have ample space and all components are laid out before starting.

1. Unpack Components: Carefully remove all parts from both boxes and lay them out on a clean, soft surface to prevent scratches. Verify all parts against the parts list in the illustrated manual.
2. Assemble Main Frame: Follow the manual to connect the main bed frame components, ensuring all bolts are finger-tight initially.
3. Install Desk and Storage Units: Attach the desk, shelves, and drawers according to the manual's diagrams.
4. Attach Ladder: Securely fasten the 4-step ladder to the bed frame.
5. Install Slats: Place and secure the 14 bed slats onto the bed frame.
6. Install LED Light: Mount the LED light bar in the designated area, typically under the bed frame above the desk. Connect it as per the electrical instructions.
7. Final Tightening: Once all components are in place, systematically tighten all hardware using the provided tools. Do not overtighten.
8. Safety Check: Before use, ensure the bed is stable, all connections are secure, and guardrails are properly installed.

Image: A view of the assembled loft bed, highlighting the integrated desk and the multi-level storage shelves and drawers.

Operating Instructions

Using the LED Light

The integrated LED light bar provides illumination for the desk area. It is typically controlled by a switch located on the light bar itself or an accessible cord. Plug the light into a standard electrical outlet.

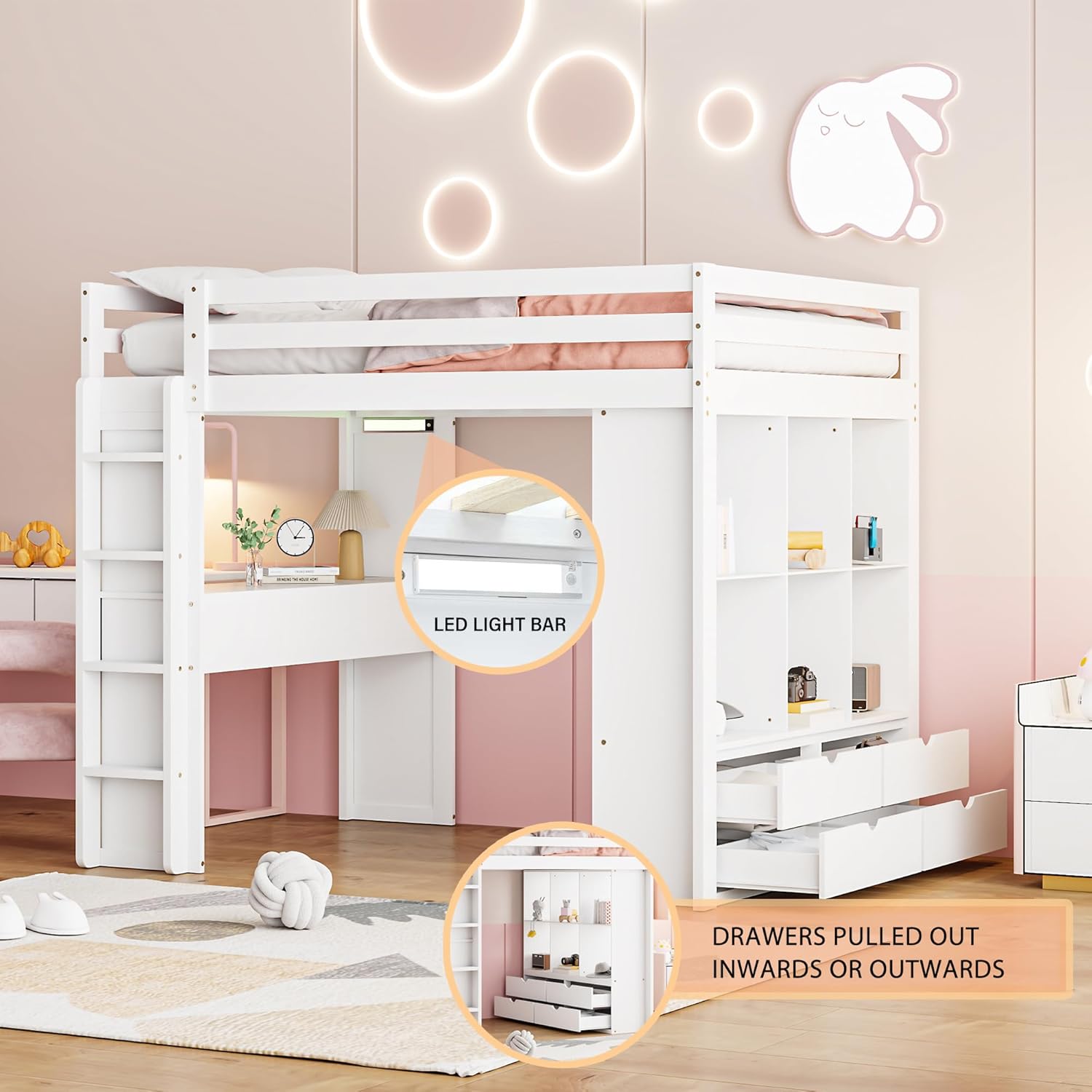

Image: Close-up view showing the LED light bar installed under the bed frame, illuminating the desk area, and the design of the pull-out drawers.

Using the Desk

The wide desk is positioned beneath the loft bed, providing a dedicated workspace. Ensure the desk surface is clear of obstructions before use. The desk is designed to support standard office equipment and study materials.

Image: The integrated desk with its drawers fully extended, demonstrating the storage capacity.

Using the Storage Shelves and Drawers

The loft bed includes multiple storage shelves and drawers. These are designed to organize books, personal items, and other accessories. The drawers operate on smooth glides for easy access.

Image: The integrated desk with its drawers closed, showing the clean and compact design of the storage units.

Maintenance

• Cleaning: Wipe the bed frame, desk, and storage surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware Check: Periodically inspect all bolts, screws, and connections. Tighten any loose hardware to maintain stability and safety.
• LED Light: Ensure the LED light bar is free from dust. If the light malfunctions, check the power connection. Do not attempt to repair electrical components if you are not qualified.
• Drawer Glides: If drawers become stiff, a small amount of silicone-based lubricant can be applied to the glides.

Troubleshooting

• Bed Squeaks: This often indicates loose hardware. Re-tighten all bolts and screws. Ensure the bed is on a level surface.
• LED Light Not Working: Check if the power cord is securely plugged into the outlet and the light bar. Ensure the outlet is functional. If issues persist, contact customer support.
• Drawers Stick: Check for any obstructions in the drawer glides. Ensure the drawer is properly aligned on its tracks.
• Bed Feels Unstable: Immediately cease use. Re-check all assembly steps and ensure all hardware is fully tightened. Verify the bed is on a flat, stable floor.

Specifications

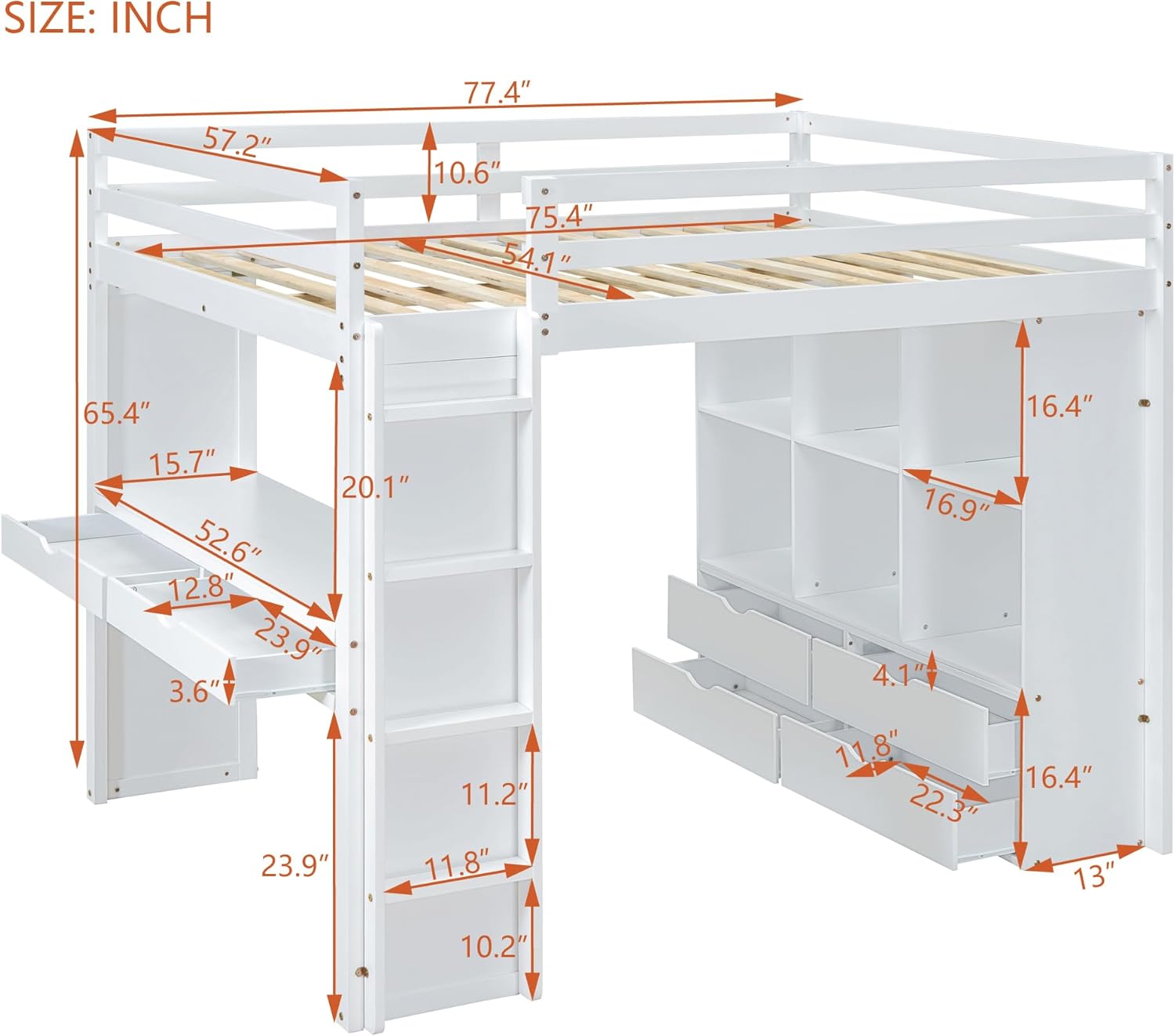

Image: Technical drawing illustrating the full dimensions of the loft bed, including height, length, width, and specific measurements for the desk and storage areas.

Contact and Support

For any questions regarding assembly, missing parts, or product operation, please refer to the included illustrated installation manual or contact the seller directly. Provide your model number (B0D176C7D4) for faster assistance.
