EFAN 4 Inch Cordless Mini Chainsaw Instruction Manual

1. Important Safety Instructions

Read all safety warnings and instructions before operating this power tool. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Personal Protective Equipment (PPE): Always wear safety goggles, protective gloves, and sturdy footwear. Hearing protection is recommended.
• Work Area Safety: Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away while operating a power tool.
• Electrical Safety: Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.
• Kickback Prevention: Be aware of kickback. Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
• Secure Grip: Always hold the chainsaw firmly with one hand on the handle. Ensure a stable stance.
• Avoid Accidental Starting: Ensure the switch is in the off-position before inserting the battery pack, picking up or carrying the tool. The chainsaw features a security lock button to prevent accidental activation.

Image: The double security lock mechanism, requiring two buttons to be pressed simultaneously for operation, enhances user safety.

2. Product Overview

2.1 Components

The EFAN 4 Inch Cordless Mini Chainsaw package includes the following components:

• Mini Electric Chainsaw Unit
• 4-inch Guide Plate
• 2 x 1500mAh Lithium-Ion Batteries (21V)
• 2 x Chains (one pre-installed)
• Quick Charger
• Storage Bag
• Protective Gloves
• Blade Cover
• Protective Goggles
• Oil Bottle
• Screwdriver
• Instruction Manual

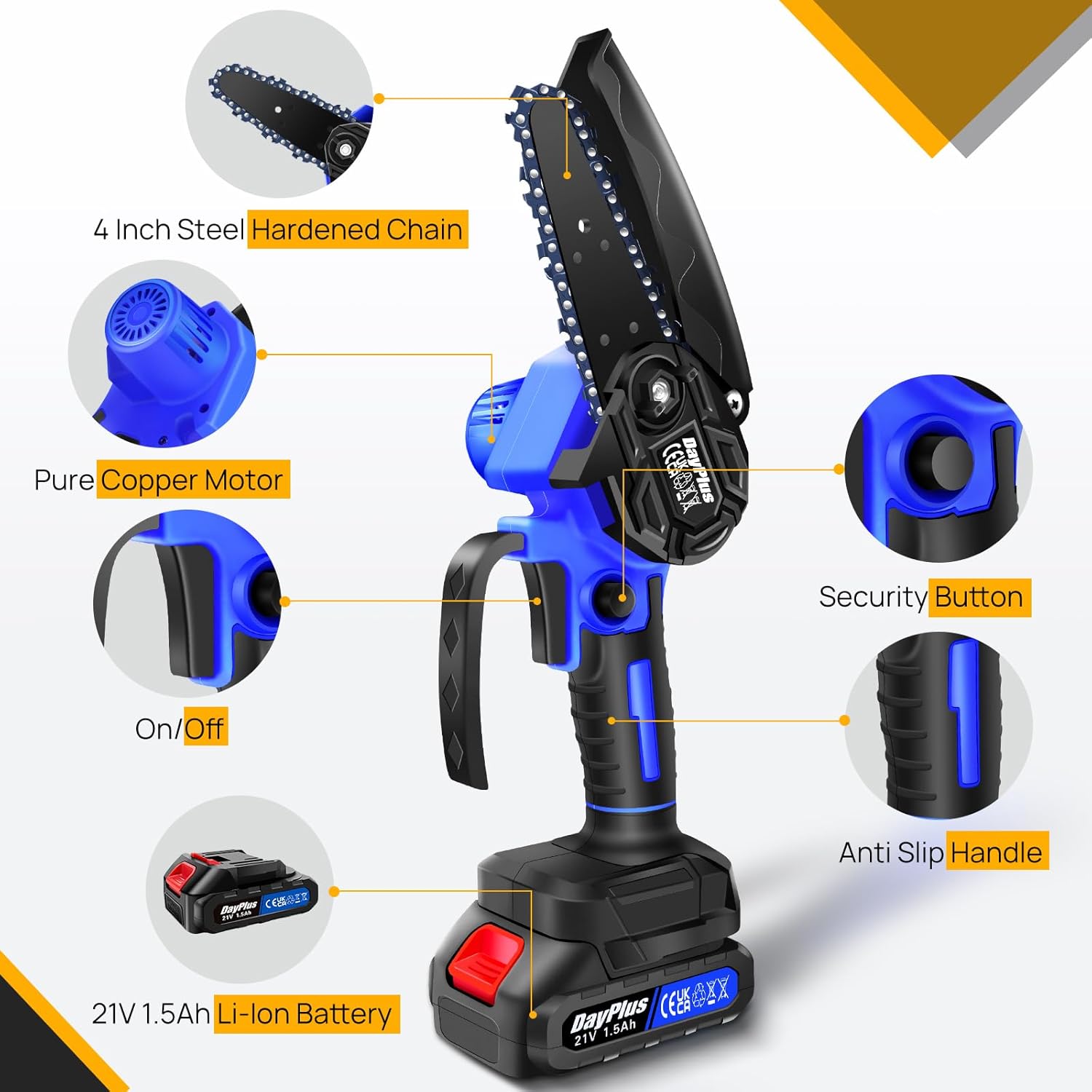

Image: Key components of the EFAN Mini Chainsaw, including the chain, motor, controls, and battery.

Image: Contents of the EFAN Mini Chainsaw kit, showing all accessories provided.

2.2 Key Features

• Powerful Motor: Equipped with a pure copper motor for efficient cutting performance.
• Hardened Chain: 4-inch hardened steel chain for durability and sharp cutting.
• Portable Design: Lightweight (approximately 800g / 2.42 lbs) and compact for one-handed operation.
• Safety Mechanisms: Features a switch lock, safety cover flip, and chain brake.
• High-Capacity Batteries: Includes two 21V 1500mAh Lithium-Ion batteries for extended use.

3. Setup and Assembly

3.1 Battery Installation

The chainsaw is powered by a 21V Lithium-Ion battery. Ensure the battery is fully charged before first use.

1. Align the battery pack with the battery slot at the base of the chainsaw handle.
2. Slide the battery into the slot until it clicks securely into place.
3. To remove, press the battery release button (if present) and slide the battery out.

Image: The 1500mAh Lithium-Ion battery, providing power to the chainsaw.

3.2 Chain Installation and Adjustment

The chainsaw typically comes with one chain pre-installed. If you need to replace or install a new chain, follow these steps:

1. Unlock the Locking Knob: Locate the locking knob on the side cover and turn it counter-clockwise to loosen.
2. Remove the Side Cover: Carefully remove the side cover and the old chain (if replacing).
3. Install New Chain: Place the new chain around the guide bar, ensuring the cutting edges are facing the correct direction (refer to the diagram for proper orientation). Align the chain with the sprocket.
4. Reattach Side Cover: Place the side cover back onto the chainsaw, ensuring the guide bar and chain are properly seated.
5. Adjust Chain Tension: Turn the locking knob clockwise to tighten the chain. The chain should be snug but still able to be pulled slightly away from the guide bar. Do not over-tighten.
6. Secure the Side Cover: Once tension is set, tighten the side cover knob firmly clockwise.

Image: Step-by-step guide for chain replacement and tension adjustment.

3.3 Lubrication

Regular lubrication of the chain is essential for optimal performance and longevity. Use the provided oil bottle with appropriate chainsaw chain oil.

• Apply a small amount of chain oil directly onto the chain and guide bar before each use and periodically during extended operation.
• Ensure the oil is evenly distributed along the chain.

4. Operation

4.1 Starting and Stopping

1. Starting: With the battery securely installed, press and hold the security lock button (usually located on the side of the handle). While holding the security button, press the ON/OFF trigger switch to start the chainsaw.
2. Stopping: Release the ON/OFF trigger switch to stop the chainsaw. The chain will stop rotating.

4.2 Cutting Procedures

Always wear appropriate PPE before starting any cutting task.

• Secure the Workpiece: Ensure the branch or wood you are cutting is stable and supported to prevent movement during the cut.
• Positioning: Hold the chainsaw firmly with one hand, maintaining a balanced stance. Keep the guide bar clear of any obstructions.
• Initiating the Cut: Gently bring the running chain into contact with the workpiece. Allow the chainsaw to do the work; do not apply excessive force.
• Cutting Technique: For branches, cut from the top down or bottom up depending on the branch's position and weight distribution to avoid pinching the chain. For larger pieces, make a relief cut first.
• Avoid Kickback: Be mindful of the guide bar tip. Avoid contact with the tip to prevent sudden upward or backward movement (kickback).

Image: The mini chainsaw in action, demonstrating its cutting capability on a tree branch.

Image: Examples of suitable applications for the EFAN Mini Chainsaw, including garden pruning and cutting various materials.

4.3 Safety Features in Use

• Splash Guard: The chainsaw is equipped with a rotatable safety cover/splash guard that can be adjusted up to 120 degrees to help prevent wood shavings from splashing towards the user. Ensure it is in the appropriate position for your cutting task.
• Chain Brake: The integrated chain brake mechanism is designed to stop the chain quickly in case of kickback or other emergencies, enhancing user safety.

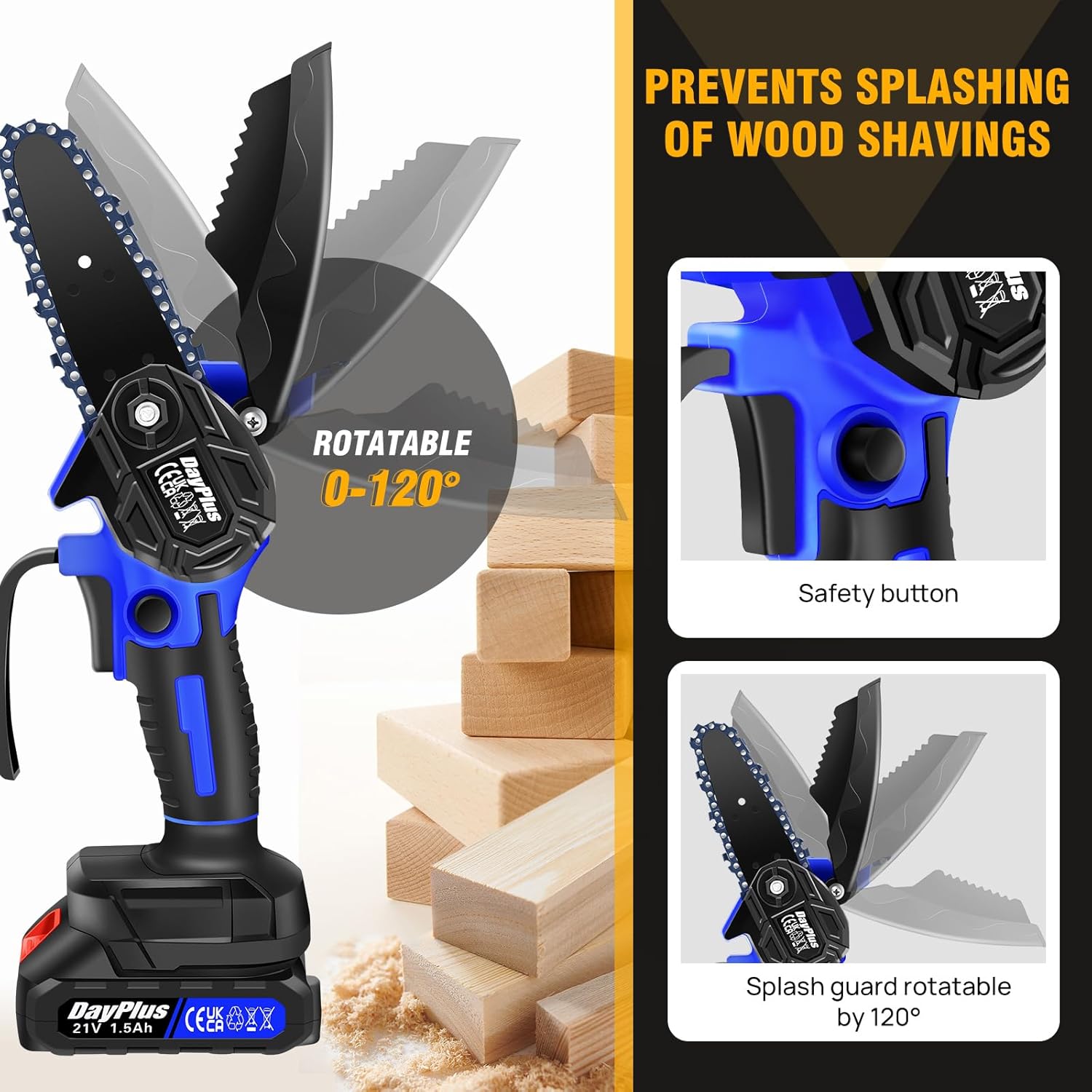

Image: The adjustable splash guard and safety button, designed to protect the user during operation.

Image: The splash guard can be rotated up to 120 degrees for optimal protection.

5. Maintenance

5.1 Cleaning

• After each use, remove the battery and use a brush or compressed air to clean sawdust and debris from the guide bar, chain, and motor housing.
• Wipe down the exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners.

5.2 Chain Care

• Sharpening: A dull chain requires more force and can lead to inefficient cutting and increased wear. Sharpen the chain regularly or replace it when necessary. Refer to the chain replacement instructions in Section 3.2.
• Tension: Periodically check chain tension. A loose chain can derail, while an overly tight chain can cause premature wear to the chain and motor.
• Lubrication: Ensure the chain is always adequately lubricated as described in Section 3.3.

Image: The 4-inch hardened chain, designed for durability and cutting efficiency.

5.3 Battery Care

• Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
• Do not store batteries in a discharged state for extended periods. Recharge them periodically if not in use.
• Use only the charger provided by the manufacturer.

6. Troubleshooting

This section addresses common issues you might encounter with your EFAN Mini Chainsaw.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included in your product packaging or contact EFAN customer service directly. Contact details can typically be found on the manufacturer's official website or through your point of purchase.
