Favoto Urban Cycling Helmet with Visor - Model B030 Instruction Manual

1. Introduction and Overview

Thank you for choosing the Favoto Urban Cycling Helmet, Model B030. This helmet is designed to provide protection and comfort for urban cyclists and scooter riders. It features advanced Double Inmould technology for enhanced durability and safety, a lightweight construction, and an adjustable fit system. The helmet is certified to CE EN1078 standards, ensuring it meets strict European safety requirements.

Key features include a removable visor for adaptability to various weather conditions, 14 strategically placed ventilation openings for optimal airflow, and a comfortable, removable, and washable inner lining for hygiene.

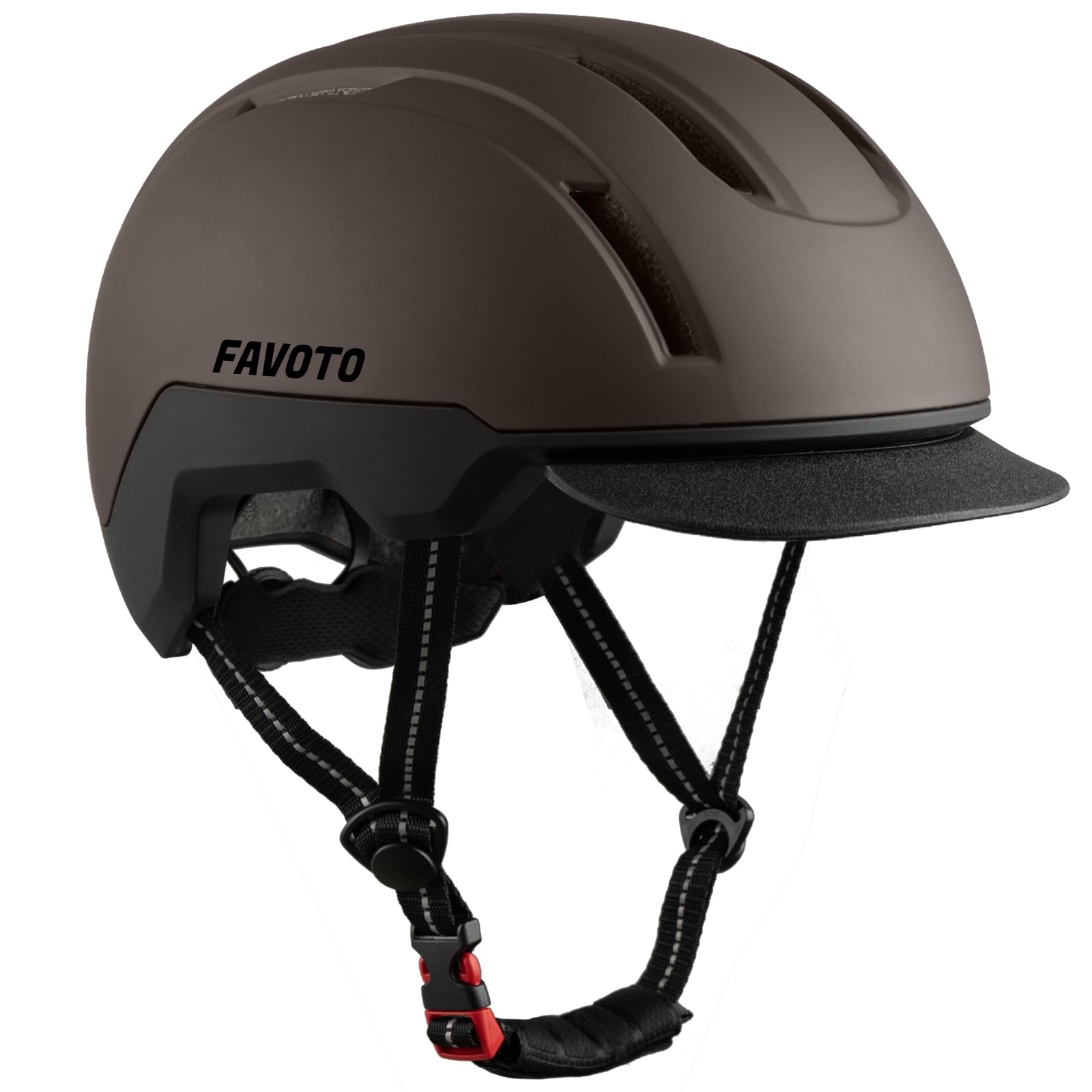

Favoto Urban Cycling Helmet showing airflow and lightweight features — Figure 1: Overview of the Favoto Urban Cycling Helmet, highlighting its breathable design with 10 vents for optimal airflow, lightweight construction at approximately 290g, and comfortable, removable, and washable liner.

2. Safety Information

Your safety is paramount. Always wear your helmet correctly and ensure it fits snugly. A helmet can only protect if it fits well and is worn properly.

Always fasten the chin strap securely.
Ensure the helmet does not obstruct your vision or hearing.
Replace your helmet immediately after any impact, even if visible damage is not apparent. The helmet's protective capabilities may be compromised.
Do not modify the helmet or its components.
Avoid exposing the helmet to extreme temperatures or harsh chemicals, as this can damage the materials.

The helmet's Double Inmould technology and high-density EPS foam liner are designed to absorb impact energy effectively.

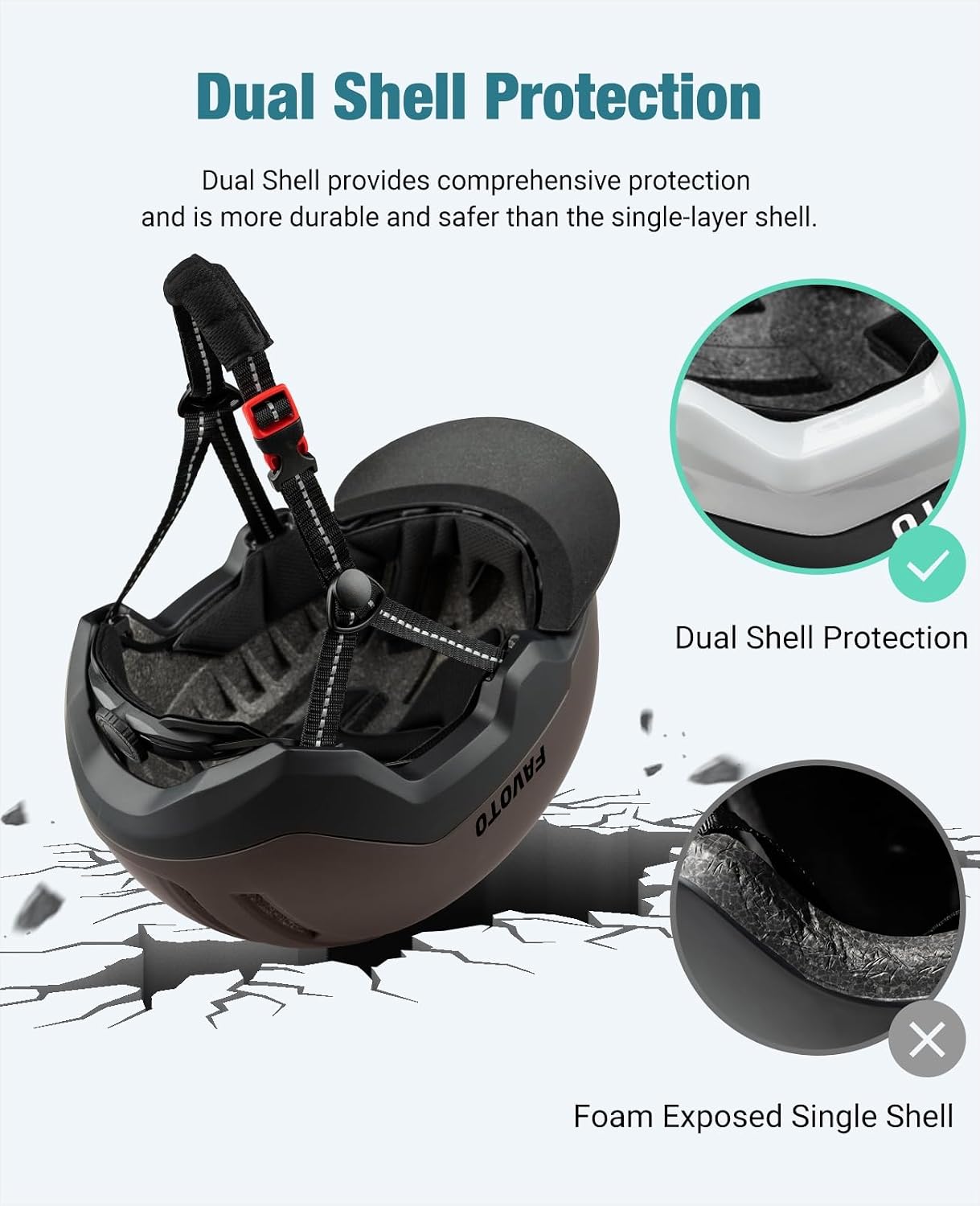

Favoto Urban Cycling Helmet demonstrating dual shell protection — Figure 2: Illustration of the helmet's Dual Shell Protection technology, which provides comprehensive and durable safety compared to single-layer shells. This design enhances impact resistance.

Interior view of Favoto helmet showing high-density EPS foam — Figure 3: An internal view of the helmet, showcasing the high-density EPS foam liner. This material, with a thickness of 20mm, adheres to international standards for shock absorption and impact resistance, while maintaining a lightweight feel.

3. Package Contents

Please check the package to ensure all components are present:

1 x Favoto Urban Cycling Helmet
1 x Instruction Manual

4. Setup and Adjustment

4.1 Measuring Head Circumference

Before first use, measure your head circumference to ensure you have the correct helmet size. Use a flexible tape measure and wrap it around your head approximately 1.5 cm (0.6 inches) above your ears and eyebrows. The recommended head circumference for this helmet (Size L) is 57-61cm.

4.2 Adjusting the Fit

The helmet features an adjustable dial at the rear for a customized fit:

Place the helmet on your head.
Turn the dial clockwise to tighten the fit until the helmet feels snug but comfortable, without causing pressure points.
Turn the dial counter-clockwise to loosen the fit.

Favoto helmet with adjustable size dial — Figure 4: The adjustable size dial located at the rear of the helmet. Turn clockwise to tighten and counter-clockwise to loosen, allowing for a customized and secure fit for head circumferences between 57-61cm.

4.3 Adjusting Chin Straps

Adjust the chin straps so that they form a 'V' shape under your ears. The buckle should be centered under your chin. Tighten the strap so that the helmet does not move excessively when you shake your head, but still allows for comfortable breathing.

4.4 Attaching/Removing the Visor

The helmet is equipped with a removable visor. To remove or attach the visor, gently pull or push it into its designated slots on the helmet. No tools are required for this process.

Video 1: This video demonstrates how to adjust the helmet's fit using internal padding and the rear adjustment dial. Follow these steps to ensure a secure and comfortable fit for your Favoto helmet.

5. Operating Instructions

Once adjusted, ensure the helmet sits level on your head, covering your forehead. It should not tilt backward or forward. The helmet should not move more than an inch in any direction when pushed. The chin strap should be snug enough that you cannot pull the helmet off your head when the strap is fastened.

6. Maintenance

6.1 Cleaning

The helmet's inner lining is removable and washable. Gently remove the lining and wash it by hand with mild soap and water. Allow it to air dry completely before reinserting. For the outer shell, wipe with a soft, damp cloth and mild soap. Avoid abrasive cleaners or solvents.

6.2 Storage

Store the helmet in a cool, dry place, away from direct sunlight and extreme temperatures. Do not store it near heat sources or in a vehicle on a hot day, as this can damage the helmet materials.

7. Troubleshooting

Helmet feels loose: Re-adjust the rear dial and chin straps until a snug fit is achieved. Refer to Section 4.2 and 4.3.
Discomfort or pressure points: Ensure the helmet is positioned correctly on your head. Check if the internal padding is evenly distributed.
Visor not secure: Ensure the visor is properly aligned and pushed firmly into its attachment points.

8. Specifications

Feature	Specification
Brand	Favoto
Model Number	B030
Age Range	Adult
Color	Brown
Size	L (59-61cm)
Material Type	PC+EPS
Outer Material	Polycarbonate (PC)
Inner Material	EPS Foam
Special Feature	Visor
Weight	Approx. 290g
Certification	CE (EN1078)

9. Warranty Information

Favoto products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact Favoto customer support. Keep your proof of purchase for any warranty claims.

10. Support

If you have any questions, concerns, or require assistance with your Favoto Urban Cycling Helmet, please contact Favoto customer support through the retailer where you purchased the product or visit the official Favoto website for contact information.
