SODI 3-in-1 Wireless Charging Station User Manual

Introduction

The SODI 3-in-1 Wireless Charging Station is designed to provide a convenient and efficient charging solution for multiple Apple devices simultaneously. This magnetic charging station features an ambient light and is compatible with iPhone 12 and later models (with magnetic cases), Apple Watch, and AirPods (3rd generation, Pro, and 2nd generation with wireless charging case). It streamlines your daily charging routine by allowing you to power up your devices in one central location.

Image: The SODI 3-in-1 Wireless Charging Station in black, shown charging an iPhone, Apple Watch, and AirPods. A USB-C cable and power adapter are also visible.

Package Contents

Please check the package contents upon unboxing to ensure all components are present:

• 1 x 3-in-1 Wireless Charging Station
• 1 x USB Type-C Cable
• 1 x User Manual
• 1 x US Charger (18W wall charger included)

Image: A visual representation of the complete set of accessories, including the 3-in-1 charging station, USB Type-C cable, and US charger.

Setup Instructions

1. Connect the Power Adapter: Insert the USB Type-C cable into the charging station's input port.
2. Plug into Power: Connect the other end of the USB Type-C cable to the included US wall charger, and then plug the wall charger into a standard electrical outlet.
3. Power On: The charging station is now ready for use. The ambient light at the base will illuminate, indicating it is powered on.

Operating Instructions

The SODI 3-in-1 Wireless Charging Station allows for simultaneous charging of your iPhone, Apple Watch, and AirPods.

Charging Your Devices:

• iPhone Charging: Place your iPhone (iPhone 12 or later with a magnetic case) onto the upright magnetic charging pad. The integrated magnets will ensure precise alignment for efficient charging. The phone can be charged horizontally or vertically.
• Apple Watch Charging: Place your Apple Watch onto the dedicated magnetic charging module located behind the iPhone charging pad. Ensure the watch is properly aligned for charging to begin.
• AirPods Charging: Place your AirPods (3rd generation, Pro, or 2nd generation with wireless charging case) onto the flat charging pad at the base of the station.

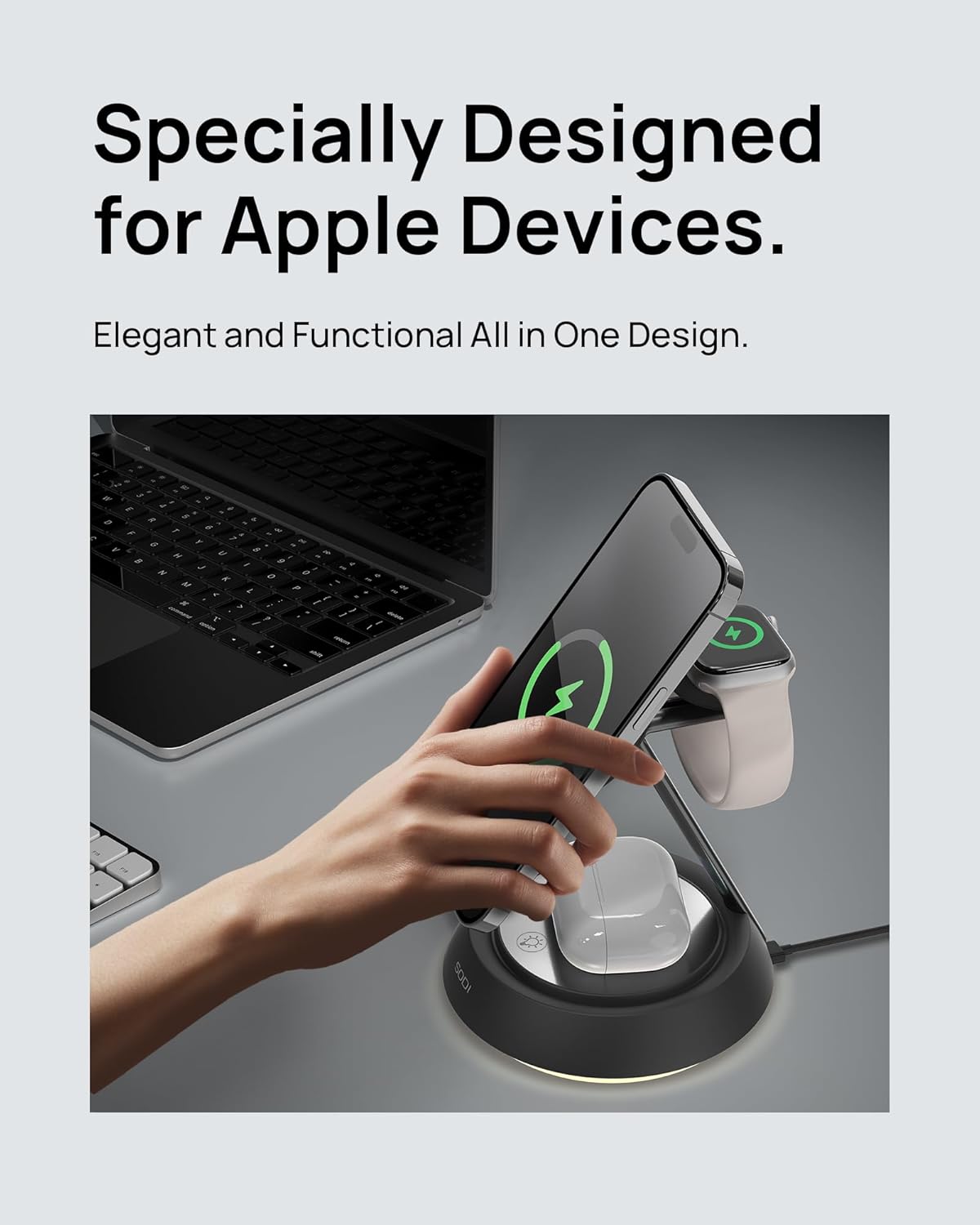

Image: A hand placing an AirPods charging case onto the base of the SODI 3-in-1 Wireless Charging Station, with an iPhone and Apple Watch already in place.

Ambient Light Control:

The charging station features a customizable ambient light at its base. To control the light:

• Turn On/Off: Lightly touch the touch-sensitive button located on the base of the charging station to toggle the ambient light on or off.
• Sleep Mode: The faint warm light is designed not to disturb sleep. You can easily turn it off if preferred.

Image: The SODI 3-in-1 Wireless Charging Station on a bedside table, demonstrating its night light function with a soft glow, next to a sleeping person.

Compatibility

This charging station is specifically designed for Apple devices and offers wide compatibility:

• Compatible iPhone Models: iPhone 16 Pro Max, iPhone 16 Pro, iPhone 16, iPhone 16 Plus, iPhone 15 Pro Max, iPhone 15 Pro, iPhone 15, iPhone 15 Plus, iPhone 14 Pro Max, iPhone 14 Pro, iPhone 14, iPhone 14 Plus, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 13 Pro Mini, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 12, iPhone 12 mini. (Note: iPhone 12 and later models require a magnetic phone case for optimal alignment).
• Compatible AirPods: AirPods 3, AirPods Pro 2, AirPods Pro, AirPods (3rd generation), AirPods 2 Wireless Charging Case.
• Compatible Apple Watch: iWatch Series 8/7/6/5/4/3/2/1, Apple Watch SE, Apple Watch Ultra.

Image: A diagram illustrating the wide compatibility of the charging station with various iPhone, Apple Watch, and AirPods models, showing 15W fast charging for iPhone, 3W for Apple Watch, and 5W for AirPods.

Case Compatibility:

For optimal magnetic alignment and charging efficiency, it is recommended to use an iPhone without a case or with a magnetic-compatible case. Regular cases may hinder the magnetic connection and charging performance.

Image: A visual guide demonstrating that the charging station works with no case or a magnetic case, but not with a regular phone case due to interference with magnetic charging.

Key Features

• Precise Magnetic Alignment:

  Integrated premium magnets ensure instant and accurate alignment for efficient charging of your iPhone, whether placed horizontally or vertically. This design enhances convenience and stability.



  Image: The charging station demonstrating 360-degree rotation, allowing the iPhone to be charged and viewed in both vertical and horizontal orientations.

• Fast and Efficient Charging:

  The station delivers up to 15W for compatible iPhones, 5W for AirPods, and 2.5W for Apple Watch, ensuring quick and reliable power-ups. The included 18W wall charger supports optimal charging speeds.



  Image: A side-by-side comparison showing a cluttered charging area with multiple cables and adapters ("Before") versus a clean, organized setup with the SODI 3-in-1 Wireless Charging Station ("After").

• Personalized Ambient Lighting:

  Enjoy a customizable ambient light with a touch-sensitive button. This feature is perfect for creating a relaxing atmosphere on your bedside table or desk. The faint warm light is designed to be sleep-friendly and can be easily turned off.

• Stable and Sleek Design:

  The charging station features robust zinc alloy support rods and a sleek, scratch-resistant surface. The surface of the wireless charger disk is made of a colorful and glossy material, offering different color effects from various viewing angles. This design combines stability with modern aesthetics.

• Heat Dissipation:

  The design incorporates features to accelerate air movement, which helps to lower the charging temperature and maintain optimal performance.



  Image: A diagram showing airflow (indicated by blue arrows) around the charging pads, illustrating the heat dissipation mechanism designed to lower charging temperature.

• Multi-protection System:

  The charging station is equipped with multiple safety features to protect your devices, including Temperature Control, Foreign Object Detection, Over-Voltage Protection, and Over-Charge Protection.



  Image: An exploded view diagram of the charging station, highlighting its internal components and the multi-protection system with icons for Temperature Control, Foreign Object Detection, Over-Voltage Protection, and Over-Charge Protection.

Troubleshooting

If you encounter any issues with your SODI 3-in-1 Wireless Charging Station, please refer to the following common troubleshooting steps:

1. Device Not Charging:
   • Ensure the charging station is properly connected to the power adapter and a working electrical outlet.
   • Verify that your device (iPhone, Apple Watch, AirPods) is correctly placed and aligned on its respective charging area. For iPhone, ensure it is a magnetic-compatible model (iPhone 12 or later) and that any case used is magnetic-compatible.
   • Remove any thick or non-magnetic cases from your iPhone or AirPods that might interfere with wireless charging.
   • Check for any foreign objects (coins, keys, etc.) between the device and the charging pad, as this can prevent charging.
   • Try restarting your device.
2. Slow Charging:
   • Ensure you are using the original 18W wall charger and USB Type-C cable provided with the product. Using a lower-power adapter may result in slower charging.
   • Avoid using your device while it is charging, as this can slow down the charging process.
   • Ensure proper alignment of your device on the charging pad.
3. Ambient Light Not Working:
   • Ensure the charging station is powered on.
   • Lightly touch the touch-sensitive button on the base to toggle the light on/off. If it still doesn't work, try unplugging and re-plugging the power adapter.
4. Overheating:
   • It is normal for the charger and device to become slightly warm during charging. However, if excessive heat is detected, remove the device immediately.
   • Ensure there is adequate ventilation around the charging station.
   • Check for foreign objects.

If the issue persists after following these steps, please contact customer support for further assistance.

Specifications

Warranty and Support

SODI is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, we encourage you to retain your purchase receipt for any warranty claims.

For any questions, concerns, or technical support regarding your SODI 3-in-1 Wireless Charging Station, please do not hesitate to contact our customer service team. We aim to resolve any issues within 24 hours.

Please refer to the contact information provided on the product packaging or the official SODI website for the most up-to-date support channels.
