1. Introduction
Thank you for choosing the MEIKEE 12W Landscape Lighting. This product is designed to provide efficient and durable outdoor illumination for your garden, yard, patio, pathways, driveways, and other outdoor areas. Featuring 120V input, 2700K warm white LED light, and an IP66 waterproof rating, these spotlights are built for various weather conditions and offer flexible installation options. Please read this manual thoroughly before installation and use to ensure proper operation and safety.
2. Safety Information
WARNING: To reduce the risk of fire, electric shock, or injury to persons, please follow these instructions:
- Ensure the power supply is disconnected before installation, maintenance, or cleaning.
- This product operates on AC 110-120V. Do not attempt to connect it to a low voltage system.
- Use only with a properly grounded outdoor-rated power outlet.
- Do not immerse the plug or power cord in water.
- Avoid looking directly into the LED light source when illuminated.
- Do not modify the product in any way. Unauthorized modifications may void the warranty and create safety hazards.
- Keep children and pets away from the product during operation.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
3. Package Contents
Verify that all components are present and undamaged.
- MEIKEE 12W Landscape Lights (2 units)
- Ground Stakes (2 units)
- Mounting Screws (for wall installation)
4. Product Features
- High Brightness: Aluminum head with SMD LED beads provides 900lm brightness, with a lighting distance and range of 3-4 meters.
- All-Weather Ready: IP66 waterproof rating ensures durability against various weather conditions.
- Adjustable Lighting Angles: 270° adjustable head for flexible illumination of walls, trees, flags, and fences.
- Easy Installation: Features a 4.9 FT cord with a US 3-prong plug for direct connection to AC 110-120V outlets, eliminating the need for hard wiring.

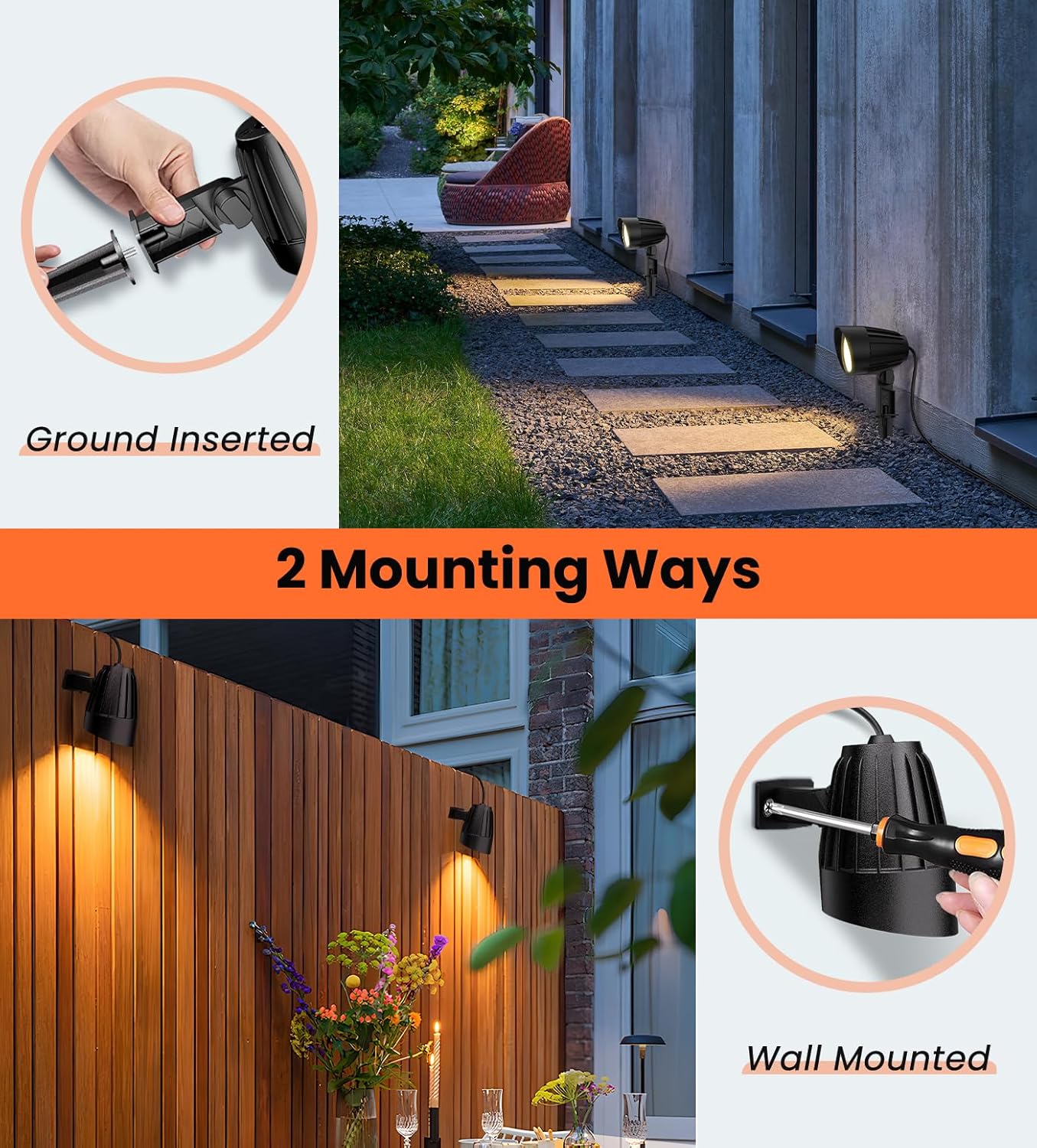

- Dual Installation Methods: Can be mounted on a wall or inserted into the ground using the provided stake.
5. Setup and Installation
The MEIKEE Landscape Lights offer two primary installation methods: ground insertion or wall mounting.
5.1 Ground Insertion
- Attach the Spike: Securely connect the ground spike to the base of the spotlight.
- Prepare the Ground: Choose a suitable location in your garden or yard. For best results and to prevent damage to the spike, pre-dig a small hole if the ground is hard or rocky.
- Insert into Ground: Insert the assembled light with the spike firmly into the prepared ground.
- Adjust Angle: Loosen the adjustment knob on the side of the light fixture, position the light head to your desired angle (up to 270° rotational), and then tighten the knob to secure it.
- Connect Power: Plug the 3-prong US plug into a suitable outdoor-rated, waterproof AC 110-120V power outlet.
Figure 1: Ground Insertion Installation Steps
Figure 2: Landscape light installed in ground
5.2 Wall Mounting
- Fix the Holder: Position the mounting bracket on the desired wall surface. Mark the drill points.
- Drill Holes: Use a drill to create holes at the marked points. Insert wall anchors if necessary for secure mounting.
- Mount the Light: Secure the light fixture to the wall using the provided screws.
- Adjust Angle: Loosen the adjustment knob, set the light head to the desired angle, and tighten the knob.
- Connect Power: Plug the 3-prong US plug into a suitable outdoor-rated, waterproof AC 110-120V power outlet.
Figure 3: Wall Mounting Installation Steps
Figure 4: 270° Rotational Head for Flexible Lighting
6. Operating Instructions
Once installed and connected to a power source, the MEIKEE Landscape Light will illuminate.
- Power On/Off: The light is controlled by the power supply it is connected to. Use a switch on your outdoor outlet or an external timer (not included) to turn the lights on and off.
- Adjusting Light Direction: To change the direction of the light, gently loosen the adjustment knob on the side of the fixture, pivot the light head to the desired position, and then firmly tighten the knob to secure it. The head can rotate up to 270 degrees vertically.

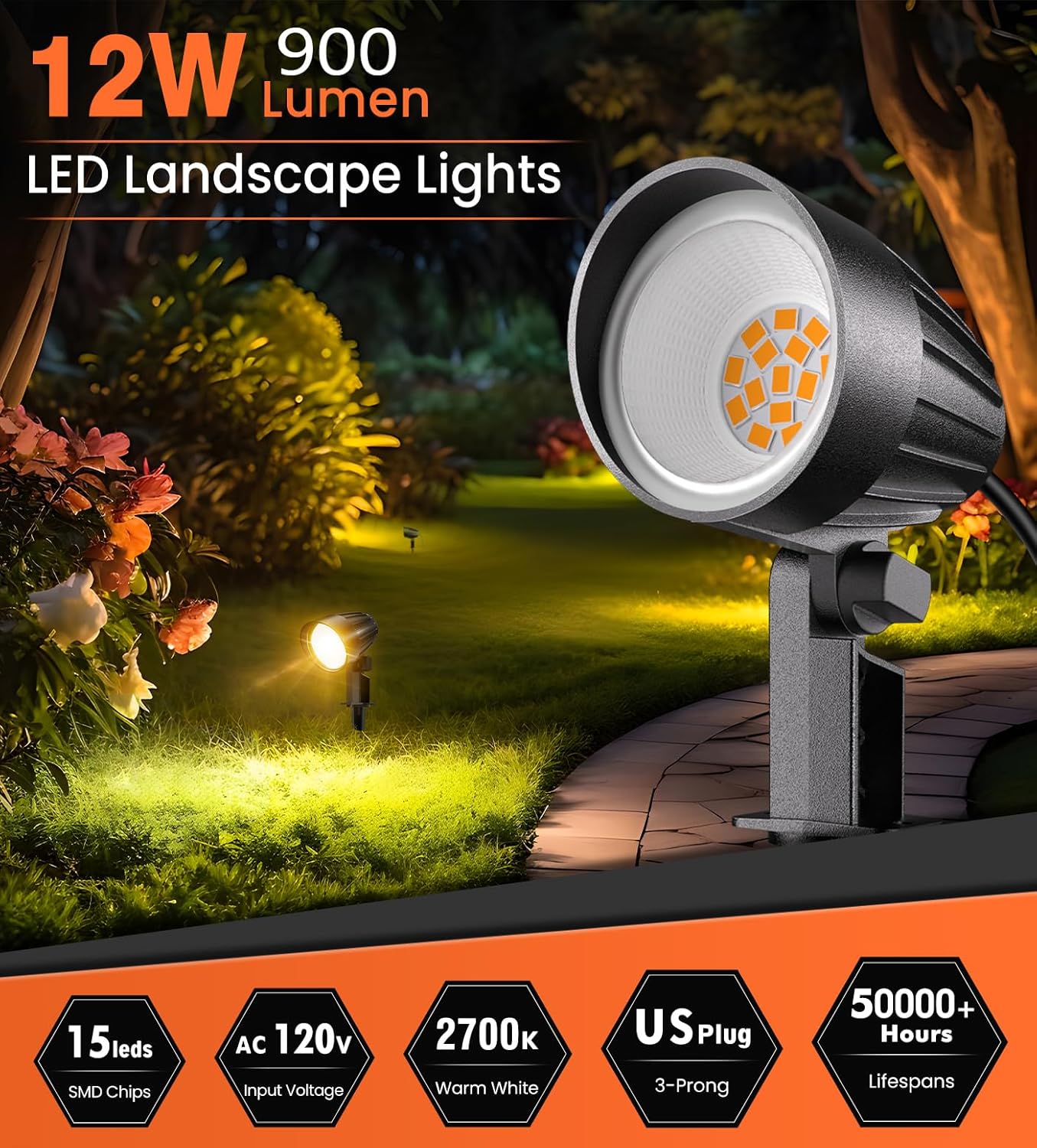

Figure 5: MEIKEE Landscape Light in operation
7. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your landscape lights.
- Cleaning: Periodically clean the lens and housing with a soft, damp cloth to remove dirt, dust, and debris. Ensure the power is disconnected before cleaning. Do not use abrasive cleaners or solvents.
- Inspect Cords and Plugs: Regularly check the power cord and plug for any signs of damage, fraying, or corrosion. Replace if damaged.
- Check Connections: Ensure all connections remain secure, especially after severe weather.
- Seasonal Adjustments: Re-adjust the light angle as needed due to plant growth or changes in landscape design.
8. Troubleshooting
If you encounter issues with your MEIKEE Landscape Lights, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the outlet; faulty outlet; loose connection; damaged cord/plug. | Check if the outlet has power (test with another device). Ensure the plug is fully inserted. Inspect the cord for damage. If damaged, discontinue use and contact support. |
| Light flickers. | Unstable power supply; loose connection. | Ensure the plug is secure. Try plugging into a different outlet. If flickering persists, contact support. |
| Water inside the fixture. | Seal compromise; extreme weather conditions. | Although rated IP66, extreme conditions can sometimes cause issues. Disconnect power immediately. Allow to dry completely. If problem persists, contact support. |
| Light output is dim. | Dirty lens; power fluctuation. | Clean the lens. Ensure the power supply is stable. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | MEIKEE |
| Model Number | ASTA12 |
| Wattage | 12 Watts |
| Voltage | 120 Volts (AC) |
| Light Color | Warm White (2700 Kelvin) |
| Brightness | 900 Lumens |
| Material | Aluminum |
| Water Resistance Level | IP66 Waterproof |
| Product Dimensions | 7.56"L x 4.37"W x 3.03"H |
| Item Weight | 1.3 pounds |
| Cord Length | 4.9 FT (1.5 meters) |
| Light Source Type | LED |
| Installation Type | Ground Inserted / Wall Mounted |
| Adjustability | 270° Rotational Head |
Figure 6: Product Components and Dimensions
10. Warranty and Support
MEIKEE products are covered by a 2-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact MEIKEE customer service. You can typically find contact information via the Amazon platform or on the MEIKEE official website. Please provide your purchase details and model number (ASTA12) when contacting support for faster service.
Customer Service:
- Email: Refer to the email address provided on your product packaging or original purchase documentation.
- Online: Visit the MEIKEE store on Amazon or their official website for support resources.
