1. Introduction
The BRUNO BOE124-NV Slim 2-Way Cordless Stick Cleaner is designed for versatile and convenient cleaning throughout your home. Its lightweight design, approximately 840g, makes daily cleaning effortless. This unit features a 2-way design, allowing it to function as both a stick cleaner for floors and a handy cleaner for various surfaces. It comes with optional parts for cleaning gaps, sofas, and other hard-to-reach areas, ensuring comprehensive cleaning. The main unit is equipped with a strap for easy hanging storage, and a dedicated storage bag is included for all optional accessories.
Image: The BRUNO BOE124-NV Slim 2-Way Cordless Stick Cleaner in its full stick configuration, ready for floor cleaning.
2. Safety Information
Please read all instructions carefully before using the appliance and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Do not use the appliance outdoors or on wet surfaces.
- Do not allow children to operate the appliance. Close supervision is necessary when used near children.
- Do not pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without the dust cup and filter in place.
- Use only as described in this manual. Use only manufacturer’s recommended attachments.
- Do not handle the charger or appliance with wet hands.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Turn off all controls before unplugging.
- Exercise extra care when cleaning on stairs.
- Do not use a damaged charger or appliance. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
3. Package Contents
Carefully unpack your BRUNO BOE124-NV Slim 2-Way Cordless Stick Cleaner and ensure all items are present and in good condition. The package should contain the following:
- Main Unit
- Floor Head Set
- Crevice Nozzle
- Mini Head
- USB Type-C Charging Cable
- HEPA Filter
- Filter Cover
- Storage Bag

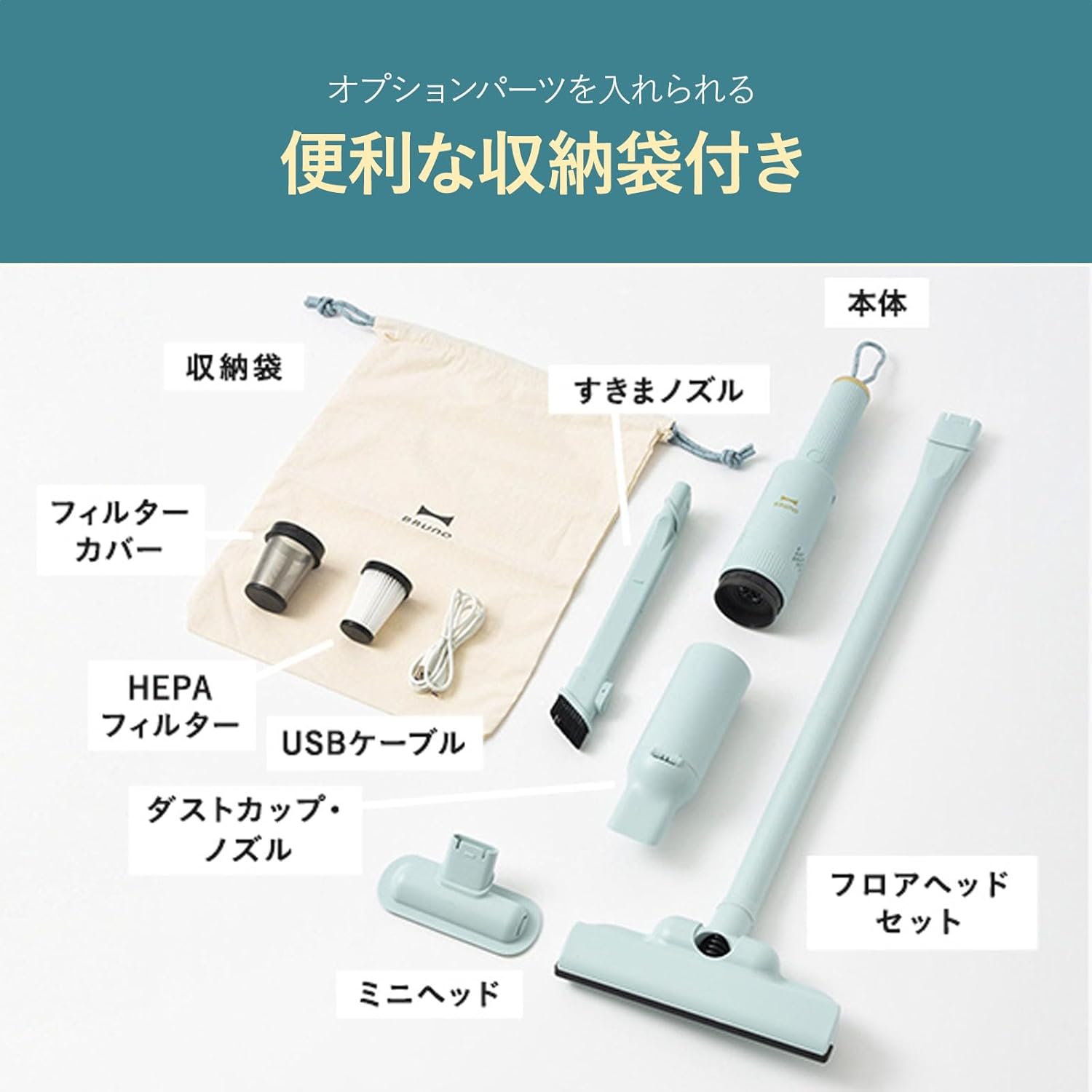

Image: An overview of the main unit, floor head set, crevice nozzle, mini head, USB cable, HEPA filter, filter cover, and storage bag.
4. Setup
4.1 Assembly
- Attach Floor Head (for Stick Mode): Align the floor head set with the main unit and push firmly until it clicks into place.
- Attach Crevice Nozzle or Mini Head (for Handy Mode): For detailed cleaning, attach either the crevice nozzle or the mini head directly to the main unit. Ensure it is securely fitted.
4.2 Charging the Battery
Before first use, fully charge the cleaner. The BRUNO BOE124-NV uses a USB Type-C port for charging.
- Connect the provided USB Type-C charging cable to the charging port on the main unit.
- Connect the other end of the USB cable to a 5V 2A power adapter (not included) or a compatible USB power source.
- The charging indicator light will illuminate. A full charge takes approximately 4 hours.
- Once fully charged, disconnect the charging cable.
Image: Close-up view of the cleaner's handle and USB Type-C charging port, highlighting its cordless design.
5. Operating Instructions
5.1 Power On/Off and Mode Selection
- To Power On (Weak Mode): Press and hold the power button for 1 second. The cleaner will start in Weak mode.
- To Switch to Strong Mode: While in Weak mode, press the power button briefly. The cleaner will switch to Strong mode.
- To Power Off: While in Strong mode, press the power button briefly. The cleaner will turn off.
5.2 Continuous Usage Time
- Weak Mode: Approximately 24 minutes (when fully charged).
- Strong Mode: Approximately 14 minutes (when fully charged).
Image: The cleaner in handy mode, being used to clean a sofa, demonstrating its continuous operation time.
5.3 2-Way Functionality
The cleaner can be used in two primary configurations:
- Stick Type: Attach the floor head set for cleaning floors, carpets, and larger areas.
- Handy Type: Remove the floor head and attach the crevice nozzle or mini head for cleaning furniture, car interiors, stairs, and tight spaces.
Image: Two images side-by-side, illustrating the cleaner in stick mode for floor cleaning and handy mode for table cleaning.
5.4 Versatile Cleaning Applications
The lightweight design and various attachments allow for cleaning in diverse environments:
- Floors and Carpets: Use the stick type with the floor head.
- Stairs: Easily maneuver the handy type with the mini head or crevice nozzle.
- Furniture and Upholstery: The mini head is ideal for sofas and chairs.
- Tight Gaps and Corners: The crevice nozzle reaches narrow spaces, such as between cushions or along baseboards.
- Car Interiors: The handy type is perfect for cleaning car seats, floor mats, and dashboard crevices.
- High Places: The lightweight main unit can be used to clean curtains or high shelves.

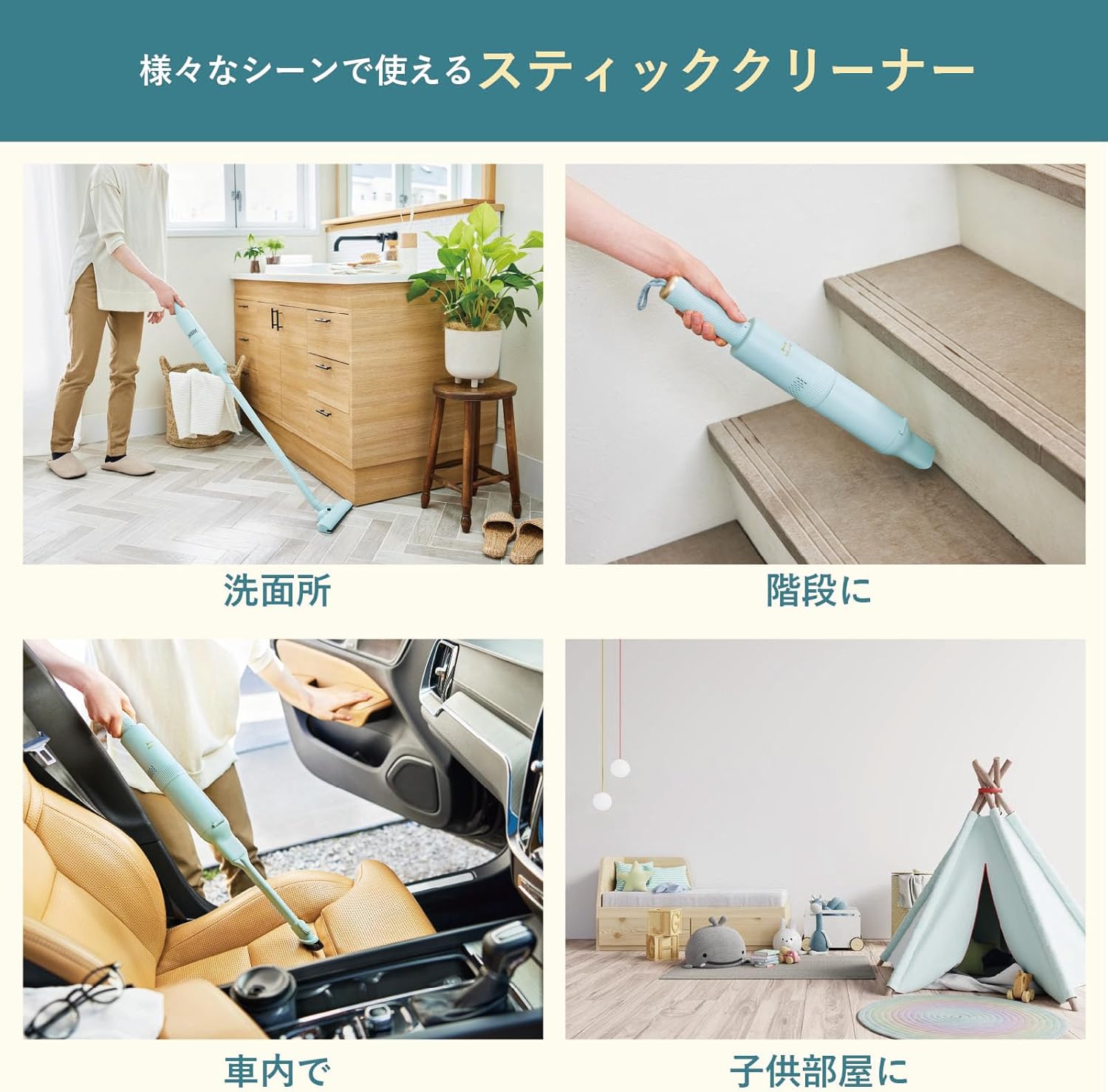

Image: A collage of four images showing the cleaner being used in a bathroom, on stairs, inside a car, and in a child's room.
Image: The cleaner in handy mode with the crevice nozzle, effectively cleaning a narrow floor track.
Image: A person using the lightweight cleaner to reach and clean dust from high curtains.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your cleaner.
6.1 Emptying the Dust Cup
Empty the dust cup after each use or when the debris reaches the MAX fill line to maintain suction power.
- Ensure the cleaner is turned off.
- Detach the dust cup from the main unit.
- Open the dust cup and empty its contents into a waste bin.
6.2 Cleaning the Filters
The HEPA filter and filter cover should be cleaned regularly to prevent clogging and maintain suction.
- Remove the HEPA filter and filter cover from the dust cup.
- Tap the HEPA filter gently over a waste bin to remove loose dust and debris.
- If necessary, rinse the HEPA filter and filter cover under running water. Ensure they are completely dry before reassembling. Do not use a brush or abrasive materials.
- Reassemble the filter cover and HEPA filter into the dust cup, then reattach the dust cup to the main unit.
7. Troubleshooting
If you encounter issues with your BRUNO BOE124-NV cleaner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cleaner does not turn on | Battery is depleted | Charge the cleaner fully (approx. 4 hours). |
| Low suction power | Dust cup is full | Empty the dust cup. |
| Low suction power | Filter is clogged | Clean the HEPA filter and filter cover as described in the Maintenance section. Ensure they are completely dry before reinserting. |
| Short operating time | Battery not fully charged | Ensure the cleaner is fully charged before use. |
| Attachments do not fit securely | Incorrect alignment | Ensure attachments are aligned correctly and pushed firmly until they click into place. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | BOE124-NV |
| Brand | BRUNO |
| Form Factor | Stick / Handy |
| Power Source | Battery Powered (Cordless) |
| Input Voltage | 5 V 2 A (USB rechargeable) |
| Wattage | 120 watts |
| Charging Time | Approx. 4 hours (with 5V 2A power supply) |
| Continuous Usage Time (Weak Mode) | Approx. 24 minutes (fully charged) |
| Continuous Usage Time (Strong Mode) | Approx. 14 minutes (fully charged) |
| Item Weight | 29.1 Ounces (approx. 840g) |
| Dimensions (W x H x D) | 8.7 x 40.2 x 4.1 inches (220 x 1025 x 105 mm) |
| Main Unit Only Dimensions (W x H x D) | 2.5 x 17.5 x 2.5 inches (63 x 445 x 63 mm) |
| Fabric Type (Main unit, Optional parts) | ABS resin |
| Fabric Type (Strap) | Polyester |
| Filter Type | Cartridge (HEPA) |
| Included Components | Accessory Kit (Floor Head Set, Crevice Nozzle, Mini Head, USB Cable, HEPA Filter, Filter Cover, Storage Bag) |
| Country of Origin | China |
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official BRUNO website. Keep your proof of purchase for warranty claims.
