Peasur 11.6-Inch 24W Dimmable LED Flush Mount Ceiling Light Instruction Manual

1. Safety Information

Please read these instructions carefully before installation and retain them for future reference. Improper installation or use may result in electric shock, fire, or other hazards.

• Always turn off the power at the circuit breaker before beginning installation.
• Ensure all electrical connections are secure and comply with local codes and ordinances.
• If you are unsure about wiring, consult a qualified electrician.
• Do not attempt to modify the light fixture.
• This fixture is designed for indoor use only.

2. Package Contents

Verify that all components are present and undamaged:

• 1 x LED Ceiling Light Fixture (11.6-inch, White)
• 1 x Remote Control (AAA batteries not included)
• 1 x Mounting Bracket
• 1 x Set of Mounting Screws and Wire Nuts
• 1 x User Manual

3. Product Overview

The Peasur 11.6-inch LED Flush Mount Ceiling Light offers versatile lighting solutions with its dimmable functionality, adjustable color temperature, and convenient remote control. It features a slim design and is built for durability.

Key Features:

• Night Light Mode: Provides a soft, warm glow (3000K at 10% brightness) for a comfortable sleeping environment, with an optional 60-second timer.
• Dimmable: Adjust brightness from 10% to 100% via the remote control.
• 3 Color Temperatures: Select between 3000K (Warm White), 4500K (Neutral White), and 6000K (Cool White) to suit your preference.
• Remote Control: Full control over brightness, color temperature, night light, and timer functions. Includes a memory function to retain the last setting.
• Energy Efficient: 24W LED provides 3200 lumens, offering significant energy savings compared to traditional bulbs.
• Durable Design: Integrated sealed body provides waterproof, dustproof, and mosquito-proof protection, ensuring a 30,000-hour lifespan.
• Ultra-Thin Profile: At just 2.4cm thick, it offers a sleek, modern aesthetic.

Image: Night Light Mode with warm white glow for a soothing environment.

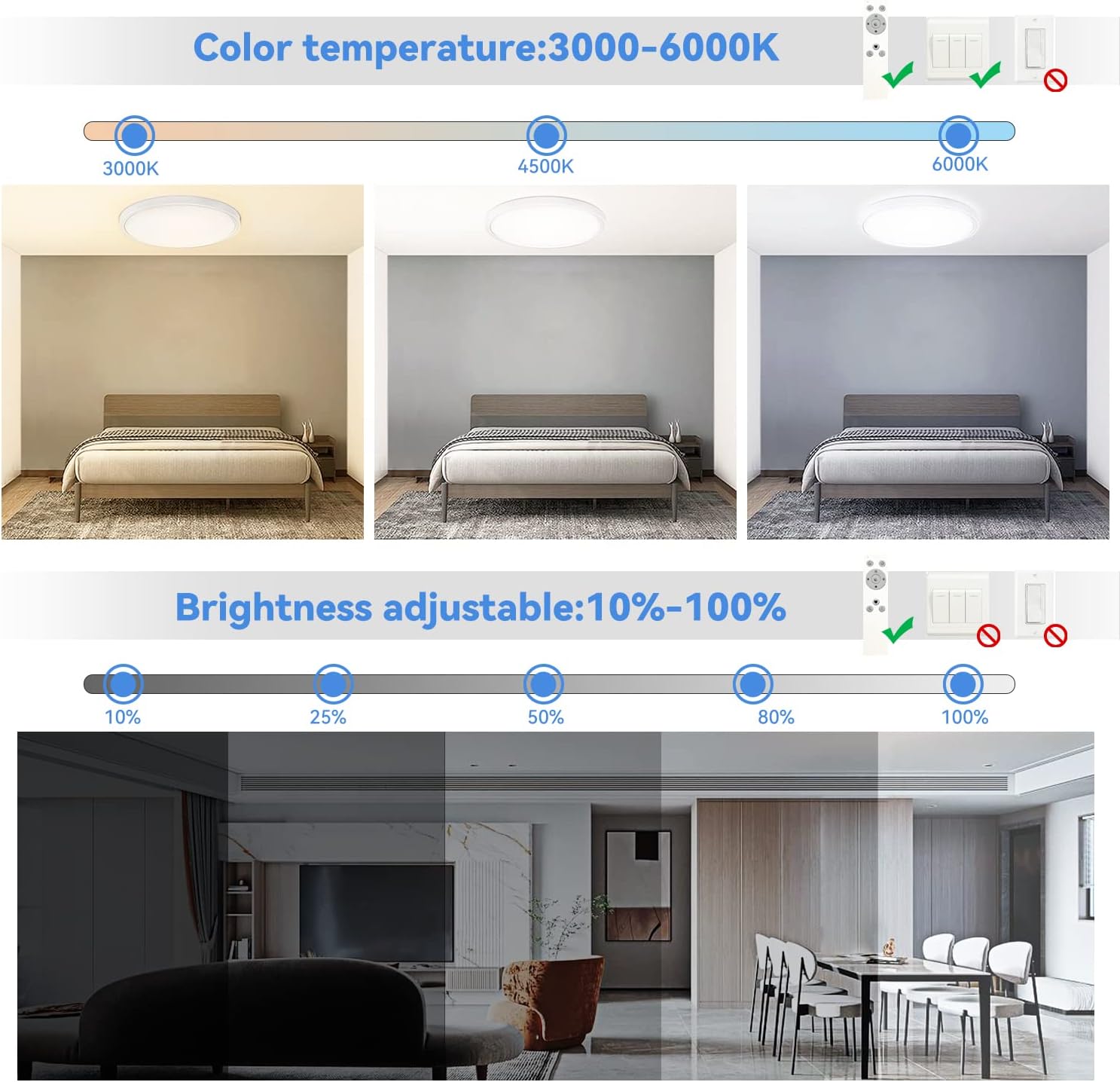

Image: Demonstrates adjustable color temperatures (3000K-6000K) and brightness levels (10%-100%).

Image: Illustrates the flicker-free operation of the LED ceiling light.

4. Installation Instructions

The Peasur LED ceiling light features a super easy slide & lock installation method, compatible with most junction boxes.

1. Turn Off Power: Before starting, ensure the power supply to the junction box is turned off at the circuit breaker.
2. Mount the Bracket: Secure the provided mounting bracket to your ceiling's junction box using the included screws. Ensure it is firmly attached.
3. Connect Wires: Connect the light fixture's wires to your household wiring. Typically, connect the black wire from the fixture to the live wire (usually black or red) from the ceiling, the white wire from the fixture to the neutral wire (usually white) from the ceiling, and the green ground wire to the bare copper or green ground wire from the ceiling. Use wire nuts to secure connections.
4. Attach Light Fixture: Carefully align the light fixture with the mounted bracket. Slide and lock the fixture into place by twisting it clockwise until it is secure and flush against the ceiling.
5. Restore Power: Turn the power back on at the circuit breaker.

Image: Visual guide for the easy slide & lock installation process, showing wire connections and mounting.

5. Operating Instructions

Use the included remote control to operate your Peasur LED Ceiling Light. Ensure AAA batteries are installed in the remote.

Image: Diagram illustrating the buttons and functions of the remote control.

• Power On/Off: Press the 'ON' or 'OFF' button to turn the light on or off.
• Increase/Decrease Brightness: Use the brightness adjustment buttons (sun icon with '+' or '-') to increase or decrease the light intensity from 10% to 100%.
• Change Color Temperature: Use the 'K+' and 'K-' buttons to cycle through 3000K, 4500K, and 6000K.
• Night Light Mode: Press the 'Night Light' button (moon icon) to activate the soft 3000K, 10% brightness night light.
• 60-Second Timer: Press the '60s' button to set the light to automatically turn off after 60 seconds.
• Memory Function: The light automatically remembers your last brightness and color temperature setting when turned off and on again.

Operation Demonstration Videos:

6. Maintenance

To ensure the longevity and optimal performance of your LED ceiling light, follow these simple maintenance guidelines:

• Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the surface of the fixture. Do not use harsh chemicals or abrasive cleaners, as they may damage the finish or electrical components.
• Bulb Replacement: The LED light source is integrated and not user-replaceable. The fixture has a long lifespan of 30,000 hours.

7. Troubleshooting

If you encounter any issues with your Peasur LED Ceiling Light, refer to the following common problems and solutions:

• Light does not turn on:
  • Check if the power is on at the circuit breaker.
  • Ensure all wire connections are secure.
  • Verify that the remote control batteries are correctly installed and not depleted.
• Remote control not working:
  • Replace the AAA batteries in the remote control.
  • Ensure there are no obstructions between the remote and the light fixture.
• Light flickers or dims unexpectedly:
  • Check for loose wiring connections.
  • Ensure the light is not connected to an incompatible dimmer switch (this light is dimmable via remote only).

If the problem persists, please contact customer support.

8. Specifications

9. Warranty and Support

This Peasur LED Flush Mount Ceiling Light comes with a 1-year manufacturer's warranty from the date of purchase, covering defects in materials and workmanship.

For technical support, warranty claims, or any questions regarding your product, please contact us:

• Email: meiyiyuansz-eu@hotmail.com

Please provide your model number (a150c2a6-37d7-45f1-9388-fce8ecf82896) and proof of purchase when contacting support.
