Introduction
This instruction manual provides important information for the proper setup, operation, and maintenance of your NOVA CH-2200 Cup Holder. Please read this manual thoroughly before installation and use to ensure safe and effective functionality. This cup holder is designed to provide a convenient way to keep beverages accessible on walkers and rollators with round narrow tubing.
Product Overview
The NOVA CH-2200 Cup Holder is constructed from high-strength plastic and features an adjustable mounting system to accommodate various tube diameters on mobility aids.
Image 1: The NOVA CH-2200 Cup Holder securely attached to the frame of a rollator, holding a blue insulated cup. This image demonstrates the product in use on a mobility device.

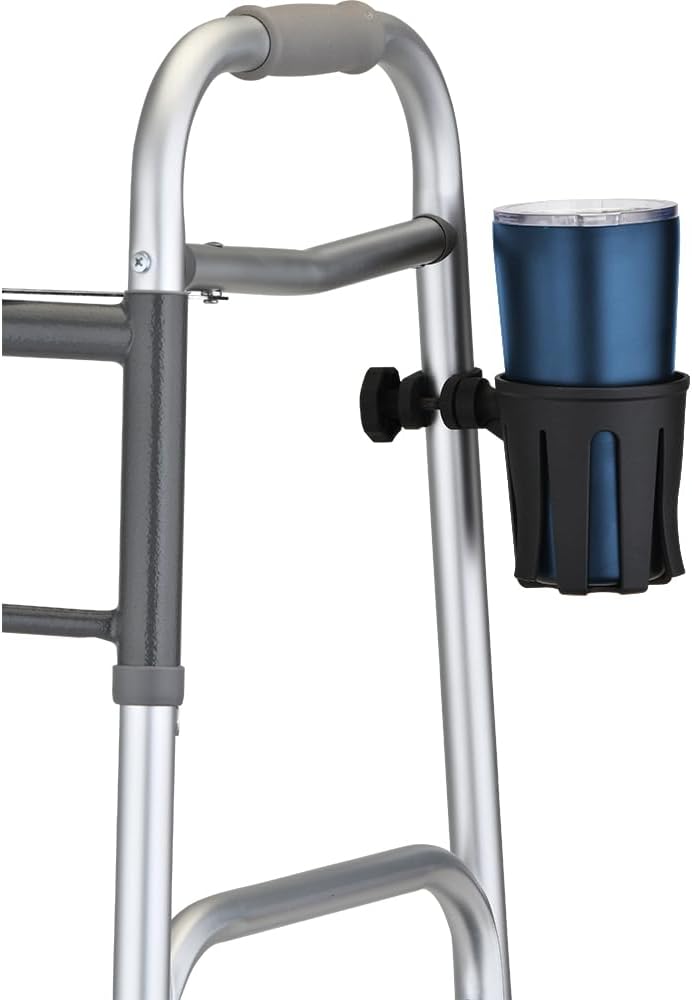

Image 2: The NOVA CH-2200 Cup Holder mounted on the side frame of a standard walker, holding a blue insulated cup. This image illustrates the cup holder's compatibility with different types of walkers.
Setup and Installation
The NOVA CH-2200 Cup Holder is designed for easy installation. Follow these steps to attach it to your walker or rollator:
- Identify Tubing Size: Determine the diameter of the round tubing on your mobility device where you intend to install the cup holder.
- For 5/8" to 3/4" tubing: Use the included rubber mat for a secure fit.
- For 7/8" to 1" tubing: Do not use the rubber mat.
- Position the Clamp: Place the cup holder's clamp mechanism around the chosen section of the tubing. Ensure the cup holder is oriented in a way that allows easy access and does not obstruct the operation or folding of your device.
- Insert Rubber Mat (if applicable): If your tubing is 5/8" to 3/4", insert the rubber mat between the clamp and the tubing to ensure a snug fit.
- Tighten the Screw: Secure the clamp by tightening the adjustment screw until the cup holder is firmly attached and does not rotate or slide. Do not overtighten.
- Test Stability: Gently tug on the cup holder to ensure it is stable and will not detach during use.
Important Safety Note:
- Ensure the cup holder is securely fastened before placing any beverage in it.
- Do not attach the cup holder to moving parts or areas that interfere with the safe operation of your mobility device.
Operating Instructions
Using your NOVA CH-2200 Cup Holder is straightforward:
- Place Beverage: Insert your standard-sized water bottle or soda can into the cup holder.
- Secure Fit: Ensure the beverage is seated properly and securely within the holder.
- Transportation: The cup holder will keep your drink accessible while you use your walker or rollator.
Safety Precautions:
- This cup holder is designed for cold or room temperature beverages only. Do not use with hot liquids such as coffee or tea, as this may pose a burn risk or damage the product.
- Avoid placing oversized or excessively heavy containers in the cup holder, as this may affect the stability of your mobility device.
- Regularly check the tightness of the mounting screw to ensure the cup holder remains secure.
Maintenance
To ensure the longevity and proper function of your cup holder:
- Cleaning: Wipe the cup holder with a damp cloth and mild soap as needed. Avoid abrasive cleaners.
- Inspection: Periodically inspect the cup holder for any signs of wear, cracks, or damage. Ensure the mounting mechanism is intact and secure.
- Storage: Store in a cool, dry place when not in use for extended periods.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cup holder is loose or slides. | Mounting screw is not tight enough, or incorrect use of rubber mat. | Tighten the mounting screw. Ensure the rubber mat is used for smaller tubing diameters (5/8" to 3/4") and removed for larger diameters (7/8" to 1"). |
| Beverage does not fit securely. | Beverage container is too large or too small for the holder. | Use standard-sized water bottles or soda cans. The holder is not designed for oversized cups or mugs. |
| Cup holder interferes with walker/rollator function. | Incorrect placement during installation. | Re-position the cup holder to an area that does not obstruct folding mechanisms, brakes, or user movement. |
Specifications
- Model: CH-2200
- Brand: Nova
- Material: High-strength molded plastic
- Compatibility: Round tubing 5/8" to 1" diameter
- Dimensions: 4.2 x 3.9 x 3.6 inches (Product)
- Weight: 5.29 ounces
- Intended Use: Cold or room temperature beverages only
Warranty and Support
For warranty information or technical support, please refer to the official Nova Medical Products website or contact their customer service directly. Keep your purchase receipt for warranty claims.
Manufacturer: NOVA Medical Products
ASIN: B0CYVBD3KT
