Char-Broil Evolve Electric E-Power Grill User Manual

Introduction

The Char-Broil Evolve Electric E-Power Grill offers a precise, digital, and intelligent grilling experience. This electric grill allows for relaxed cooking with app control, monitoring heat, timer, and core temperature via your smartphone or the integrated display. Its two cooking zones can be precisely adjusted between 90 °C and 370 °C. Featuring TRU-Infrared™ Technology, it ensures up to 50% juicier grilled food. The convenient Auto Clean function simplifies post-grill cleanup.

Front view of the Char-Broil Evolve Electric E-Power Grill, highlighting its smart features and award recognition.

Important Safety Information

Read all instructions before using this appliance. Failure to follow these instructions may result in fire, electric shock, or injury. This grill is for outdoor use only. Do not use in an enclosed area. Always connect to a properly grounded outlet. Keep electrical cords away from heated surfaces. Do not immerse the appliance in water or other liquids. Always supervise children and pets when the grill is in use. Allow the grill to cool completely before cleaning or moving.

Setup and Assembly

Assembly is required for this product. It is recommended to download the official Char-Broil app for a step-by-step assembly guide. Most users can complete assembly within approximately 30 minutes. Ensure all components are present and undamaged before beginning assembly. Connect the grill to a suitable electrical outlet after assembly is complete.

Top-down view of the open grill, revealing the cooking grates, heating elements, and side shelves.

Operating Instructions

E-Power Technology

The Evolve Electric grill provides maximum heat without the need for charcoal or gas. Simply press the power button to begin your grilling experience. This eliminates the need for gas bottle transport or ash disposal.

The grill's display showing 'ON' and temperature, with a label indicating 'E-POWER Technology'.

Smart Precision Temperature Control

The Evolve grill features a rotary knob for precise temperature adjustment between 90 °C and 370 °C. This allows for fine-tuning of cooking temperatures across the two independent cooking zones.

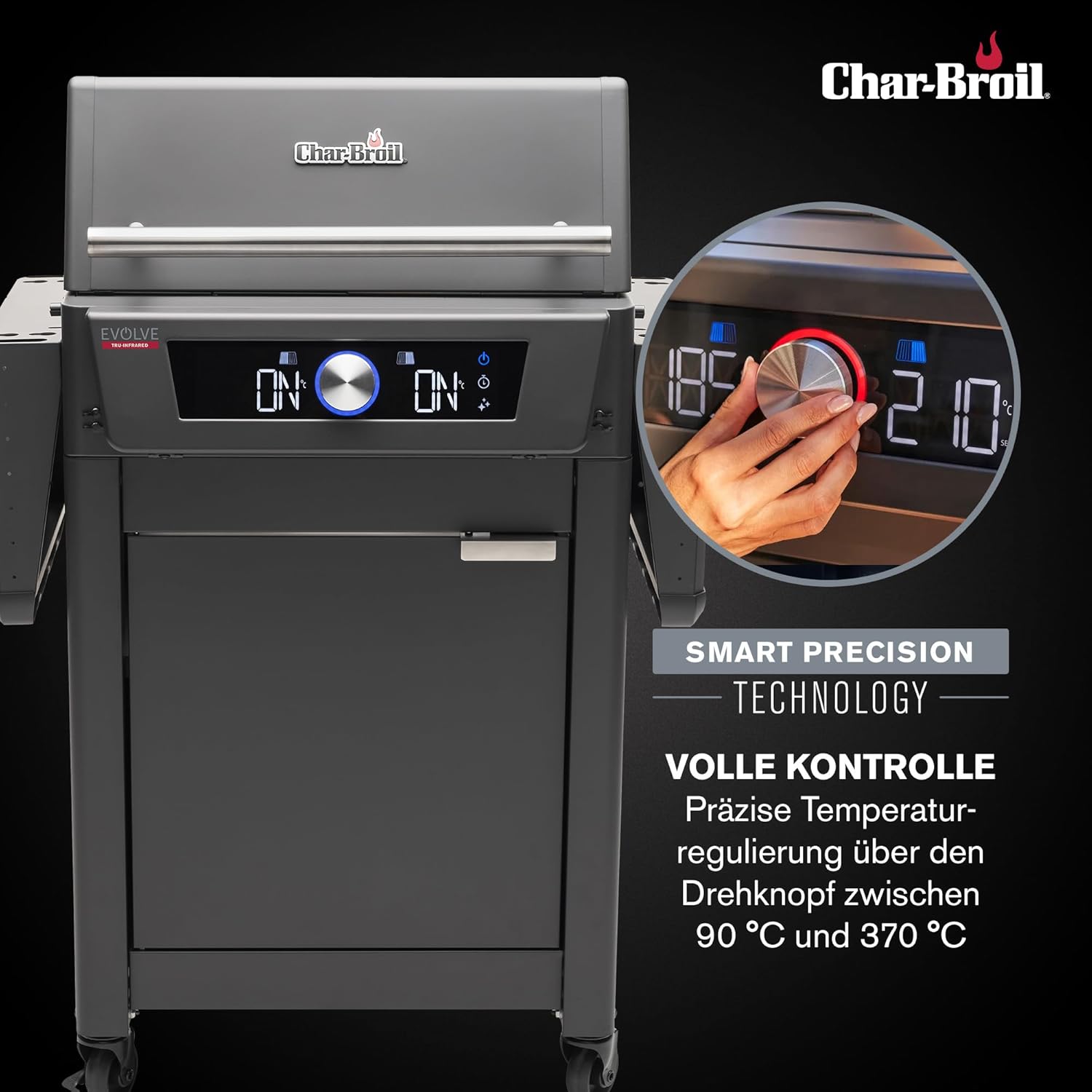

A hand adjusting the central rotary knob for precise temperature control on the grill's display.

App Control Technology

Control your grilling experience remotely using the Char-Broil app on your smartphone. The app allows you to monitor and adjust heat, set timers, and track core food temperatures, providing a relaxed grilling experience.

A smartphone screen showing the Char-Broil app, used for controlling grill settings and monitoring temperatures.

Two Independent Cooking Zones

The EVOLVE grill features two cooking zones that can be controlled individually. This allows for different temperatures across the grill, with a maximum temperature difference of 150 °C between zones. You can manage these zones via the grill's display or the mobile app.

Core Temperature Sensors

The grill supports up to four core temperature probes (two included) to ensure your food reaches the optimal cooking point. Monitor the internal temperature of your grilled items directly on the grill's display or through the app.

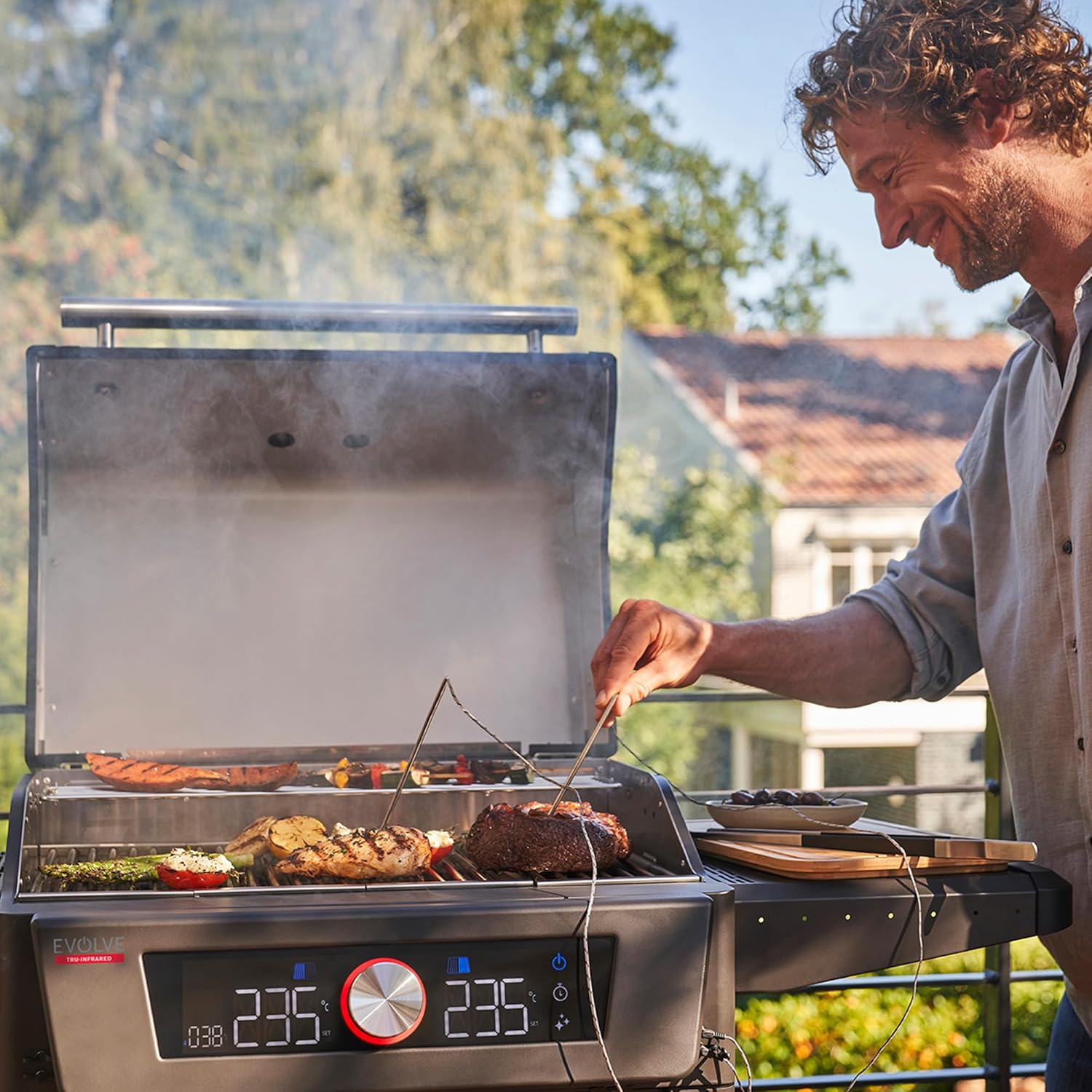

Grilled food on the Evolve Electric Grill with temperature probes inserted, showing the display with temperature readings.

TRU-Infrared Technology

Char-Broil's patented TRU-Infrared technology utilizes a unique emitter plate to distribute heat evenly across the entire grilling surface. This technology helps to produce up to 50% juicier grilled food by preventing flare-ups and locking in moisture.

A detailed diagram explaining how the TRU-Infrared emitter plate distributes heat evenly for optimal grilling.

Care and Maintenance

Auto Clean Function

The Auto Clean function is designed to simplify cleaning by burning off food residues. Activate this function after grilling, and the system will heat to high temperatures to carbonize dirt. After the cycle, brush the grates to remove remaining debris. While effective for grates, some users report that emitter plates may still require manual cleaning with a grill cleaner for thorough results.

General Cleaning

Regularly clean the cooking grates and emitter plates. For stubborn residue, remove the grates and emitter plates and clean them by hand with a suitable grill cleaner and brush. Ensure the grill is completely cool and unplugged before performing any cleaning.

Troubleshooting

• Grill not heating or display unresponsive: Check the power connection and ensure the grill is plugged into a grounded outlet. If the rotary knob is unresponsive, ensure it is properly seated and functioning. If issues persist, contact customer support.
• App connectivity issues: Ensure Bluetooth and Wi-Fi are enabled on your smartphone and the grill. Try restarting both the grill and your phone. Refer to the app's help section for specific connection steps.
• Temperature fluctuations: Electric grills may experience some temperature inertia. Allow sufficient preheating time. For precise cooking, rely on the core temperature probes.
• Excessive smoke during Auto Clean: The Auto Clean function involves burning off residues, which can generate smoke. Ensure the grill is in a well-ventilated outdoor area during this process.
• Ineffective Auto Clean: For heavily soiled grates and emitter plates, manual cleaning with a grill brush and cleaner may be necessary after the Auto Clean cycle.

Product Specifications

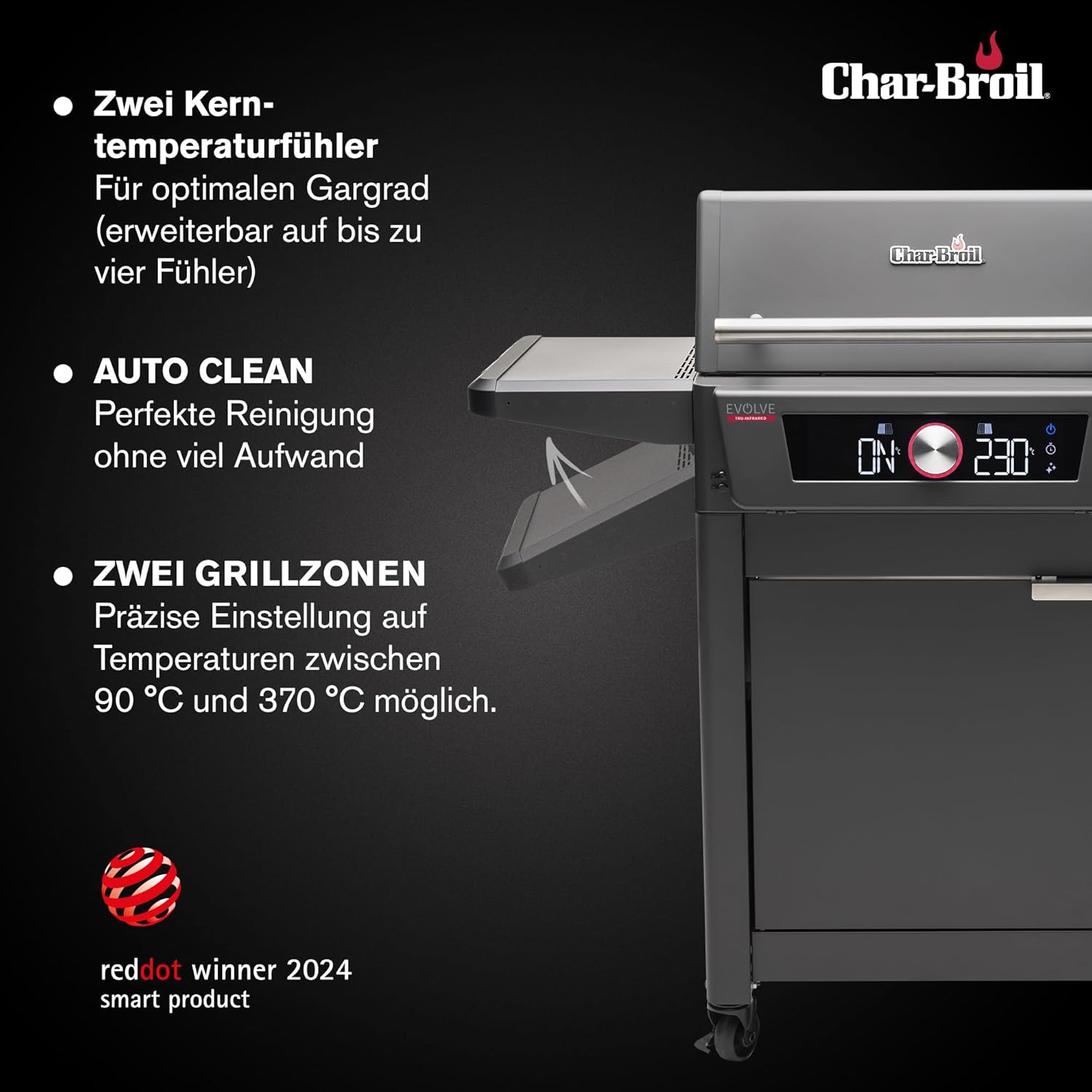

Overview of key features including core temperature sensors, Auto Clean, and dual cooking zones.

Diagram showing the overall dimensions of the Char-Broil Evolve Electric Grill.

Warranty Information

This product comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your proof of purchase for any warranty claims.

Customer Support

For technical assistance, spare parts, or any questions regarding your Char-Broil Evolve Electric E-Power Grill, please visit the official Char-Broil website or contact their customer service department. Contact details can typically be found in the product packaging or on the manufacturer's website.
