Introduction
Thank you for choosing the Ledvion Modern Solar Wall Lamp. This solar-powered LED wall lamp features a motion sensor and a dusk-to-dawn switch, providing efficient and automatic outdoor lighting. Designed for durability with an IP65 rating, it is suitable for various outdoor environments such as gardens, patios, and pathways. Please read this manual carefully before installation and use to ensure proper function and longevity of your product.
Safety Information
- Ensure the mounting surface is stable and can support the weight of the lamp.
- Do not attempt to disassemble or modify the product, as this may void the warranty and pose safety risks.
- Keep the solar panel clean to ensure optimal charging efficiency.
- Avoid installing the lamp in shaded areas where direct sunlight is limited, as this will affect charging performance.
- This product is designed for outdoor use and is IP65 rated for water and dust resistance. However, avoid submerging it in water.
- Dispose of the battery and product according to local regulations at the end of their lifespan.
Package Contents
Verify that all components are present before installation:
- 1x Ledvion Modern Solar Wall Lamp (White, 8W, 3000K)
- Mounting Screws and Wall Plugs
- Instruction Manual
Product Features
- Solar Powered: Utilizes solar energy for charging, offering zero electricity cost.
- Motion Sensor: Integrated PIR motion sensor with a 120° detection angle and up to 6 meters detection range.
- Dusk-to-Dawn Switch: Automatically turns on at dusk and off at dawn.
- High Brightness: Provides 220 lumens of warm white light (3000K).
- Durable Design: IP65 rated for water and dust resistance, made from ABS + PC material, anti-UV and fireproof.
- Long Battery Life: Built-in battery designed for 6-10 years lifespan.
- Efficient Solar Panel: High-quality solar panel with a lifetime of up to 20 years.
- Front and Backlight: Provides illumination from both front and back.
Setup and Installation
- Choose Location: Select a location that receives direct sunlight for at least 6-8 hours daily to ensure optimal charging. Avoid areas under eaves, trees, or other obstructions that may cast shadows on the solar panel.
- Mark Drilling Points: Hold the lamp against the desired mounting surface and mark the positions for the mounting screws.
- Drill Holes: Drill holes at the marked positions using an appropriate drill bit for your wall type. Insert the wall plugs into the drilled holes.
- Mount the Lamp: Align the lamp's mounting holes with the wall plugs and secure it firmly with the provided screws. Ensure the lamp is stable and securely attached.
Image: Back view of the Ledvion Solar Wall Lamp, illustrating the mounting points for installation.
Image: Detailed dimensions of the Ledvion Solar Wall Lamp, showing length, width, and height.
Operating Instructions
The Ledvion Solar Wall Lamp operates automatically based on ambient light and motion detection.
Initial Activation and Charging
Upon first use, ensure the lamp is exposed to direct sunlight for at least 8-10 hours to fully charge the battery. The lamp will automatically turn on at dusk and off at dawn once charged.
Light Modes
The wall lamp can be set to two different modes:
- Mode A: Full Brightness upon motion detection. After motion ceases, the light dims to 3% brightness.
- Mode B: Full Brightness upon motion detection. After motion ceases, the light remains at 50% brightness for 5 hours, then dims to a lower level or turns off (depending on remaining battery).

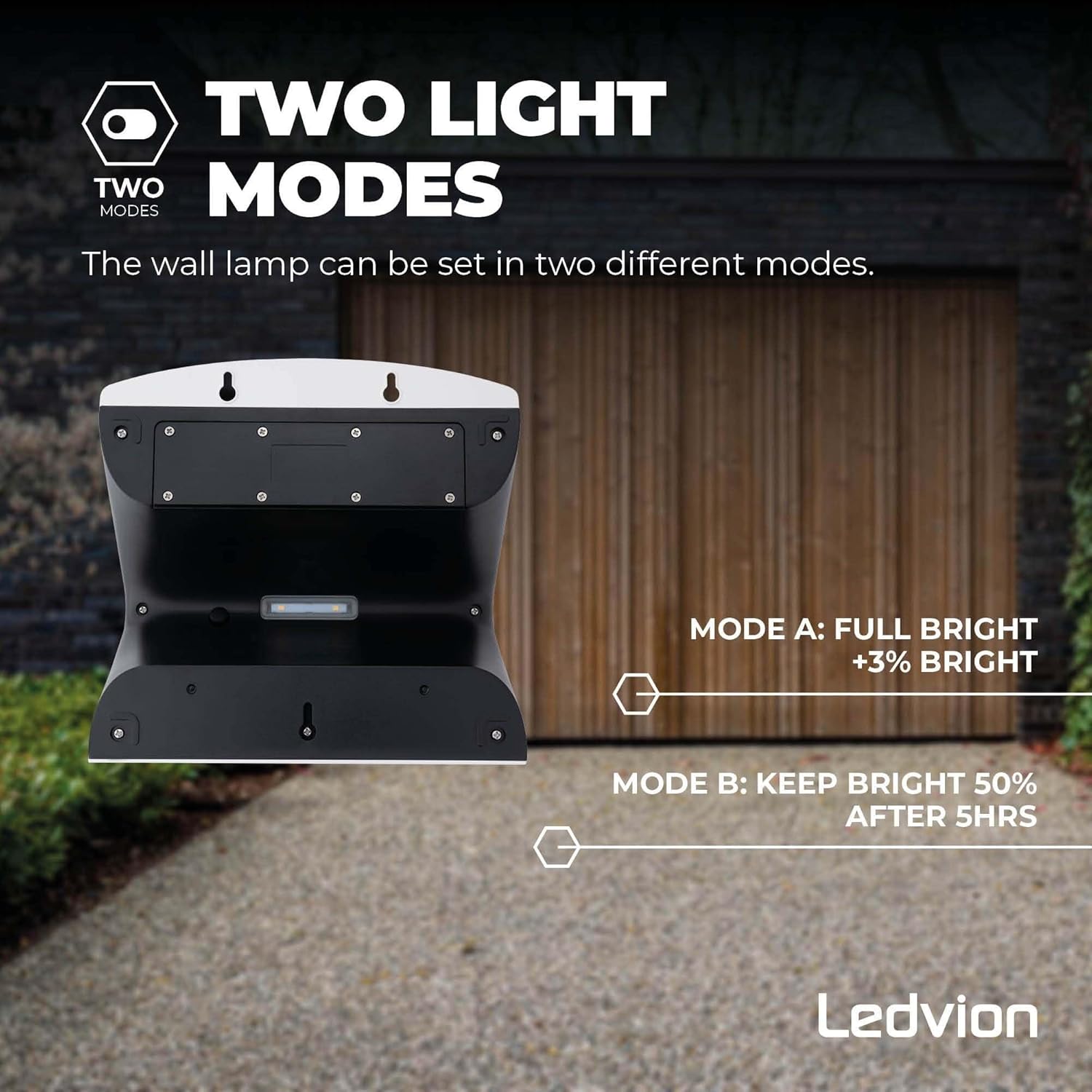

Image: Illustration of the two available light modes for the Ledvion Solar Wall Lamp.
Motion Sensor and Dusk-to-Dawn Functionality
The integrated PIR motion sensor detects movement within its 120° angle and up to 6 meters. The dusk-to-dawn sensor ensures the lamp only operates when ambient light levels are low enough, conserving battery life during the day.
Image: Details of the motion sensor and twilight switch, highlighting the 120° sensor angle and 6-meter detection range.
Operation Time
When the battery is fully charged, the solar lamp can operate for up to 30 hours, depending on the selected mode and frequency of motion detection. The duration of illumination is directly dependent on the amount of sunlight received for charging. During darker winter months, charging efficiency may be reduced, affecting operation time.
Image: Visual representation of the lamp's long operation time, up to 30 hours on a full charge.
Maintenance
- Cleaning the Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures maximum sunlight absorption and charging efficiency.
- General Cleaning: Clean the lamp housing with a soft, dry or slightly damp cloth. Do not use abrasive cleaners or solvents.
- Inspection: Periodically check the mounting screws to ensure the lamp remains securely attached to the wall.
Image: The durable solar panel of the Ledvion lamp, designed for long-term performance.
Image: The Ledvion Solar Wall Lamp demonstrating its IP65 rating, indicating protection against water splashes and dust.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on at night. | Insufficient sunlight for charging. Battery not fully charged. | Ensure the solar panel is in direct sunlight for 6-8 hours daily. Clean the solar panel. Relocate the lamp if necessary. |
| Light is dim or flickers. | Low battery charge. Solar panel is dirty. | Allow the lamp to charge for a full day in direct sunlight. Clean the solar panel. |
| Motion sensor not detecting. | Sensor obstructed or dirty. Incorrect mode selected. | Ensure the sensor lens is clean and unobstructed. Verify the selected light mode. |
| Lamp turns off too quickly. | Battery charge is low. | Ensure adequate charging time in direct sunlight. |
Specifications
| Brand | Ledvion |
| Model | LVS10015 |
| Power | 8 W |
| Light Output | 220 Lumens |
| Color Temperature | 3000 Kelvin (Warm White) |
| IP Rating | IP65 (Water and Dust Resistant) |
| Material | Aluminum, Stainless Steel, ABS + PC Plastic |
| Dimensions (W x H x D) | 232 mm x 220.6 mm x 121.4 mm |
| Power Source | Solar Powered |
| Special Features | Energy-saving, Motion Sensor, Dusk-to-Dawn Switch, Waterproof, Anti-UV, Fireproof |
| Battery Capacity | 4000 mAh |
| Battery Lifespan | 6 to 10 years |
| Solar Panel Lifespan | Up to 20 years |

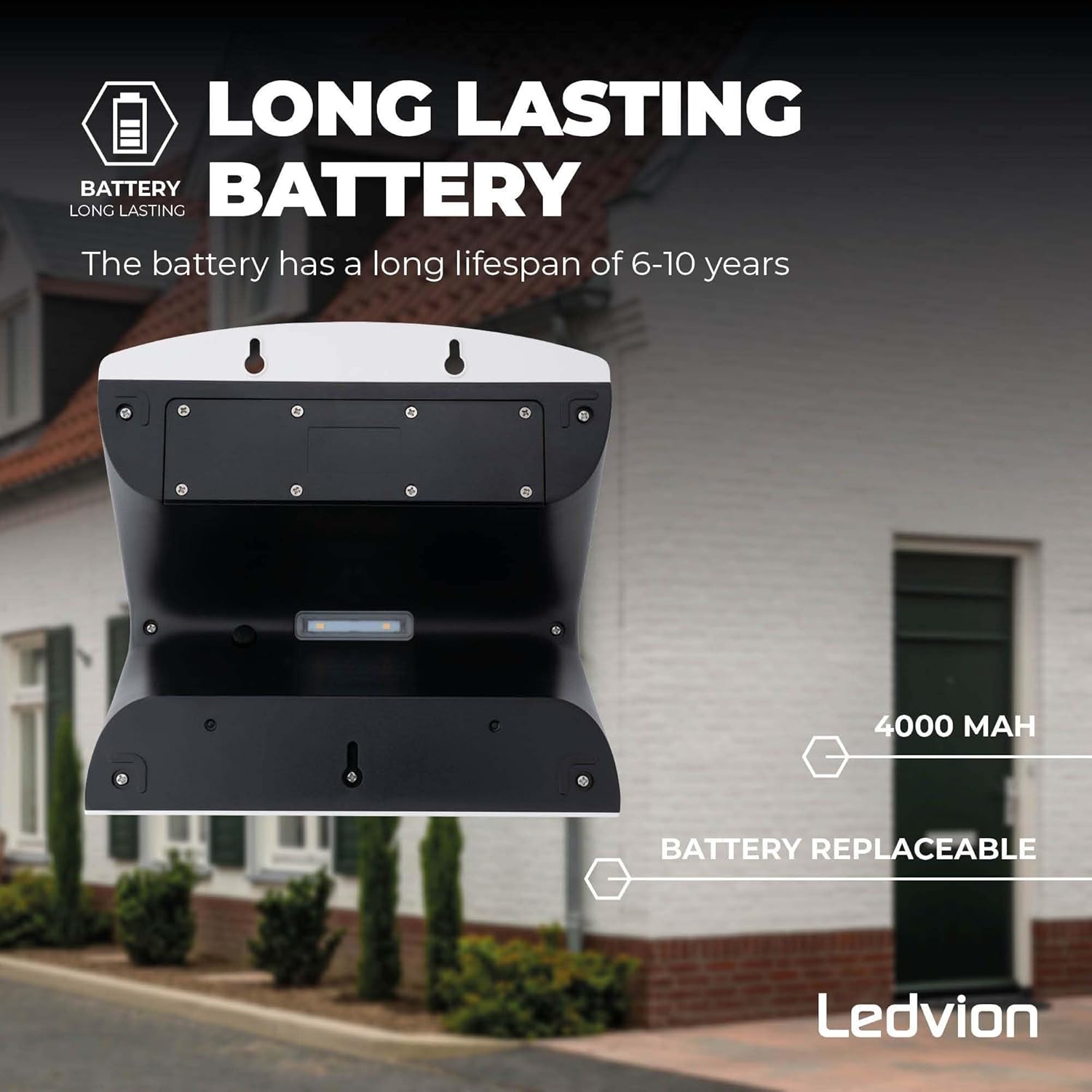

Image: Information about the lamp's long-lasting 4000 mAh battery.
Warranty and Support
The Ledvion Modern Solar Wall Lamp comes with a 2-year warranty on the product, with a 1-year warranty specifically for the battery. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or any questions regarding your product, please contact Ledvion customer service through the retailer where the product was purchased or visit the official Ledvion website for contact information.
Image: Warranty details for the Ledvion Solar Wall Lamp, indicating a 2-year product warranty and 1-year battery warranty.
