1. Safety Information
Please read all safety instructions carefully before installation and use. Keep this manual for future reference.
- Fragile Product: Handle the mirror with extreme care during unpacking, installation, and daily use to prevent breakage.
- Electrical Safety: Ensure the power supply is disconnected before any installation or maintenance. All electrical connections should be performed by a qualified electrician in accordance with local regulations.
- Water Resistance: This mirror is IP44 rated, meaning it is protected against splashing water. However, it should not be submerged in water or exposed to direct water jets.
- Mounting: The mirror must be securely mounted to a solid wall structure capable of supporting its weight. Use appropriate hardware for your wall type.
- Children and Pets: Keep children and pets away from the mirror during installation and ensure it is securely mounted to prevent accidents.
2. Product Features
The HOROW 80cm LED Round Bathroom Mirror is designed to enhance your bathroom experience with its advanced features and elegant design.
- Dimmable LED Lighting: Features innovative LED lighting with three color temperatures (cold white, warm white, neutral white) and adjustable brightness.
- Anti-Fog Function: Integrated defogger ensures a clear reflection even in steamy bathroom conditions.
- High-Quality Glass: Made from lead-free, high-reflection glass with superior corrosion resistance and durability. Features HD robust explosion-proof glass for added safety.
- IP44 Protection: Splash-proof design suitable for humid bathroom environments.
- Memory Function: Remembers your last brightness and color temperature settings (note: settings may reset after a power outage).
- Frameless Design: Modern and sleek aesthetic with rounded edges for safety and aesthetics.
Image: The HOROW LED Round Bathroom Mirror illuminated with soft LED light, creating a cozy atmosphere.
Image: A comparison showing the superior rounded edges of the HOROW mirror for safety and aesthetics, contrasting with an exposed, potentially corroded light bar from other designs.
Image: Demonstrates the copper-free and shatterproof glass construction of the mirror, highlighting its safety features.
3. Setup and Installation
This mirror is designed for wall mounting. A detailed installation manual is included with your product. Please follow these general steps and consult the included manual for specific instructions.
3.1 Unpacking
- Carefully remove the mirror from its packaging. Inspect for any damage.
- Keep all packaging materials until installation is complete in case of return or transport.
3.2 Tools Required (Not Included)
- Drill
- Measuring tape
- Level
- Pencil
- Screwdriver
3.3 Mounting Instructions
- Choose a suitable location on a solid wall, away from direct water spray.
- Measure and mark the desired mounting height and positions for the wall bracket.
- Drill holes at the marked positions and insert appropriate wall anchors.
- Secure the wall bracket firmly to the wall using screws.
- Carefully hang the mirror onto the wall bracket, ensuring it is level and secure.
Image: Illustration of the easy installation process, showing the wall mount and the mirror's power cable with a plug for simple connection.
Image: A visual comparison highlighting the secure and convenient solid aluminum hanging rail of the HOROW mirror versus less stable mounting options.
3.4 Electrical Connection
- Connect the mirror's power cable to a suitable electrical outlet.
- Ensure the connection is secure and protected from moisture.
4. Operating Instructions
The HOROW LED Round Bathroom Mirror features intuitive touch controls for its various functions.
4.1 LED Smart-Touch Switch
Image: Close-up of the LED Smart-Touch Switch, showing the On/Off/Color Change button and the Anti-Fog button.
- On/Off & Color Change Button:
- Short Press: Toggles between the three LED light color temperatures (cold white, warm white, neutral white).
- Long Press: Adjusts the brightness level of the LED light (dimmable from 10% to 100%). - Anti-Fog Button:
- One-Touch: Activates or deactivates the anti-fog heating element.
Image: Demonstrates the three available LED light color temperatures (6000K, 3000K, and a neutral blend) and their suitability for different activities like makeup application.

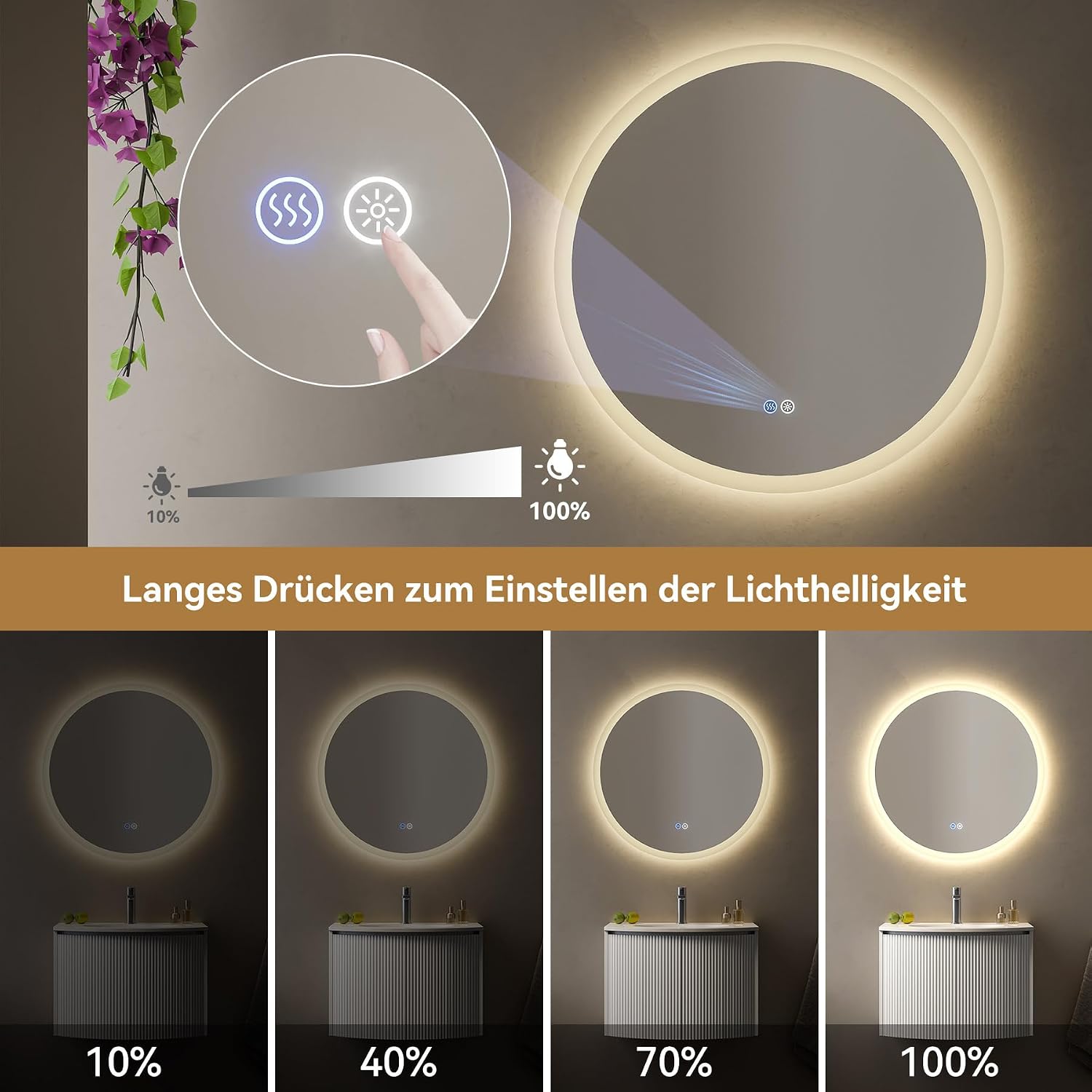

Image: Illustrates the dimmable function, showing the mirror's LED light at various brightness levels (10%, 40%, 70%, 100%) adjusted by a long press on the touch switch.
4.2 Anti-Fog Function
Activate the anti-fog function by pressing the dedicated button. The heating element will clear condensation from the mirror surface, providing a clear view. Turn off the function when not needed to save energy.
Image: Shows the anti-fog feature in action, with a clear central area on a steamy mirror, alongside the IP44 waterproof rating symbol.
4.3 Memory Function
The mirror's memory function saves your last used brightness and color temperature settings. These settings will be recalled automatically when the mirror is turned on again. Please note that a power outage may reset the memory function.
Image: Illustrates the memory function, which saves preferred brightness and color temperature settings for convenience.
5. Maintenance
Proper maintenance will ensure the longevity and optimal performance of your HOROW LED Round Bathroom Mirror.
- Cleaning the Mirror Surface: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the electrical components.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, ammonia-based products, or solvents, as these can damage the mirror's surface or frame.
- Cleaning the Frame: Wipe the frame with a soft, damp cloth. Dry immediately to prevent water spots.
- Electrical Components: Ensure the mirror is unplugged or the power supply is off before cleaning any electrical parts. Do not spray water directly onto the electrical components.
- Regular Inspection: Periodically check the mounting hardware for tightness and the electrical cord for any signs of wear or damage.
6. Troubleshooting
If you encounter any issues with your mirror, please refer to the following troubleshooting guide before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| LED light does not turn on. | No power supply; loose connection; faulty switch. | Check if the mirror is plugged in and the power outlet is working. Ensure all connections are secure. If the issue persists, contact customer service. |
| Anti-fog function not working. | Function not activated; power issue. | Press the anti-fog button to activate. Check power supply. |
| Light brightness or color temperature cannot be adjusted. | Incorrect operation; temporary glitch. | Ensure you are using a long press for brightness and a short press for color change. Try turning the mirror off and on again. |
| Whistling sound from power supply when light is off. | Minor electrical interference. | This can sometimes occur with certain power supplies. If it is disruptive, contact customer service for assistance. |
| Memory function resets frequently. | Frequent power outages. | The memory function may reset after a power outage. This is normal behavior. |
7. Specifications
Detailed technical specifications for the HOROW 80cm LED Round Bathroom Mirror.
| Feature | Detail |
|---|---|
| Brand | HOROW |
| Model | 80L x 80l cm |
| Shape | Round |
| Dimensions | 80L x 80l centimeters |
| Frame Material | Glass (Frameless) |
| Mounting Type | Wall Mount |
| Special Features | Color Changing, Dimmable, Anti-fog, Illuminated |
| IP Rating | IP44 (Splash-proof) |
| Glass Type | HD Robust, Explosion-proof, Lead-free |
| Assembly Required | Yes |
| Components Included | Bathroom Mirror, Wall Mount Bracket, Installation Manual |
| Country of Origin | China |
8. Warranty and Support
HOROW is committed to providing high-quality products and excellent customer service.
- Warranty: This product comes with a 1-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase.
- Customer Service: For any questions, concerns, or technical support, please contact HOROW professional customer service. Refer to your purchase platform or the included documentation for contact details.
