1. Introduction and Overview
Thank you for choosing the Uhome 8000 BTU Portable Air Conditioner. This versatile unit offers 3-in-1 functionality, providing powerful cooling, efficient dehumidification, and effective air circulation through its fan mode. Designed for convenience and comfort, it is suitable for various spaces including offices, bedrooms, living rooms, dining areas, and studio apartments. Its compact design and built-in rolling wheels ensure easy portability, allowing you to cool any room up to 200 sq. ft. Enjoy a comfortable and quiet environment with its low noise operation and user-friendly controls.
Figure 1.1: Front view of the Uhome 8000 BTU Portable Air Conditioner.
Figure 1.2: Key features including 200 sq. ft. cooling range, 55dB low noise, 40 pints/24h dehumidification, 170 CFM air flow, 23ft remote control range, and 360-degree castors.
2. Safety Information
Please read all safety instructions carefully before operating the appliance. Keep this manual for future reference.
- Do not use the appliance near open flames or heat sources, as it contains refrigerants.
- Ensure the unit is placed on a stable, level surface.
- Maintain adequate clearance around the unit for proper airflow.
- Do not block the air inlets or outlets.
- Always unplug the unit before cleaning or performing any maintenance.
- Keep out of reach of children and pets.
- Do not operate the unit with a damaged power cord or plug.
3. Package Contents
Verify that all components are present and in good condition upon unpacking. If any items are missing or damaged, please contact customer support.
- Uhome Portable Air Conditioner Unit
- Exhaust Hose (59 inches)
- Adjustable Window Brackets (fits openings from 37-50.2 inches)
- Remote Control (batteries included)
- Drain Tube
- Sealing Plate
Figure 3.1: All components included in the product packaging.
4. Setup and Installation
The Uhome Portable Air Conditioner is designed for simple and quick installation without the need for special tools. Follow these steps to set up your unit:
- Positioning the Unit: Roll the unit into the desired room. The built-in rolling wheels and handles allow for easy portability. Ensure the unit is placed near a window for exhaust hose installation.
- Attach Exhaust Hose: Connect the 59-inch exhaust hose to the designated port on the back of the air conditioner unit.
- Install Window Kit: Attach the adjustable window brackets to your sliding window (double/single-hung or sliding slash windows are compatible). The brackets fit openings from 37 to 50.2 inches. Insert the other end of the exhaust hose into the opening of the window kit.
- Secure Connections: Ensure all connections are secure to prevent air leakage, which can reduce efficiency.
- Power On: Plug the unit into a standard electrical outlet.

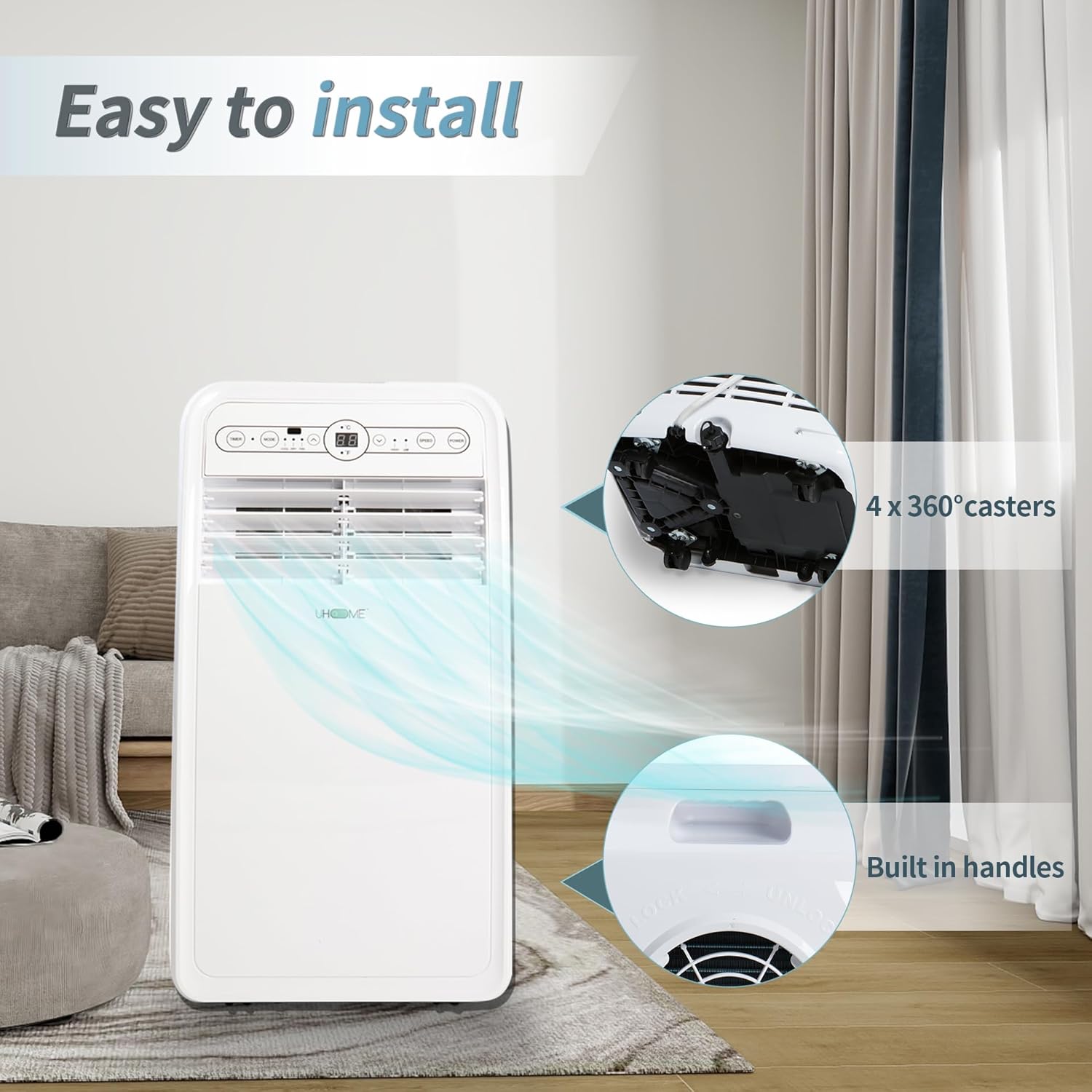

Figure 4.1: The unit features 360-degree casters and built-in handles for easy movement.
Figure 4.2: Illustration of the window kit installation process, showing the adjustable bracket and exhaust hose.

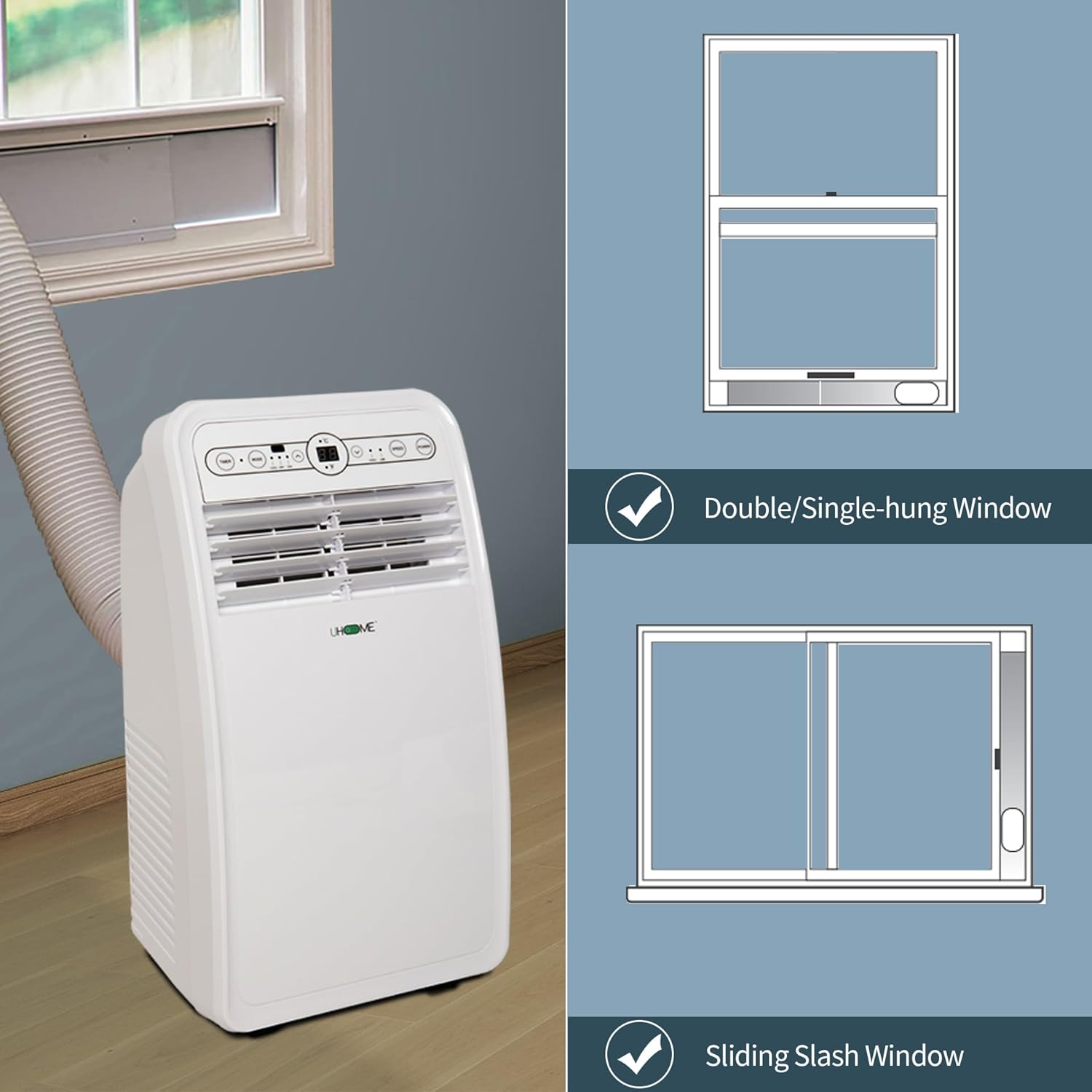

Figure 4.3: The unit is compatible with double/single-hung windows and sliding slash windows.
5. Operating Instructions
The Uhome Portable Air Conditioner features an easy-to-read LED display and digital touch button control panel. A compact remote control is also included for convenient operation from anywhere in the room.
Control Panel and Remote Control
Figure 5.1: The unit can be controlled via its top panel or the included remote control, with signal reception up to 7 meters.
Operating Modes
The unit offers three primary operating modes:
- Cool Mode: Provides powerful cooling for hot days. The temperature can be set from 60°F to 86°F (16°C to 30°C). When the set temperature is lower than the ambient temperature by 1°F (1°C), the machine will run normally for refrigeration. If the set temperature is higher than the ambient temperature by 1°F (1°C), the compressor will stop, and the fan will stop after a 3-minute delay.
- Dehumidifier Mode: Reduces humidity in the air, capable of removing up to 40 pints of moisture per day.
- Fan Mode: Circulates air with two different fan speeds (High/Low) to satisfy your ventilation needs.
Figure 5.2: The unit offers Cooling (60°F-86°F), Fan (High/Low), and Dehumidifier (40 Pints/24Hr) modes.
Timer Function
The 24-hour adjustable timer allows you to program the unit to turn on or off automatically, providing convenience and energy savings.
Figure 5.3: The 24-hour timer function for scheduled operation.
Sleep Mode
Equipped with a sleep mode, the unit operates at a noise level of less than 55 dB, ensuring minimal disturbance for a peaceful sleep, work, or relaxation time.
Figure 5.4: The unit operates quietly, with noise levels below 55dB, ideal for sleep mode.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your Uhome Portable Air Conditioner.
Filter Cleaning
The washable filter is designed to protect the unit from dust and hair. It is recommended to clean the filter every two weeks for best performance.
- Turn off and unplug the air conditioner.
- Effortlessly lift out the washable filter from its housing.
- Clean the filter easily under a faucet with lukewarm water. For heavy dust, a mild detergent can be used.
- Allow the filter to air dry completely before reinstalling it into the unit. Do not expose to direct sunlight or heat.
Figure 6.1: Steps for removing and cleaning the washable air filter.
Drainage
The unit features a bucket-less, self-evaporating operation. However, in high humidity conditions, excess water may accumulate and need to be drained. Refer to the full instruction manual for detailed drainage procedures.
7. Troubleshooting
If you encounter issues with your Uhome Portable Air Conditioner, refer to the table below for common problems and solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply; Power cord not plugged in; Circuit breaker tripped. | Check power outlet; Ensure power cord is securely plugged in; Reset circuit breaker. |
| Unit not cooling effectively | Dirty air filter; Room too large; Doors/windows open; Exhaust hose not properly installed; Ambient temperature too high. | Clean air filter; Ensure unit is suitable for room size; Close all doors and windows; Check exhaust hose connection; Operate within recommended temperature range. |
| Unit is noisy | Unit not on a level surface; Obstruction in fan; Normal operation sound. | Place unit on a flat, stable surface; Check for foreign objects; Some noise is normal during operation. |
| Water leakage | Drain plug not properly sealed; Unit tilted; Drainage hose blocked. | Ensure drain plug is secure; Place unit on a level surface; Clear any blockages in the drainage hose. |
8. Specifications
Detailed technical specifications for the Uhome 8000 BTU Portable Air Conditioner.
| Feature | Specification |
|---|---|
| Brand Name | Uhome |
| Model Info | UPF1-08C |
| Item Weight | 40.8 pounds |
| Product Dimensions | 13.46 x 14.69 x 26.93 inches |
| Item Model Number | 8000BTU-2023 |
| Efficiency | High |
| Annual Energy Consumption | 695 Watt Hours |
| Noise Level | 55 dB |
| Installation Type | Window |
| Form Factor | Stand Alone |
| Special Features | Remote Controlled, Fan, Fast Cooling, Dehumidifier |
| Color | White |
| Voltage | 115 Volts (AC) |
| Wattage | 695 watts |
| Material Type | Plastic |
| Included Components | Exhaust hose, Sealing plate |
| Floor Area | 200 Square Feet |
| Cooling Power | 8000 British Thermal Units |
| Refrigerant | R-32 |
Figure 8.1: Product dimensions: 14.69 inches (width) x 13.46 inches (depth) x 26.93 inches (height).
9. Warranty and Support
Uhome is committed to providing quality products. For warranty information, technical support, or any inquiries regarding your portable air conditioner, please refer to the contact details provided in your product packaging or visit the official Uhome website. Please note that machines with refrigerants are not intended to be used near open flames or heat sources.
