1. Introduction
Thank you for choosing the Lindby Valdorin Pendant Lamp. This manual provides essential information for the safe installation, operation, and maintenance of your new lamp. Please read these instructions carefully before installation and retain them for future reference.
The Valdorin pendant lamp features a distinctive double-layered shade crafted from black ribbed paper, designed to create a unique aesthetic in your living space. It is suitable for various rooms, including bedrooms, living rooms, and dining areas.
2. Safety Information
- Electrical Safety: Always disconnect the main power supply at the fuse box or circuit breaker before commencing any installation, maintenance, or repair work.
- Qualified Electrician: Installation should only be performed by a qualified electrician or a person with appropriate electrical knowledge to ensure safety and compliance with local regulations.
- Voltage: Ensure the operating voltage of your electrical system matches the lamp's requirements (230V).
- Bulb Type: Use only E27 bulbs, with a maximum wattage of 15W LED. Do not exceed the recommended wattage.
- IP20 Protection: This lamp has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. Do not install in bathrooms or other areas where it may be exposed to moisture.
- Handling: Handle the lamp shade with care, as the paper material can be delicate.
3. Package Contents
Please check that all components are present and undamaged before beginning installation:
- 1x Valdorin Pendant Lamp Shade (Black Paper)
- 1x Ceiling Rose with integrated cable and E27 lamp holder
- Mounting hardware (screws, wall plugs, terminal block)
- Instruction Manual
Note: The light bulb is not included and must be purchased separately.
4. Setup and Installation
Follow these steps carefully for safe installation:
- Prepare for Installation:
- Turn off Power: Locate your home's main circuit breaker or fuse box and turn off the power to the circuit where you will be installing the lamp. Verify that the power is off using a voltage tester.
- Gather Tools: You will need a screwdriver, wire strippers, drill, and possibly a ladder.
- Mount the Ceiling Rose Bracket:
The ceiling rose contains a mounting bracket. Detach this bracket from the ceiling rose. Hold the bracket against the ceiling at your desired installation point and mark the drill holes. Drill holes suitable for the provided wall plugs and screws. Securely attach the mounting bracket to the ceiling.
Image: The black ceiling rose with its internal mounting bracket, ready for installation.
- Connect Wiring:
Carefully connect the electrical wires from your ceiling to the terminal block inside the ceiling rose. Ensure correct polarity: Live (L) to Live, Neutral (N) to Neutral, and Earth (E) to Earth. If your ceiling wiring does not include an Earth wire, consult a qualified electrician.
Image: Close-up view of the wiring terminal block inside the ceiling rose, showing connections for Live, Neutral, and Earth wires.
- Attach Ceiling Rose:
Once wiring is complete, carefully push the ceiling rose onto the mounted bracket and secure it with the provided screws or locking mechanism. Ensure no wires are pinched.
- Attach Lamp Shade:
The lamp shade typically attaches to the E27 lamp holder. Carefully align the shade with the holder and secure it according to the lamp's design. Some shades may have a retaining ring that screws onto the lamp holder to hold the shade in place.
Image: View inside the lamp shade, showing the E27 bulb fitting where the bulb is inserted.
- Install Bulb:
Screw an E27 LED bulb (max 15W) into the lamp holder. Do not overtighten.
- Restore Power:
Once installation is complete and all connections are secure, restore power at the main circuit breaker. Test the lamp by turning on the light switch.
5. Operating Instructions
The Lindby Valdorin Pendant Lamp is operated via a standard wall switch connected to its electrical circuit. Simply toggle the switch to turn the lamp on or off.

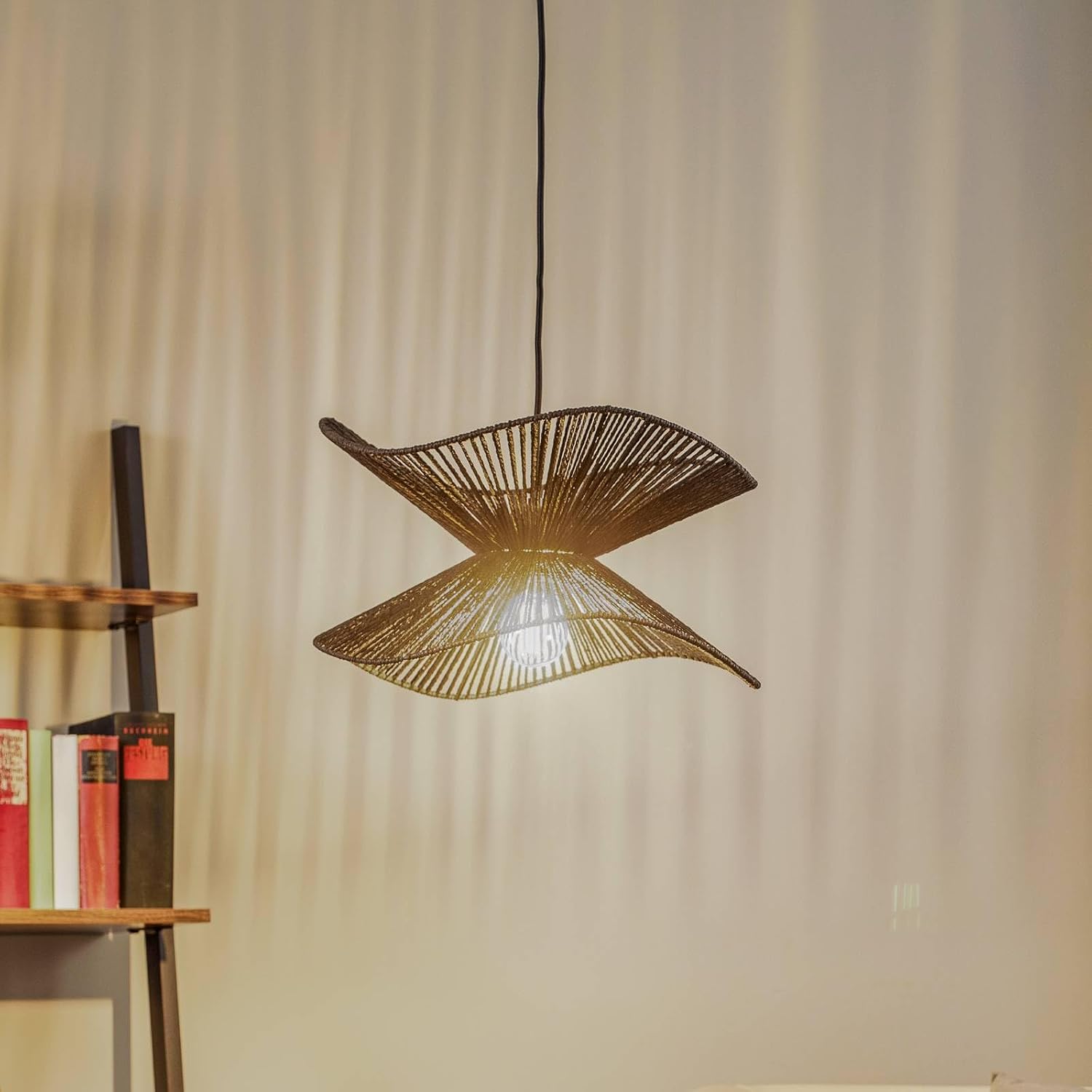

Image: The Lindby Valdorin pendant lamp, illuminated, hanging in a modern living room setting.
6. Maintenance
- Cleaning: Always disconnect power before cleaning. Use a soft, dry cloth to gently wipe the lamp shade and ceiling rose. Do not use abrasive cleaners, solvents, or wet cloths, as these can damage the paper material and electrical components.
- Bulb Replacement: Ensure the power is off and the bulb has cooled down before attempting to replace it. Unscrew the old E27 bulb and screw in a new E27 LED bulb (max 15W).
- Inspection: Periodically check the lamp for any signs of damage to the cable, shade, or electrical connections. If any damage is found, disconnect power and consult a qualified electrician.

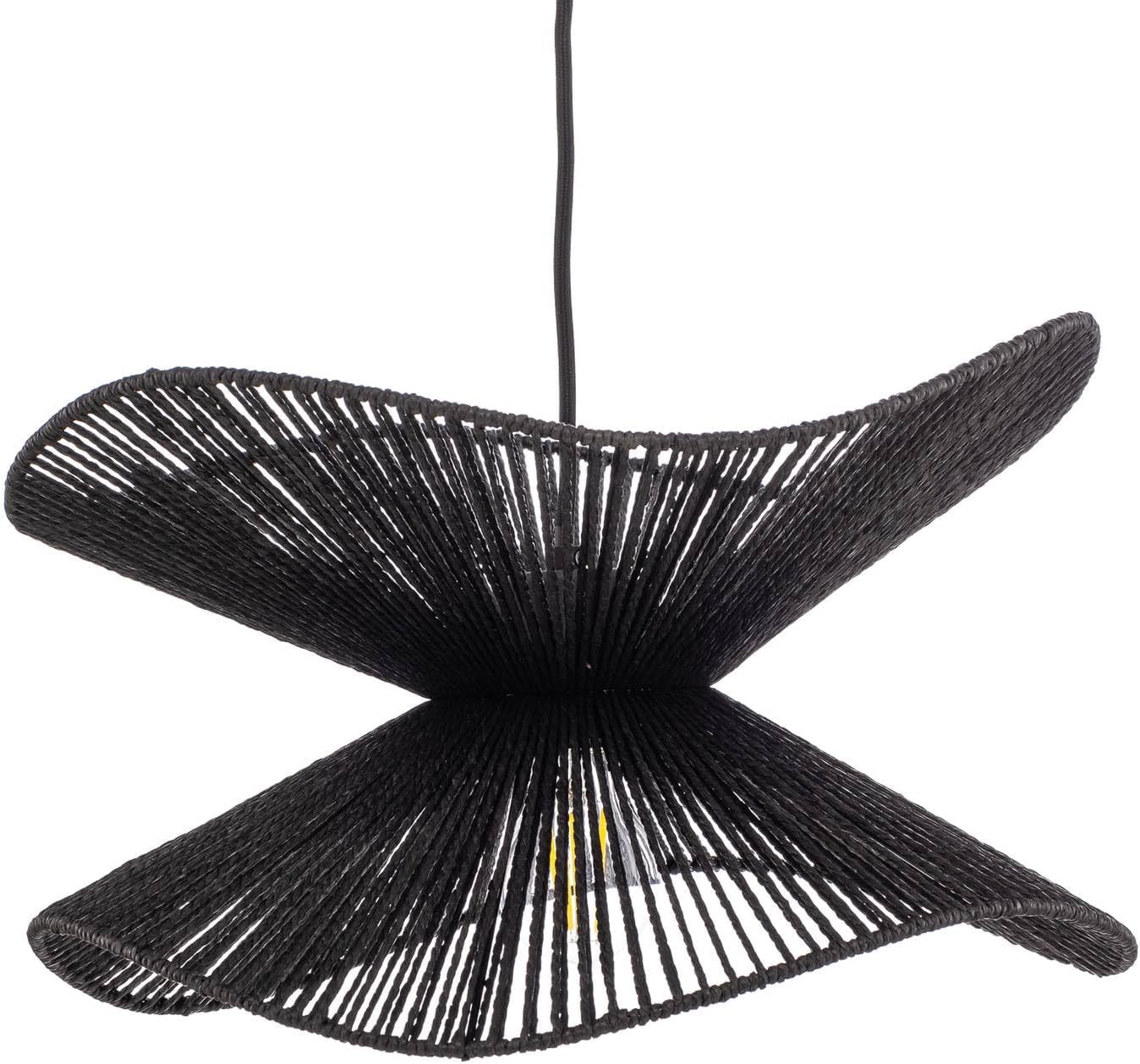

Image: Detailed close-up of the ribbed black paper material of the Valdorin lamp shade.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up. |
|
|
| Lamp flickers. |
|
|
8. Specifications
- Model Number: 10019914
- Brand: Lindby
- Material: Paper
- Color: Black
- Dimensions (Diameter x Height): 40 cm x 26 cm
- Weight: 870 g
- Fitting: E27
- Number of Light Sources: 1
- Max. Wattage: 15W LED
- Operating Voltage: 230 Volt
- Protection Class: IP20
- Safety Class: I
- Energy Source: Wired
9. Warranty and Support
For any questions regarding the product, installation, or operation, please contact the seller directly through your Amazon dealer profile. Please have your model number (10019914) and purchase details ready when contacting support.
This product is designed for indoor use only. Any modifications to the product may void the warranty and pose a safety risk.
