1. Introduction
This manual provides essential information for the safe and effective use of your OWON SDS1022 Digital Oscilloscope. Please read it thoroughly before operating the device and keep it for future reference. The SDS1022 is a 2-channel, 20MHz bandwidth digital oscilloscope with a 100MS/s real-time sample rate, designed for a wide range of applications from electronic circuit debugging to educational purposes.

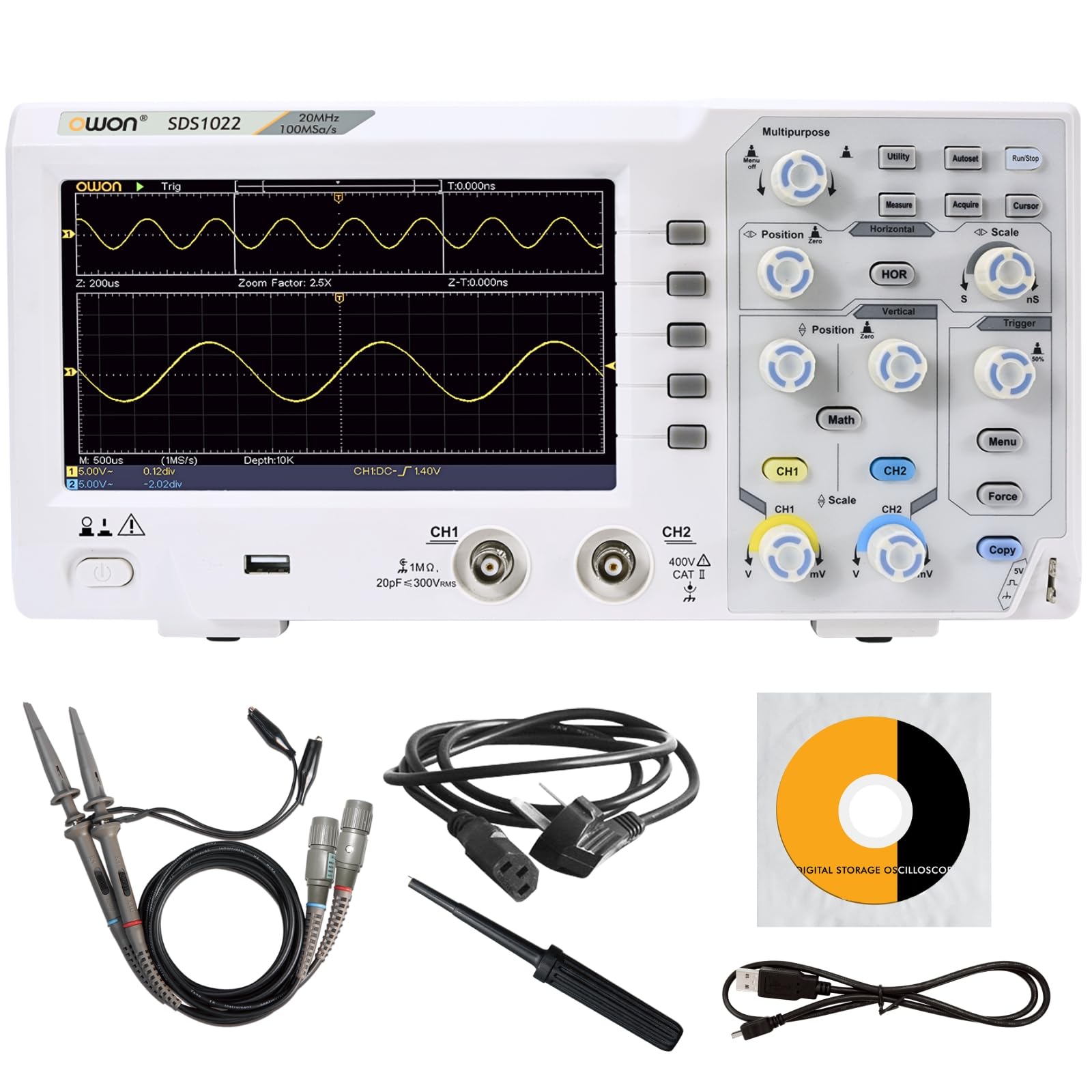

Figure 1: OWON SDS1022 Digital Oscilloscope with probes.
2. Product Features
- Wide Bandwidth and High-Speed Sampling: The SDS1022 offers a 20MHz bandwidth and a 100MS/s real-time sampling rate, enabling accurate capture of instantaneous waveform changes for precise signal analysis.
- Clear Display and Intuitive Operation: Features a 7-inch high-resolution color LCD for vivid waveform display. The user-friendly menu system ensures intuitive operation for both novice and experienced users. A zoom display function allows quick identification of anomalies.
- Diverse Measurement and Analysis Functions: Includes 30 types of automatic measurement functions, FFT for frequency analysis, and waveform operations (addition, subtraction, multiplication, division, inversion). Pass/fail testing and screenshot capabilities enhance efficiency in testing and reporting.
- Compact Design and Connectivity: With a thin and lightweight design (approx. 1.1kg), the device is easy to place in various environments. Equipped with USB host and device interfaces for data storage and PC connectivity. SCPI command support allows for automated testing and remote control.
Figure 2: Compact design and dimensions.
Figure 3: Overview of included functions.
3. Setup
- Unpacking: Carefully remove the oscilloscope and all accessories from the packaging. Verify that all included components are present (Power cord, CD-ROM, Quick Guide, USB cable, Probes, Probe adjustment tool).
- Power Connection: Connect the provided AC power cord to the oscilloscope's power input and then to a suitable AC power outlet.
- Initial Power On: Press the power button to turn on the oscilloscope. The device will perform a self-test.
- Probe Connection: Connect the oscilloscope probes to the CH1 and CH2 input channels. Ensure a secure connection.
- Probe Compensation: Before taking measurements, perform probe compensation to ensure accurate readings. Connect the probe to the probe compensation output (usually a square wave signal) and adjust the probe until a flat-top square wave is displayed on the screen. Refer to the Quick Guide for detailed steps.
Figure 4: Included accessories.
4. Operation
The SDS1022 features a user-friendly interface with dedicated controls for horizontal, vertical, and trigger settings. The 7-inch LCD provides a clear view of waveforms and measurement data.
4.1 Basic Waveform Display
- Vertical Controls: Use the CH1/CH2 vertical position and scale knobs to adjust the vertical position and voltage per division for each channel.
- Horizontal Controls: Use the horizontal position and scale knobs to adjust the horizontal position and time per division.
- Trigger Settings: Adjust the trigger level and mode (Edge, Video, etc.) to stabilize the waveform display. The 'Auto' button can often provide a stable display quickly.
4.2 Measurement Functions
The oscilloscope supports 30 types of automatic measurements. Press the Measure button to access these functions. You can select parameters such as Period, Frequency, Peak-to-Peak Voltage, RMS, and more.
Figure 5: Automatic measurement display.
4.3 Advanced Functions
- FFT Analysis: Press the Math button and select FFT to perform frequency domain analysis of your signals.
- Waveform Operations: The Math menu also allows for waveform addition, subtraction, multiplication, division, and inversion.
- Data Storage: Use the USB host port to save waveforms, screenshots, or setup configurations to a USB flash drive.
Video 1: Demonstration of OWON SDS1104 (similar model) oscilloscope controls and waveform display. This video illustrates general operation principles applicable to the SDS1022.
5. Maintenance
- Cleaning: Use a soft, dry cloth to clean the exterior of the oscilloscope. Do not use abrasive cleaners or solvents.
- Storage: Store the device in a dry, dust-free environment away from direct sunlight and extreme temperatures.
- Probe Care: Handle probes carefully. Avoid bending or stressing the cables. Store them properly to prevent damage.
- Software Updates: Periodically check the OWON official website for firmware updates to ensure optimal performance and access to new features.
6. Troubleshooting
- No Power: Ensure the power cord is securely connected to both the oscilloscope and the power outlet. Check the power outlet for functionality.
- No Waveform Display: Verify that probes are correctly connected to the input channels and the signal source. Adjust vertical scale, horizontal scale, and trigger settings. Use the 'Auto' button to attempt automatic waveform display.
- Unstable Waveform: Adjust the trigger level and trigger mode. Ensure the trigger source is correctly selected.
- Incorrect Measurements: Perform probe compensation. Ensure the correct probe attenuation setting (1X, 10X) is selected on both the probe and the oscilloscope.
- USB Device Not Recognized: Ensure the USB device is formatted correctly and functioning. Try a different USB port or device.
For issues not resolved by these steps, please contact OWON customer support.
7. Specifications
| Parameter | Specification (SDS1022) |
|---|---|
| Bandwidth | 20 MHz |
| Channels | 2 |
| Sample Rate | 100 MS/s |
| Horizontal Scale (s/div) | 5ns/div - 1000s/div, step 1-2-5 |
| Rise Time (at input, typical) | ≤3.5 ns |
| Input Impedance | 1 MΩ ±2%, in parallel with 15pF±5pF |
| DC Gain Accuracy | ±3.0% |
| DC Accuracy (average) | Average 16: V±(3% reading + 0.05 div) |
| Max Record Length | 20K |
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X |
| Vertical Resolution (A/D) | 8 bit |
| Vertical Sensitivity | 5mV/div - 5V/div (input) |
| LF Response (AC, -3dB) | 10Hz (at input, AC coupling, -3dB) |
| Sample Rate / Relay Time Accuracy | ±100 ppm |
| Trigger Type | Edge, Video |
| Waveform Operations | Invert, FFT, +, -, ×, ÷ |
| Waveform Storage | 16 waveforms |
| Trigger Mode | Auto, Normal, Single |
| Fuse | 2A, T class, 250V |
| Input Coupling | DC, AC, GND |
| Dimensions (W x H x D) | 301 x 152 x 70 mm |
| Weight | Approx. 1.10 kg |
| Display | 7" Color LCD, 800 x 480 Pixels |
For a comparison with other models in the SDS1000 series, refer to the table below:

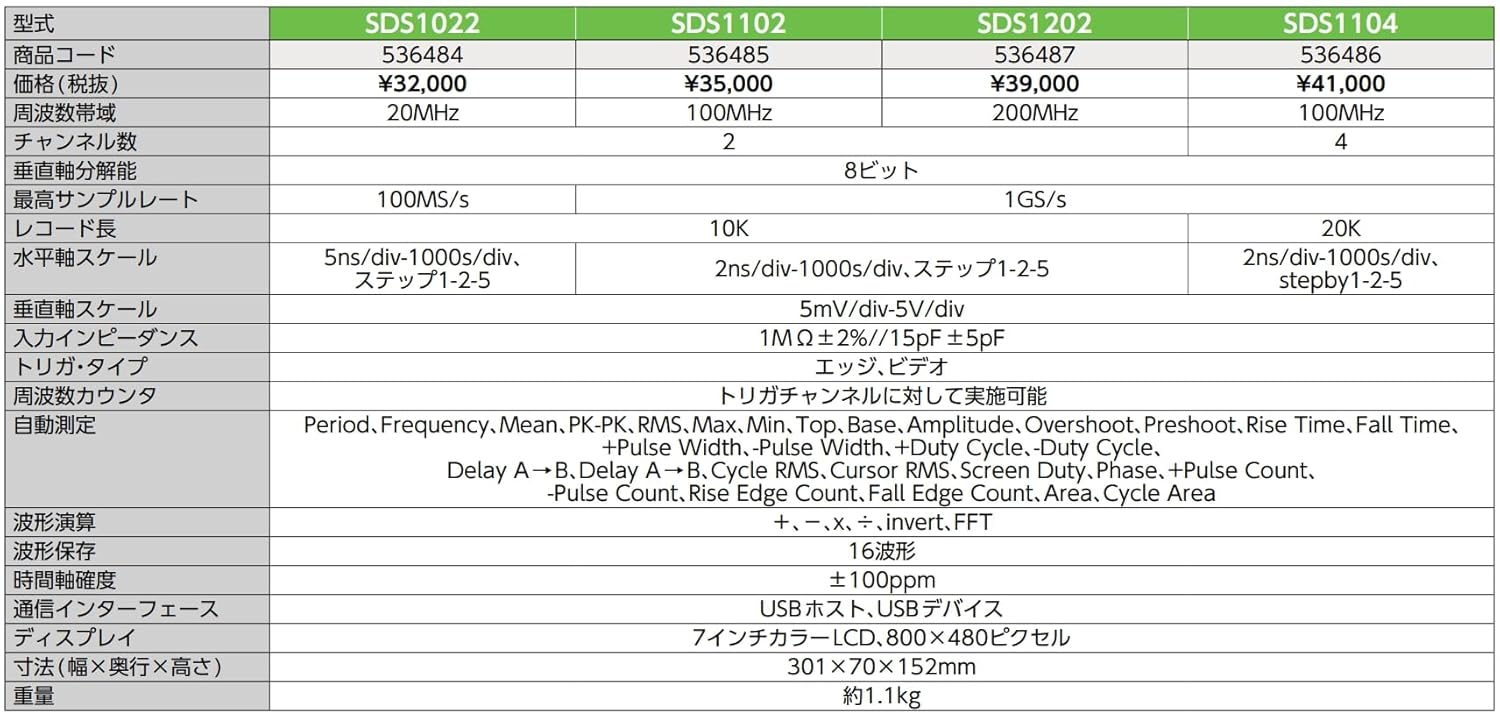

Figure 6: SDS1000 Series Model Comparison.
