GuaiGLong 12V 60Ah LiFePO4 Battery User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your GuaiGLong 12V 60Ah LiFePO4 Battery. This high-performance lithium iron phosphate battery is designed for a wide range of applications, including solar energy systems, marine vessels, recreational vehicles (RVs), trolling motors, travel trailers, and various off-grid power needs. Please read this manual thoroughly before initial use to ensure proper operation and longevity of your battery.

Figure 1: GuaiGLong 12V 60Ah LiFePO4 Battery with included accessories.

2. Product Features

• Advanced 100A JBD BMS: Equipped with a robust Battery Management System (BMS) that ensures efficient charging, safe discharging, and protection against overcharge, overcurrent, overvoltage, discharge, short circuit, and temperature fluctuations.
• Lightweight & Compact Design: Weighing only 11.46 lbs (5.2 kg) and measuring L10.82 x W9.25 x H6.49 inches (275 x 235 x 165 mm), this battery is highly portable and easy to integrate into various setups.
• Versatile Interface Options: Features multiple ports for diverse charging and discharging needs, including:
  • Waterproof LD20 plug (discharge/charge port)
  • Cigarette lighter socket (20A)
  • Anderson plug (50A)
  • 8mm terminal (M8) (discharge/charge port)
  • USB charging port (5V, 3.1A)
• Exceptional Longevity: Engineered for durability, capable of enduring over 8000 charging cycles, providing a long lifespan.
• Wide Application Range: Ideal for marine use, trolling motors, RVs, electric vehicles, golf carts, solar power systems, kayak carts, lighting, backup power, home energy storage, and off-grid applications.

Figure 2: Multi-interface design for versatile connectivity.

3. What's in the Box

Upon unboxing, please verify that all components are present and undamaged:

• 1 x GuaiGLong 12V 60AH LiFePO4 Battery
• 1 x 10A Charger (14.6V)
• 1 x Anderson plug (50A)

Figure 3: Included accessories with the battery.

4. Setup

4.1 Initial Charge

Before first use, it is recommended to fully charge the battery using the provided 10A charger. Connect the charger to the designated charging port (LD20 or 8mm terminal) and plug it into a standard AC outlet. The charger's indicator light will change from red to green when charging is complete.

Important Note: The percentage of electricity displayed on the battery's screen may be inaccurate. When using the battery, it is crucial to estimate the remaining capacity based on the voltage. The power of a 12V LiFePO4 battery is concentrated between 12.2V and 13.2V. The BMS will cut off the battery output when the voltage drops below 10.4V.

4.2 Connecting Devices

The battery offers various output ports for different applications:

• M8 Terminal: Used to connect high-power devices (≤100A, MAX.1280W) such as electric motors, engines, trolling motors, inverters, and other high-power devices.
• Anderson Plug (50A): This port has a maximum current of 50A and is used for devices with a power of less than 600W, such as low-power electric motors or low-power engines.
• LD20 & Charging Port: This port has a maximum current of 20A and is used for low-power devices, such as sonars (fish finders), speakers, and LED lights.
• USB & PD: Provides 5V USB QC3.0 fast charging and PD fast charging for mobile devices.
• Cigarette Lighter Socket (20A): Standard 12V output for compatible devices.

Ensure all connections are secure and match the voltage and current requirements of your devices to prevent damage to the battery or connected equipment.

5. Operating Instructions

5.1 General Operation

The GuaiGLong LiFePO4 battery is designed for ease of use. Simply connect your desired devices to the appropriate ports. The built-in BMS will manage charging and discharging parameters to ensure safe operation.

Figure 4: The battery is suitable for marine environments.

5.2 Monitoring Battery Status

While the display screen shows power percentage and voltage, prioritize monitoring the voltage for an accurate assessment of the battery's state of charge. A 12V LiFePO4 battery's usable power range is primarily between 12.2V and 13.2V. When the voltage drops below 10.4V, the BMS will activate its low-voltage cut-off protection.

5.3 Recommended Applications

This battery is highly versatile and suitable for:

• Marine & Trolling Motors: Provides reliable power for extended periods on boats and for electric trolling motors.
• RV & Travel Trailers: Excellent for powering appliances and electronics in recreational vehicles.
• Solar Systems: Efficient energy storage for off-grid and grid-tied solar installations.
• Off-Grid Applications: Reliable power source for remote cabins, camping, and emergency backup.
• Portable Power: Its lightweight design makes it ideal for portable power needs during outdoor activities.

Figure 5: Wide range of applications for the GuaiGLong LiFePO4 battery.

6. Maintenance

6.1 Storage

For long-term storage, ensure the battery is charged to approximately 90% capacity. The battery can maintain 90% power for up to 6 months when stored properly. Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.

6.2 Cleaning

Periodically inspect the battery and its terminals for any dirt, dust, or corrosion. Clean the exterior with a dry, soft cloth. Ensure terminals are clean and connections are tight to maintain optimal performance.

6.3 Operating Temperature

Adhere to the specified operating temperature ranges for charging and discharging to maximize battery life and performance:

• Charging Temperature: 0°C to 45°C (32°F to 113°F)
• Discharging Temperature: -20°C to 60°C (-4°F to 140°F)

7. Troubleshooting

7.1 Common Issues

• Inaccurate Display Percentage: As noted, the percentage display may not be precise. Always rely on the voltage reading for an accurate state of charge.
• Battery Not Discharging: If the battery stops providing power, check the voltage. The BMS will cut off output if the voltage drops below 10.4V to protect the battery. Recharge the battery.
• Charging Issues: Ensure the charger is properly connected and the power source is active. If the charger light does not change to green after an extended period, verify the charger's functionality.
• USB Port Malfunction: In rare cases, a USB port may become defective. If other ports function correctly, consider using alternative charging methods or contacting customer support.

7.2 Contacting Support

If you encounter issues that cannot be resolved using this guide, please contact GuaiGLong customer service. Our service team offers professional information and support, responding quickly to inquiries and aiming to resolve issues within 24 hours. Please provide your product model and a detailed description of the issue when contacting us.

8. Specifications

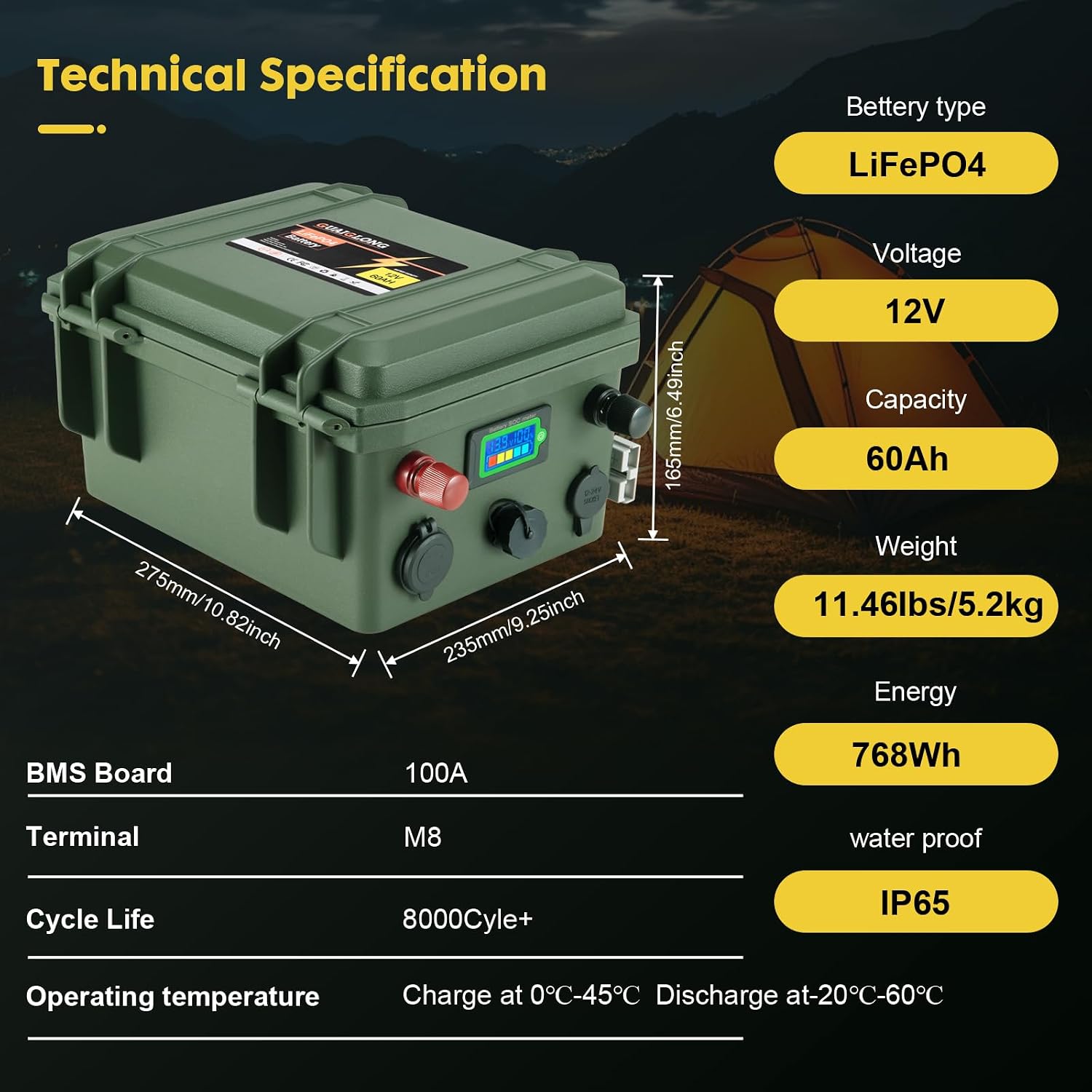

Figure 6: Detailed technical specifications.

9. Warranty and Support

GuaiGLong is committed to providing 5 years of reported service for every battery sold. Our dedicated service team offers professional information and support, responding quickly to inquiries and aiming to resolve issues within 24 hours. We are here to help analyze your problem, provide solutions, and guide you on the best usage practices.

For assistance, please visit the official GuaiGLong store or contact customer support through the platform where you purchased the product.

Manufacturer: GuaiGLong

Country of Origin: China
