Introduction
Thank you for choosing the FosPower Emergency Weather Radio (Model D8). This multi-functional device is designed to provide reliable communication, power, and illumination during emergencies, power outages, or outdoor activities. With its robust features and multiple charging methods, it ensures you stay connected and prepared.
Image: The FosPower Emergency Weather Radio (Model D8) in orange and black, shown charging a smartphone via its USB port. The radio features a digital display, a flashlight on one end, and a compass on its strap.
Product Overview
Familiarize yourself with the key components of your FosPower Emergency Weather Radio:

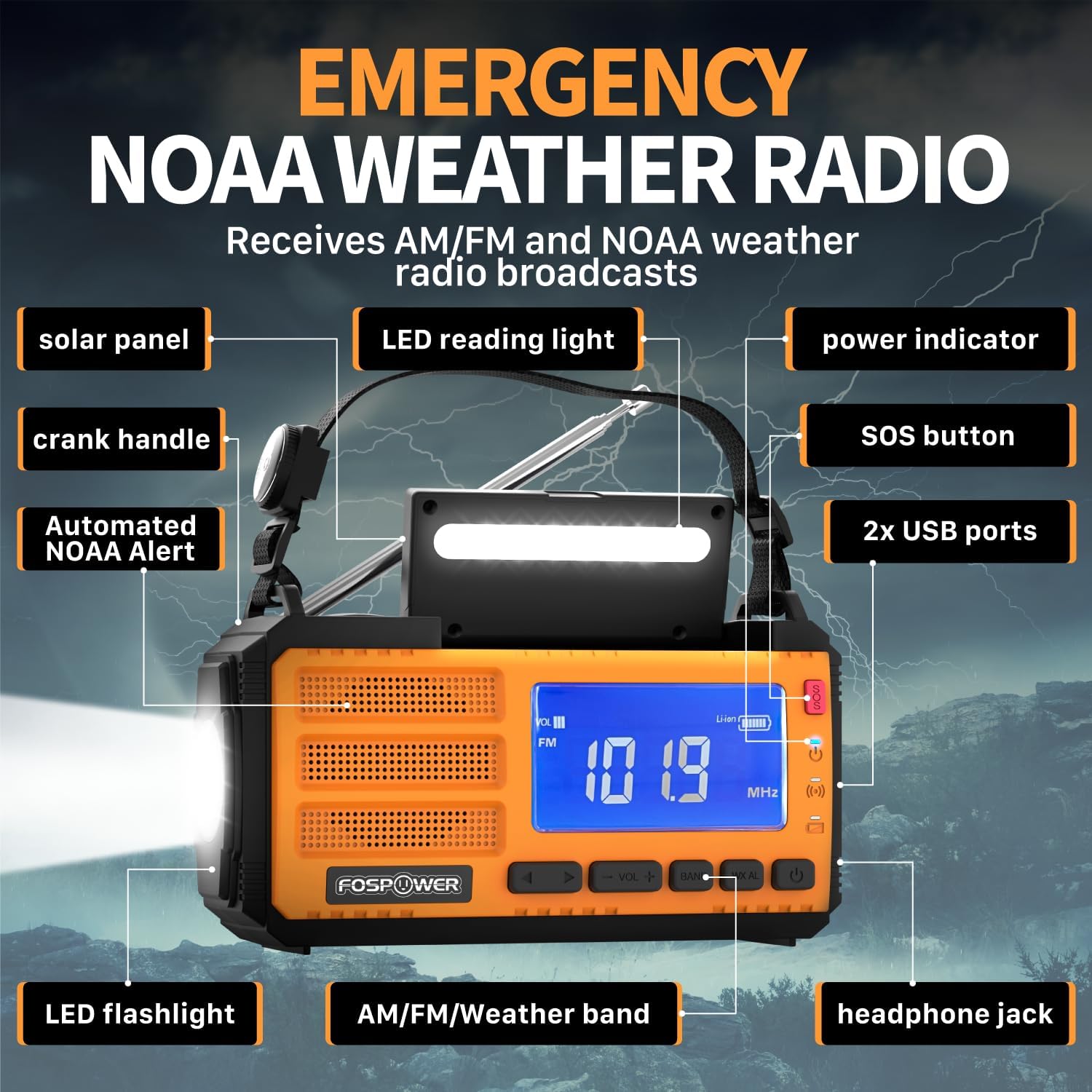

Image: A detailed diagram highlighting the various components of the FosPower Emergency Weather Radio, including the solar panel, LED reading light, power indicator, SOS button, USB ports, LED flashlight, AM/FM/Weather band controls, headphone jack, and crank handle.
- Solar Panel: Located on top for solar charging.
- Crank Handle: Foldable handle for manual power generation.
- LED Flashlight: Integrated on one end for directional lighting.
- LED Reading Light: Located under the solar panel for ambient light.
- USB Ports: For charging external devices and recharging the radio.
- SOS Button: Activates a loud siren and flashing light for emergencies.
- Power Indicator: Displays current battery level.
- AM/FM/Weather Band Controls: Buttons for radio tuning and volume.
- Headphone Jack: 3.5mm port for private listening.
- Automated NOAA Alert: Feature to monitor local NOAA channels.
- Holding Strap with Compass: For portability and navigation.
Setup
Initial Charging
Before first use, it is recommended to fully charge the radio using the USB-C charging cable. Connect the USB-C end to the radio's input port and the USB-A end to a compatible USB power adapter (not included) or computer USB port. The power indicator lights will show charging progress.
Included Components
- FosPower Emergency Weather Radio (Model D8)
- Holding Strap with Compass
- USB-A to USB-C Charging Cable
Operating Instructions
Radio Operation
- Power On/Off: Press the power button to turn the radio on or off.
- Band Selection: Press the 'BAND' button to cycle through AM, FM, and NOAA Weather Band (WB) frequencies.
- Tuning: Use the 'TUNE +/-' buttons to manually adjust the frequency. For automatic scanning, press and hold the 'TUNE +/-' button.
- Volume Control: Use the 'VOL +/-' buttons to increase or decrease the volume.
- Antenna: Extend the telescopic antenna fully for optimal FM and Weather Band reception. For AM, rotate the radio for best signal.
Light Functions
Image: The FosPower Emergency Weather Radio demonstrating its flashlight function on one end and its reading light function, which is located beneath the solar panel.
- Flashlight: Press the dedicated flashlight button to turn it on. Some models may have multiple brightness settings or a strobe function, which can be cycled by pressing the button repeatedly.
- Reading Light: Lift the solar panel to reveal the LED reading light. Press the reading light button to turn it on.
SOS Alarm
In an emergency, press and hold the 'SOS' button. This will activate a loud siren and a flashing light to attract attention. Press the button again to deactivate the alarm.
Image: The FosPower Emergency Weather Radio with a red pulsating light indicating the SOS alarm is active, set against a backdrop of a stormy sky with lightning.
Charging Options
The FosPower Emergency Weather Radio offers three versatile charging methods to ensure power availability in any situation:
Image: Three close-up views of the FosPower Emergency Weather Radio demonstrating its multiple power sources: USB charging port, solar panel, and hand-crank.
- USB-C Charging: For the fastest and most efficient charge, use the provided USB-C cable to connect the radio to a USB power source.
- Solar Charging: Place the radio with the solar panel facing direct sunlight. This method is ideal for maintaining charge or for slow charging in outdoor environments.
- Hand-Crank Charging: Extend the hand crank and rotate it clockwise or counter-clockwise at a steady pace. This method provides power for short bursts of use or to generate enough charge for other charging methods.
Power Bank Function
The radio features a 37000mWh (10000mAh) power bank, allowing you to charge your USB-powered devices, such as smartphones, during emergencies or when off-grid. Connect your device to the radio's USB output port using your device's charging cable.
Image: The FosPower Emergency Weather Radio set against a natural background, highlighting its "37000mWh INTERNAL BATTERIES" and stating "High-capacity batteries support all day use."
Maintenance
- Cleaning: Wipe the radio with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the radio in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: For optimal battery life, fully charge the radio at least once every three months if not in regular use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Radio not turning on. | Low or depleted battery. | Charge the radio using USB-C, solar, or hand-crank methods. |
| Poor radio reception. | Antenna not extended or poor signal area. | Fully extend the telescopic antenna. Try repositioning the radio or moving to an open area. For AM, rotate the radio. |
| External device not charging. | Radio battery too low or incorrect cable. | Ensure the radio has sufficient charge. Use a compatible USB charging cable for your device. |
| Flashlight/Reading light not working. | Low battery or light button not pressed correctly. | Charge the radio. Ensure the light button is pressed firmly. |
Specifications
- Product Dimensions: 6.89 x 3.15 x 3.86 inches
- Item Weight: 1.43 pounds
- Model Number: FOSPWB-2436PP
- Battery: 1 Lithium Polymer battery (included)
- Power Source: Solar, Battery, Handcrank
- Radio Bands Supported: AM, FM, WB (Weather Band)
- Special Feature: Built-In Flashlight, SOS Alarm, Power Bank
- Connectivity Technology: USB
Warranty and Support
FosPower offers a Limited Lifetime Warranty for this product. For any inquiries or support needs, please contact FosPower customer service. Details regarding the warranty and how to reach support can typically be found on the manufacturer's official website or through your purchase platform.
