Stanley SXPW22DHS 2-in-1 Pressure Washer and Sprayer User Manual

Introduction

The Stanley SXPW22DHS is an innovative 2-in-1 device featuring a high-pressure washing function and a dedicated spraying function. This patented technology allows for both powerful cleaning and the nebulization of various chemical products from its integrated tank. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Stanley SXPW22DHS unit.

Important Safety Information

Please read and understand all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Electrical Safety: Always connect the pressure washer to a properly grounded outlet. Do not use with damaged cords or plugs. Keep all connections dry and off the ground.
• Personal Safety: Always wear appropriate personal protective equipment, including safety glasses, gloves, and hearing protection. Do not direct the spray at people, pets, or electrical devices.
• Water Pressure: High-pressure spray can cause serious injury. Never operate the unit without the spray gun and nozzle properly attached. Ensure all connections are secure before starting.
• Chemical Handling: When using the sprayer function with chemicals, follow the chemical manufacturer's instructions and safety precautions. Use in a well-ventilated area.
• Children and Bystanders: Keep children and bystanders away from the operating area.
• Maintenance: Disconnect from power supply before performing any maintenance or cleaning.

Package Contents

Verify that all items listed below are included in your package:

• Pressure washer unit (Stanley SXPW22DHS)
• Spray gun with quick connector
• Lance extension
• Adjustable/rotary jet head
• Foam tank
• Sprayer extension lance
• 6-meter hose extension for sprayer
• 8-meter high-pressure hose

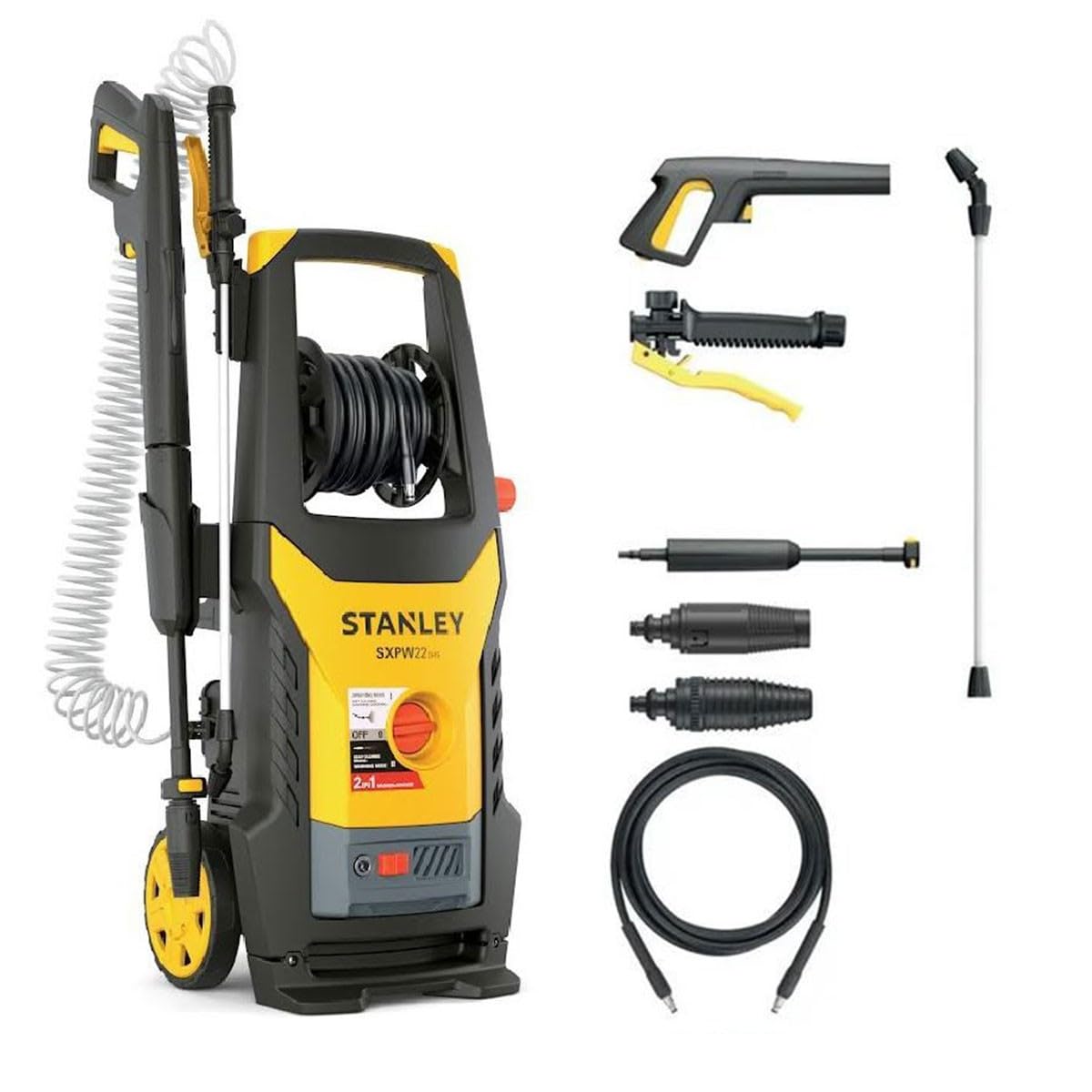

Image: All included accessories for the Stanley SXPW22DHS pressure washer, including the spray gun, lances, foam tank, and hoses.

Setup Instructions

Follow these steps to assemble and prepare your pressure washer for use:

1. Unpack: Carefully remove all components from the packaging.
2. Attach Wheels: If not pre-assembled, attach the 17.5 cm diameter wheels to the main unit.
3. Connect High-Pressure Hose: Connect the 8-meter high-pressure hose to the outlet on the pressure washer unit and to the spray gun. Ensure connections are tight.
4. Connect Water Supply: Connect a garden hose (not included) to the water inlet of the pressure washer. Ensure the water supply is clean and free of debris.
5. Attach Accessories: Select the desired lance and jet head (e.g., adjustable/rotary jet head for washing) and attach it to the spray gun.
6. Power Connection: Plug the power cord into a grounded electrical outlet (220/240V - 50/60Hz).
7. Purge Air: Before starting the motor, turn on the water supply and squeeze the trigger on the spray gun to allow air to escape from the system until a steady stream of water emerges. This prevents damage to the pump.

Image: The main unit of the Stanley SXPW22DHS pressure washer, showing the hose reel and controls.

Operating Instructions

Your Stanley SXPW22DHS offers two distinct operating modes: High-Pressure Washing and Spraying.

Mode 1: High-Pressure Washing

This mode is designed for powerful cleaning tasks, utilizing the 2200W motor to deliver up to 160 Bar pressure and 460 L/h flow rate.

1. Preparation: Ensure the unit is connected to a water supply and power. Purge air from the system as described in the Setup section.
2. Select Nozzle: Attach the appropriate jet head for your cleaning task (e.g., rotary nozzle for stubborn dirt, adjustable nozzle for general cleaning).
3. Start Unit: Turn the power switch to the "ON" position. The motor will start.
4. Begin Cleaning: Hold the spray gun firmly and press the trigger. Direct the spray at the surface to be cleaned, maintaining a safe distance to avoid damage.
5. Apply Detergent (Optional): If using the foam tank, fill it with suitable pressure washer detergent and attach it to the spray gun. The unit will mix the detergent with water.
6. Finish: Release the trigger to stop the water flow. Turn off the power switch and then the water supply. Squeeze the trigger to release any remaining pressure in the system.

Image: A user demonstrating the high-pressure washing function of the Stanley SXPW22DHS, cleaning a paved surface.

Mode 2: Spraying (Nebulization)

This innovative mode uses a dedicated vibrating pump (35W, 4 bar pressure) for nebulizing chemicals. It is ideal for sanitation, disinfection, gardening, and pest control.

1. Fill Tank: Fill the integrated tank with the desired chemical product (e.g., disinfectant, pesticide, fertilizer). Do not overfill.
2. Attach Sprayer Lance: Connect the sprayer extension lance and the 6-meter hose extension for the sprayer.
3. Select Sprayer Mode: On the unit's control panel, select the sprayer mode.
4. Start Unit: Turn the power switch to the "ON" position. The dedicated vibrating pump will activate.
5. Begin Spraying: Direct the sprayer lance towards the target area and activate the spray. Ensure even coverage.
6. Finish: Turn off the power switch. Clean the tank and sprayer lance thoroughly after each use, especially when using different chemicals, to prevent contamination and clogging.

Image: A user demonstrating the spraying function of the Stanley SXPW22DHS, applying a substance to garden foliage.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Stanley SXPW22DHS.

• After Each Use:
  • Disconnect power and water supply.
  • Release residual pressure by squeezing the spray gun trigger.
  • Drain all water from the pump, hoses, and spray gun to prevent freezing in cold weather.
  • Clean the integrated chemical tank and sprayer lance thoroughly, especially after using corrosive or sticky substances.
• Nozzle Cleaning: If the spray pattern becomes irregular or pressure drops, the nozzle may be clogged. Use the provided nozzle cleaning tool (if applicable) or a thin wire to clear any obstructions.
• Water Inlet Filter: Periodically check and clean the water inlet filter to prevent debris from entering the pump.
• Storage: Store the unit in a dry, frost-free environment. Coil hoses neatly and store accessories securely.

Image: An image displaying the repairability index of 8.2/10 for the Stanley pressure washer, indicating ease of maintenance and repair.

Image: A detailed table showing the calculation of the repairability index, highlighting criteria such as documentation, ease of disassembly, availability of spare parts, and price of spare parts.

Troubleshooting

Refer to this section for common issues and their solutions.

Specifications

Warranty and Support

For warranty information, technical support, or to order replacement parts, please refer to the warranty card included with your product or visit the official Stanley website. Keep your purchase receipt as proof of purchase.
