iBooMas 2024 4D Massage Chair User Manual

1. Setup

1.1 Unpacking and Placement

Carefully remove the massage chair from its packaging. Ensure all components are present before proceeding. The iBooMas P03 Grey massage chair has dimensions of approximately 60 inches (D) x 31 inches (W) x 46 inches (H) and weighs 260 pounds. For placement, a minimum doorway size of 30 inches is required. This chair features a space-saving design, requiring only 1.97 inches of clearance from a wall when fully reclined.

Image: Product specifications including dimensions and weight.

Image: Detailed dimensions of the massage chair and the recommended minimum doorway size for installation.

Image: The massage chair in a reclined position, demonstrating its minimal wall clearance requirement of 1.97 inches.

1.2 Included Components

The product package includes the iBooMas 4D Massage Chair and a massage chair cover. Additional accessories such as foot pads for discomfort and an instruction manual are also provided. The chair is equipped with auxiliary wheels for easy movement.

Image: A visual representation of the items included with your purchase: the massage chair, a protective cover, foot pads, and the instruction manual.

1.3 Power Connection

Connect the power cord securely to the chair's power input and then to a grounded electrical outlet. Ensure the power switch is in the 'Off' position before connecting.

2. Operating Instructions

2.1 Controls

The iBooMas P03 Grey massage chair offers multiple control options for user convenience:

• Touch Screen Navigation: A dedicated touch screen provides an intuitive interface for selecting massage modes and adjusting settings.
• Intelligent Voice Control: Select massage modes and functions by speaking commands.
• Side Panel Shortcut Control: Quick access to frequently used functions via a knob and dedicated buttons on the side panel.
• Easy App Control: Control all chair functions directly from your smartphone via a dedicated application.

Image: Overview of the chair's control interfaces, including the wireless charger, USB port, touch screen, and app control features.

2.2 Massage Programs and Features

The iBooMas 4D Massage Chair offers a comprehensive range of massage options:

• 4D Massage Mechanism: Features 6 levels of 4D intensity and 6 roller speed adjustments for a customizable massage experience.
• Pre-set Programs: Includes 24 self-contained massage scenes such as Yoga Stretch and Deep Sleep.
• Manual Techniques: Offers 6 manual massage techniques including Tapping, Knocking, Clapping, Kneading, Guasha, and Shiatsu.
• SL Track System: An S-track design protects the body's natural curvature, while an L-track extends underneath the seat, providing a wider massage range.
• Zero Gravity Positions: Achieve 180° extreme zero gravity depth across 3 positions to fully relax the heart and spine pressure.
• Heating Therapy: Provides heating for the back, lumbar, and foot surfaces with 3 temperature options, complementing the full body massage.
• Full Body Airbags: Features airbags in 6 areas (Shoulder, Arm, Waist, Leg, Ankle, Foot) with 5 intensity levels for comprehensive compression massage.
• Specialized Footrest: Includes auto/manual leg extension after body detection, calf shiatsu massage rollers, adjustable calf kneading massager for cramp relief, and an ergonomic 3-stage foot massager targeting the ball, arch, and heel.
• Intelligent Body Scan: Before each massage program, the chair intelligently scans the user's height and body type, automatically adjusting roller positions and extending the footrest for optimal comfort.

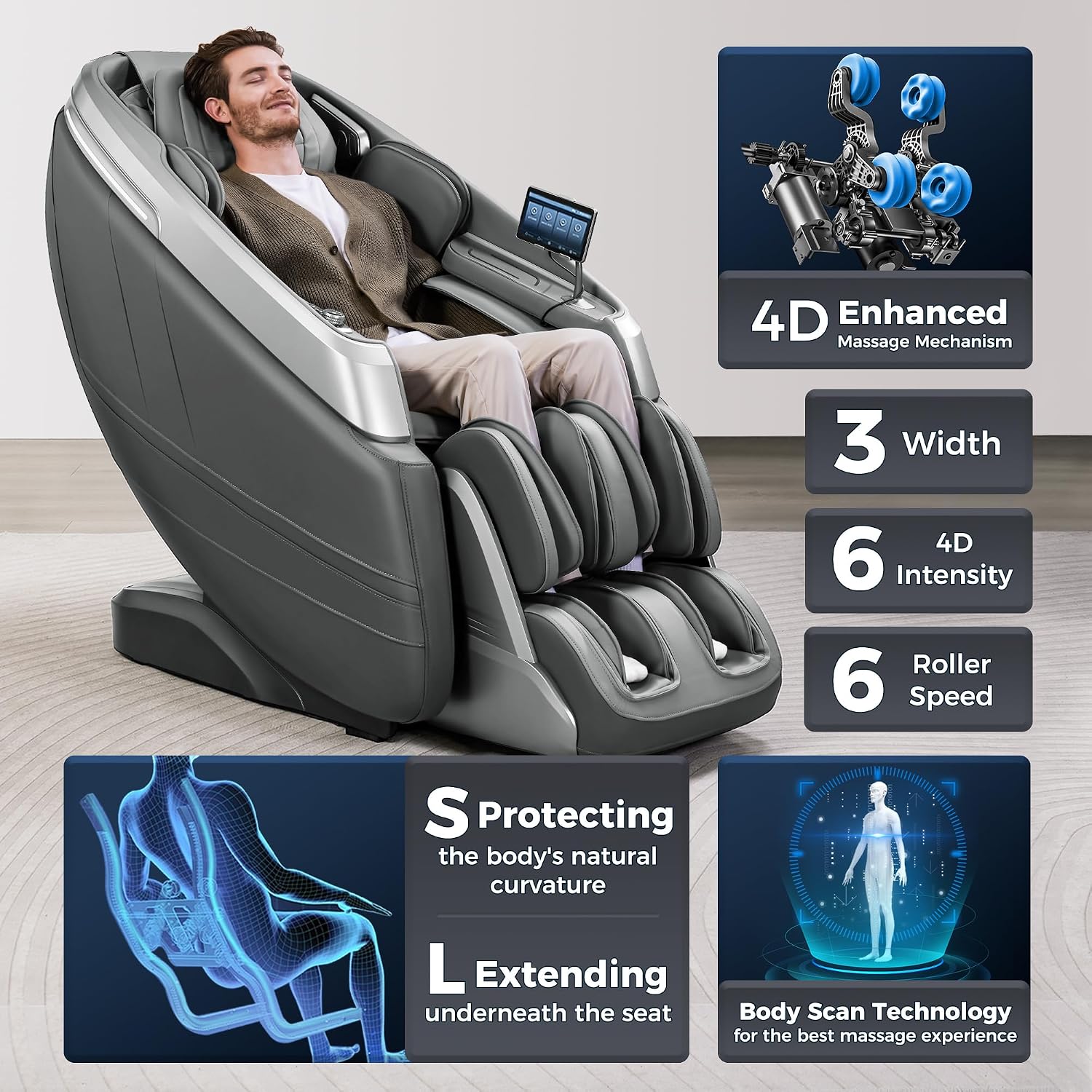

Image: Details on the 4D enhanced massage mechanism, adjustable width, intensity, and roller speed, along with the S+L track system and body scan technology.

Image: A display of the 24 built-in massage programs available on the chair's interface.

Image: Shows the customized massage programs and various manual massage techniques available.

Image: Illustrates the full body airbag system and deep-penetrating heat therapy areas and intensity levels.

Image: Highlights the features of the specialized footrest, including calf shiatsu rollers, knee kneading, auto/manual leg extension, and 3-stage foot massager.

2.3 Additional Features

The iBooMas P03 Grey massage chair includes several convenient features:

• USB Port: For charging external devices.
• Wireless Charging: Convenient wireless charging pad for compatible cell phones.
• High Quality HiFi Bluetooth: Connect your device to enjoy audio through the chair's integrated speakers.
• Ambient Breathing Light: Integrated lighting for enhanced relaxation.
• Negative Ion Technology: Contributes to a refreshing environment.

Image: Displays various additional features including easy app control, touch screen navigation, shortcut control with USB port, intelligent voice control, HD Bluetooth speaker, wireless charging, ambient light, and negative ion technology.

3. Maintenance

3.1 Cleaning and Care

To maintain the longevity and appearance of your iBooMas massage chair, follow these care instructions:

• Product Care Instructions: Dry Clean only. Do not use liquid cleaners or abrasive materials.
• General Cleaning: Wipe down the exterior surfaces with a soft, dry cloth regularly to remove dust. For stubborn spots, consult a professional cleaning service specializing in upholstery.
• Storage: When not in use for extended periods, cover the chair with the provided massage chair cover to protect it from dust and spills.

4. Troubleshooting

This section provides general guidance for common issues. For more complex problems, please contact customer support.

4.1 Common Issues and Solutions

• Chair Not Powering On: Ensure the power cord is securely plugged into both the chair and a working electrical outlet. Check if the power switch is in the 'On' position.
• Massage Not Starting: Verify that a massage program has been selected via the touch screen, app, or voice control. Ensure no safety features (e.g., child lock) are activated.
• Unusual Noises: Minor operational sounds are normal. If loud or persistent unusual noises occur, discontinue use and contact customer support.
• Remote/App Not Responding: Ensure the app is updated and the chair's Bluetooth is enabled. For the touch screen, ensure it is clean and free from obstructions.

5. Specifications

6. Warranty and Support

For detailed warranty information and customer support, please refer to the documentation included with your purchase or visit the official iBooMas website. You may also find assistance through the customer support link provided by the retailer.
