1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Fruyyzl 4-Step RV Stairs with 2 Handrails. Please read this manual thoroughly before installation and use to ensure safe and proper functionality. Keep this manual for future reference.
2. Safety Information
Observe the following safety precautions to prevent injury or damage to the product:
- Maximum Load Capacity: Do not exceed the maximum load capacity of 660 lbs (299 kg). Overloading can cause structural failure and injury.
- Stable Placement: Always ensure the stairs are placed on a firm, level surface before use. Uneven surfaces can lead to instability and falls.
- Handrail Use: Utilize the handrails for added stability and support when ascending or descending the stairs.
- Regular Inspection: Periodically inspect all components, including bolts, nuts, and the frame, for signs of wear, damage, or loosening. Tighten fasteners as needed.
- Anti-Slip Surface: The steps are designed with an anti-slip surface. However, exercise caution in wet or icy conditions. Consider adding additional anti-slip tape if frequently used in such environments.
- Children and Pets: Supervise children and pets around the stairs to prevent accidents.
3. Package Contents
Verify that all components are present before beginning assembly:
- 4-Step Stair Frame
- 2 Handrails
- Assembly Hardware (bolts, nuts, washers)
- Assembly Tools (wrenches)
- Instruction Manual
4. Assembly and Setup
Assembly is required. Follow these steps carefully. It is recommended to view the assembly video for visual guidance.
4.1 Assembly Steps
- Unpack all components and verify against the package contents list.
- Assemble the main stair frame components using the provided bolts, nuts, and washers. Ensure all connections are secure but do not fully tighten until the frame is aligned.
- Attach the handrails to the designated mounting holes on either side of the stair frame. The design allows for handrails on both sides for enhanced safety.
- Once all components are loosely assembled, place the stairs on a level surface and ensure proper alignment. Then, fully tighten all bolts and nuts using the provided wrenches.
- Confirm the stairs are stable and all connections are secure before initial use.
4.2 Visual Assembly Guide

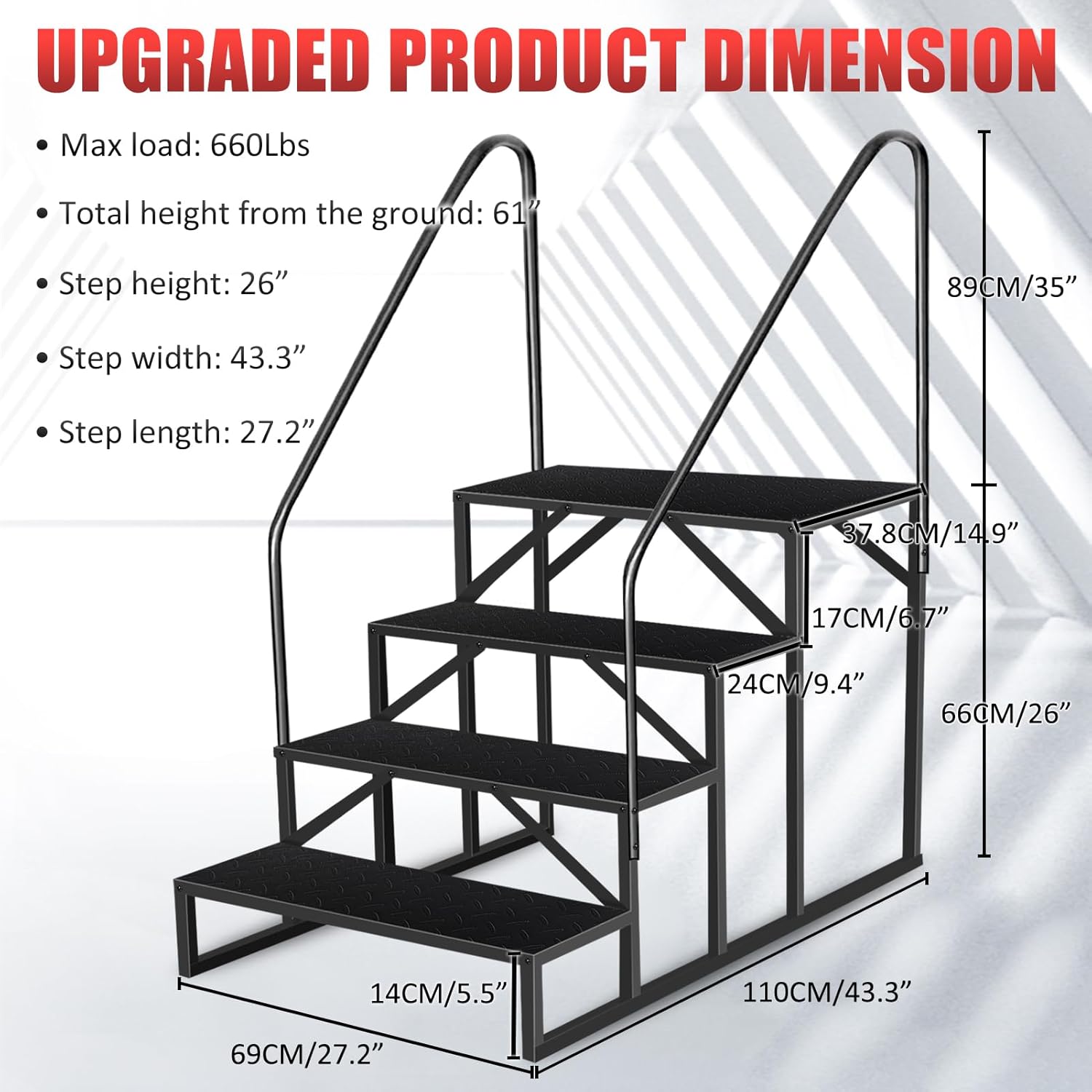

Figure 1: Product Dimensions and Structure. This diagram illustrates the overall dimensions and structural components of the 4-step RV stairs.
Figure 2: Handrail Installation Options. The stairs are designed with mounting holes to allow for single or dual handrail installation based on user preference.

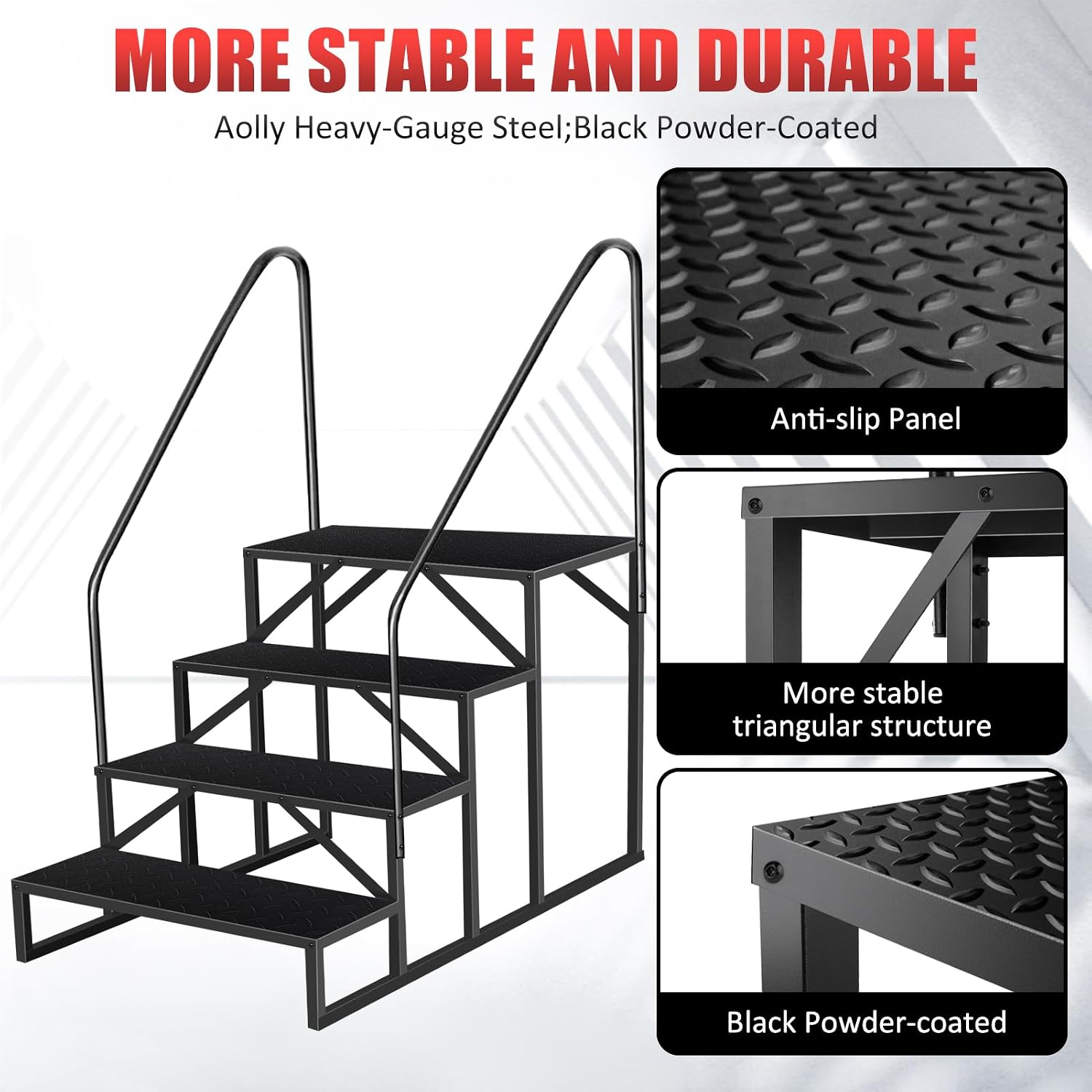

Figure 3: Stable and Durable Construction. Details on the anti-slip panel, reinforced triangular structure, and protective powder-coated finish.
4.3 Assembly Video
Video 1: Product Assembly Guide. This video provides a visual walkthrough of the assembly process for the Fruyyzl RV Stairs. (Duration: 1:42)
5. Operation
The Fruyyzl 4-Step RV Stairs are designed for safe and convenient access to RVs, campers, mobile homes, porches, spas, and other elevated platforms. Always ensure the stairs are stable and securely positioned before stepping on them.
5.1 Intended Use
- Provides stable access to RVs and travel trailers.
- Can be used as outdoor steps for porches or spas.
- Suitable for various indoor and outdoor applications requiring elevated access.
5.2 Placement Considerations
Figure 4: RV Application. The stairs provide stable entry and exit for recreational vehicles.
Figure 5: Water Access Application. The stairs can be used for access to docks, pools, or spas.
Ensure the base of the stairs is fully supported and stable. If using near water, be aware of potential slipperiness and ensure the stairs are properly secured to prevent movement.
6. Maintenance
Proper maintenance will extend the lifespan of your RV stairs.
- Cleaning: The black polished surface is easy to clean. Use a damp cloth and mild detergent to wipe down the steps and frame. Avoid abrasive cleaners that could damage the finish.
- Rust Prevention: While the stairs feature a powder-coated finish, prolonged exposure to harsh weather or saltwater can lead to rust, especially on fasteners. Regularly inspect for rust and apply rust-preventative coatings or replace corroded hardware as needed.
- Fastener Check: Periodically check all bolts and nuts for tightness. Vibrations during transport or regular use can cause fasteners to loosen.
- Storage: If not in continuous use, store the stairs in a dry, protected area to minimize exposure to elements.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Stairs feel unstable or wobbly. | Loose fasteners; uneven ground. | Tighten all assembly bolts. Ensure stairs are on a firm, level surface. |
| Rust appearing on components. | Exposure to moisture/elements; low-grade fasteners. | Clean affected areas and apply rust-inhibiting paint. Consider replacing standard fasteners with stainless steel hardware for improved corrosion resistance. |
| Difficulty installing handrails. | Misalignment; incorrect orientation. | Refer to the assembly instructions and video to ensure correct orientation and alignment of handrail mounting points. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Fruyyzl |
| Model | 4 Step RV Stairs |
| Material | Alloy Steel |
| Color | Black |
| Number of Steps | 4 |
| Product Dimensions (W x H) | 27.2"W x 61"H (Overall) |
| Step Height | 26" (from ground to top step) |
| Load Capacity | 660 lbs (299 kg) |
| Item Weight | 72.8 lbs (33 kg) |
| Special Features | Anti-Slip Pedals, Dual Handrails, Heavy Duty Construction |
9. Warranty Information
For specific warranty details regarding your Fruyyzl 4-Step RV Stairs, please refer to the product packaging or contact Fruyyzl customer support directly. Keep your purchase receipt as proof of purchase for any warranty claims.
10. Customer Support
If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact Fruyyzl customer support through the retailer where the product was purchased or visit the official Fruyyzl website for contact information.
