Kitstorack Expandable Pull-Out Cabinet Organizer User Manual

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Kitstorack Expandable Pull-Out Cabinet Organizer. Designed for kitchen base cabinets, pantries, and other storage areas, this heavy-duty slide-out drawer offers an efficient solution for organizing pots, pans, small appliances, and various household items. Its expandable design and full-extension rails ensure easy access and maximized storage space.

Safety Information

• Always measure your cabinet dimensions carefully before installation to ensure proper fit and function.
• Do not overload the organizer. The maximum weight recommendation is 45 pounds (20.4 kg).
• Ensure the adhesive nano film or screws are securely fastened to prevent accidental detachment.
• Keep small parts away from children during assembly.

Parts List

Please ensure all components are present before beginning installation:

• Expandable Pull-Out Drawer Unit (1)
• Full Extension 3-Rail System (Pre-attached)
• Adhesive Nano Film (Pre-applied on rails)
• Riser Pads (for framed cabinets)
• Mounting Screws (Optional, for additional security)
• Instruction Manual (This document)

Setup and Installation

1. Measure Your Cabinet

Before installation, accurately measure the internal dimensions of your cabinet. Consider any obstructions such as hinges or plumbing. The organizer is expandable from 12 to 20 inches in width and has a depth of 17 inches when closed, extending to 29 inches when fully open. The height is 2.8 inches.

Figure 1: Cabinet Measurement Guide. Ensure your cabinet meets the minimum requirements for width and depth, accounting for any internal obstructions.

2. Prepare for Installation

Clean the cabinet floor thoroughly to ensure the adhesive nano film adheres properly. For framed cabinets with an edge height up to 0.8 inches, use the included riser pads to ensure a level installation.

Figure 2: Riser Pad Application. Riser pads are used to accommodate framed cabinets, ensuring the pull-out mechanism operates smoothly over the cabinet lip.

3. Install the Organizer (Adhesive Method)

The Kitstorack organizer features a drill-free installation using strong adhesive nano film. Follow these steps:

1. Remove the clear protective strip from the back of the pull-out drawer's rails.
2. Carefully position the mobile drawer into the cabinet, ensuring it is centered and aligned.
3. Press down firmly on the drawer to secure the adhesive nano film to the cabinet floor. Apply pressure for a few seconds to ensure a strong bond.

Figure 3: Quick 3-Step Adhesive Installation. This method allows for installation without drilling.

4. Optional Screw Installation

For enhanced stability or if preferred, screws are included for a more permanent installation. Align the rails with the desired position and secure them to the cabinet floor using the provided screws.

Installation Video Guide

Operating Instructions

1. Adjusting Width

The organizer's width can be adjusted from 12 to 20 inches to fit various cabinet sizes. Simply slide the two sections of the organizer to achieve the desired width before securing it in place (if using screws) or pressing down the adhesive.

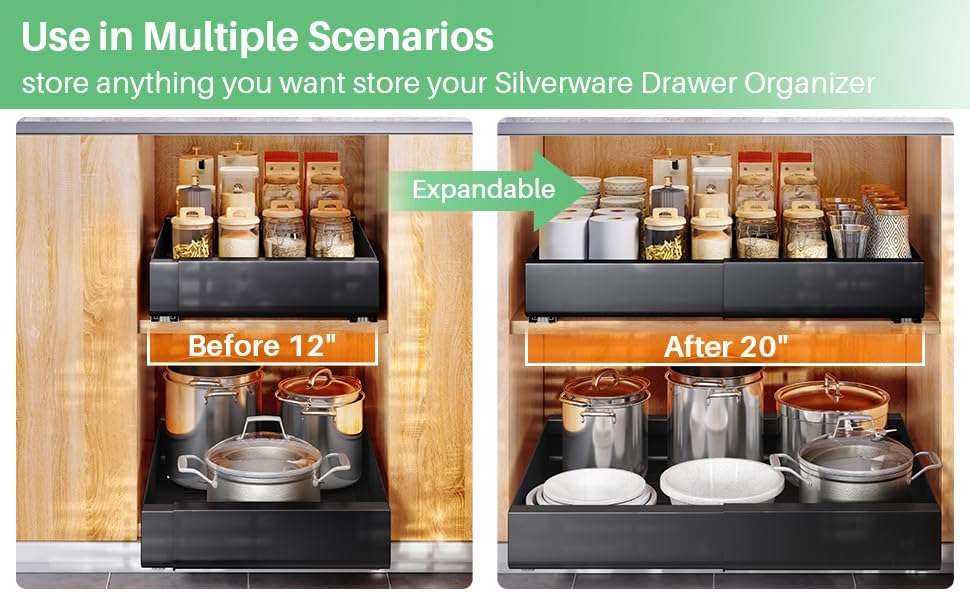

Figure 4: Expandable Design. The organizer's width can be customized to fit your cabinet.

2. Utilizing Full Extension Rails

The upgraded full extension 3-rail system allows the drawer to slide out completely, providing effortless access to items stored at the back of your cabinet. Gently pull the drawer forward until it reaches its full extension. Push it back in to close.

Figure 5: Full Extension for Easy Access. The 3-rail system ensures smooth and complete drawer extension.

3. Heavy-Duty Capacity

Constructed from heavy-duty carbon steel, this organizer is designed to accommodate a significant amount of weight, such as pots, pans, and other kitchen essentials, up to 45 pounds. The robust design ensures stability even when fully loaded.

Figure 6: Strong Load Capacity. The heavy-duty construction supports substantial weight.

4. Versatile Usage

The Kitstorack Pull-Out Cabinet Organizer is suitable for various applications beyond kitchen cabinets, including pantries, bathrooms, and under-sink areas, helping to keep diverse items organized and easily accessible.

Figure 7: Multiple Usage Scenarios. Organize items in various rooms with ease.

Maintenance

Cleaning Instructions

To clean your Kitstorack Pull-Out Cabinet Organizer, simply wipe it down with a damp cloth and mild detergent. The rust-resistant carbon steel construction ensures durability and easy cleaning. Avoid abrasive cleaners that may damage the finish.

Figure 8: Quick and Easy Cleaning. The drawer can be easily detached for thorough cleaning.

Troubleshooting

Specifications

• Specific Uses: Cabinet Organizer
• Material: Carbon Steel
• Special Features: Expandable, Full Extension Rails, Reliable Grip-Wider, Thickened Nano Films, Strong Weight Capacity, Thickened Carbon Steel
• Color: Black
• Brand: Kitstorack
• Finish Type: Iron
• Mounting Type: Insert Mount (Adhesive or Screws)
• Product Dimensions: 17"D x 12"-20"W x 2.8"H (Expandable Width)
• Item Weight: 3.02 Kilograms (approx. 6.66 lbs)
• Number of Compartments: 1
• Maximum Weight Recommendation: 45 Pounds (20.4 kg)

Warranty and Support

For any questions, concerns, or support regarding your Kitstorack Pull-Out Cabinet Organizer, please refer to the product packaging for specific warranty details or contact Kitstorack customer service. You can also visit the official Kitstorack store on Amazon for more information and product offerings: Kitstorack Store.
