FOLIAGE Fuel Tank for 1968-1969 Nova/Chevy II (GM46A)

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your FOLIAGE GM46A OE style steel fuel tank. This fuel tank is specifically designed as a direct fit replacement for 1968 and 1969 Chevrolet Nova and Chevy II models. It is constructed from durable steel to ensure long-lasting performance and an authentic appearance.

Please read this manual thoroughly before beginning any installation or maintenance procedures. Retain this manual for future reference.

2. Safety Precautions

WARNING: Working with fuel systems can be hazardous. Improper installation or handling of fuel can lead to fire, explosion, serious injury, or death. Always prioritize safety.

• Professional Installation Recommended: Due to the complexity and safety risks involved, installation by a qualified automotive technician is strongly recommended.
• Fire Hazard: Fuel is highly flammable. Ensure no open flames, sparks, or ignition sources are present in the work area. Disconnect the vehicle's battery before starting work.
• Ventilation: Work in a well-ventilated area to avoid inhaling fuel vapors.
• Personal Protective Equipment (PPE): Wear appropriate safety glasses, gloves, and other protective gear.
• Fuel Drainage: Safely drain and store any remaining fuel from the old tank in an approved container before removal.
• Environmental Disposal: Dispose of old fuel and fuel system components according to local environmental regulations.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• 1 x FOLIAGE GM46A Steel Fuel Tank

Note: Fuel sending unit, fuel lines, straps, and other installation hardware are typically sold separately and are not included with the fuel tank.

4. Installation Guide

This section provides general guidelines. Always refer to your vehicle's specific service manual for detailed instructions and torque specifications.

4.1 Pre-Installation Checks

• Inspect the new fuel tank for any shipping damage, dents, or imperfections.
• Ensure the tank's dimensions and features match your vehicle's requirements. Compare with the old tank if available.
• Gather all necessary tools, new fuel lines, fuel sending unit, fuel pump (if applicable), tank straps, and gaskets.

4.2 Removal of Old Fuel Tank (General Steps)

1. Park the vehicle on a level surface and engage the parking brake.
2. Disconnect the negative terminal of the battery.
3. Safely relieve fuel system pressure.
4. Drain all fuel from the old tank into an approved container.
5. Disconnect all fuel lines, electrical connections (for sending unit/fuel pump), and vent hoses from the old tank.
6. Support the old tank with a jack or suitable support.
7. Remove the tank straps or mounting bolts.
8. Carefully lower and remove the old fuel tank from the vehicle.

4.3 Installation of New Fuel Tank (General Steps)

1. Install the new fuel sending unit and fuel pump (if applicable) into the new FOLIAGE fuel tank with new gaskets and sealing rings. Ensure a tight, leak-free seal.
2. Carefully lift the new fuel tank into position, ensuring all lines and connections can be routed correctly.
3. Secure the tank with new or inspected tank straps/mounting bolts. Tighten to vehicle manufacturer's specifications.
4. Reconnect all fuel lines, electrical connections, and vent hoses. Ensure all connections are secure and free of leaks.
5. Reconnect the negative battery terminal.
6. Add a small amount of fuel to the tank and check for any leaks before fully filling.
7. Start the vehicle and check for proper fuel system operation and any leaks.

Figure 1: Angled view of the FOLIAGE GM46A fuel tank, highlighting the filler neck connection point.

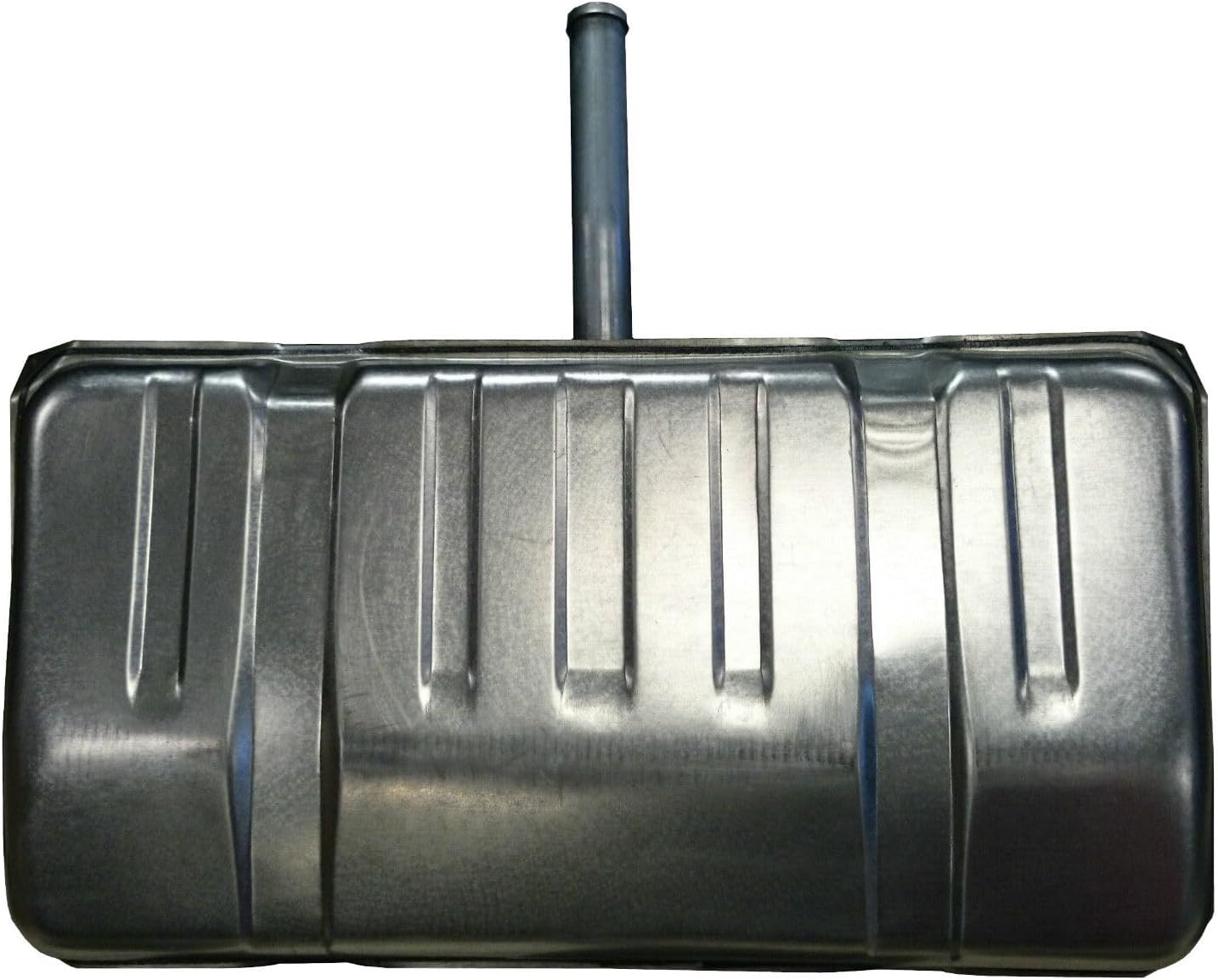

Figure 2: Top-down view of the FOLIAGE GM46A fuel tank, illustrating its OE style design.

Figure 3: Bottom view of the FOLIAGE GM46A fuel tank, indicating the location for the fuel sending unit.

5. Operation

Once properly installed, the FOLIAGE GM46A fuel tank functions as the primary reservoir for your vehicle's gasoline. Ensure that only the appropriate fuel type (gasoline) is used, as specified by your vehicle manufacturer. Regular filling and monitoring of fuel levels are part of standard vehicle operation.

6. Maintenance

The FOLIAGE GM46A fuel tank is designed for durability and minimal maintenance. However, periodic inspection is recommended to ensure continued safe operation.

• Visual Inspection: Periodically inspect the exterior of the fuel tank for signs of corrosion, dents, or physical damage.
• Leak Detection: Check all fuel lines, connections, and the fuel sending unit seal for any signs of fuel leaks. Address any leaks immediately.
• Strap/Mounting Check: Ensure that the tank straps or mounting bolts remain secure and free from corrosion.
• Cleaning: Keep the exterior of the tank clean from dirt and debris, especially around connections and seals.

7. Troubleshooting

If you encounter issues after installation, consider the following common troubleshooting steps:

• Fuel Leaks: Re-check all fuel line connections, hose clamps, and the fuel sending unit gasket. Ensure all components are properly tightened and sealed. If a leak persists from the tank body, the tank may be defective and require replacement.
• Improper Fit: If the tank does not fit correctly, double-check the vehicle's year, make, and model compatibility. Verify that all mounting points align with the vehicle's chassis. Refer to the product dimensions and images provided to confirm the correct part.
• Fuel Gauge Malfunction: This is typically related to the fuel sending unit, its wiring, or the gauge itself, not the tank. Ensure the sending unit is correctly installed and wired.

For persistent issues, consult a qualified automotive technician.

8. Specifications

9. Warranty and Support

FOLIAGE products are manufactured to high-quality standards. For specific warranty details regarding your GM46A fuel tank, please refer to the warranty information provided at the time of purchase or contact FOLIAGE customer support directly.

For technical assistance or inquiries, please contact FOLIAGE customer service through their official channels. When contacting support, please have your product model number (GM46A) and purchase information readily available.
