EMMO Vgo E Bike User Manual

1. Introduction

Welcome to the user manual for your new EMMO Vgo E Bike. This electric bicycle is designed for comfortable and efficient commuting, featuring a step-thru frame, a powerful 500W motor, and a long-range 48V lithium battery. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your EMMO Vgo E Bike. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

Figure 1.1: The EMMO Vgo E Bike, showcasing its step-thru frame and overall design.

2. Safety Guidelines

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Perform pre-ride checks before each use.

2.1 General Safety

• Always check tire pressure, brake function, and battery charge before riding.
• Be aware of your surroundings and ride defensively.
• Avoid riding in adverse weather conditions or on slippery surfaces.
• Do not exceed the maximum weight capacity of the bicycle.

2.2 Battery Safety

• Use only the charger provided by EMMO.
• Do not expose the battery to extreme temperatures or direct sunlight.
• Do not puncture, drop, or disassemble the battery pack.
• Charge the battery in a well-ventilated area, away from flammable materials.

2.3 Braking Safety

• The EMMO Vgo E Bike is equipped with hydraulic disc brakes for superior stopping power.
• Apply both front and rear brakes simultaneously for effective and stable stopping.
• Practice braking in a safe, open area to become familiar with their responsiveness.

3. Components Overview

Familiarize yourself with the main components of your EMMO Vgo E Bike:

• Frame: Durable step-thru aluminum frame for easy access.
• Motor: 500W motor providing strong performance.
• Battery: Removable 48V/17.5Ah Lithium-Ion battery for long range.
• Display: Color display with navigation capabilities.
• Brakes: Hydraulic disc brakes for reliable stopping.
• Wheels: Durable 26" Mag Rims.
• Lights: Integrated LED headlight and tail light for enhanced visibility.

Figure 3.1: The durable step-thru aluminum frame, designed for easy access for all riders.

Figure 3.2: The color display with phone-to-display navigation, allowing remote control via a mobile app and seamless trip tracking.

Figure 3.3: The 48V Lithium Battery, featuring SafeSeal Technology, UL Smart Charger compatibility, and a lockable design for security. It includes an LED indicator for battery levels and offers a high capacity of 17.5Ah/840Wh for long range up to 110km.

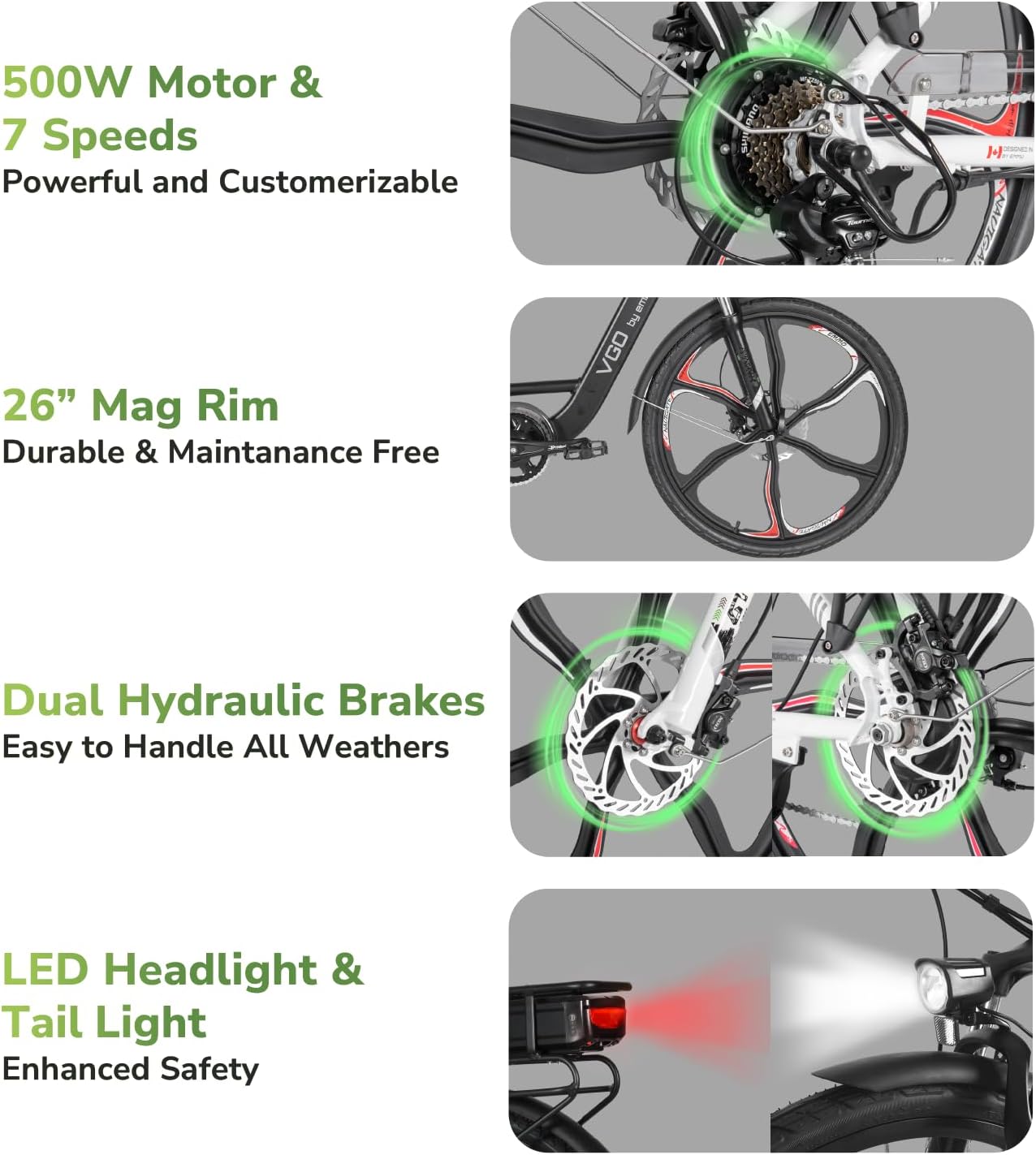

Figure 3.4: Key performance and safety features including the 500W motor with 7 speeds, durable 26" Mag Rims, dual hydraulic brakes for all-weather handling, and integrated LED headlight and tail light for enhanced safety.

4. Setup

Your EMMO Vgo E Bike arrives approximately 90% assembled. Follow these steps to complete the setup and prepare for your first ride.

4.1 Unboxing and Initial Inspection

1. Carefully remove the bicycle from its packaging.
2. Inspect for any visible damage during shipping. Report any damage to the seller immediately.
3. Confirm all included components are present: Ebike x1, battery x1, charger x1, multifunction toolkit x1.

4.2 Handlebar and Seat Adjustment

Adjust the handlebar and seat height to ensure a comfortable and safe riding position. Refer to the geometry diagram for optimal measurements.

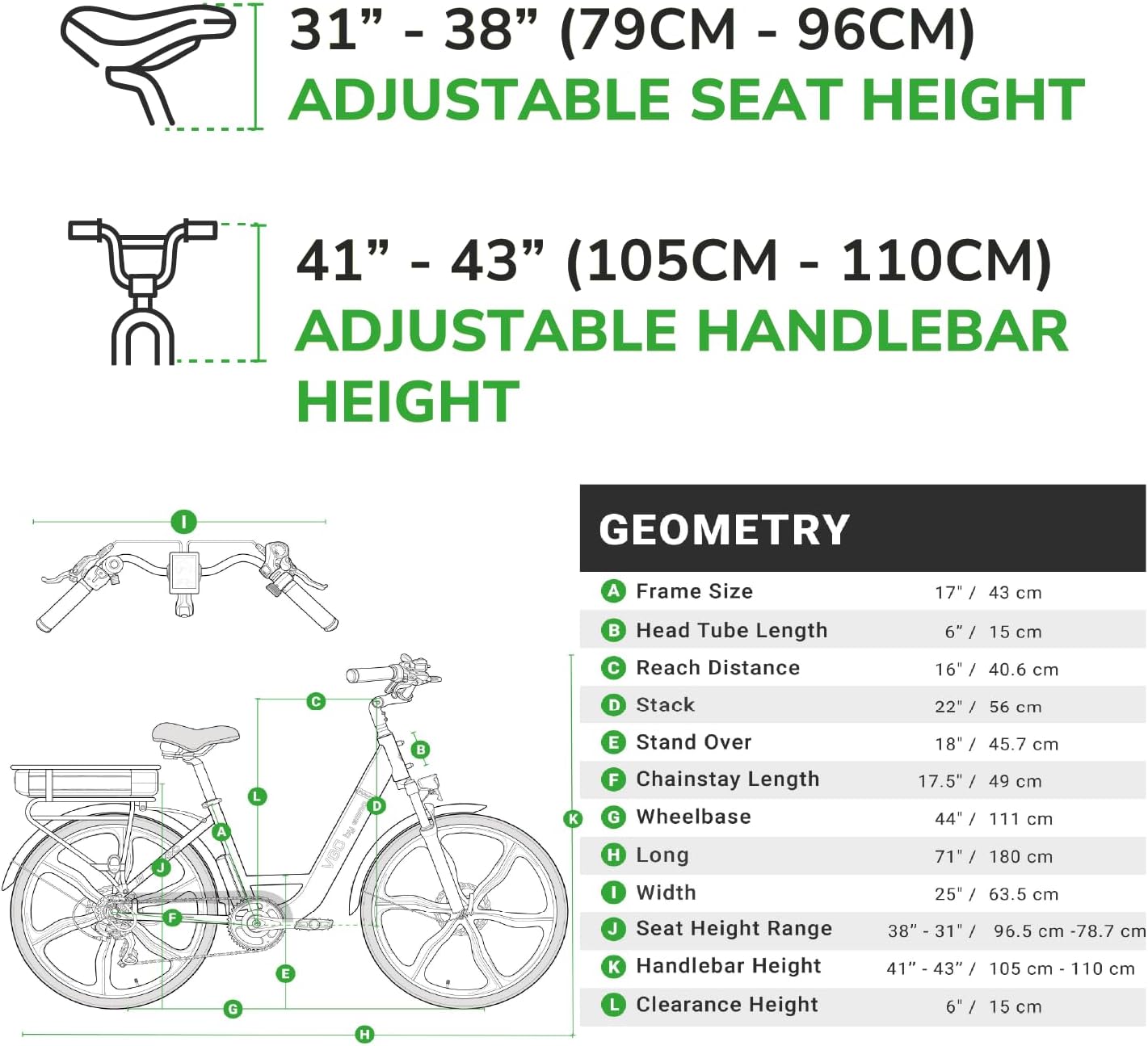

Figure 4.1: Adjustable seat and handlebar heights, along with detailed bicycle geometry for proper fitting.

• Seat Height: Adjust the seat post to allow a slight bend in your knee when the pedal is at its lowest point. The adjustable range is 31" - 38" (79cm - 96cm).
• Handlebar Height: Adjust the handlebar stem for a comfortable reach and upright riding posture. The adjustable range is 41" - 43" (105cm - 110cm).

4.3 Battery Installation

1. Ensure the bike is powered off.
2. Locate the battery compartment, typically on the rear rack.
3. Slide the battery into place until it clicks securely. Use the key to lock the battery if applicable.

4.4 Pre-Ride Checks

Before every ride, perform the following checks:

• Tires: Check tire pressure. Ensure tires are inflated to the recommended PSI (usually found on the tire sidewall).
• Brakes: Test both front and rear brakes to ensure they engage properly and stop the bike effectively.
• Battery: Verify the battery is fully charged and securely installed.
• Lights: Turn on the LED headlight and tail light to confirm they are working.
• Quick Releases: Ensure all quick-release levers (if any) are properly tightened.

5. Operating

Understanding how to operate your EMMO Vgo E Bike will enhance your riding experience.

5.1 Powering On/Off

• To power on the bike, press and hold the power button on the display unit.
• To power off, press and hold the power button again until the display turns off.

5.2 Using the Color Display with Navigation

The color display provides real-time riding data and navigation features.

• The display shows speed, battery level, odometer, trip distance, and pedal assist level.
• Connect your smartphone via the mobile app for remote control and to track/navigate trips seamlessly.
• Note: The display may dim automatically when the headlight/taillights are turned on.

5.3 Pedal Assist Levels and Throttle

• Pedal Assist (PAS): The bike offers multiple pedal assist levels. Use the '+' and '-' buttons on the control panel to increase or decrease the assist level. Higher levels provide more motor assistance.
• Throttle: The throttle provides power on demand without pedaling. Twist the throttle grip to engage the motor. Use the throttle for quick acceleration or when you need a boost.

5.4 Hydraulic Brakes Operation

The hydraulic disc brakes offer precise control and strong stopping power.

• Gently squeeze the brake levers to slow down.
• For emergency stops, apply firm and even pressure to both levers.

5.5 Lights Operation

The integrated LED headlight and tail light enhance your visibility, especially in low-light conditions.

• Locate the light control button on the handlebar or display.
• Press the button to turn the lights on or off.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your EMMO Vgo E Bike.

6.1 Battery Charging and Care

• Charge the battery fully before the first use and after each ride.
• Connect the charger to the battery charging port, then plug into a power outlet. The charger indicator light will show charging status.
• Do not overcharge the battery; disconnect the charger once charging is complete.
• If storing the bike for an extended period, charge the battery to 50-70% and recharge every 2-3 months.

6.2 Tire Pressure

• Check tire pressure weekly. Maintain pressure within the recommended range indicated on the tire sidewall.
• Proper tire pressure improves efficiency, handling, and prevents flats.

6.3 Brake Inspection

• Regularly inspect brake pads for wear. Replace them if they are worn down.
• Check brake fluid levels and ensure there are no leaks in the hydraulic system. If you notice a spongy feel, the system may need bleeding by a professional.

6.4 General Cleaning

• Clean the bike regularly with a damp cloth and mild soap. Avoid high-pressure washing, especially near electrical components.
• Do not submerge any electrical parts in water.

6.5 Chain Lubrication

• Lubricate the chain every few weeks or after riding in wet conditions to prevent rust and ensure smooth operation.

7. Troubleshooting

This section addresses common issues you might encounter with your EMMO Vgo E Bike.

8. Specifications

Detailed technical specifications for the EMMO Vgo E Bike:

9. Warranty and Support

EMMO stands behind the quality of its products. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official EMMO website. Keep your proof of purchase for warranty claims.

9.1 Contact Information

For technical support, parts, or warranty inquiries, please contact EMMO directly:

• Manufacturer: EMMO Inc.
• Address: 1224 Dundas Street E, Unit 6, Mississauga, ON L4Y 2C5, Canada
• Phone: 1-888-510-3666
• Email: info@emmo.ca
