VAYINATO Sobo WP-707C Aquarium Internal Corner Filter Instruction Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your VAYINATO Sobo WP-707C Aquarium Internal Corner Filter. Please read this manual thoroughly before use and retain it for future reference.

The VAYINATO Sobo WP-707C is a fully submersible internal filter designed for both fresh and saltwater aquariums. It features a 12-watt motor with a flow rate of 650 liters per hour, suitable for tanks approximately 2.5 to 3 feet in length. Its primary function is to absorb dirt and clear the water, contributing to a healthy aquatic environment.

Safety Instructions

• Always disconnect the power supply before performing any maintenance, installation, or removal of the filter from the aquarium.
• Ensure the filter is fully submerged in water during operation. Running the filter dry can cause damage to the motor.
• Do not operate the filter if the power cord or plug is damaged. Contact qualified personnel for repair or replacement.
• This appliance is intended for indoor use only and for filtering aquarium water. Do not use it for other purposes.
• Keep out of reach of children.
• Ensure a drip loop is formed with the power cord to prevent water from traveling along the cord and reaching the electrical outlet.

Product Features

• Model: WP-707C
• Power: 12 Watts
• Flow Rate: 650 Liters/Hour
• Tank Size Suitability: Approximately 2.5 to 3 feet
• Operation: Ultra-quiet
• Submersibility: Fully submersible
• Water Type: Suitable for both fresh and salt water aquariums
• Filtration: Integrated filter sponge for dirt absorption and water clarification.

Package Contents

Upon opening the package, verify that all components are present and undamaged:

• VAYINATO Sobo WP-707C Internal Corner Filter unit
• Filter sponge(s) (pre-installed or separate)
• Suction cups for mounting
• Output nozzle/flow director

Image: The VAYINATO Sobo WP-707C internal corner filter, showing its main body and output. This image illustrates the complete filter unit as it appears out of the box.

Setup Instructions

1. Unpack and Inspect: Carefully remove the filter from its packaging. Inspect the unit for any visible damage.
2. Rinse Components: Rinse the filter unit and sponge(s) thoroughly under clean tap water to remove any manufacturing residues. Do not use soap or detergents.
3. Assemble Filter: If the filter sponge is not pre-installed, place it inside the filter housing. Ensure it fits snugly.
4. Attach Suction Cups: Secure the suction cups to the designated points on the back or side of the filter unit.
5. Position in Aquarium: Place the filter in a corner of your aquarium, ensuring it is fully submerged. Press the suction cups firmly against the aquarium glass to secure the filter in place. The water outlet should be positioned slightly below or at the water surface to create gentle surface agitation.
6. Connect Power: Once the filter is securely positioned and fully submerged, plug the power cord into a suitable electrical outlet. Ensure a drip loop is created with the power cord.

Image: The VAYINATO Sobo WP-707C filter installed in an aquarium, demonstrating proper placement and submersion. The filter is positioned in a corner, secured by suction cups.

Operating Instructions

Once plugged in, the filter will immediately begin operating. The motor will draw water through the filter sponge, where mechanical filtration occurs, removing particulate matter and debris. The filtered water is then expelled back into the aquarium through the output nozzle.

• Continuous Operation: For optimal water quality, the filter should operate continuously.
• Flow Direction: The output nozzle can typically be adjusted to direct the water flow, helping to circulate water throughout the tank.
• Quiet Operation: This filter is designed for ultra-quiet operation. Any unusual noise may indicate a need for maintenance or troubleshooting.

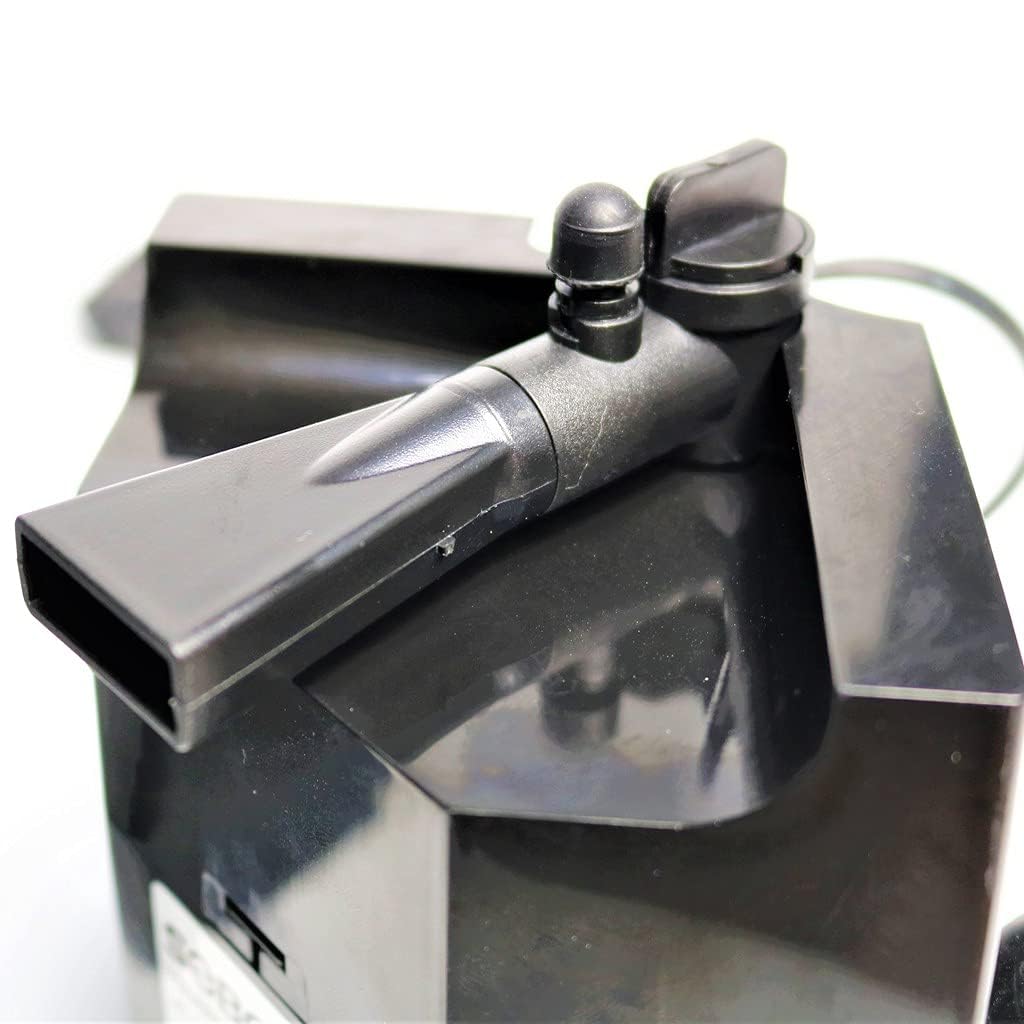

Image: A close-up view of the filter's adjustable output nozzle, which allows for directing water flow within the aquarium.

Maintenance

Regular maintenance is crucial for the longevity and efficiency of your filter and the health of your aquarium inhabitants.

1. Disconnect Power: Always unplug the filter from the power outlet before performing any maintenance.
2. Remove Filter: Carefully remove the filter unit from the aquarium.
3. Clean Filter Sponge: Disassemble the filter housing and remove the filter sponge. Rinse the sponge thoroughly in old aquarium water (from a water change) or dechlorinated tap water. Avoid using harsh chemicals or detergents, as these can harm beneficial bacteria and fish. Replace the sponge if it is heavily degraded or cannot be cleaned effectively.
4. Clean Impeller: Periodically, remove the impeller cover and the impeller itself. Clean the impeller and its housing with a small brush to remove any accumulated debris or algae. This helps maintain quiet operation and optimal flow.
5. Reassemble and Reinstall: Reassemble the filter components, ensuring all parts are securely in place. Reinstall the filter in the aquarium and plug it back in.

Frequency: Clean the filter sponge every 1-2 weeks, or more frequently if water flow decreases noticeably or the aquarium water appears cloudy. Clean the impeller every 1-2 months.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support regarding your VAYINATO Sobo WP-707C filter, please refer to the product packaging or contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Petzlifeworld
