Dorman 598-720: Fuse Box Assembly User Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Dorman 598-720 Fuse Box Assembly. This product is designed as a direct replacement component for specific vehicles, ensuring reliable electrical system functionality. Please read this manual thoroughly before proceeding with installation or any related procedures.

Safety Information

Always prioritize safety when working with automotive electrical systems. Failure to follow these guidelines may result in personal injury or damage to the vehicle.

• Disconnect the vehicle's battery before beginning any work on the electrical system to prevent accidental short circuits or electrical shock.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is turned off and the ignition key is removed.
• Consult a professional automotive technician if you are unsure about any part of the installation process.
• Verify the correct fuse ratings and types before installation. Using incorrect fuses can lead to electrical system damage or fire.

What's in the Box

The Dorman 598-720 Fuse Box Assembly package includes:

• Dorman 598-720: Fuse Box Assembly (1 unit)

No additional components or tools are included unless specified by the vehicle's service manual.

Product Overview

The Dorman 598-720 Fuse Box Assembly is a direct replacement part designed to restore proper electrical function in compatible vehicles. It houses various fuses and relays that protect and control different electrical circuits.

Figure 1: Top View of Fuse Box Assembly. This image displays the top surface of the Dorman 598-720 Fuse Box Assembly, clearly showing the designated slots for fuses and relays. Labels such as "FUSE 101", "RELAY 301", and "SEE OWNER'S MANUAL" are visible, indicating the layout and the need to consult the vehicle's specific owner's manual for detailed fuse assignments.

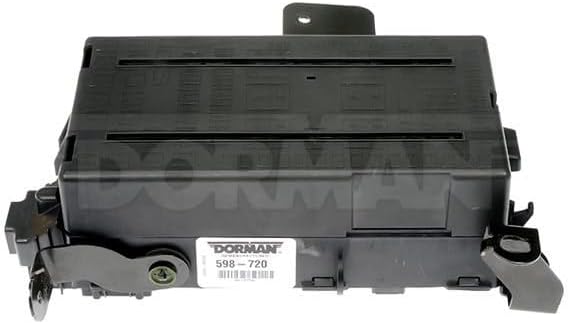

Figure 2: Front View with Dorman Label. This image shows the front side of the Dorman 598-720 Fuse Box Assembly, featuring the Dorman brand label and model number "598-720". This view highlights the robust casing and the identification markings of the unit.

Setup and Installation

Installation of the Dorman 598-720 Fuse Box Assembly should be performed by a qualified technician or an individual with experience in automotive electrical systems. Refer to your vehicle's specific service manual for detailed instructions and torque specifications.

1. Preparation: Ensure the vehicle's battery is disconnected. Locate the existing fuse box assembly in your vehicle.
2. Removal of Old Unit: Carefully disconnect all electrical connectors and mounting hardware from the old fuse box. Note the position and orientation of all connections.
3. Inspection: Inspect the vehicle's wiring harness and connectors for any signs of damage, corrosion, or wear. Repair as necessary before installing the new unit.
4. Installation of New Unit: Position the Dorman 598-720 Fuse Box Assembly in the vehicle. Secure it using the appropriate mounting hardware.
5. Connecting Electricals: Reconnect all electrical connectors to the new fuse box. Ensure each connector is fully seated and locked into place. Refer to Figure 3 for a view of the connector ports.
6. Fuse and Relay Transfer: If the new fuse box does not come pre-populated, transfer the fuses and relays from the old unit to the new one, ensuring they are placed in the correct corresponding slots as per your vehicle's owner's manual or service manual.
7. Final Steps: Reconnect the vehicle's battery. Test all electrical systems to ensure proper functionality.

Figure 3: Bottom View with Connector Ports. This image displays the underside of the Dorman 598-720 Fuse Box Assembly, revealing the array of electrical connector ports. These ports are crucial for integrating the fuse box into the vehicle's wiring harness, allowing for the connection of various circuits.

Operating Principles

The Dorman 598-720 Fuse Box Assembly functions as the central distribution point for electrical power to various components and systems within the vehicle. It houses fuses, which are safety devices designed to protect electrical circuits from overcurrent conditions, and relays, which are electrical switches that control higher current circuits using a lower current signal.

When an electrical fault or overload occurs, the fuse corresponding to that circuit will blow, breaking the circuit and preventing damage to the wiring or components. Relays enable components like headlights, fuel pumps, or cooling fans to be powered efficiently without requiring heavy-duty switches in the cabin.

For specific fuse and relay assignments and their corresponding protected circuits, always refer to your vehicle's owner's manual or service manual. The fuse box itself often has general labels, but the exact function of each fuse/relay is vehicle-dependent.

Maintenance

The Dorman 598-720 Fuse Box Assembly is designed for long-term reliability and typically requires minimal maintenance. However, periodic checks can help ensure optimal performance:

• Visual Inspection: Periodically inspect the fuse box for any signs of corrosion, moisture, or physical damage. Ensure all fuses and relays are properly seated.
• Cleaning: If necessary, gently clean the exterior of the fuse box with a dry, soft cloth. Avoid using liquid cleaners directly on the electrical components.
• Fuse Replacement: If a fuse blows, replace it only with a fuse of the exact same amperage rating and type as specified by the vehicle manufacturer. Never use a fuse with a higher rating, as this can lead to severe electrical damage or fire.

Troubleshooting

If you experience electrical issues after installing the fuse box, consider the following troubleshooting steps:

• No Power to a Component:
  • Check the corresponding fuse in the fuse box. A blown fuse will have a broken filament. Replace if necessary.
  • Verify that the fuse is correctly seated in its slot.
  • Check the associated relay. You can often swap it with a known good relay of the same type from a non-critical circuit to test.
• Intermittent Electrical Issues:
  • Inspect all electrical connectors to the fuse box for secure connections and signs of corrosion.
  • Ensure the fuse box itself is securely mounted and not vibrating loose.
• Repeated Blown Fuses:
  • A fuse that repeatedly blows indicates an underlying electrical problem, such as a short circuit or an overloaded circuit. Do not continue to replace fuses without diagnosing the root cause, as this can lead to serious damage.
  • Consult a professional automotive technician for diagnosis and repair.

For complex electrical issues, it is always recommended to seek assistance from a certified automotive repair professional.

Specifications

Warranty and Support

Dorman products are manufactured to high-quality standards and are backed by Dorman's commitment to customer satisfaction. For specific warranty information, claims, or technical support, please refer to the official Dorman website or contact Dorman customer service directly.

Dorman Official Website: www.dormanproducts.com

When contacting support, please have your product model number (598-720) and purchase information ready.
