Mayer 40L Digital Oven with Air Fryer Function MMAO40D User Manual

1. Introduction

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Mayer 40L Digital Oven with Air Fryer Function, model MMAO40D. Please read this manual thoroughly before using the appliance and retain it for future reference.

The Mayer MMAO40D is a versatile counter-top appliance designed for various cooking methods, including convection baking and air frying. It features a 40-liter capacity, digital controls, and multiple preset functions to simplify your cooking experience.

2. Important Safety Instructions

WARNING: To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions.

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or any other flammable materials.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

3. Product Overview and Accessories

Familiarize yourself with the components of your Mayer Digital Oven with Air Fryer Function.

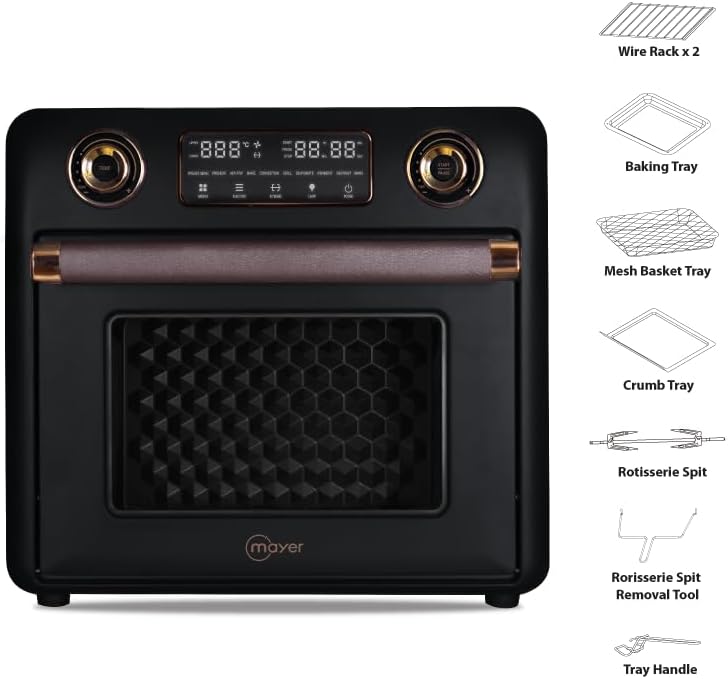

Figure 3.1: Front view of the Mayer 40L Digital Oven with Air Fryer Function, showing the main unit and its included accessories laid out beside it. Accessories include two wire racks, a baking tray, a mesh basket tray, a crumb tray, a rotisserie spit, a rotisserie spit removal tool, and a tray handle.

Package Contents:

• Mayer 40L Digital Oven with Air Fryer Function (MMAO40D)
• Mesh basket tray
• 2x Wire racks
• Rotisserie spit
• Crumb tray
• Tray handle
• Rotisserie spit removal tool

Key Components:

• Digital Control Panel: Features an LED screen display for settings and status.
• Double Glass Door: Provides strong heat retention and allows for viewing food during cooking.
• Enamel Cavity Wall: Designed for easy cleaning.
• Oven Lamp: Illuminates the interior for better visibility.
• Heating Elements: Powerful stainless steel heating elements, including 2-piece top and bottom elements for convection oven functions and a spiral coil heating element for air frying.

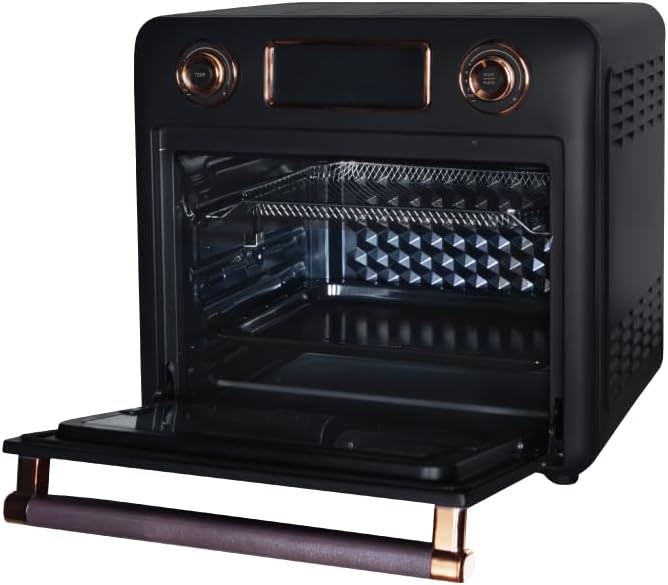

Figure 3.2: Interior view of the Mayer 40L Digital Oven with Air Fryer Function, showing the open door, the enamel cavity, and the various rack positions for the wire racks and mesh basket tray.

4. Setup and First Use

Unpacking:

1. Carefully remove the oven and all accessories from the packaging.
2. Remove any packing materials, stickers, or protective films from the appliance.
3. Inspect the oven for any damage. Do not use if damaged.

Placement:

• Place the oven on a stable, heat-resistant, and level surface.
• Ensure there is adequate clearance (at least 10-15 cm) on all sides and above the oven for proper ventilation. Do not place it against a wall or under cabinets.
• Keep the oven away from flammable materials, heat sources, and water.

Before First Use:

1. Wash all accessories (wire racks, mesh basket tray, rotisserie spit, crumb tray, tray handle) in warm, soapy water. Rinse thoroughly and dry completely.
2. Wipe the interior and exterior of the oven with a damp cloth. Dry thoroughly.
3. Plug the oven into a grounded electrical outlet.
4. To eliminate any manufacturing odors, operate the oven empty for approximately 15 minutes at 230°C on the "Bake" function. A slight odor or smoke may be present; this is normal and will dissipate. Ensure the area is well-ventilated.
5. Allow the oven to cool completely before its first cooking use.

5. Operating Instructions

The Mayer MMAO40D features a digital control panel for easy operation.

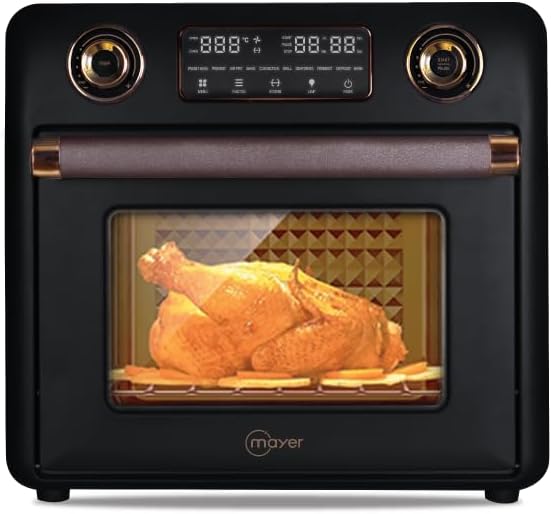

Figure 5.1: Front view of the Mayer 40L Digital Oven, highlighting the digital display and control knobs on the top panel. The display shows temperature and time settings.

Control Panel Overview:

• LED Screen Display: Shows current temperature, time, and selected function.
• Control Knobs: Used to adjust temperature, time, and select functions/menus.
• Function/Menu Buttons: Dedicated buttons for selecting preset functions and menus.

Basic Operation:

1. Power On: Plug the oven into a suitable power outlet. The display will illuminate.
2. Select Function: Use the function/menu buttons or control knobs to select your desired cooking mode (e.g., Bake, Air Fry, Toast, Roast). The oven offers 9 preset functions.
3. Adjust Temperature: The temperature can be set between 60°C and 230°C. Use the temperature control knob to adjust.
4. Set Timer: The timer can be set for up to 120 minutes. Use the timer control knob to adjust.
5. Start Cooking: Press the Start/Stop button to begin the cooking process.
6. Monitor Cooking: The oven lamp provides visibility, and the double glass door helps retain heat while allowing you to monitor food.
7. End Cooking: The oven will automatically shut off when the timer expires. You can also press the Start/Stop button to manually stop cooking.

Preset Functions and Menus:

The oven comes with 9 preset functions and 18 preset menus for common dishes. Refer to the quick start guide or a dedicated section in the full manual (if provided separately) for a detailed list and recommended settings for each preset.

Using Accessories:

• Wire Racks: Use for baking, toasting, or roasting items that require air circulation from below.
• Mesh Basket Tray: Ideal for air frying foods like fries, chicken wings, or vegetables, allowing hot air to circulate around all sides for crisp results.
• Crumb Tray: Always place this at the bottom of the oven to catch crumbs and drips, making cleaning easier. Ensure it is properly seated.
• Rotisserie Spit: Use for roasting whole chickens or other large cuts of meat. Insert the spit through the center of the food, secure with forks, and place into the rotisserie slots inside the oven. Use the rotisserie function.
• Tray Handle: Use this tool to safely insert and remove hot trays, racks, and the rotisserie spit from the oven.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your oven.

General Cleaning:

1. Unplug and Cool: Always unplug the oven from the power outlet and allow it to cool completely before cleaning.
2. Crumb Tray: Remove the crumb tray and discard accumulated crumbs. Wash the tray in warm, soapy water, rinse, and dry thoroughly.
3. Accessories: Wash all removable accessories (wire racks, mesh basket tray, rotisserie spit, tray handle) in warm, soapy water. For stubborn food residue, soak them before washing. Rinse and dry completely.
4. Interior: Wipe the enamel cavity walls with a damp cloth and mild detergent. For baked-on food, a non-abrasive cleaner or a paste of baking soda and water can be used. Avoid abrasive pads or harsh chemicals that could damage the enamel.
5. Exterior: Wipe the exterior surfaces with a damp cloth. Do not use abrasive cleaners or scouring pads.
6. Glass Door: Clean the double glass door with a glass cleaner or a damp cloth.

Storage:

Ensure the oven is clean and dry before storing. Store in a cool, dry place. Do not wrap the cord tightly around the appliance.

7. Troubleshooting

If you encounter issues with your Mayer Digital Oven, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Mayer customer support.

8. Specifications

• Model: MMAO40D
• Capacity: 40 Liters
• Power: 1850 Watts
• Voltage: 1600 Volts
• Temperature Range: 60°C - 230°C
• Timer: Up to 120 minutes
• Dimensions (Product): 47.1 cm (D) x 42.4 cm (W) x 43.2 cm (H)
• Weight: 11.96 kg
• Material: Aluminium, Plastic
• Special Features: Counter-top convection oven with built-in air fryer, 9 preset functions, 18 preset menus, LED screen display and digital control panel, Double glass door for strong heat retention, Enamel cavity wall with oven lamp, Powerful stainless steel heating element, 2-piece top and bottom heating elements for convection oven functions, Spiral coil heating element for air frying functions, Overheating protection.

9. Warranty and Support

Mayer products are designed and manufactured to the highest quality standards. For warranty information, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official Mayer website.

For customer service inquiries, please contact Mayer support through their official channels. When contacting support, please have your product model number (MMAO40D) and purchase details ready.

Website: www.mayer.sg
