1. Introduction
Thank you for choosing the Hofstein Loria Outdoor Floor Lamp. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new outdoor lighting fixture. Please read these instructions carefully before assembly and retain them for future reference.
Figure 1: The Hofstein Loria Outdoor Floor Lamp, highlighting its antique design and IP44 weather protection.
2. Safety Instructions
Always follow basic safety precautions when installing and operating electrical equipment. Failure to do so may result in fire, electric shock, or serious injury.
- Professional Installation: Installation should be performed by a qualified electrician or in accordance with local electrical codes.
- Power Disconnection: Ensure the main power supply is switched off at the circuit breaker before commencing any installation, maintenance, or bulb replacement.
- Voltage: This fixture is designed for a 230 Volt electrical supply.
- IP44 Rating: This product is rated IP44, meaning it is protected against solid objects larger than 1mm and against splashing water from any direction. It is suitable for outdoor use but should not be submerged in water.
- Bulb Type: Use only E27 bulbs with a maximum wattage of 60 Watts per socket. Do not exceed the recommended wattage.
- Handling: Handle glass components with care to prevent breakage.
- Grounding: Ensure the fixture is properly grounded to prevent electric shock.
3. Package Contents
Carefully unpack the box and ensure all parts are present and undamaged. If any parts are missing or damaged, do not attempt to assemble the lamp. Contact customer support immediately.

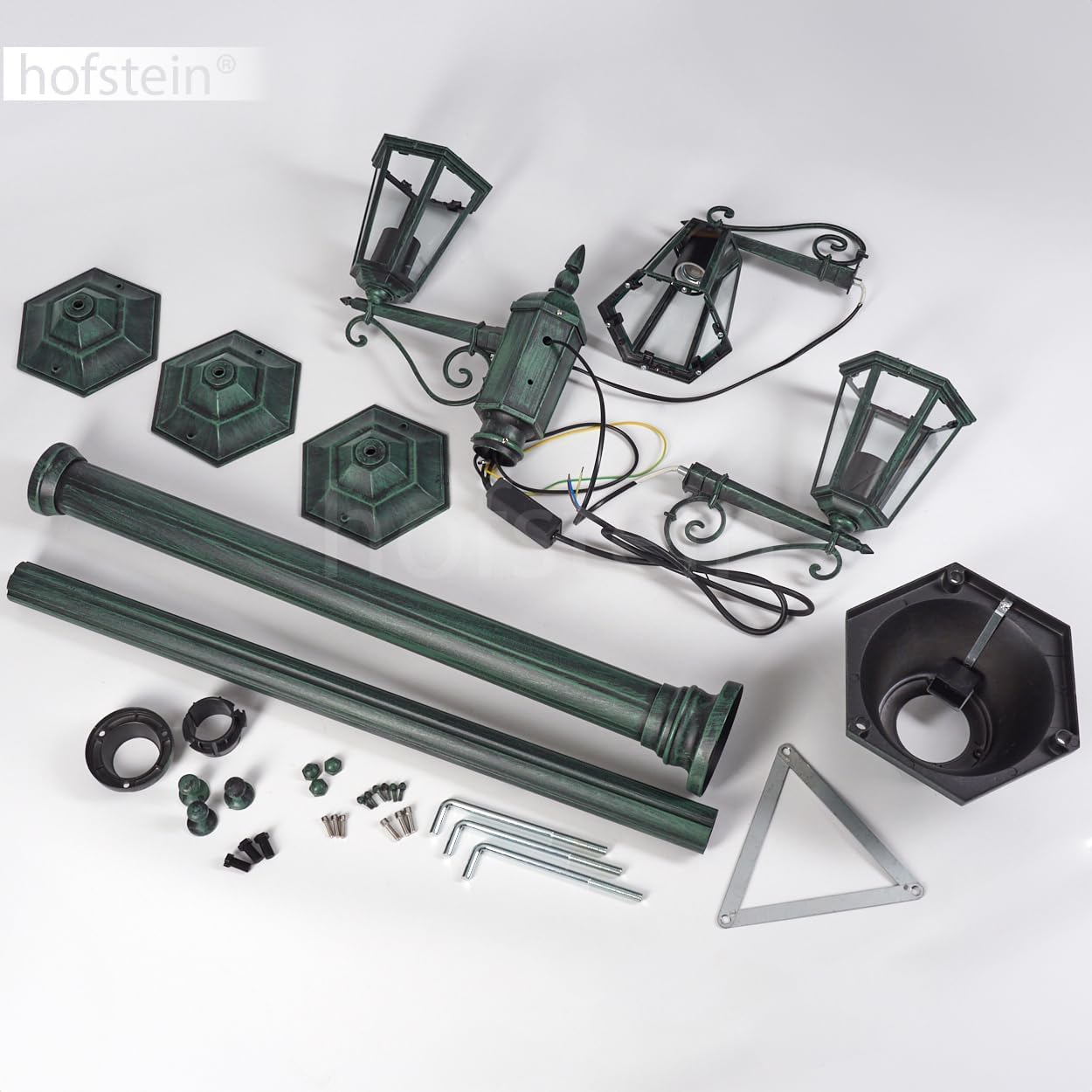

Figure 2: Exploded view of the Hofstein Loria Outdoor Floor Lamp components.
The package should contain:
- Lamp base
- Multiple pole sections (to achieve desired height)
- Three lantern heads with E27 sockets
- Mounting bracket (triangular plate)
- Assembly hardware (screws, nuts, washers, Allen keys)
- Internal wiring and connectors
4. Setup and Installation
This outdoor floor lamp is designed for ground mounting. Ensure the installation surface is stable and level.

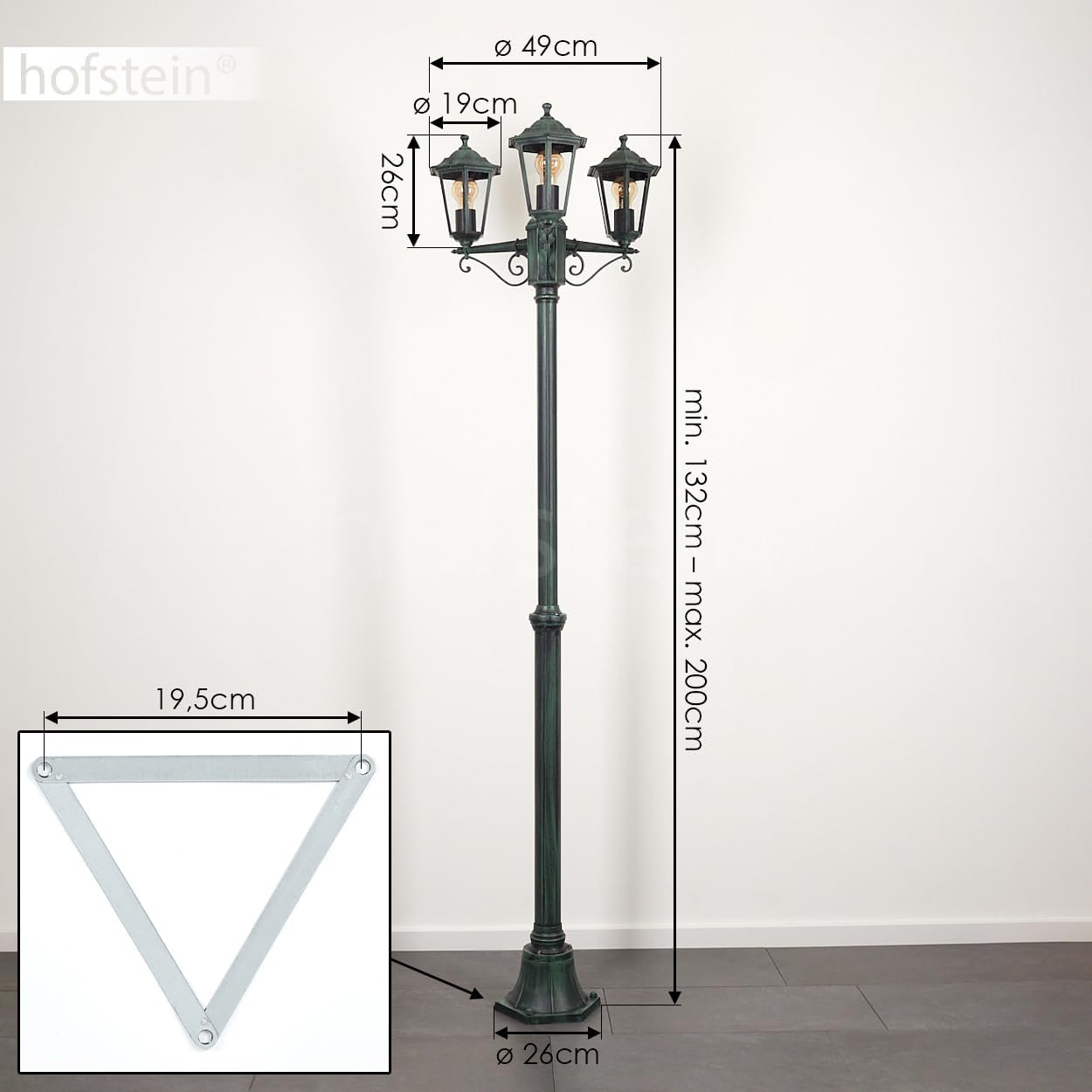

Figure 3: Product dimensions and mounting bracket detail.
- Prepare the Mounting Location: Choose a suitable outdoor location. Ensure there is access to a 230V power supply. Dig a foundation or prepare a concrete base if necessary for secure ground mounting.
- Assemble the Pole Sections: Connect the pole sections together, ensuring all connections are tight and secure. The lamp can be adjusted in height from a minimum of 132 cm to a maximum of 200 cm.
- Attach the Base: Secure the lamp base to the lowest pole section. Use the provided mounting bracket (triangular plate) and appropriate anchors (not always included, depending on surface) to firmly attach the base to the ground.
- Wire the Lantern Heads: Carefully route the electrical wires through the pole sections. Connect the three lantern heads to the top section of the pole, ensuring all electrical connections are made according to local wiring regulations.
- Install Bulbs: Insert three E27 bulbs (not included) into the sockets of each lantern head. Ensure bulbs are rated for a maximum of 60 Watts each.
- Final Assembly: Secure all covers and ensure no wires are exposed. Double-check all connections for tightness and proper insulation.
- Power Connection: Connect the lamp to the main 230V power supply. This step should be performed by a qualified electrician.

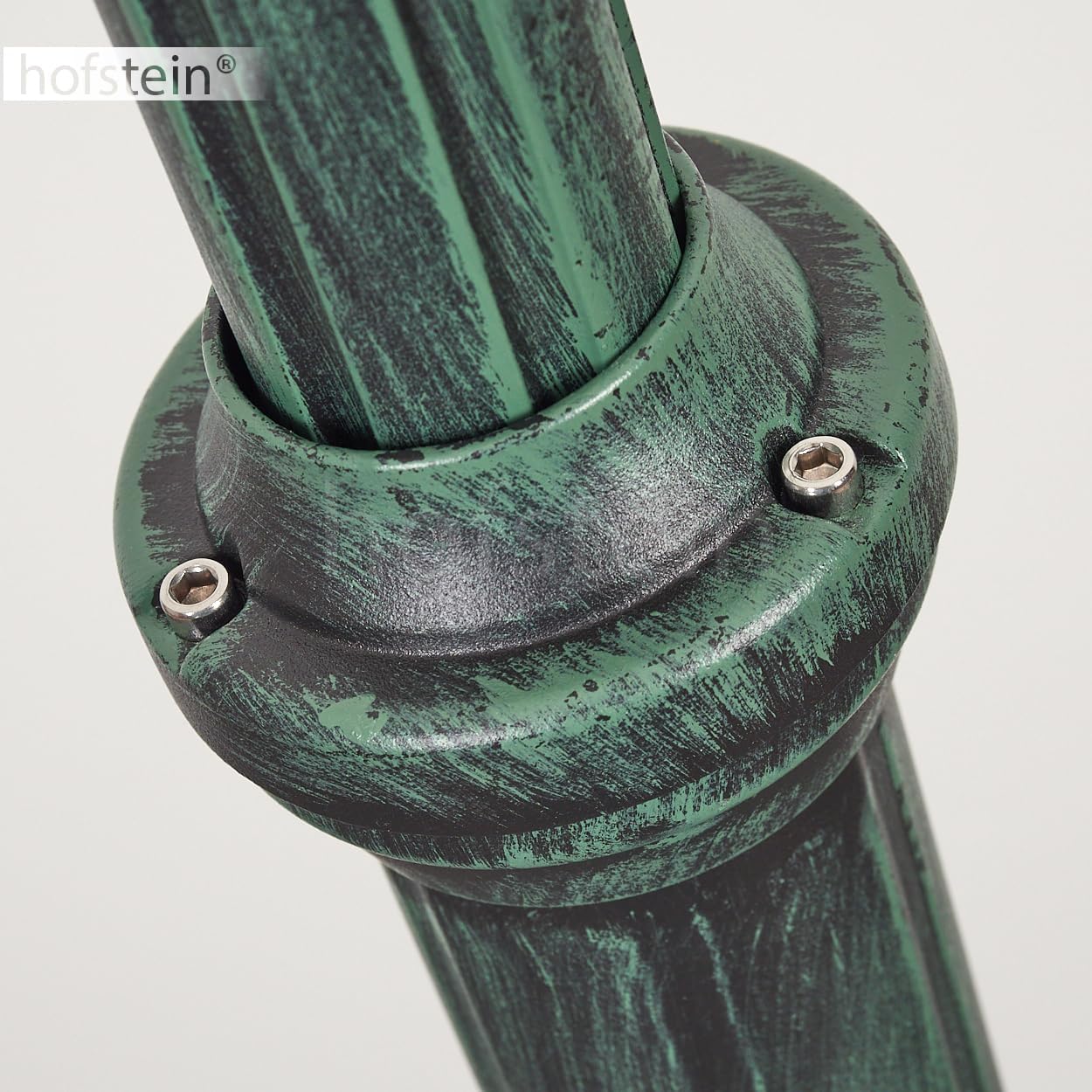

Figure 4: Detail of the pole-to-base connection.
5. Operating Instructions
Once properly installed and connected to the power supply, the Hofstein Loria Outdoor Floor Lamp operates as a standard outdoor lighting fixture.
- Switching On/Off: The lamp is controlled by an external wall switch or timer connected to its power supply circuit.
- Dimmable Functionality: This fixture is compatible with external dimmers (not included). If you wish to use a dimming function, ensure your electrical installation includes a suitable external dimmer switch.
- Motion Detector: The product specifications mention a motion detector feature. If your specific model includes this, refer to the separate instructions provided with the motion detector for its setup and operation.

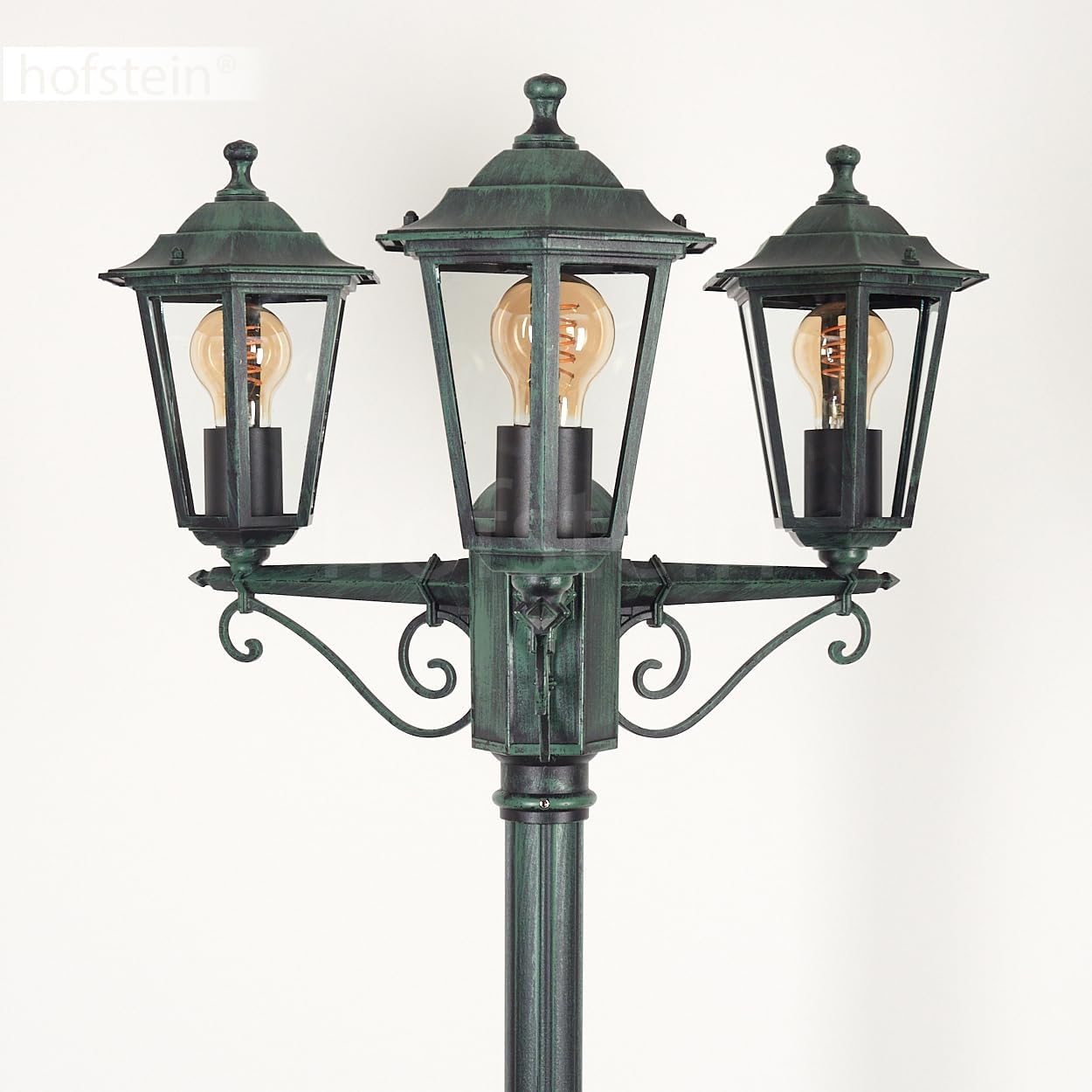

Figure 5: Detail of the three E27 lantern heads.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your outdoor lamp.
- Cleaning: Disconnect power before cleaning. Wipe the metal and glass surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Bulb Replacement: Always disconnect power before replacing bulbs. Allow old bulbs to cool completely. Unscrew the old E27 bulb and screw in a new one, ensuring it does not exceed 60 Watts.
- Inspection: Periodically inspect the fixture for any signs of wear, damage, or loose connections. Ensure the ground mounting remains secure.
7. Troubleshooting
If you encounter issues with your Hofstein Loria Outdoor Floor Lamp, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up | No power supply, faulty bulb, loose wiring, tripped circuit breaker. | Check power supply, replace bulb, inspect wiring (with power off), reset circuit breaker. |
| Light flickers | Loose bulb, unstable power, incompatible dimmer. | Tighten bulb, check power source, ensure dimmer compatibility if used. |
| Water inside lantern | Improper assembly, damaged seal, extreme weather. | Ensure all seals are correctly seated and screws are tightened. Check for cracks in glass. |
If the problem persists after attempting these solutions, please contact Hofstein customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | H3687123 |
| Type | Outdoor Floor Lamp / Candelabra |
| Height | Max. 200 cm (adjustable from 132 cm) |
| Diameter | 49 cm |
| Base Diameter | 26 cm |
| Material | Metal, Glass |
| Color | Green, Black, Transparent |
| Style | Antique, Country, Retro, Vintage |
| Number of Lights | 3 |
| Socket Type | E27 |
| Max Wattage per Bulb | 60 Watt |
| Bulbs Included | No |
| Dimmable | Yes, with external dimmer (not included) |
| Power Supply | 230 Volt |
| IP Rating | IP44 (Protected against splashing water) |
| Installation Type | Ground Mounting |
| Special Features | Motion detector (if included with specific model) |
9. Warranty and Support
Hofstein products are manufactured with quality and durability in mind. This product comes with a standard warranty against manufacturing defects. Please refer to your purchase documentation for specific warranty terms and conditions.
For technical assistance, missing parts, or warranty claims, please contact Hofstein customer support through the retailer where you purchased the product or visit the official Hofstein website. Please have your model number (H3687123) and proof of purchase ready when contacting support.
Manufacturer: HOFSTEIN
ASIN: B0CTMD743S
