1. Introduction and Overview
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Smad 13.9 Cu Ft Top Freezer Refrigerator, model HD-517FWE. Designed for apartment living, offices, and dorms, this appliance offers versatile storage with a 10.3 cu.ft fresh food compartment and a 3.6 cu.ft freezer.
Figure 1.1: Front view of the Smad 13.9 Cu Ft Top Freezer Refrigerator.
Key features include adjustable glass shelves, spacious drawers, and a 3-temperature zone control system for optimal food preservation. The unit is designed for quiet operation and energy efficiency, making it suitable for various living environments.
Figure 1.2: Internal capacity breakdown, illustrating the 10.3 cu.ft refrigerator and 3.6 cu.ft freezer sections.
2. Safety Information
Please read all safety warnings and instructions carefully before installing and using this appliance to prevent personal injury or property damage. Keep this manual for future reference.
2.1 Electrical Safety
- Ensure the refrigerator is connected to a properly grounded 110 Volt AC outlet.
- Do not use extension cords or ungrounded adapters.
- Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly.
- Do not operate the refrigerator if the power cord or plug is damaged.
2.2 General Safety
- This appliance is intended for household use only.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Ensure the appliance is placed on a firm, level surface to prevent vibration and noise.
- Supervise children when they are near the appliance.
3. What's in the Box
Carefully unpack your refrigerator and check that all items are present and undamaged. The package should contain the following:
- Smad 13.9 Cu Ft Top Freezer Refrigerator Unit
- 4 x Shelves (3 glass shelves for refrigerator, 1 for freezer)
- 1 x Drawer (Crisper)
- 1 x Phillips screwdriver
- 1 x 5/16" socket and ratchet
- 1 x Putty knife
- 1 x Thin-blade screwdriver
- 1 x Masking tape
Figure 3.1: Product and accessories diagram, illustrating the placement of shelves, drawers, and door bins.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your refrigerator.
4.1 Choosing a Location
- Place the refrigerator on a flat, stable surface strong enough to support its weight when fully loaded.
- Allow adequate space around the unit for proper ventilation (at least 2 inches on sides and back).
- Avoid direct sunlight or proximity to heat sources like stoves or radiators.
- Ensure the ambient temperature is within the recommended operating range for refrigerators.
Figure 4.1: Product dimensions and internal storage features.
4.2 Leveling the Appliance
Use the adjustable leveling feet at the bottom of the refrigerator to ensure it is perfectly level. This prevents vibration and ensures proper door sealing.
4.3 Door Reversal
This refrigerator features a reversible door design, allowing you to change the door swing direction to suit your space. Refer to the detailed instructions provided in the separate door reversal kit or the manufacturer's online resources for step-by-step guidance. The included tools (Phillips screwdriver, socket and ratchet, putty knife, thin-blade screwdriver, masking tape) are for this purpose.
4.4 Power Connection
After positioning and leveling, plug the refrigerator into a dedicated, grounded 110 Volt AC electrical outlet. Allow the unit to stand for at least 2-4 hours before loading with food to allow refrigerants to settle.
5. Operating Instructions
Your Smad refrigerator is designed for user-friendly operation.
5.1 Temperature Control
The refrigerator features a 3-temperature zone control system with High, Medium, and Low settings for both the fresh food compartment and the freezer. Adjust the thermostat dial located inside the refrigerator compartment to your desired cooling level.
- Freezer: Offers 3 settings to maintain temperatures below 0.4°F for optimal freezing.
- Refrigerator: Offers 3 adjustments to maintain temperatures between 32°F and 64°F for fresh produce and beverages.

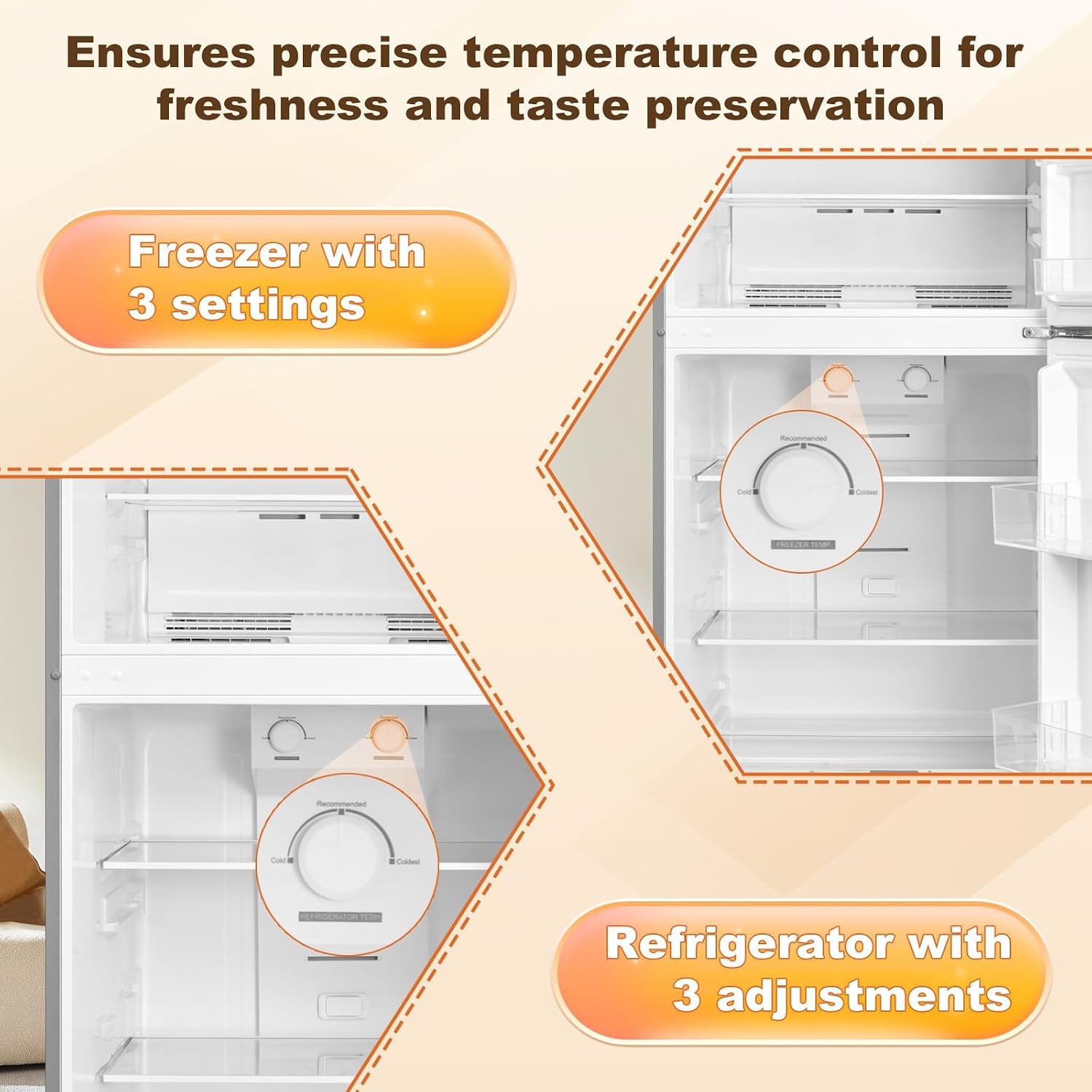

Figure 5.1: Temperature control dials for precise temperature management.
5.2 Storage Organization
- Adjustable Glass Shelves: Reposition shelves to accommodate items of various heights.
- Spacious Drawers: Ideal for storing fruits and vegetables, helping to maintain their freshness.
- Door Bins: Convenient for bottles, jars, and smaller items.
Figure 5.2: Example of organized interior storage.
6. Maintenance and Care
Regular maintenance ensures optimal performance and extends the life of your refrigerator.
6.1 Cleaning
- Interior: Clean regularly with a solution of mild detergent and warm water. Wipe dry with a soft cloth.
- Exterior: Wipe down the stainless steel exterior with a soft cloth and a non-abrasive cleaner designed for stainless steel.
- Door Gaskets: Clean door gaskets with warm soapy water to ensure a tight seal.
- Condenser Coils: Periodically vacuum the condenser coils at the back or bottom of the unit to improve efficiency.
6.2 Defrosting
This refrigerator features a Frost Free defrost system, which automatically prevents ice buildup in the freezer compartment. Manual defrosting is generally not required.
6.3 Energy Efficiency Tips
- Avoid placing hot food directly into the refrigerator. Allow it to cool to room temperature first.
- Do not open the doors too frequently or for extended periods.
- Ensure the door seals are clean and intact to prevent cold air from escaping.
- Keep the refrigerator full, as a full refrigerator retains cold better.
Figure 6.1: Highlighting the quiet and energy-efficient operation of the refrigerator.
7. Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power, tripped circuit breaker, or unplugged. | Check power cord connection, reset circuit breaker, ensure outlet is functional. |
| Refrigerator is not cold enough. | Temperature setting too high, door left open, or excessive food load. | Adjust thermostat to a colder setting, ensure door is closed properly, avoid overloading. |
| Excessive noise. | Appliance is not level, items vibrating inside, or normal operating sounds. | Level the refrigerator using adjustable feet, rearrange items, note that some sounds (e.g., refrigerant flow) are normal. |
| Water on floor or inside. | Drain tube clogged, or high humidity. | Clear any obstructions from the drain tube, ensure proper ventilation. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Smad |
| Model Info | HD-517FWE |
| Item Weight | 128 pounds |
| Product Dimensions | 28.8"D x 27.5"W x 60.6"H |
| Capacity | 13.9 Cubic Feet |
| Refrigerator Fresh Food Capacity | 10.3 Cubic Feet |
| Freezer Capacity | 3.6 Cubic Feet |
| Annual Energy Consumption | 1.2 Kilowatt Hours |
| Installation Type | Freestanding |
| Form Factor | Compact |
| Special Features | Top freezer, 3 shelves, 1 drawer |
| Color | Off-White (Note: Product images show silver, but specification lists Off-White) |
| Voltage | 110 Volts |
| Number Of Doors | 2 |
| Defrost System | Frost Free |
| Door Material Type | Stainless Steel |
| Shelf Type | Glass |
| Certification | Energy Rating |
9. Warranty and Support
Your Smad refrigerator is backed by customer support and return policies to ensure your satisfaction.
9.1 Return Policy
This product is eligible for 30-day easy returns. Please refer to your purchase platform's return policy for detailed instructions and conditions.
9.2 Protection Plans
Extended protection plans may be available for purchase to cover your appliance beyond the standard warranty. Options may include 2-Year or 3-Year Protection Plans. Check with your retailer for availability and terms.
9.3 Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Smad customer support. Contact information can typically be found on the product packaging, the retailer's website, or the official Smad brand store online.
You can visit the Smad Store on Amazon for more information and support resources.
