BAOFENG UV-18H Two-Way Radio Instruction Manual

1. Introduction

This manual provides detailed instructions for the proper use and maintenance of your BAOFENG UV-18H Two-Way Radio. Please read this manual thoroughly before operating the device to ensure safe and efficient use. Keep this manual for future reference.

2. Product Overview

The BAOFENG UV-18H is a versatile 6-band two-way radio equipped with GPS, NOAA weather alerts, USB-C charging, and wireless frequency copy capabilities. It features a 1.77-inch LCD screen for clear display of information.

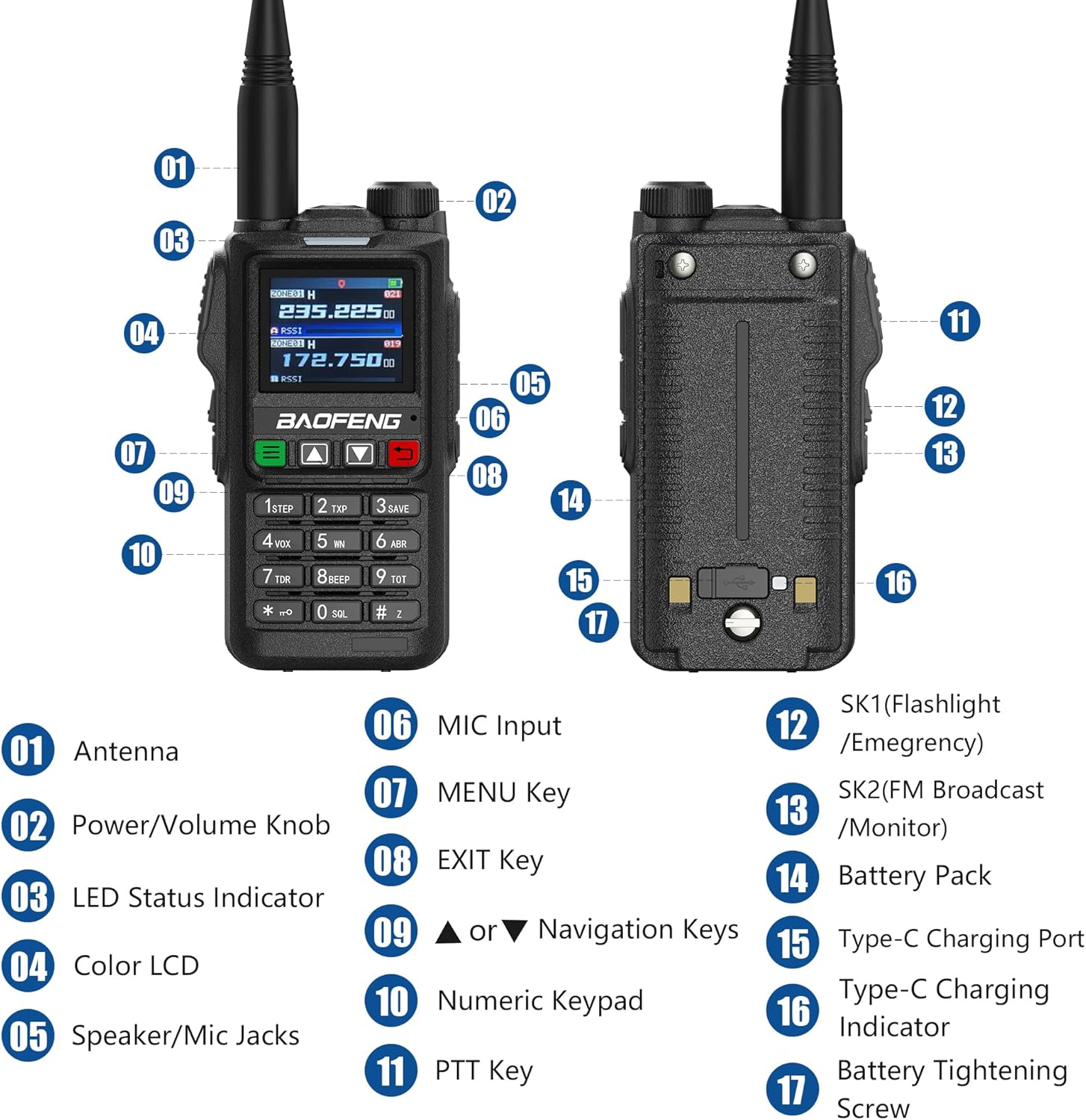

Figure 2.1: BAOFENG UV-18H Radio Components
This diagram illustrates the key components of the UV-18H radio. Numbered labels indicate: 01 Antenna, 02 Power/Volume Knob, 03 LED Status Indicator, 04 Color LCD, 05 Speaker/Mic Jacks, 06 MIC Input, 07 MENU Key, 08 EXIT Key, 09 Navigation Keys (Up/Down), 10 Numeric Keypad, 11 PTT Key, 12 SK1 (Flashlight/Emergency), 13 SK2 (FM Broadcast/Monitor), 14 Battery Pack, 15 Type-C Charging Port, 16 Type-C Charging Indicator, 17 Battery Tightening Screw.

3. Package Contents

Verify that all items are present in the package:

• UV-18H Portable Radio
• USB-C Cable
• Headset
• High Gain Antenna
• 1800mAh Large Capacity Battery
• Belt Clip
• Battery Charger (Dock and US Adapter)
• Hand Strap
• User's Manual
• 771 Antenna

4. Setup

4.1 Battery Installation

1. Align the battery pack with the grooves on the back of the radio.
2. Slide the battery pack upwards until it clicks into place.
3. Ensure the battery tightening screw (17 in Figure 2.1) is securely fastened.

4.2 Antenna Attachment

1. Screw the antenna clockwise into the connector on the top of the radio until it is finger-tight. Do not overtighten.

4.3 Charging the Battery

The UV-18H radio can be charged using the provided charging dock or directly via a USB-C cable.

Figure 4.1: Charging Options
The radio supports multiple charging methods including the base charger, direct Type-C charging, USB charging via a wall adapter, computer charging, power bank charging, and car charger options.

Using the Charging Dock:

1. Connect the AC adapter to the charging dock and plug it into a power outlet.
2. Place the radio (with battery installed) into the charging dock.
3. The charging indicator light on the dock will illuminate to show charging status.

Using USB-C Direct Charging:

1. Connect the USB-C cable to the Type-C Charging Port (15 in Figure 2.1) on the radio.
2. Connect the other end of the USB-C cable to a compatible USB power source (e.g., power bank, PC, car charger, USB wall adapter).
3. The Type-C Charging Indicator (16 in Figure 2.1) will show the charging status.

5. Basic Operation

5.1 Power On/Off and Volume Control

• Power On: Rotate the Power/Volume Knob (02 in Figure 2.1) clockwise until a click is heard.
• Power Off: Rotate the Power/Volume Knob (02 in Figure 2.1) counter-clockwise until a click is heard.
• Volume Adjustment: Rotate the Power/Volume Knob (02 in Figure 2.1) clockwise to increase volume and counter-clockwise to decrease volume.

5.2 Channel Selection

• Use the Navigation Keys (09 in Figure 2.1) to scroll through available channels.
• Alternatively, use the Numeric Keypad (10 in Figure 2.1) to directly input a channel number.

5.3 Transmitting and Receiving

• To Transmit: Press and hold the PTT Key (11 in Figure 2.1) on the side of the radio. Speak clearly into the microphone. Release the PTT key to stop transmitting.
• To Receive: Ensure the PTT key is not pressed. The radio will automatically receive signals on the selected channel.

6. Advanced Features

6.1 GPS Functionality

The UV-18H includes GPS functionality, displaying a simple compass on the screen to indicate location. This feature does not require an APRS cable. For detailed operation steps, refer to the manufacturer's video tutorials or support resources.

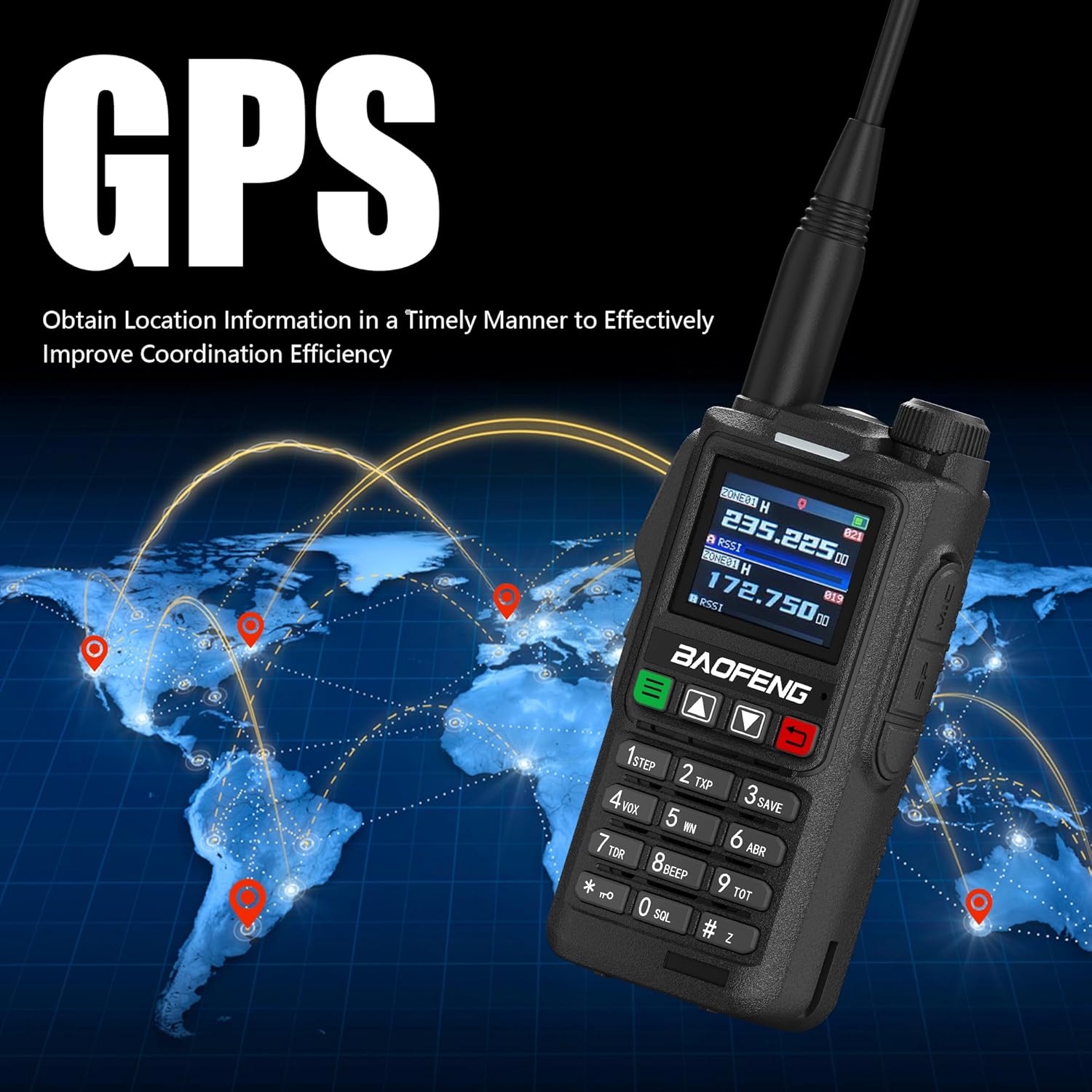

Figure 6.1: GPS Display
The radio's screen shows location information, aiding in coordination. The GPS feature provides timely location data.

6.2 NOAA Weather Alerts

The radio is equipped with NOAA weather alert capabilities, allowing users to receive important weather broadcasts and alerts to stay informed about changing conditions.

Figure 6.2: NOAA Weather Alerts
The radio provides access to NOAA weather alerts, enhancing safety by delivering timely weather information.

6.3 Wireless Copy Frequency

The wireless copy frequency function allows for easy alignment of frequencies between two UV-18H radios without complex manual settings. Simply press the designated key to initiate the frequency alignment operation.

Figure 6.3: Wireless Frequency Copy
This feature enables quick and simple frequency alignment between two radios, streamlining setup.

6.4 Scanner Function

The UV-18H includes a scanner function with VFO scan range settings. It supports three scan recovery methods, channel scanning, CTC/DCS scanning, and allows for the addition and removal of scan channels.

6.5 DTMF (Dual-Tone Multi-Frequency)

DTMF functionality enables various calling options, including individual calls, group calls, and all calls, enhancing communication flexibility within a network of compatible radios.

Figure 6.4: DTMF Calling Options
DTMF allows for targeted communication, facilitating individual, group, or broadcast calls.

6.6 AM/FM Multi-band Function

The radio supports AM/FM multi-band reception, allowing users to listen to broadcast radio in addition to two-way communication frequencies.

Figure 6.5: AM/FM Multi-band Function
The radio's multi-band capability includes AM/FM reception for broader utility.

7. Maintenance

7.1 Cleaning

• Wipe the radio's exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure the radio is powered off and disconnected from any charging source before cleaning.

7.2 Battery Care

• Avoid fully discharging the battery frequently to prolong its lifespan.
• Store the radio and battery in a cool, dry place when not in use for extended periods.
• Do not expose the battery to extreme temperatures or direct sunlight.

8. Troubleshooting

9. Specifications

10. Warranty and Support

Specific warranty details for the BAOFENG UV-18H radio are not provided in the product information. For warranty claims, technical support, or further assistance, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
