Sonneman Belle Flare LED Pendant Lighting Fixture

1. Introduction

This manual provides essential instructions for the safe installation, operation, and maintenance of your Sonneman Belle Flare LED Pendant Lighting Fixture, Model 3531.14. Please read this manual thoroughly before beginning installation and retain it for future reference. This fixture is designed for indoor use only.

Important Safety Information:

• Always disconnect power at the main circuit breaker before installation or maintenance.
• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
• If you are unfamiliar with electrical wiring, consult a qualified electrician.
• Do not install this fixture in wet or damp locations.
• Ensure the mounting surface can support the weight of the fixture.
• Do not exceed the specified voltage (120 Volts).

2. Package Contents

Carefully unpack your new fixture and lay out all parts on a clear surface. Ensure all components listed below are present and undamaged. If any parts are missing or damaged, do not attempt to install the fixture; contact customer service immediately.

• Belle Flare LED Pendant Fixture (Shade and LED module)
• Canopy/Mounting Plate
• Adjustable Cable (20 feet)
• Mounting Hardware (screws, wire nuts, etc.)
• Instruction Manual

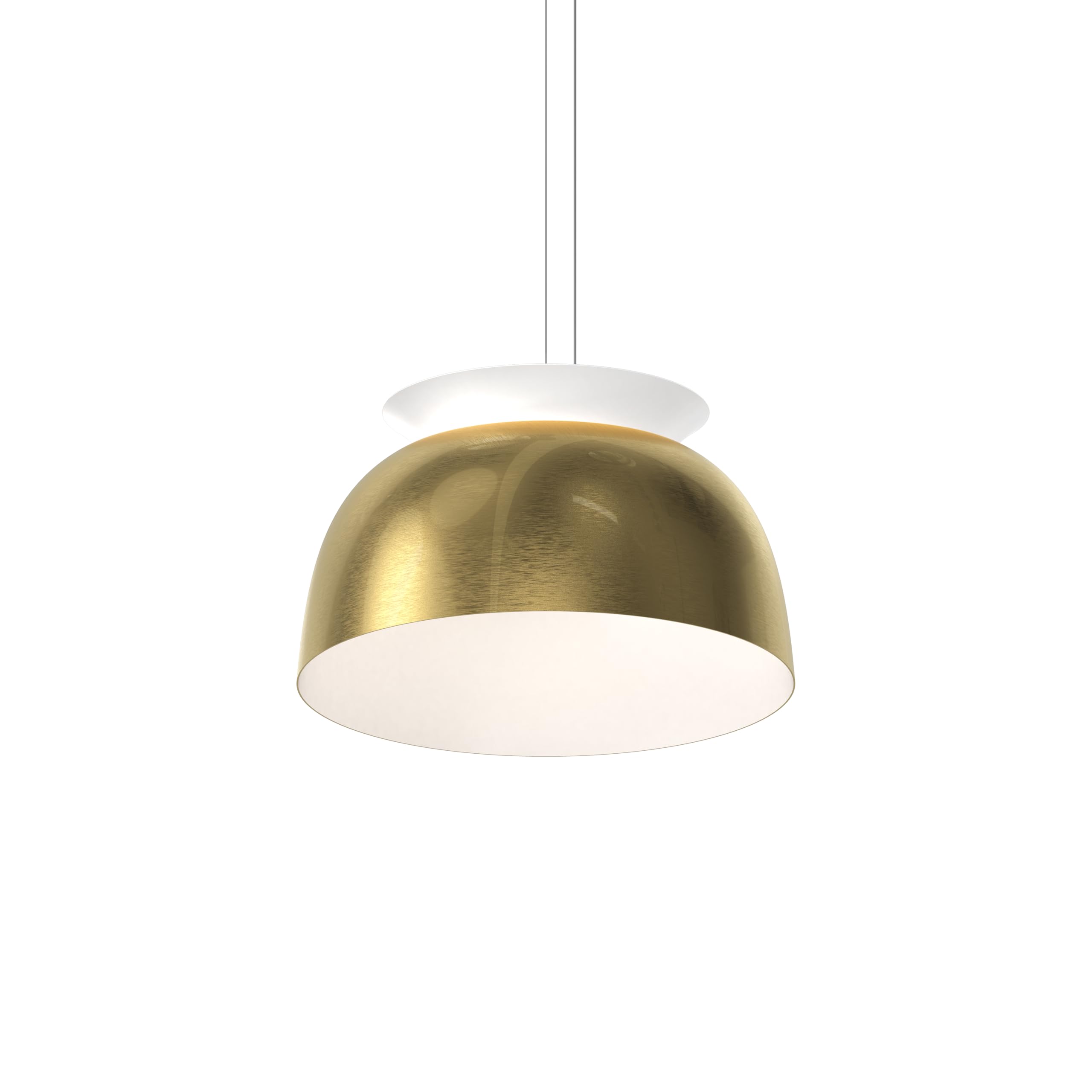

Image 2.1: Sonneman Belle Flare LED Pendant Light in Brass Finish. This image shows the complete pendant light fixture with its dome-shaped shade and adjustable cable.

3. Setup and Installation

Before installation, ensure the power is OFF at the circuit breaker. This fixture requires connection to a standard 120V AC power supply.

3.1 Pre-Installation Steps

1. Turn off power at the main circuit breaker or fuse box.
2. Carefully remove the old fixture (if applicable).
3. Identify the supply wires: Black (Live), White (Neutral), and Green or Bare Copper (Ground).

3.2 Mounting the Fixture

1. Attach the mounting plate to the junction box using the provided screws. Ensure it is securely fastened.
2. Adjust the cable length: The fixture comes with a 20-foot adjustable cable. Determine the desired hanging height for your pendant. To adjust, gently push the cable through the canopy mechanism until the desired length is achieved. Ensure the cable is taut and secure.
3. Make electrical connections:
   • Connect the fixture's black wire to the supply's black (Live) wire using a wire nut.
   • Connect the fixture's white wire to the supply's white (Neutral) wire using a wire nut.
   • Connect the fixture's ground wire (green or bare copper) to the supply's ground wire and the mounting plate's ground screw.
4. Carefully tuck all wires into the junction box.
5. Attach the fixture canopy to the mounting plate, securing it with the provided screws or decorative nuts.

Image 3.1: The Belle Flare pendant light installed above a kitchen island, demonstrating its adjustable height and modern aesthetic. This image shows the fixture in a typical installed environment.

Image 3.2: Two Belle Flare pendant lights illuminating a kitchen island, showcasing how multiple fixtures can be used to enhance a space. This image provides a broader view of the fixture's application.

Once installation is complete, restore power at the circuit breaker and test the fixture.

4. Operating Instructions

The Sonneman Belle Flare LED Pendant Lighting Fixture operates via a standard wall switch connected to the electrical circuit. Simply toggle the wall switch to turn the light on or off.

• On/Off: Use your existing wall switch to control the fixture.
• Dimming: This fixture is dimmable. For optimal performance, use a compatible LED dimmer switch (sold separately). Consult a qualified electrician for dimmer installation.

5. Maintenance

Your Belle Flare LED Pendant Fixture is designed for long-lasting performance with minimal maintenance.

• Cleaning: To clean the fixture, ensure power is off. Wipe with a soft, dry or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
• LED Light Source: The integrated LED light source is designed for the life of the fixture and is not user-replaceable. Do not attempt to disassemble the LED module.

6. Troubleshooting

If your fixture is not operating correctly, refer to the following troubleshooting guide:

If these steps do not resolve the issue, contact a qualified electrician or Sonneman customer support.

7. Specifications

8. Warranty and Support

This Sonneman Belle Flare LED Pendant Lighting Fixture is backed by a 5-year limited manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

For technical assistance, warranty inquiries, or to report missing/damaged parts, please contact Sonneman customer support. Refer to the official Sonneman website for current contact information.

Image 8.1: The official Sonneman logo, representing the brand's commitment to lighting design.
