ION Audio PA Ultimate 650 Watt Bluetooth Speaker Sound System Instruction Manual

Introduction

This manual provides detailed instructions for the safe and effective use of your ION Audio PA Ultimate 650 Watt Bluetooth Speaker Sound System. The PA Ultimate is a powerful, bi-amplified sound system designed for various audio applications, featuring Bluetooth connectivity, a multi-channel mixer, and integrated lighting effects. Please read this manual thoroughly before operating the device and retain it for future reference.

Package Contents

• ION Audio PA Ultimate Speaker
• Power Cable
• Speaker Stand
• Microphone
• Microphone Cable
• Quickstart Guide (not included in this digital manual)
• Safety & Warranty Manual (not included in this digital manual)

Safety Information

Always follow basic safety precautions when using this product to reduce the risk of fire, electric shock, and injury to persons. Keep this manual for future reference.

• Power Source: Connect the unit to a power supply only of the type described in the operating instructions or as marked on the appliance.
• Water and Moisture: Do not use this apparatus near water.
• Heat: Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Ventilation: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Grounding: This product must be grounded.
• Cleaning: Clean only with a dry cloth.
• Servicing: Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way.

Setup

1. Unpacking

Carefully remove all components from the packaging. Inspect the unit for any damage that may have occurred during shipping. If any damage is found, contact your retailer immediately.

2. Speaker Stand Assembly

The included speaker stand provides optimal height for sound projection. Extend the legs of the stand to form a stable base. Adjust the height to your desired level and secure it using the locking pin and knob. Carefully lift the PA Ultimate speaker and place it onto the stand's pole mount.

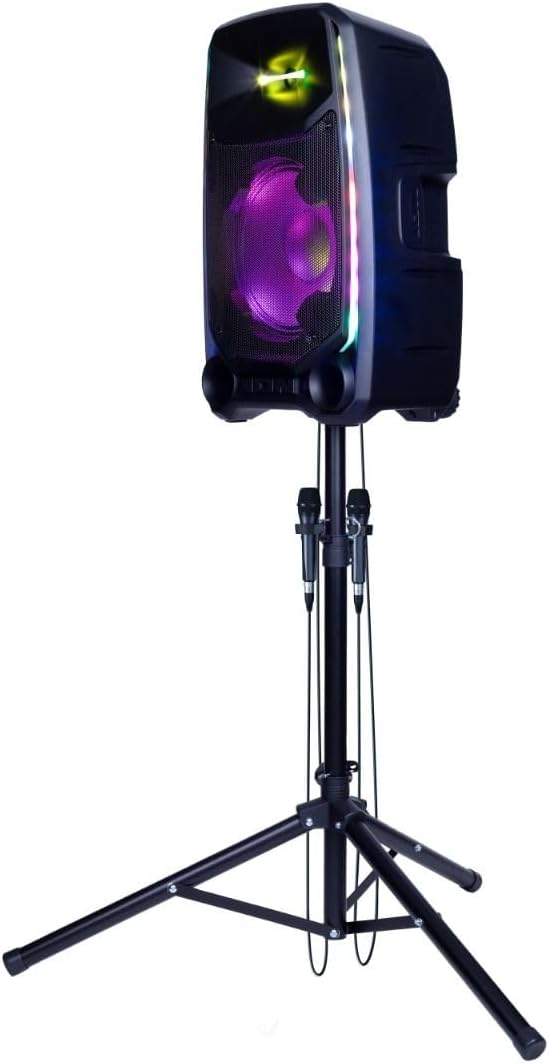

Figure 1: PA Ultimate speaker on its stand, ready for use.

3. Power Connection

Connect the included power cable to the power input on the rear panel of the PA Ultimate speaker. Plug the other end into a grounded electrical outlet. Ensure the power switch is in the OFF position before connecting to power.

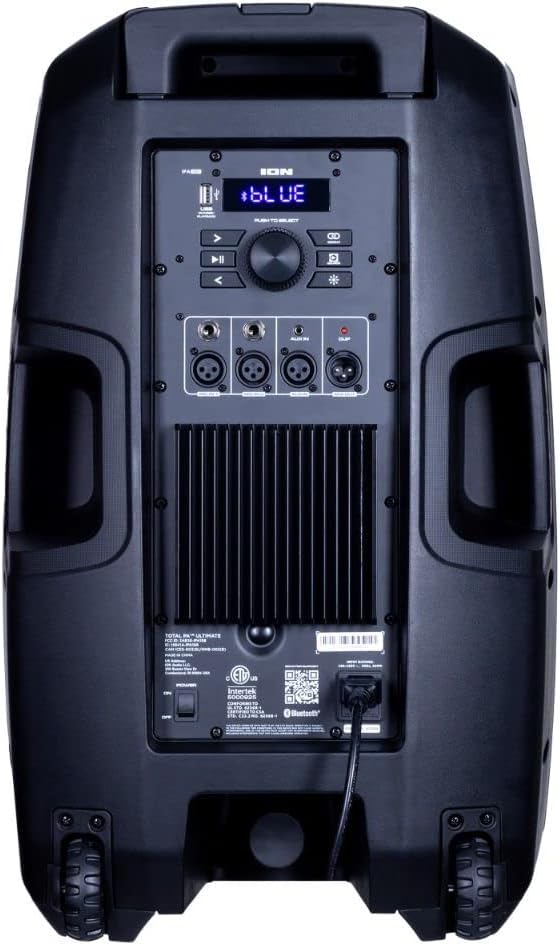

Figure 2: Rear panel with power input and control interface.

4. Microphone Connection

Connect the included microphone to one of the XLR or 1/4-inch microphone inputs on the rear panel. The PA Ultimate features two such inputs. Adjust the microphone volume using the dedicated controls on the mixer.

Figure 3: Microphones connected to the PA Ultimate speaker.

Operating Instructions

1. Power On/Off

Locate the power switch on the rear panel. Flip the switch to the 'ON' position to power on the unit. The display and lights will illuminate. To power off, flip the switch back to 'OFF'.

2. Bluetooth Pairing

1. Ensure the PA Ultimate is powered on.
2. Press the Bluetooth button on the rear panel or control interface to enter pairing mode. The Bluetooth indicator will flash.
3. On your Bluetooth-enabled device (smartphone, tablet, etc.), navigate to the Bluetooth settings and select 'ION Audio PA Ultimate' from the list of available devices.
4. Once paired, the Bluetooth indicator will glow solid, and you can stream audio wirelessly.

3. Audio Input Connections

The PA Ultimate supports multiple audio input sources:

• XLR / 1/4-inch Inputs: For microphones or line-level instruments.
• 3.5mm AUX Input: For connecting non-Bluetooth devices using a standard audio cable.
• USB Playback: Insert a USB drive containing audio files into the USB port. Use the control interface to navigate and play tracks.

4. Multi-Channel Mixer

The integrated multi-channel mixer allows for independent volume control of various inputs, including microphones and auxiliary sources. Use the master volume knob to adjust the overall output level.

5. Echo Effects

Activate and adjust the echo effect for microphone inputs using the dedicated controls on the mixer. This feature enhances vocal performances.

6. Sonic Wide Audio

The PA Ultimate features Sonic Wide Audio technology, designed to provide premium sound distribution to the front, left, and right of the speaker, ensuring a broad soundstage.

7. Edge-Glow Lighting

The Edge-Glow lighting system offers 10 distinct light modes, producing unique lighting effects in multiple colors that can dance in sync with your music. Use the light mode button on the control panel to cycle through the available options.

Figure 4: PA Ultimate speaker showcasing its Edge-Glow lighting effects.

8. Wireless Stereo-Link

To achieve a wider stereo sound, you can wirelessly connect a second ION Audio PA Ultimate speaker using the Stereo-Link technology. Refer to the specific instructions for activating Stereo-Link mode on both units.

Figure 5: Wireless Stereo-Link connection between two PA Ultimate speakers.

Maintenance

1. Cleaning

Disconnect the unit from the power source before cleaning. Use a soft, dry cloth to wipe the exterior surfaces. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish. Avoid spraying liquids directly onto the unit.

2. Storage

When not in use for extended periods, store the PA Ultimate in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to store it in its original packaging or a protective cover to prevent dust accumulation and damage.

Troubleshooting

If you encounter issues with your ION Audio PA Ultimate, refer to the following common problems and solutions:

• No Power: Ensure the power cable is securely connected to both the unit and a working electrical outlet. Check the power switch position.
• No Sound: Verify that the master volume and individual input volumes are turned up. Check all audio cable connections. Ensure your Bluetooth device is paired and playing audio.
• Bluetooth Pairing Issues: Make sure the PA Ultimate is in pairing mode. Disable and re-enable Bluetooth on your device. Move your device closer to the speaker.
• Distorted Sound: Reduce the volume of the input source or the master volume. Check for damaged cables.
• Microphone Not Working: Ensure the microphone is properly connected and its volume knob is adjusted. Check the microphone cable for damage.

If the problem persists after attempting these solutions, contact customer support.

Specifications

Warranty and Support

This product is offered as an Amazon Renewed item. Please refer to the specific warranty terms provided at the time of purchase for Amazon Renewed products. Typically, Amazon Renewed products come with a 90-day Amazon Renewed Guarantee.

For technical support, troubleshooting assistance, or warranty claims, please contact the seller or Amazon Renewed customer service directly. Contact information for ION Audio may also be available on their official website for product-specific inquiries.
