1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your XTRONS TIA723LS Android Car Multimedia Player. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage. Keep this manual for future reference.
2. Safety Information
- Professional Installation Recommended: Due to the complexity of car electrical systems, professional installation is highly recommended to avoid damage to the unit or your vehicle.
- Power Supply: Connect the unit only to a 12V DC power supply with a negative ground.
- Wiring: Ensure all wiring is correctly connected according to the wiring diagram. Incorrect wiring can cause damage or fire.
- Driving Safety: Do not operate the unit in a way that distracts you from driving. Always prioritize road safety.
- Temperature: Avoid exposing the unit to extreme temperatures or direct sunlight for extended periods.
- Moisture: Keep the unit away from water and excessive moisture.
3. Package Contents
Verify that all items listed below are present in your package:
- XTRONS TIA723LS Head Unit
- Power Cable Harness
- GPS Antenna
- USB Cables
- RCA Cables
- Mounting Brackets and Screws
- User Manual
Image: Included accessories and wiring harnesses for the XTRONS TIA723LS unit.
4. Product Overview
The XTRONS TIA723LS is an advanced Android car multimedia player designed to enhance your in-car entertainment and navigation experience. It features an Octa-core processor, 4GB RAM, 64GB ROM, and runs on an Android operating system (version 12 or later), offering a wide range of functionalities including GPS, WiFi, 4G connectivity, Wireless CarPlay, and Android Auto.

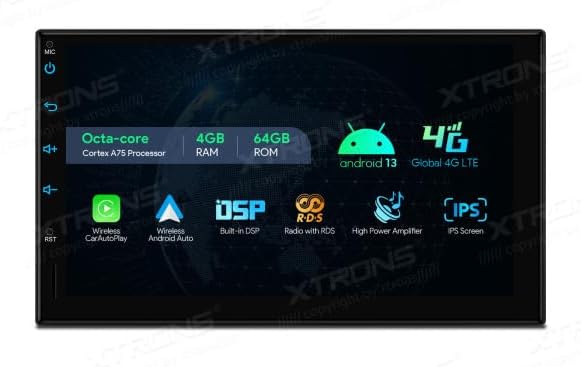

Image: Front view of the XTRONS TIA723LS displaying its main features.

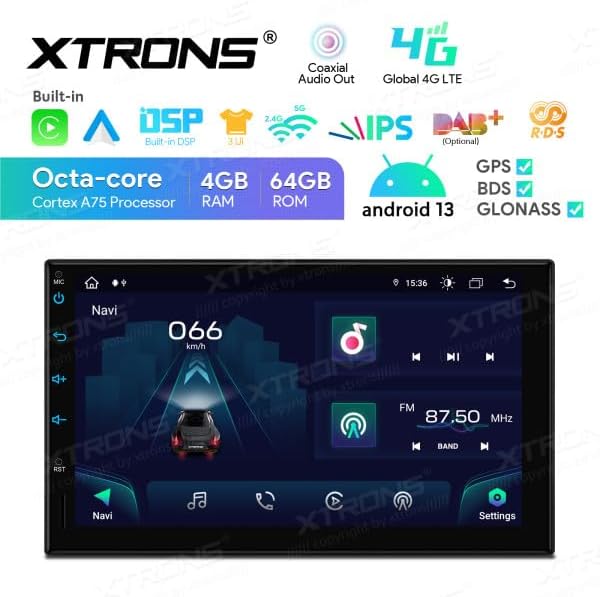

Image: User interface of the XTRONS TIA723LS showing navigation and media options.
Image: Angled view of the XTRONS TIA723LS unit and its main menu.
5. Installation
Proper installation is crucial for the performance and longevity of your multimedia player. It is strongly recommended to have the unit installed by a qualified professional.
5.1 Pre-Installation Checks
- Ensure the vehicle's ignition is off and the battery is disconnected.
- Confirm compatibility with your vehicle's dashboard and wiring harness.
- Review the wiring diagram provided with the unit.
5.2 Mounting the Unit
The unit is designed for a standard double-DIN slot. Use the provided mounting brackets and screws to secure the unit firmly into the dashboard opening.

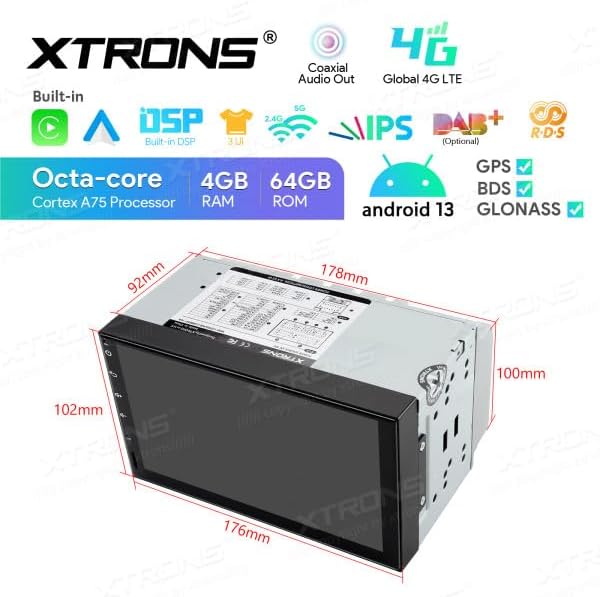

Image: Dimensions of the XTRONS TIA723LS unit for installation planning.
5.3 Wiring Connections
- Power Connection: Connect the yellow wire (constant 12V) to the vehicle's constant 12V supply, the red wire (accessory 12V) to the ignition switched 12V supply, and the black wire (ground) to a good chassis ground point.
- Speaker Connections: Connect the speaker wires to the corresponding vehicle speaker wires, ensuring correct polarity.
- GPS Antenna: Mount the GPS antenna in a location with a clear view of the sky, typically on the dashboard or under the windshield.
- USB Connections: Route the USB cables to an accessible location for connecting external devices.
- Other Connections: Connect any additional accessories such as reverse camera, external microphone, or amplifier as per the wiring diagram.
6. Basic Operation
6.1 Power On/Off
Turn the vehicle's ignition key to the ACC or ON position. The unit will power on automatically. To turn off, turn the ignition key to the OFF position.
6.2 Main Interface Navigation
The unit features a touch-sensitive IPS screen. Swipe left or right to navigate between home screens. Tap on application icons to launch them.

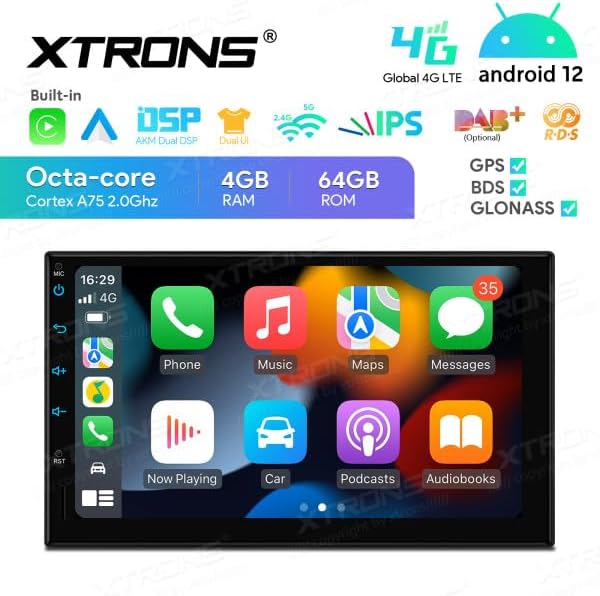

Image: Example of the XTRONS TIA723LS main application interface.
6.3 Volume Control
Adjust the volume using the on-screen controls or physical buttons if available on your specific model.
7. Advanced Features
7.1 Android Operating System
The unit runs on an Android operating system (version 12 or later), providing access to a wide range of applications via the Google Play Store. You can customize the interface, download apps, and enjoy a smartphone-like experience in your car.
7.2 Wireless CarPlay & Android Auto
Connect your iPhone or Android smartphone wirelessly to access navigation, music, messages, and calls directly on the unit's screen. Follow the on-screen instructions to pair your device.
7.3 GPS Navigation
Utilize the built-in GPS module and pre-installed navigation software (or download your preferred app) for accurate turn-by-turn directions. The unit supports GPS, BDS, and GLONASS satellite systems for enhanced positioning.
7.4 WiFi & 4G Connectivity
Connect to a WiFi hotspot or insert a 4G SIM card (if supported by your model) to access online content, stream music, browse the internet, and download applications.
7.5 Bluetooth
Pair your smartphone via Bluetooth for hands-free calling and audio streaming. Access your phonebook and call history directly from the unit.
7.6 Digital Sound Processor (DSP)
The integrated DSP allows for advanced audio customization, including equalizer settings, time alignment, and bass enhancement, to optimize your in-car audio experience.
7.7 Radio with RDS
Tune into FM/AM radio stations. The RDS (Radio Data System) feature displays station information, song titles, and traffic announcements where available.
8. Maintenance
- Cleaning: Use a soft, dry cloth to clean the screen and unit. Avoid abrasive cleaners or solvents.
- Software Updates: Periodically check for software updates from the XTRONS official website or through the unit's settings to ensure optimal performance and access to new features.
- Avoid Extreme Conditions: Do not expose the unit to extreme heat, cold, or humidity.
9. Troubleshooting
If you encounter issues with your XTRONS TIA723LS, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Incorrect wiring; Blown fuse; Vehicle battery low | Check power connections (yellow, red, black wires); Inspect vehicle fuses; Charge or replace vehicle battery. |
| No sound | Speaker wires disconnected; Volume too low; Mute activated | Verify speaker connections; Increase volume; Deactivate mute function. |
| GPS signal lost or inaccurate | GPS antenna improperly installed; Obstruction to signal | Ensure GPS antenna has a clear view of the sky; Relocate antenna if necessary. |
| Bluetooth connection issues | Device not in pairing mode; Interference | Ensure Bluetooth is enabled on both devices and in pairing mode; Try re-pairing; Move away from other wireless devices. |
| Touch screen unresponsive | Software glitch; Unit frozen | Restart the unit (turn vehicle ignition off and on); Perform a factory reset if issue persists (note: this will erase data). |
For further assistance, please contact XTRONS customer support.
10. Specifications
| Feature | Detail |
|---|---|
| Brand | XTRONS |
| Model Number | TIA723LS (Internal Part Number: b85f8467-d5f0-4c83-b1f3-85b54d55f0c0) |
| Operating System | Android 12 (or later) |
| Processor | Octa-core Cortex A75 |
| RAM | 4GB |
| ROM | 64GB |
| Connectivity | Bluetooth, USB, Wi-Fi (2.4G/5G), 4G LTE |
| Special Features | Android Auto, Apple CarPlay, Built-in DSP, RDS, GPS, BDS, GLONASS, IPS Screen |
| Compatible Devices | Smartphone |
| Control Method | Touch |
| Power Supply | 12V DC |
| UPC | 5055869158947 |
11. Warranty and Support
XTRONS products typically come with a manufacturer's warranty. Please refer to the warranty card included in your package or visit the official XTRONS website for detailed warranty terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact XTRONS customer service through their official website or the contact information provided in your product documentation.
