VINGLI Pantry Cabinet (Model pantry3733) Instruction Manual

1. Safety Information

Please read all safety instructions carefully before assembly and use. Retain this manual for future reference.

• Anti-Tipping Device: Always secure the cabinet to the wall using the provided anti-tipping device to prevent tipping and potential injury. This is crucial for stability, especially in households with children or pets.
• Weight Distribution: Distribute items evenly across shelves. Avoid placing heavy items on upper shelves or doors to maintain balance.
• Assembly: Ensure all screws and fasteners are tightened securely during assembly. Periodically check for loose connections.
• Placement: Place the cabinet on a flat, level surface to prevent wobbling.

2. Product Overview

The VINGLI Pantry Cabinet (Model pantry3733) is a versatile storage solution designed for kitchens, dining rooms, or living rooms. It features a rattan design facade, two doors, and adjustable shelves for customized storage.

Key Features:

• Adjustable Shelves: Multiple shelves inside the cabinet and on the doors can be adjusted to accommodate items of various sizes.
• Durable Construction: Crafted from high-density fiberboard for stability and weight-bearing capacity.
• Space-Saving Design: Compact dimensions suitable for smaller spaces, with a deep top surface for appliances.
• Anti-Tipping Device: Included for enhanced safety and stability.
• Rattan Design: Modern aesthetic with a natural wood-toned rattan facade.

Dimensions:

• Overall: 17.7"D x 23.6"W x 40.7"H
• Weight: Approximately 78.26 lbs

Figure 2.1: Front view of the VINGLI Pantry Cabinet with doors closed.

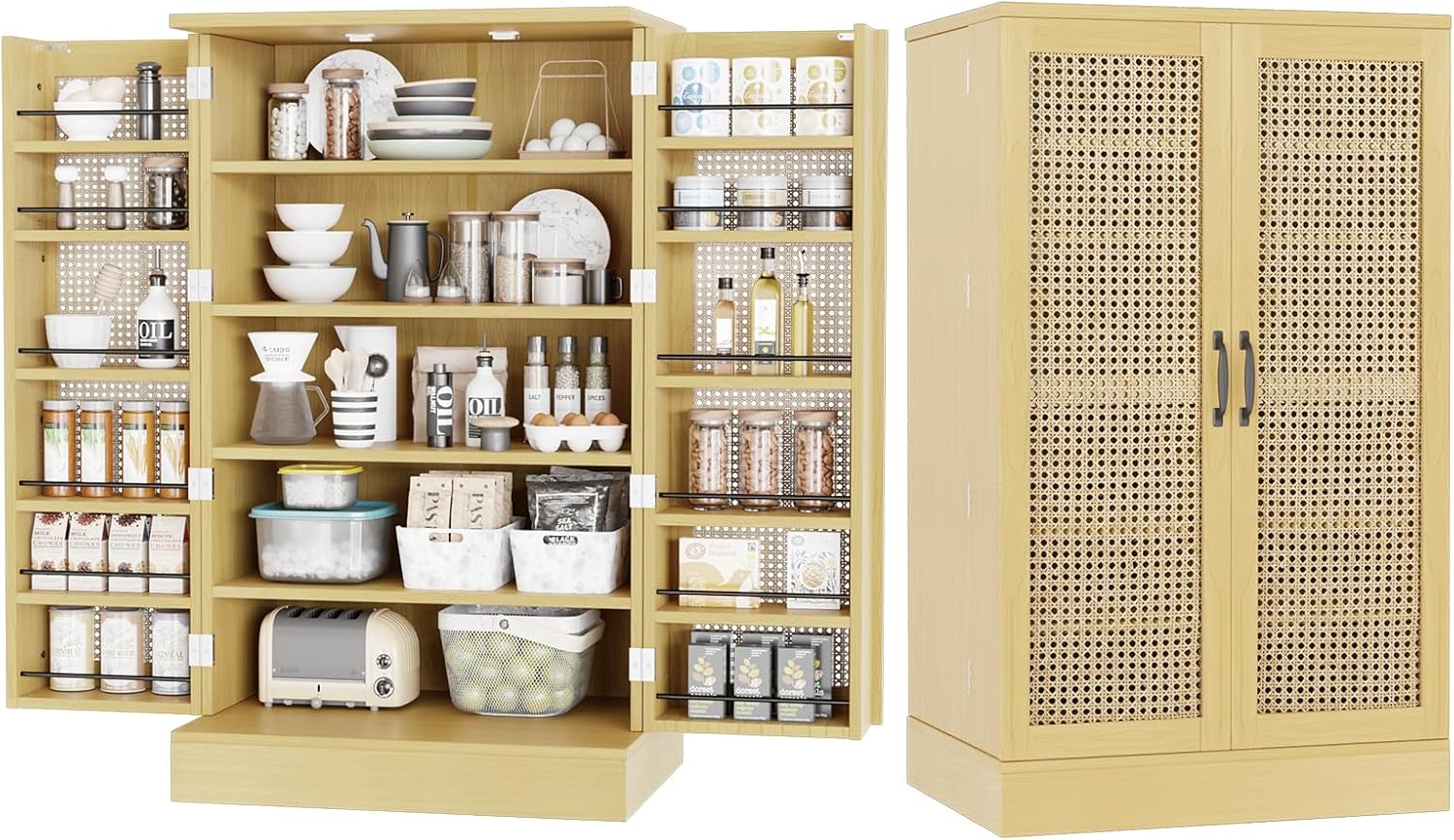

Figure 2.2: VINGLI Pantry Cabinet with doors open, showcasing internal storage and adjustable shelves.

3. Setup and Assembly

Assembly is required for this cabinet. It is recommended to have two people for assembly. Follow the visual instructions provided in the packaging carefully. Ensure all components are present before beginning.

Important Assembly Notes:

• Review Diagrams: Carefully examine all diagrams before attaching any parts. Some components may appear similar but have specific orientations.
• Tighten All Screws: Ensure all screws and fasteners are fully tightened for stability. Loose connections can lead to an unstable cabinet.
• Level Surface: Assemble the cabinet on a clean, flat, and soft surface (e.g., a rug) to prevent scratches and ensure proper alignment.
• Anti-Tipping Device: Install the anti-tipping device as the final step to secure the cabinet to a wall stud.

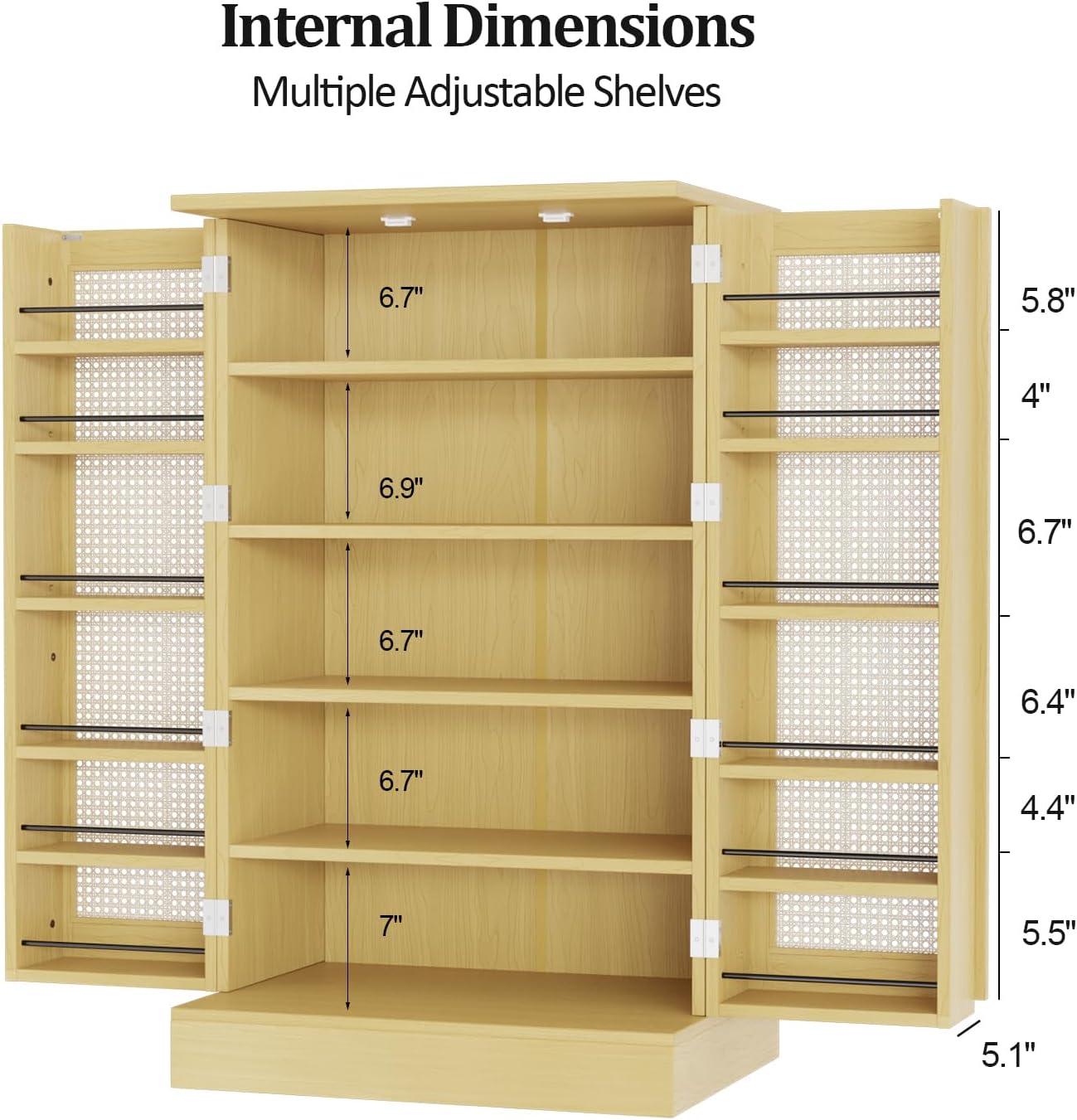

Figure 3.1: Diagram showing internal dimensions and adjustable shelf positions. Note the various height options for shelves.

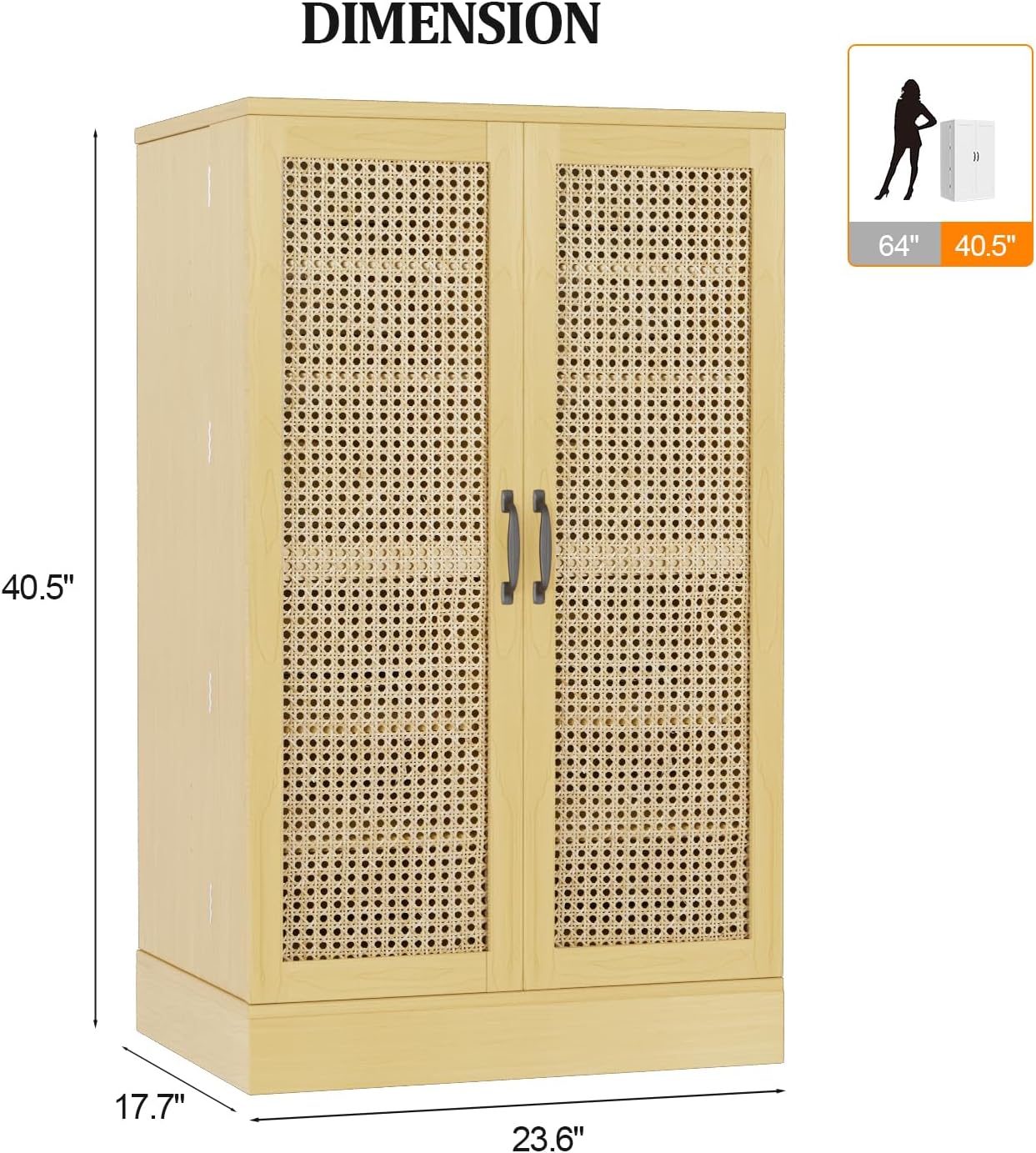

Figure 3.2: Overall dimensions of the VINGLI Pantry Cabinet: 17.7"D x 23.6"W x 40.7"H.

Figure 3.3: Detail of the anti-tipping device, which must be securely fastened to the wall.

4. Operating Instructions

The VINGLI Pantry Cabinet is designed for straightforward use. Its primary function is organized storage.

Adjusting Shelves:

1. Empty the shelf you wish to adjust.
2. Carefully lift the shelf and remove the shelf pegs from their current holes.
3. Insert the shelf pegs into the desired new holes, ensuring they are level and fully seated.
4. Place the shelf back onto the pegs.

Figure 4.1: Illustration of the adjustable shelves, showing how they can be moved up or down to customize storage space.

Using the Doors:

• The cabinet features two doors with magnetic closures to keep them securely shut.
• Gently pull the handles to open the doors.
• Ensure doors close completely to engage the magnetic latch.
• The doors also feature metal bars to prevent items stored on the door shelves from falling out.

Figure 4.2: Detail of the cabinet door handles for opening and closing.

Figure 4.3: Detail of the magnetic latch mechanism that keeps the doors closed.

5. Maintenance

Proper maintenance ensures the longevity and appearance of your VINGLI Pantry Cabinet.

• Cleaning: Wipe the cabinet surfaces with a damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Spills: Clean up spills immediately to prevent staining or damage to the engineered wood.
• Hardware Check: Periodically check all screws, hinges, and the anti-tipping device to ensure they remain tight and secure. Tighten any loose hardware as needed.
• Avoid Overloading: Do not exceed the weight capacity of the shelves. Overloading can cause structural damage.

6. Troubleshooting

If you encounter issues with your cabinet, refer to the following common solutions:

7. Specifications

8. Warranty and Support

For warranty information or customer support regarding your VINGLI Pantry Cabinet, please contact the manufacturer directly. Refer to the contact information provided with your purchase or visit the official VINGLI website.

When contacting support, please have your model number (pantry3733) and purchase details readily available.

Manufacturer: VINGLI

Brand Store: VINGLI Official Store on Amazon
