ARIEL Stafford 36-inch Bathroom Vanity with Sink Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the safe installation, proper use, and maintenance of your new ARIEL Stafford 36-inch Bathroom Vanity. Please read all instructions carefully before beginning installation or use. Retain this manual for future reference.

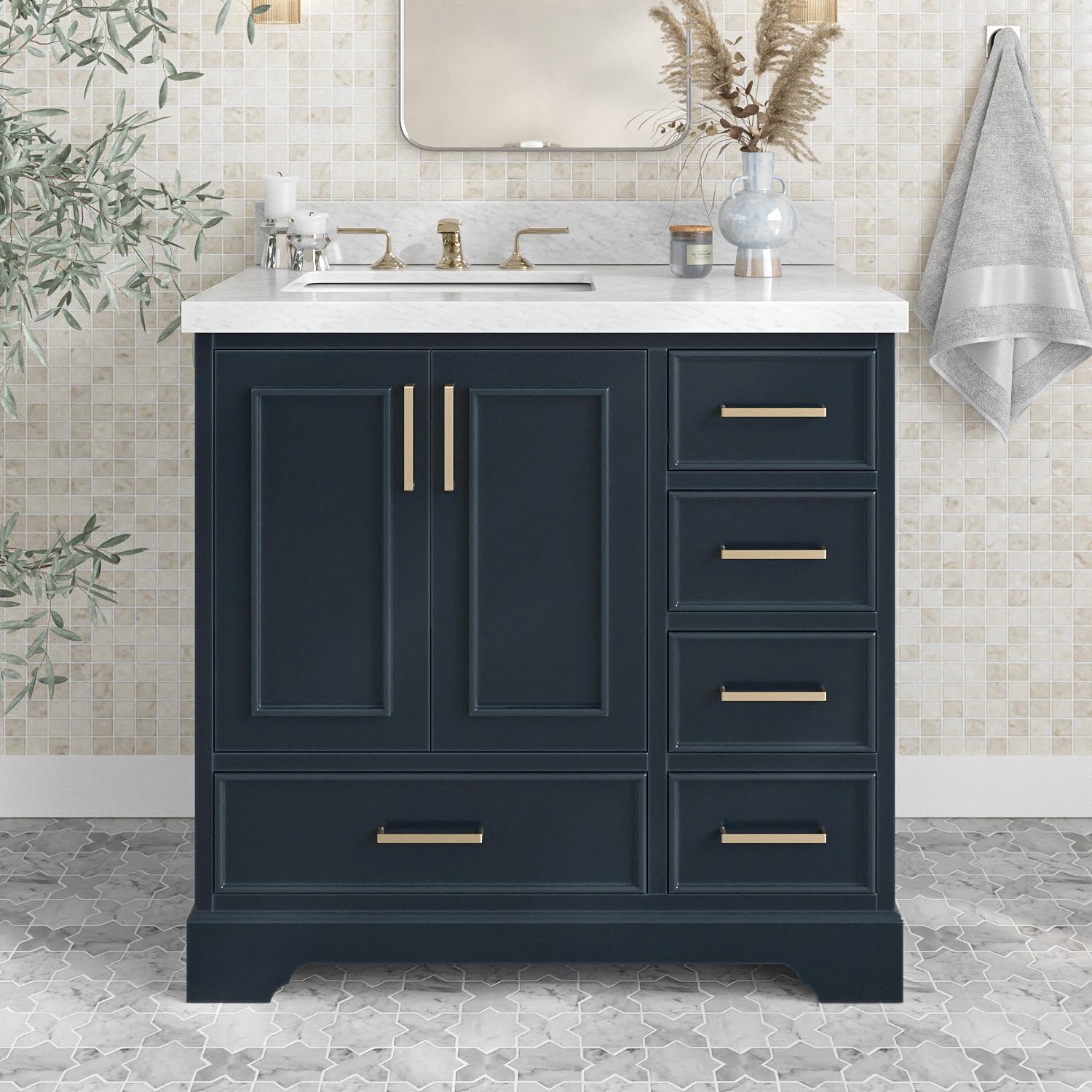

Image: The ARIEL Stafford 36-inch Bathroom Vanity in Midnight Blue with a white marble countertop and gold-toned hardware.

2. Safety Information

Always use caution when handling and installing this heavy vanity. Keep hands and fingers away from the soft-closing doors and drawers to prevent pinch points. Be careful not to damage or slip on the marble countertop. This vanity is intended for indoor use only.

It is recommended that two people handle the vanity and countertop during installation due to their weight and size.

3. What's Included

• Vanity Base Cabinet (36"W)
• Italian Carrara Marble Countertop (37"W, 1.5-inch thick)
• Single Rectangular Porcelain Sink
• Hardware (Satin Brass pulls)
• Backsplash

Image: A diagram illustrating the dimensions of the vanity and listing the included and not included components.

4. What's Not Included

• Faucets
• Mirror
• Drain
• Lights

5. Key Features

• Premium Vanity Construction: Crafted from solid hardwood and plywood for superior strength, durability, and moisture resistance. Features a Sherwin-Williams PU coating for a lasting finish.
• Natural Stone Countertop & Porcelain Sink: Polished 1.5-inch Italian Carrara Marble countertop with unique natural veining. Accompanied by a UPC certified undermount rectangular porcelain sink.
• Smart Storage: Shaker-style doors with 2 soft-closing hinges and 5 full-extension drawers with soft-close and dovetail joinery.
• Elegant Design: Finished with Satin Brass pulls for a refined look.
• Stability: Hidden leveling feet ensure a stable fit on uneven floors.

Solid Wood Construction

Soft-Closing Doors and Drawers

Dovetail Joinery

Italian Carrara Marble Countertop

6. Installation Guide

The vanity arrives fully assembled with an open back for plumbing access. Please note the countertop is not attached to the vanity; you will need to attach the sink to the countertop and the countertop to the vanity cabinet. The countertop comes pre-drilled for a 3-hole faucet with an 8-inch widespread configuration.

Installation Video Guide

Video: Step-by-step instructions on how to install a bathroom vanity, including sink and countertop attachment.

Step-by-Step Installation

1. Prepare the Countertop: Place the countertop upside down on a soft, protected surface.
2. Place the Basin: Position the porcelain basin on the bottom side of the countertop, aligning it with the pre-cut opening.
3. Mark Basin Position: Use a pencil to carefully mark the exact position of the basin on the countertop.
4. Apply Silicone to Basin: Apply a continuous bead of silicone sealant around the top edge of the basin where it will meet the countertop.
5. Attach Basin to Countertop: Flip the basin and carefully place it onto the marked position on the countertop. Press firmly to ensure good adhesion. Allow 12-24 hours for the silicone to dry.
6. Secure with Undermount Clips: Attach the provided undermount clips to secure the basin to the countertop. Tighten the screws gently to avoid overtightening.
7. Prepare Base Cabinet: Apply a continuous bead of silicone sealant around the top edges of the base cabinet where the countertop will rest.
8. Set Countertop: With assistance, carefully lift the countertop (with the attached sink) and place it onto the base cabinet, aligning it properly.
9. Install Backsplash: Apply silicone sealant to the back edge of the countertop and to the back of the backsplash piece. Carefully set the backsplash in place against the wall and countertop.
10. Wipe Excess Silicone: Immediately wipe away any excess silicone sealant with a damp cloth for a clean finish.
11. Connect Plumbing: Connect the faucet and drain according to their respective manufacturer's instructions.

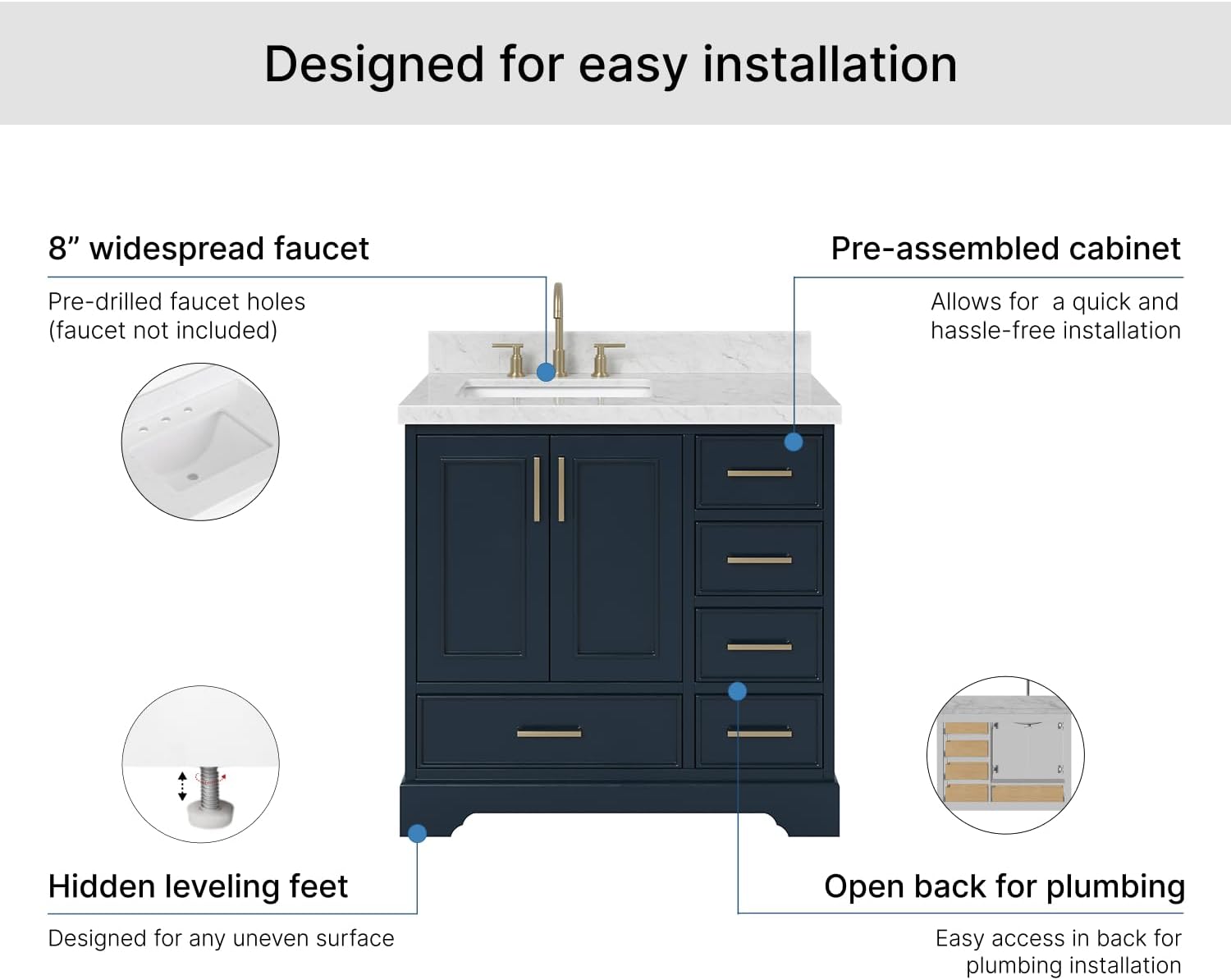

Image: An illustration highlighting the easy installation features of the vanity, including pre-drilled faucet holes, pre-assembled cabinet, hidden leveling feet, and an open back for plumbing.

7. Care and Maintenance

• General Cleaning: Wipe surfaces with a soft, damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that can damage the finish or marble.
• Marble Care: Marble is a natural stone and can be porous. Wipe up spills immediately to prevent staining. Avoid acidic cleaners (vinegar, lemon juice) as they can etch the surface. Use pH-neutral cleaners specifically designed for natural stone.
• Wood Cabinet Care: Avoid prolonged exposure to moisture. Clean with a soft cloth and a non-abrasive wood cleaner.
• Soft-Close Mechanisms: Do not force doors or drawers shut. The soft-close mechanisms are designed for gentle operation.

8. Troubleshooting

• Wobbly Vanity: Adjust the hidden leveling feet located at the bottom of the vanity to stabilize it on uneven floors.
• Drawers/Doors Not Closing Properly: Check for any obstructions. Ensure the soft-closing hinges and drawer slides are clean and free from debris. Adjust hinges if necessary.
• Water Leaks: Verify all plumbing connections are securely tightened and sealed with plumber's tape or sealant as appropriate. Check the silicone seal around the sink.

9. Specifications

10. Warranty and Support

This ARIEL Stafford Bathroom Vanity is covered by a 3-year limited warranty. This warranty covers manufacturing defects in materials and workmanship under normal use and service. For warranty claims or technical support, please contact ARIEL customer service. Keep your purchase receipt as proof of purchase.

For customer service inquiries, please refer to the contact information provided at the point of purchase or on the official ARIEL website.
