Bopzin Folding Electric Bike DC26 User Manual

1. Introduction and Safety Guidelines

Welcome to the Bopzin Folding Electric Bike DC26! This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new electric bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.

Important Safety Information:

• Always wear a helmet and appropriate safety gear when riding.
• Familiarize yourself with local traffic laws and regulations regarding electric bikes.
• Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery level.
• Do not operate the bike under the influence of alcohol or drugs.
• Avoid riding in adverse weather conditions or on slippery surfaces.
• Ensure all quick releases and fasteners are securely tightened before riding.

Figure 1.1: The Bopzin Folding Electric Bike DC26, designed for versatile riding.

2. Product Overview and Components

The Bopzin DC26 is a versatile folding electric bike equipped with powerful features for various terrains and riding styles. Below are the main components and their descriptions.

Key Features:

• Folding Portable Design: Conveniently folds to 39*39*28.7 inches and weighs 70 pounds, with adjustable seat and handlebars. Maximum load capacity of 330 pounds.
• Powerful Motor: Peak 2000W brushless motor with Shamano 21-speed shifting system, reaching a top speed of 37 mph.
• Removable Battery: 48V/20AH lithium battery offering 55-75 miles per full charge, easily removable for charging.
• Versatile Riding Modes: Three modes: bike (manual pedal), pedal assist, and electric bike (throttle only).
• Advanced Suspension: Lockable front suspension fork and rear shock absorbers for a smoother ride.
• Safe Braking: Dual disc brake system for reliable stopping power.
• Fat Tires: 26" x 4" puncture-proof fat tires for stability on diverse terrains including snow, sand, and mountain trails.

Component Breakdown:

Figure 2.1: Overall view of the Bopzin DC26 Electric Bike, showcasing its robust design and folding capability.

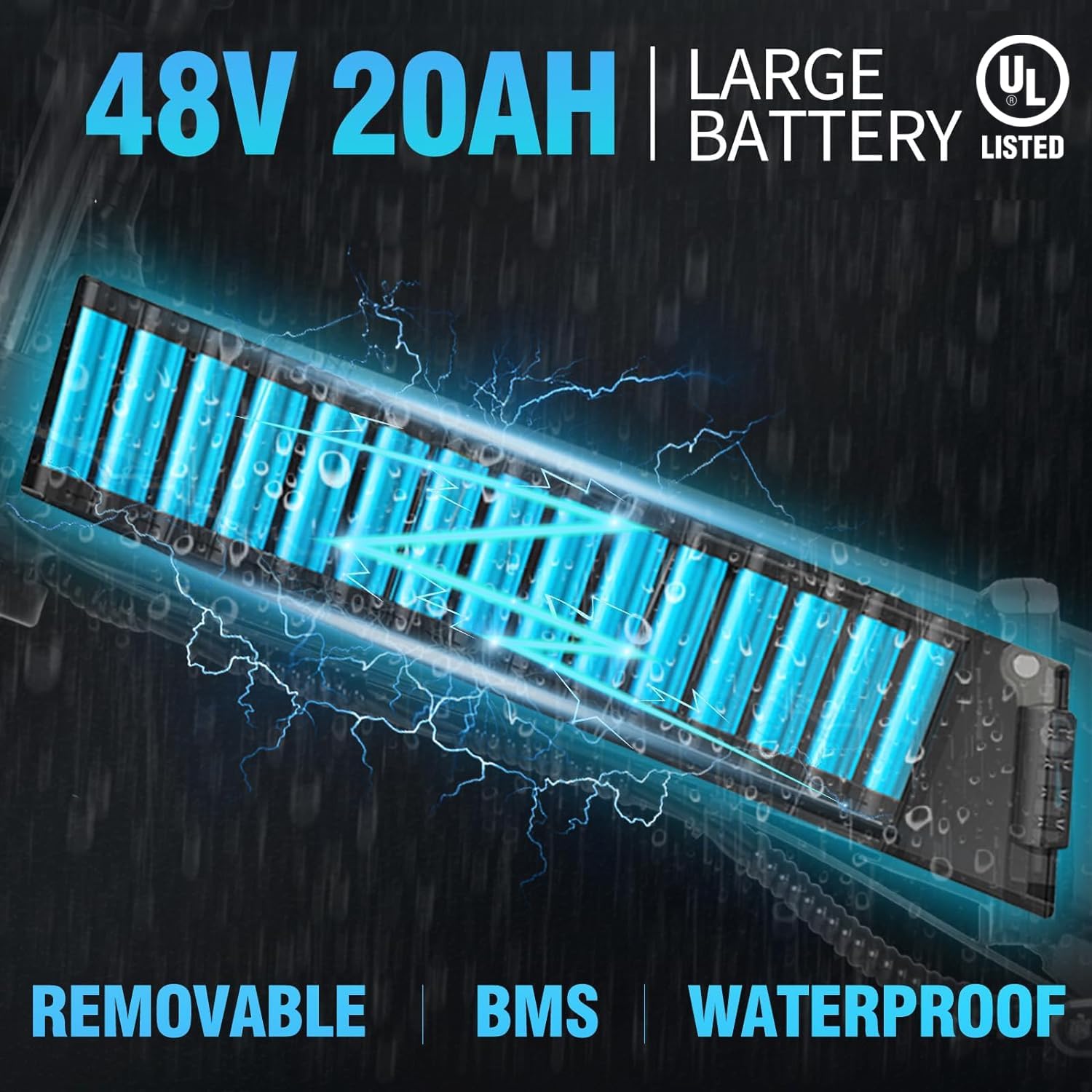

Figure 2.2: The 48V 20AH large capacity removable battery, providing extended range and convenient charging.

Figure 2.3: Close-up of the powerful peak 2000W brushless motor, offering strong climbing power and high speeds.

Figure 2.4: The 26" x 4" fat tire, designed for increased grip and improved comfort across various terrains.

Figure 2.5: Illustration of the durable extended front shock absorber and sturdy rear shock absorber for enhanced ride comfort.

Figure 2.6: The handlebar setup featuring the LCD display, non-slip grips, accelerator, and Shimano 21-speed dual control system.

Figure 2.7: The compact folded dimensions of the Bopzin DC26, highlighting its portability.

3. Initial Setup and Assembly

Your Bopzin DC26 electric bike comes mostly pre-assembled. Minimal assembly is required to get you riding. Please follow these steps carefully.

Unboxing and Component Check:

1. Carefully remove the bike and all components from the packaging.
2. Verify that all included components are present: Electric Bike, Manual, Charger, Tool Kit.
3. Inspect the bike for any visible damage that may have occurred during shipping. Contact customer support immediately if you find any issues.

Assembly Steps:

1. Unfolding the Frame: Carefully unfold the main frame of the bike until it locks into place. Ensure the folding mechanism is securely latched.
2. Handlebar Installation/Adjustment: Raise the handlebar stem and secure it. Adjust the handlebar height and angle to your preferred riding position. Ensure all quick releases are tightened.
3. Seat Post Installation/Adjustment: Insert the seat post into the frame. Adjust the seat height so your feet can comfortably touch the ground when stopped, or for optimal pedaling efficiency. Secure the quick release.
4. Pedal Installation: Identify the left (L) and right (R) pedals. Thread the pedals into the crank arms. Note that the left pedal has a reverse thread. Tighten securely with the provided tool.
5. Tire Inflation: Check the tire pressure and inflate to the recommended PSI (usually found on the tire sidewall).
6. Battery Installation: If the battery is separate, slide it into its compartment until it clicks securely. Use the key to lock it in place.

Figure 3.1: Illustration of the removable battery for easy installation and charging.

4. Operating Instructions

Understanding the different riding modes and controls will enhance your experience with the Bopzin DC26.

Riding Modes:

• Bike Mode (Manual): Ride the bike like a traditional bicycle using pedal power only. The motor is disengaged.
• Pedal Assist Mode (PAS): The motor provides assistance as you pedal. You can adjust the level of assistance (usually 1-5) via the LCD display. Higher levels provide more power.
• Electric Bike Mode (Throttle): Use the throttle to engage the motor without pedaling. This mode provides full electric power up to the maximum speed.

LCD Display and Controls:

The multifunctional LCD display provides real-time information about your ride and allows you to control various settings.

Figure 4.1: The LCD display showing key riding metrics such as battery level, current speed, pedal assist level, and total mileage.

• Power On/Off: Press and hold the power button on the display to turn the bike on or off.
• Assist Level Adjustment: Use the '+' and '-' buttons to cycle through pedal assist levels (PAS 0-5).
• Information Display: The display shows current speed, battery charge, odometer, trip distance, and assist level.
• Headlight Control: The bike features a super bright LED headlight. Activate it using the dedicated button on the handlebar controls.

Figure 4.2: The Bopzin DC26 is suitable for exploring various routes, including mountain trails, beaches, grasslands, and snowy paths.

5. Care and Maintenance

Regular maintenance ensures the longevity and optimal performance of your Bopzin DC26 electric bike.

• Battery Care:
  • Charge the battery fully before the first use.
  • Recharge the battery after each ride, or at least once a month if not in use, to maintain battery health.
  • Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.
  • Use only the original charger provided with your bike.
• Tire Maintenance:
  • Check tire pressure regularly and inflate to the recommended PSI.
  • Inspect tires for wear, cuts, or punctures before each ride.
• Brake System:
  • Regularly check brake pads for wear and replace them when necessary.
  • Ensure brake levers are firm and responsive. Adjust brake cables if they feel loose.
• Chain and Drivetrain:
  • Keep the chain clean and lubricated to ensure smooth shifting and prevent rust.
  • Inspect gears and derailleur for proper alignment and function.
• General Cleaning:
  • Clean the bike with a damp cloth and mild soap. Avoid high-pressure washing, especially near electrical components.
  • Do not submerge the bike or its electrical components in water.

6. Troubleshooting

This section addresses common issues you might encounter and provides basic troubleshooting steps.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Bopzin customer support for assistance.

7. Technical Specifications

Detailed specifications for the Bopzin Folding Electric Bike DC26.

Figure 7.1: Comprehensive specifications and dimensions of the Bopzin DC26 Electric Bike.

8. Warranty and Support

Bopzin stands behind the quality of its products. Your DC26 electric bike comes with a comprehensive warranty.

Warranty Information:

The Bopzin Folding Electric Bike DC26 is covered by a 1-Year Limited Warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear.

Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, warranty claims, or any questions regarding your Bopzin electric bike, please contact our customer support team:

• Email: support@bopzin.com (Example email, replace with actual if available)
• Phone: 1-800-XXX-XXXX (Example phone, replace with actual if available)
• Online Support: Visit the official Bopzin website for FAQs and support resources.

Our dedicated team is ready to assist you and ensure you have the best possible experience with your Bopzin electric bike.
